TASK 72-32-36-300-012 No. 2 and 3 Bearing Oil Distributor And Tubes - Related Parts - Replace The locating pin Of The Sub Oil Distributor Assembly, Repair-012 (VRS1258)

DMC:V2500-A0-72-32-3600-02A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-36-300-012 No. 2 and 3 Bearing Oil Distributor And Tubes - Related Parts - Replace The locating pin Of The Sub Oil Distributor Assembly, Repair-012 (VRS1258)

Effectivity

FIG/ITEM

PART NO.

01-400

5A1266

01-400

5A0328

01-400

5A0944

Material of component

DESCRIPTION

RR SYMBOL

MATERIAL

Sub oil distributor (5A1266, 5A0328)

Aluminium alloy

Sub oil distributor (5A0944)

Corrosion and heat resistant steel

General

Price and availability - not applicable

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Repair parts

FIG/ITEM

PART NO.

PART IDENT

QTY

01-440

AS44806

Headless shoulder pin

1

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent Penetrant Inspection Equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099
CoMat 03-026 LIQUID NITROGENLOCALCoMat 03-026
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019

GRIT SIZE 400

CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-36-350-060 Remove the Defective Locating Pin from Sub Oil Distributor Assembly

    1. Refer to Figure and Figure.

    2. Inspect and identify defective locating pin

      3. Press out defective locating pin

      1. Use hand tools.

      4. Examine for damage in bore.

      1. Remove the burrs.

      3. Refer to SPM TASK 70-35-03-300-501.

      5. Dimensionally inspect the pin hole.

      1. Ensure correct interference.

    2. SUBTASK 72-32-36-230-078 Examine the Sub Oil Distributor

      1. Fluorescent penetrant examine the pin hole

      1. Make sure there are no cracks in the pin hole. Refer to SPM TASK 70-23-05-230-501.

    3. SUBTASK 72-32-36-350-061 Install the New Locating Pin

    1. Refer to Figure and Figure.

      2. Clean the locating pin and the pin hole

      1. Use Clean dry air blast or CoMat 02-099 LINT-FREE CLOTH.

      3. Freeze the locating pin.

      1. Freeze the locating pin to aid replacement into the pin hole.

      4. Install and press the locating pin into the pin hole.

      1. Use hand tools.

    4. SUBTASK 72-32-36-220-114 Examine the Pin Seating

    1. Refer to Figure and Figure.

      2. Visually examine the pin seating.

      1. Pin shoulder must be located against flange face.

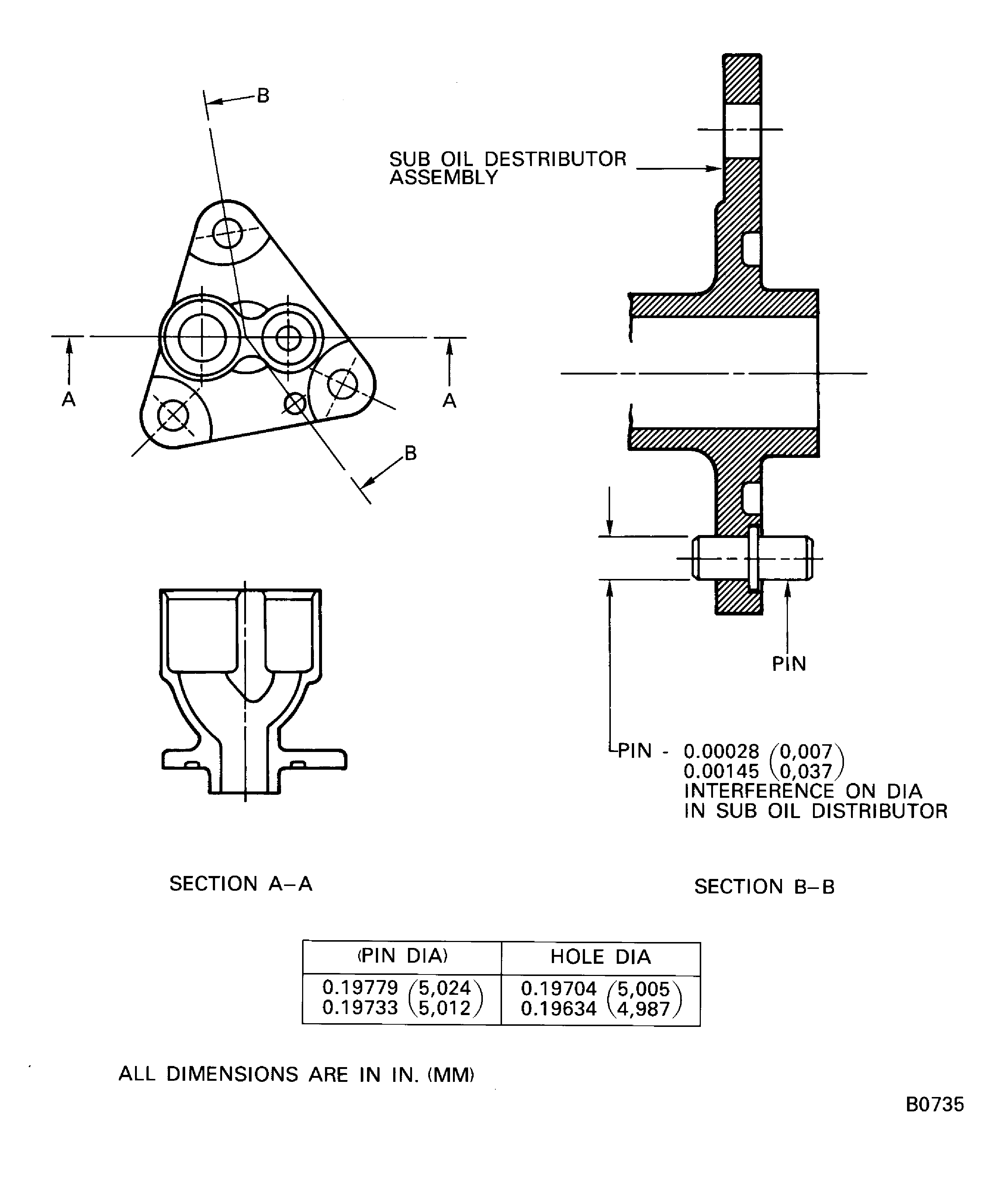

    5. Figure: Replace Locating Pin Of The Sub Oil Distributor (5A1266, 5A0328)

    Replace Locating Pin Of The Sub Oil Distributor (5A1266, 5A0328)

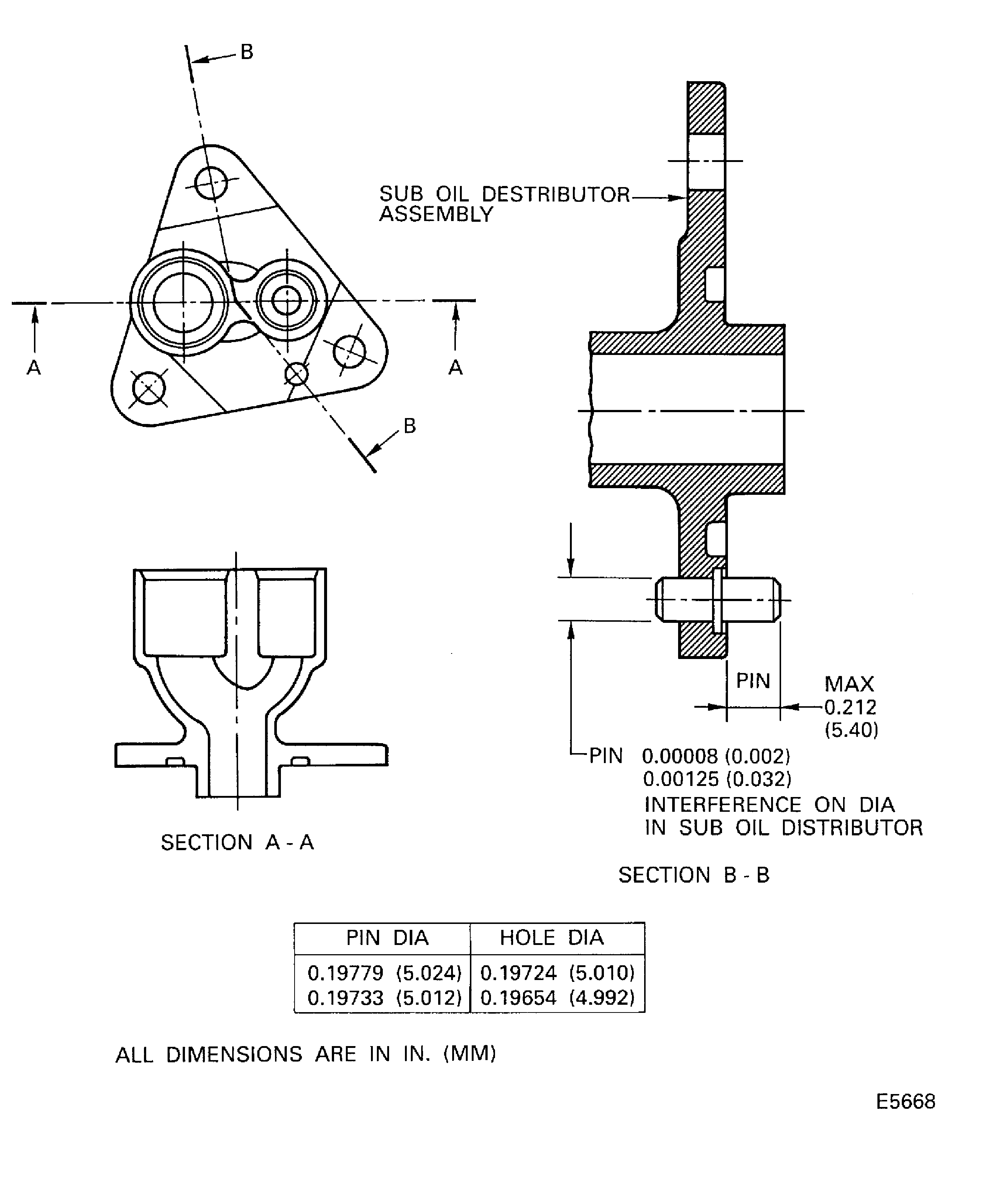

    Figure: Replace Locating Pin Of The Sub Oil Distributor (5A0944)

    Replace Locating Pin Of The Sub Oil Distributor (5A0944)
