TASK 72-32-36-300-014 No. 2 and 3 Bearing Oil Distributor And Tubes - Related Parts - Repair The Surface Damage on The Sub Oil Distributor, Repair-014 (VRS1934)

DMC:V2500-A0-72-32-3600-04A-649A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-36-300-014 No. 2 and 3 Bearing Oil Distributor And Tubes - Related Parts - Repair The Surface Damage on The Sub Oil Distributor, Repair-014 (VRS1934)

Effectivity

FIG/ITEM

PART NO.

01-400

5A0944

Material of component

PART IDENT

SYMBOL

MATERIAL

Sub oil distributor

Corrosion resistant steel

General

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 05-107 ABRASIVE STONEK6835CoMat 05-107

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-36-350-064 Remove the Damage of the Oil Distributor

    1. Refer to Figure.

      2. Scallop, make smooth and/or hand polish to remove the nicks, scratches and/or edge burrs.

      2. The surface finish of the repair must be the same as the adjacent area.

      3. Refer to SPM TASK 70-35-03-300-501.

    2. SUBTASK 72-32-36-220-128 Examine the Oil Distributor

      1. Visually examine the repaired area.

      1. Visually examine the repaired area for nicks, scratches and edge burrs.

      2. Use 10X magnifying glass.

      3. Refer to Inspection-000 TASK 72-32-36-200-400.

    3. SUBTASK 72-32-36-230-082 Examine the Oil Distributor

      1. Fluorescent penetrant examine the repaired area.

      1. Make sure that there are no cracks in the repaired area.

      2. Refer to Inspection-000.TASK 72-32-36-200-400.

      3. Refer to SPM TASK 70-23-05-230-501.

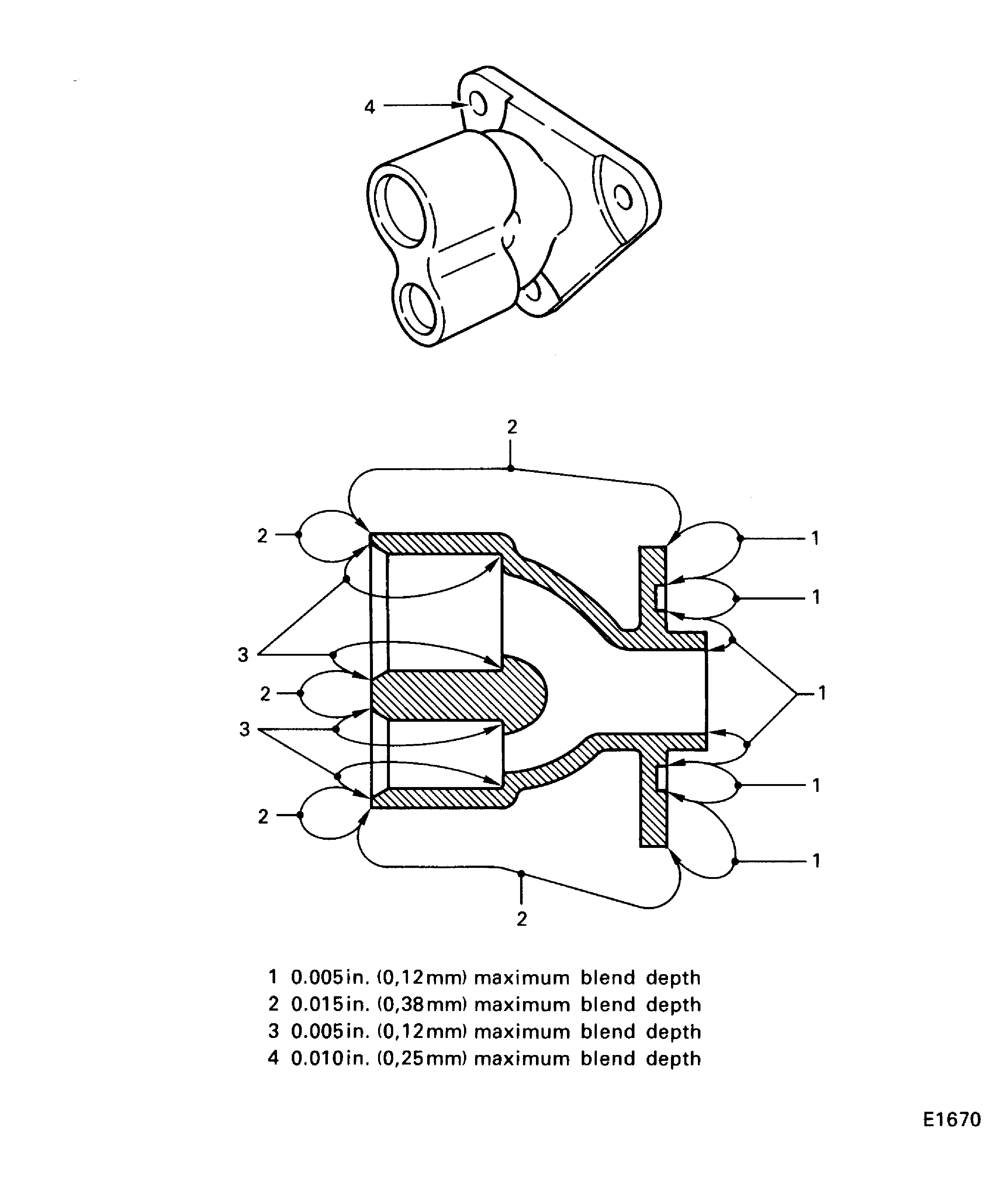

    4. Figure: Oil Distributor Repair Limit

    Oil Distributor Repair Limit

Requirements After Job Completion

Follow-On Conditions

NONE
