TASK 72-32-37-300-002 Fan Speed/Trim Balance Probes Electrical Harness - Replace The Terminals, Repair-002 (VRS1261)

DMC:V2500-A0-72-32-3700-00A-920A-C|Issue No:002.00|Issue Date:2018-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-37-300-002 Fan Speed/Trim Balance Probes Electrical Harness - Replace The Terminals, Repair-002 (VRS1261)

Effectivity

FIG/ITEM

PART NO.

01-100

5A0044

01-100

5A0244

01-100

5A1361

01-100

5A2211

General

Price and availability - none.

Material of component

PART IDENT

SYMBOL

MATERIAL

Terminal

-

Copper alloy

Sleeve marker

-

Viton

Sleeve

-

Fluoroethylenepropylene (FEP) (inner)

Tetrafluoroethylene (TFE) (outer)

Repair Parts

FIG/ITEM

PART NO.

PART IDENT

QTY

01-125

20-32492-5

Sleeve

A/R

01-130

150457

Terminal

A/R

01-165

20-32492-5

Sleeve

A/R

01-170

150457

Terminal

A/R

01-205

20-32492-5

Sleeve

A/R

01-210

150457

Terminal

A/R

01-245

20-32492-5

Sleeve

A/R

01-250

150457

Terminal

A/R

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Thermo stripperLOCALThermo stripper
Crimping toolLOCALCrimping tool
Force gageLOCALForce gage
Hot air gunLOCALHot air gun

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-37-350-058 Remove the Terminals from the NF Electrical Harness

    1. Refer to Figure and Figure.

      NOTE

      Harnesses are of sufficient length to allow the removal and replacement of the terminal three times only.

    2. Examine and identify the damaged terminals.

    3. Remove the damaged terminals. Move the sleeve marker carefully, if the distance between the sleeve on the terminal and the sleeve marker can not be kept within 0.95 in. to 1.02 in. (24 mm to 26 mm).

    2. SUBTASK 72-32-37-350-059 Install Terminals to the NF Electrical Harness

    1. Refer to Figure, Figure and Figure.

      2. Remove the insulations from the end as specified.

      1. NOTE

        Care must be taken to ensure that the wires are not damaged, because this will cause early failure.

    3. Put the terminal insulation sleeves over the cable.

      4. Put the wire into the terminal barrel ensuring a good contact, then crimp with crimping tool.

      5. CAUTION

        DO NOT APPLY A LOAD ON THE Y-SHAPED PORTION.

        Do the crimped joint pull check (cable size (A.W.G) 20).

        1. Use a Force gage.

        1. Apply load 17 N to 25 N (3.8 lbf to 4.7 lbf).

    6. Attach the terminal insulation sleeve over the terminal barrel.

      7. CAUTION

        DO NOT APPLY HOT AIR FOR MORE THAN 50 SECONDS.

        Heat-shrink the sleeve with a hot air gun, at air temperature of 770 deg F to 860 deg F (410 deg C to 460 deg C) after five minutes warm up period. Apply heat until the sleeve becomes transparent, continue heating for a further 10 to 15 seconds to ensure that the inner sleeve has fully heated and a plastic state is got. As soon as you have the above condition, stop hot air.

    3. SUBTASK 72-32-37-220-062 Examine the Repaired Areas of the NF Electrical Harness

    1. Refer to Figure and Figure.

    2. Visually examine for no signs of splitting and no heat damage.

    3. Dimensionally examine the cable length of the repaired harness.

    4. SUBTASK 72-32-37-750-056 Do the Test for Continuity and Insulation Resistance

      1. Do the test for continuity and insulation resistance.

      1. Refer to TASK 72-32-37-700-301 (TESTING-001).

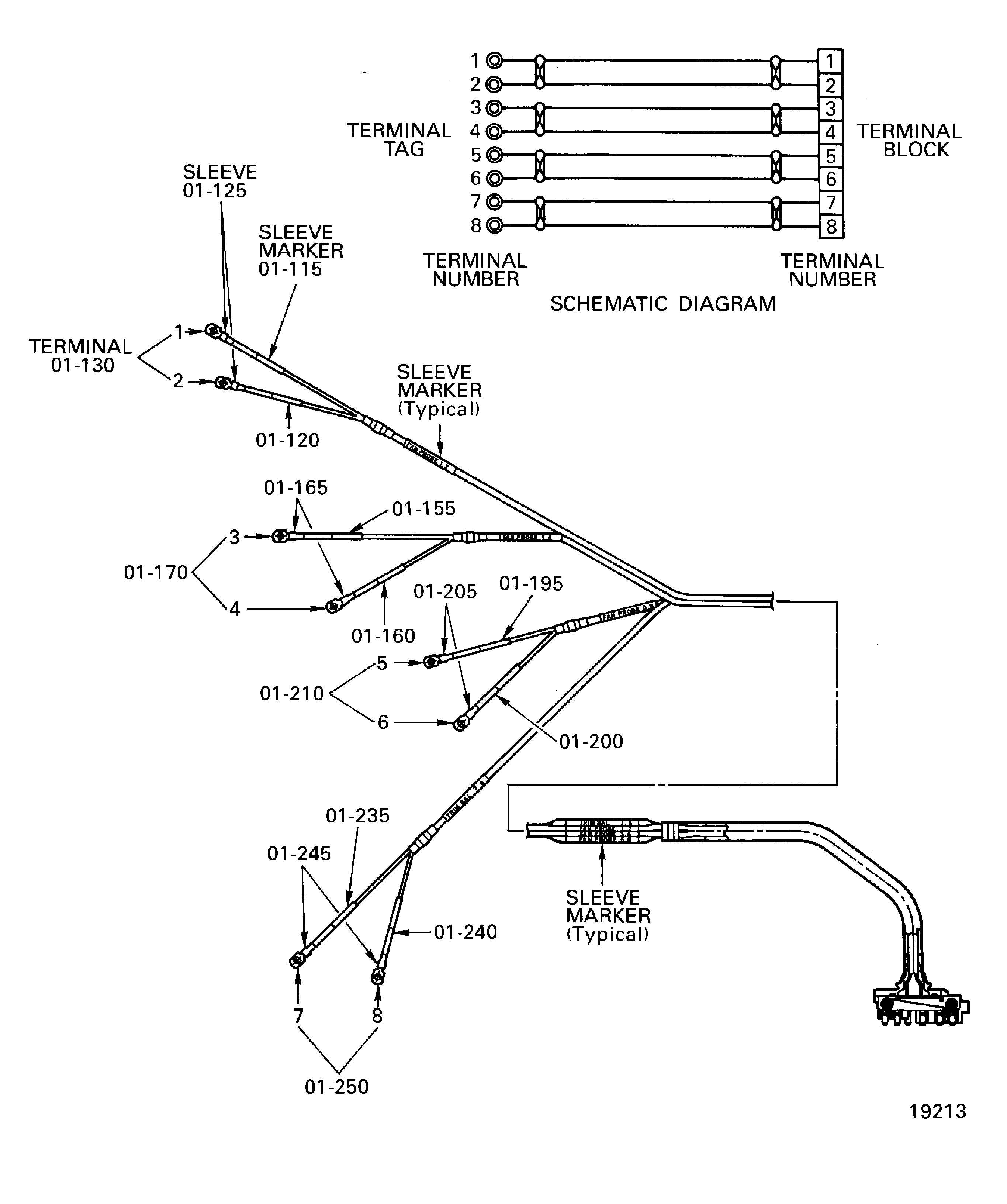

    5. Figure: Replace the Terminals

    Replace the Terminals

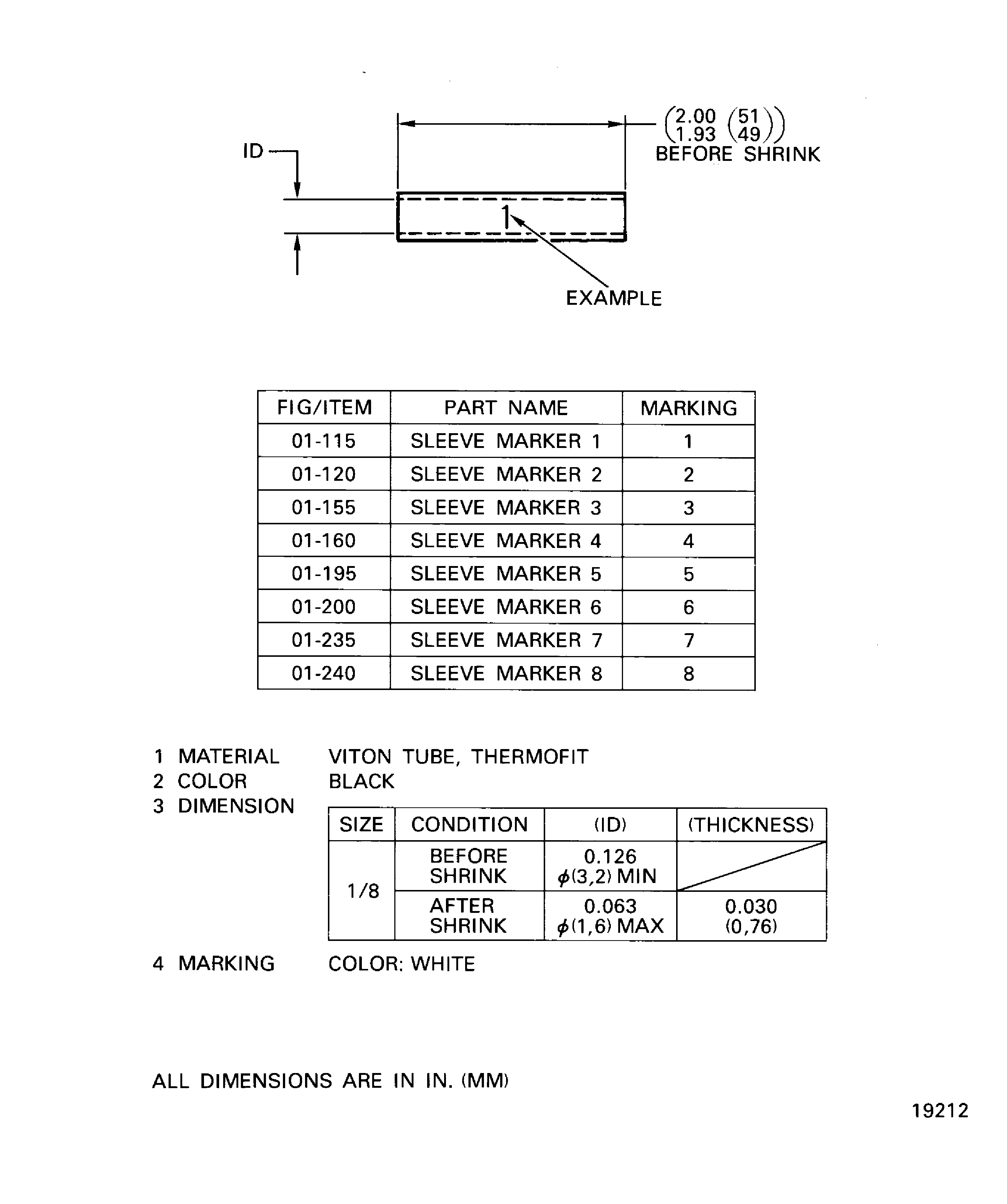

    Figure: Basic Dimensions - Sleeve Markers

    Basic Dimensions - Sleeve Markers

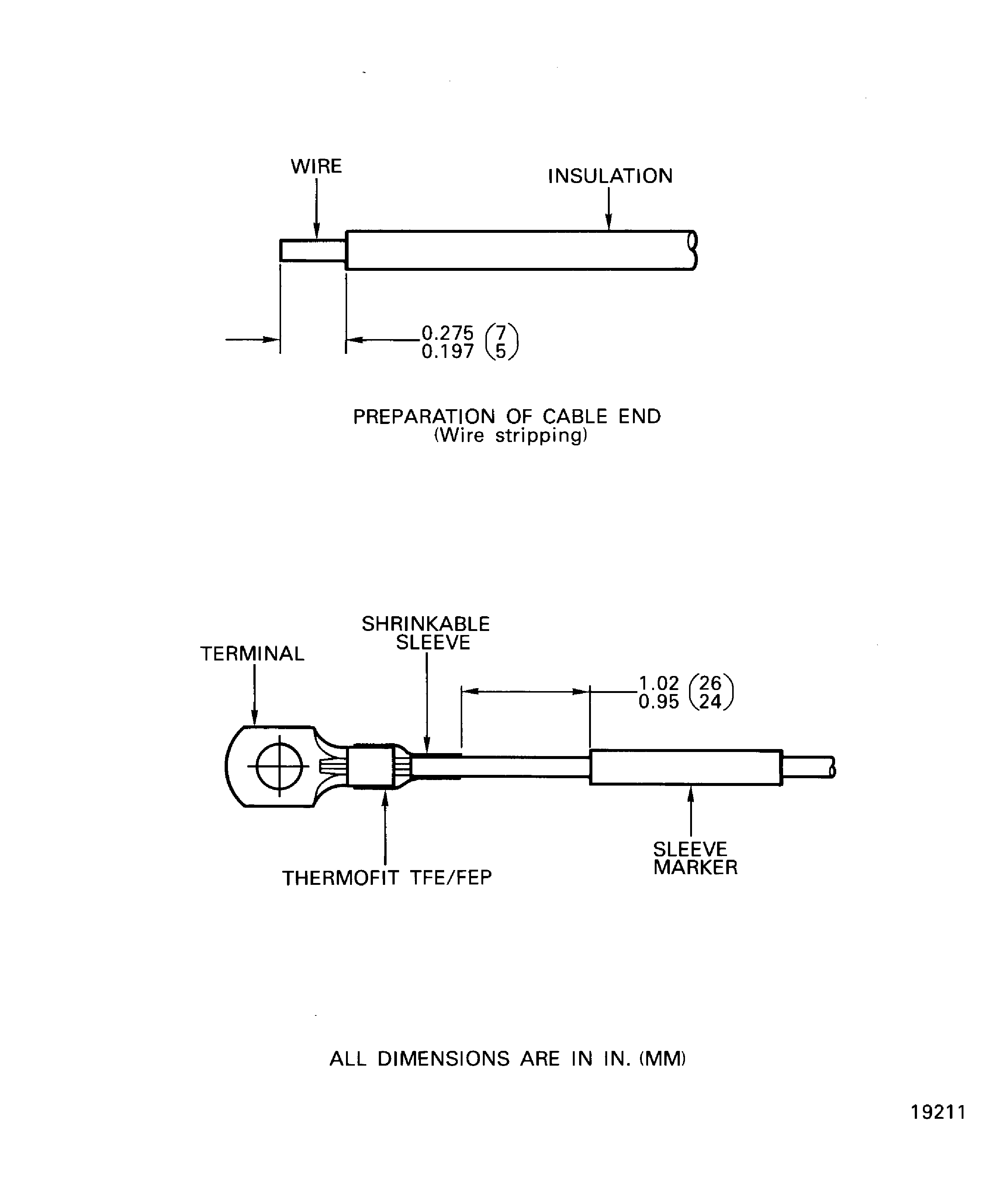

    Figure: Replace the Terminals

    Replace the Terminals

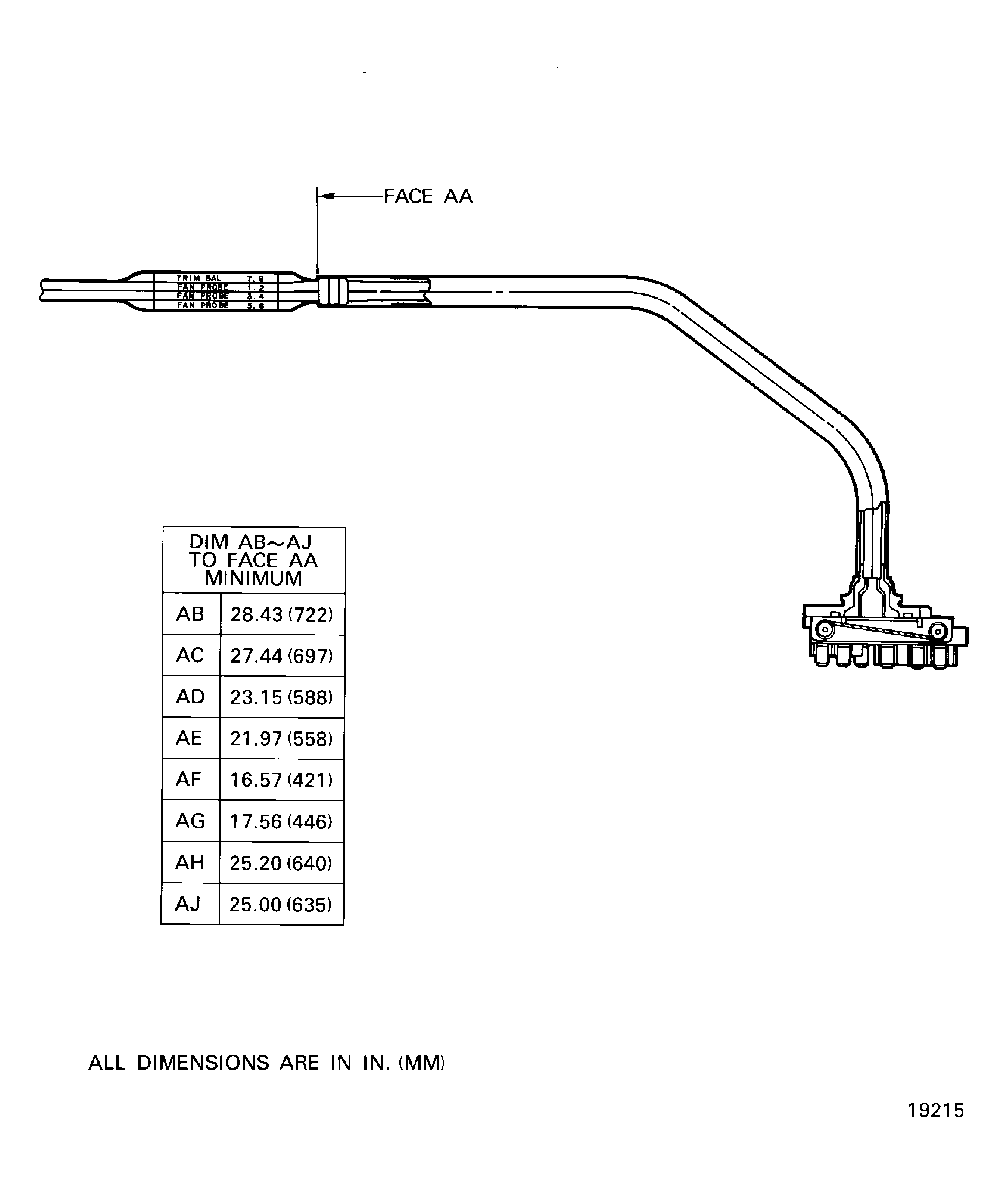

    Figure: Basic Dimensions - Nf Electrical Harness

    Basic Dimensions - Nf Electrical Harness

    Basic Dimensions - Nf Electrical Harness

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the procedure to add information to effectivity, repair parts table and deleted spares information. (89VJ884B and 89VJ884C)
