TASK 72-32-41-040-001 No. 1 Bearing Front Support And Rear Support Assembly - Disassemble, Disassembly-001 - SBE 72-0391

DMC:V2500-A0-72-32-4100-00A-530A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-41-040-001 No. 1 Bearing Front Support And Rear Support Assembly - Disassemble, Disassembly-001 - SBE 72-0391

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

Discard all rubber seal rings, cotter pins and seal washers removed in this procedure.

NOTE

Special tools are identified in the procedure by the tool primary number

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1J12188 Puller bolt0AM53IAE 1J121881

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-41-040-001 Disassemble the No. 1 Bearing Support Assembly (01-240)

    1. Refer to Figure.

    2. Remove the four screws (01-250), nuts (01-255) and washers (01-260) from the No. 1 bearing support assembly.

      3. Use the four puller bolts (part of IAE 1J12188 Puller bolt 1 off) to release the No. 1 bearing front support assembly (01-300) from the No. 1 bearing rear support assembly (01-400).

      1. Install the four puller bolts in to the four threaded holes in the No. 1 bearing front support assembly rear flange.

      2. Tighten the four puller bolts equally until the No. 1 bearing front support assembly is released from the No. 1 bearing rear support assembly.

      3. Remove the puller bolts from the threaded holes in the No. 1 bearing front support assembly rear flange.

    4. Lift and remove the No. 1 bearing front support assembly from the No. 1 bearing rear support assembly. Put the No. 1 bearing front support assembly on to the work bench with rear end up.

    5. Remove the o-ring (01-270) from the groove in the No. 1 bearing rear support assembly and discard it.

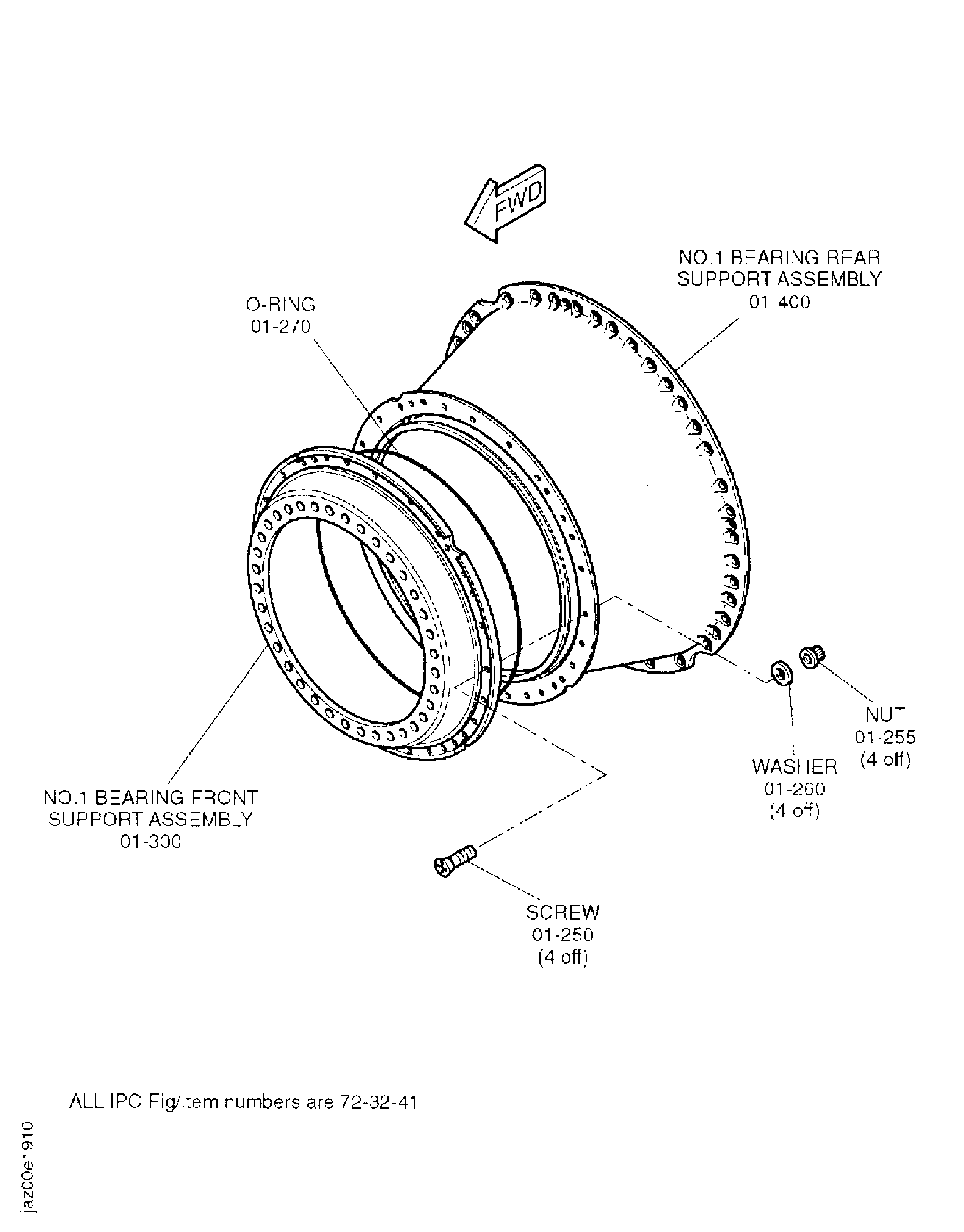

    2. Figure: View of the No. 1 bearing support assembly

    View of the No. 1 bearing support assembly

Requirements After Job Completion

Follow-On Conditions

NONE
Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:0AM53
Tool Number:IAE 1J12188
Tool Name:IAE 1J12188 Puller bolt
