TASK 72-32-41-300-001 No. 1 Bearing Support Assembly - Blend Repair, Repair-001 (VRS1270)
Material of component
RR | ||
|---|---|---|
DESCRIPTION | SYMBOL | MATERIAL |
No. 1 bearing support | 11Cr-1Mo-0.85Mn-0.65Ni-0.25V- | |
0.15C steel |
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
For the method to clean the parts, refer to TASK 72-32-41-100-000 (CLEANING-000).
NOTE
To identify the consumable materials refer to the PCI.
Other consumable materials are given in the SPM.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 | ||
| CoMat 07-009 THINNER | LOCAL | CoMat 07-009 | ||
| CoMat 07-038 AIR DRYING ENAMEL | K3504 | CoMat 07-038 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Refer to Figure.
Refer to the SPM TASK 70-35-03-300-501.
Blend the damaged surface.
Refer to TASK 72-32-41-200-000 (INSPECTION/CHECK-000).
Examine the repaired No. 1 bearing support.
SUBTASK 72-32-41-350-051 Blend the Damaged Surface of the No. 1 Bearing Support (01-240)
Refer to TASK 72-32-41-300-004 (REPAIR-004).
Refer to Repair 004, (VRS1267).
Touch up the paint.
SUBTASK 72-32-41-380-051 Touch Up the Paint on the Surface of the No. 1 Bearing Support (01-240)

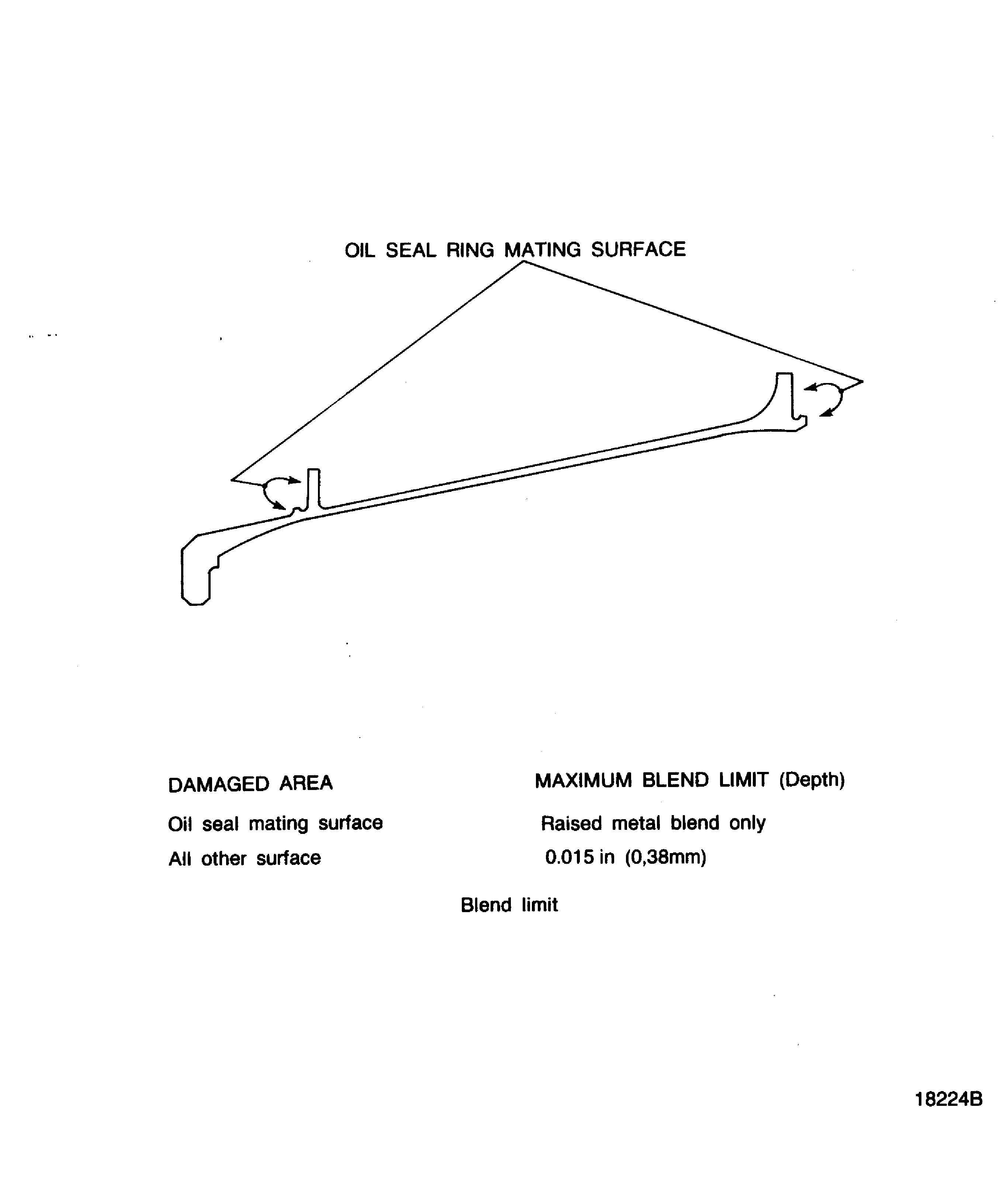

Figure: Location and blend limits of the No. 1 bearing support
Location and blend limits of the No. 1 bearing support
