TASK 72-32-41-300-009 No. 1 Bearing Support Assembly - Replace The Bracket, Repair-009 (VRS1244)

DMC:V2500-A0-72-32-4101-03A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-41-300-009 No. 1 Bearing Support Assembly - Replace The Bracket, Repair-009 (VRS1244)

Effectivity

FIG/ITEM

PART NO.

01-240

5W2088

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

No. 1 bearing support assembly

6A1-4V titanium

Bracket

18Cr-10. 5Ni-2Mn-1Si-0.

08C-0. 4Ti steel

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

For the method to clean the parts, refer to TASK 72-32-41-100-000 (CLEANING-000)

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Drilling machineLOCALDrilling machine
DrillLOCALDrill

0.116in. (2.95 mm)

PunchLOCALPunch
MalletLOCALMallet
Sheet fastenerLOCALSheet fastener
IAE 3J13511 Squeezer, riveting0AM53IAE 3J135111
IAE 3J13512 Riveting yoke0AM53IAE 3J135121

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Bracket5W20541
Rivet, solid universal headNAS1198-4-62

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-41-350-075 Remove the Damaged Bracket

    1. Refer to Figure.

      2. Drill and remove the manufactured heads of the rivets.

      1. Use a punch and 0.116 in. (2.95 mm) diameter drill.

      3. Remove the rivets.

      1. Use a punch and mallet.

    4. Remove the bracket.

      5. Clean the rivet holes of the No. 1 bearing support assembly.

      1. Use a soft clean cloth and air blast.

      6. Visually examine the rivet holes.

      1. Refer to the SPM TASK 70-21-01-220-501.

    2. SUBTASK 72-32-41-350-076 Install the New Bracket

    1. Refer to Figure.

      2. Install and retain the new bracket to the No. 1 bearing support assembly.

      1. Use sheet fastener.

        NOTE

        Make sure that the bracket is retained correctly.

      3. Install and upset one rivet.

    4. Remove the sheet fastener.

      5. Install and upset rivet to the remaining rivet hole.

      1. NOTE

        Make sure that the bracket is installed satisfactorily.

      6. Visually examine the rivets for crack and damage.

      1. Refer to the SPM TASK 70-21-01-220-501.

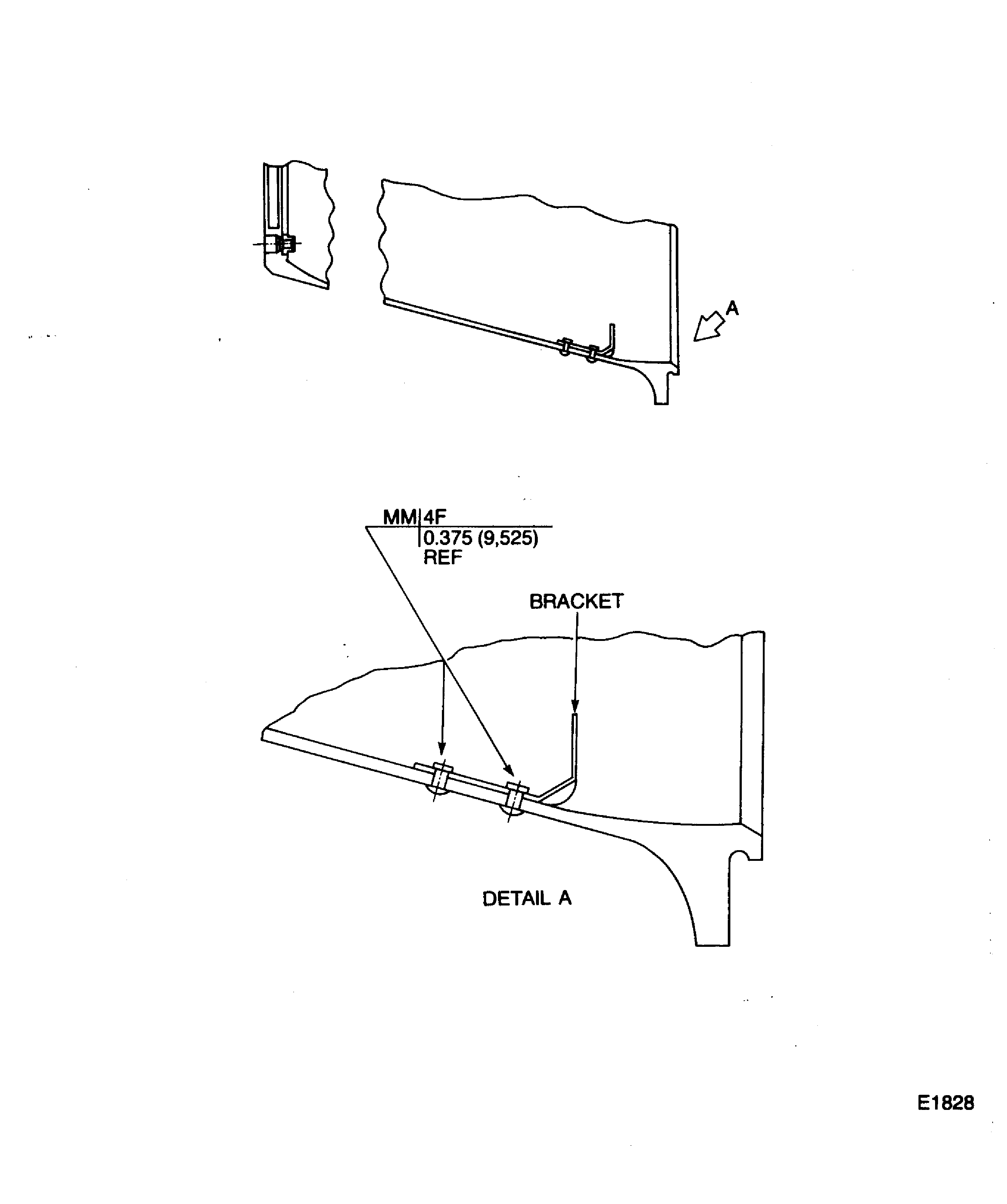

    3. Figure: Replacement of the bracket of the No. 1 bearing support assembly

    Replacement of the bracket of the No. 1 bearing support assembly

    Figure: Replacement of the bracket of the No. 1 bearing support assembly

    Replacement of the bracket of the No. 1 bearing support assembly

Requirements After Job Completion

Follow-On Conditions

NONE
