TASK 72-32-41-300-015 No. 1 Bearing Rear Support - Replace The Bracket, Repair-015 (VRS1967)

DMC:V2500-A0-72-32-4104-00A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-41-300-015 No. 1 Bearing Rear Support - Replace The Bracket, Repair-015 (VRS1967)

Effectivity

FIG/ITEM

PART NO.

01-400

5W2325

Material of component

PART IDENT

SYMBOL

MATERIAL

No. 1 bearing rear support assembly

2.3A1-1.5Mg-1.1Ni-1.1Fe aluminum

Bracket

18Cr-10.5Ni-2Mn-1Si-0.08C-0.4Ti steel

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPP.

For the method to clean the parts, refer to TASK 72-32-41-100-000 (CLEANING-000).

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
DrillLOCALDrill

0.116 in. (2.95 mm)

MalletLOCALMallet
PunchLOCALPunch
Drilling machineLOCALDrilling machine
IAE 3J13511 Squeezer, riveting0AM53IAE 3J135111
IAE 3J13512 Riveting yoke0AM53IAE 3J135121

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Bracket5W23271
RivetNAS1198-4-82

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-41-350-005 Remove Damaged Bracket

    1. Refer to Figure.

      2. Drill and remove the manufactured head of the rivets.

      1. Use a punch and 0.116 in. (2.95 mm) diameter drill.

      3. Remove the rivets.

      1. Use a Punch and a Mallet.

    4. Remove the bracket.

      5. Clean the rivet holes of No. 1 bearing rear support.

      1. Use a soft clean cloth and air blast.

      6. Visually examine the rivet holes.

      1. Refer to the SPM TASK 70-21-01-220-501.

    2. SUBTASK 72-32-41-350-006 Install New Bracket

    1. Refer to Figure.

      2. Fit and retain new bracket to the No. 1 bearing rear support.

      1. Use sheet fastener.

        NOTE

        Make sure that bracket is retained correctly.

      3. Install and make a head on one rivet.

    4. Remove the sheet fastener.

      5. Install and make a head on the remaining rivet.

      1. NOTE

        Make sure that bracket is installed satisfactorily.

      6. Visually examine rivets for cracks and damage.

      1. Refer to the SPM TASK 70-21-01-220-501.

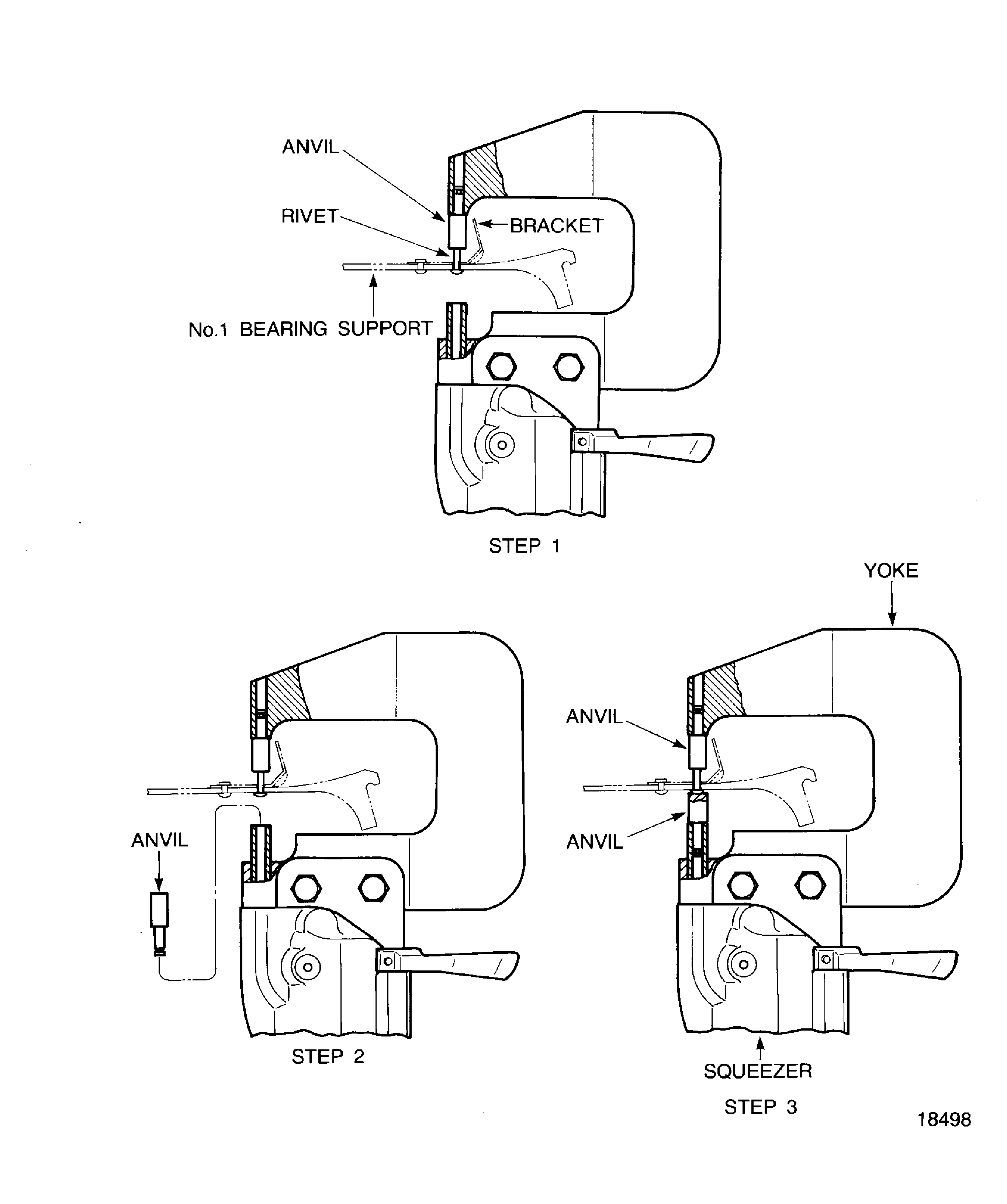

    3. Figure: Replacement of the bracket of the No. 1 bearing rear support assembly

    Replacement of the bracket of the No. 1 bearing rear support assembly

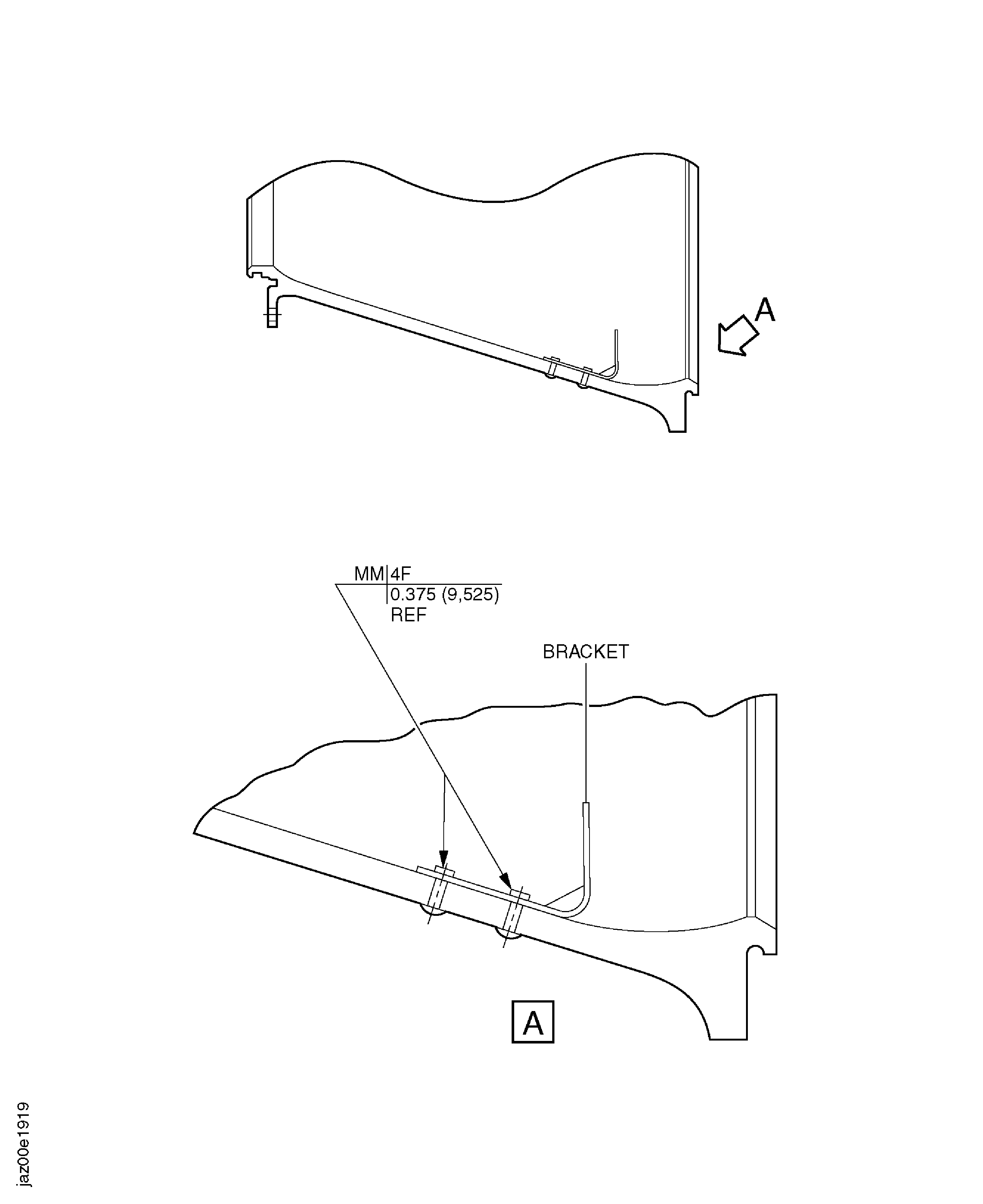

    Figure: Replacement of the bracket of the No. 1 bearing rear support assembly

    Replacement of the bracket of the No. 1 bearing rear support assembly

Requirements After Job Completion

Follow-On Conditions

NONE
