TASK 72-32-42-300-003 No. 1 Bearing Oil Jet And Oil Supply Tube - Related Parts - Repair The Surface Damage Of The Strainer Housing, Repair-003 (VRS1281)
Material of Component
DESCRIPTION | RR SYMBOL | MATERIAL |
Strainer housing (5A5426) | Aluminium alloy | |
Strainer housing (5A1155) | Corrosion and heat resistant alloy |
General
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Fluorescent Penetrant Inspection Equipment | LOCAL | Fluorescent penetrant inspection equipment | ||
| Hand held pneumatic grinder | LOCAL | Hand held pneumatic grinder |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-019 WATERPROOF SILICON CARBIDE | 1E1X8 | CoMat 05-019 | ||
| CoMat 05-020 WATERPROOF SILICON CARBIDE | 1E1X8 | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 1E1X8 | CoMat 05-021 | ||
| CoMat 01-275 CHROMATE CONVERSION COATING FOR ALUMINIUM | 00BB6 | CoMat 01-275 |
Spares
NONESafety Requirements
WARNING
Procedure
Refer to Figure.
Use Hand held pneumatic grinder and abrasive stone or CoMat 05-019 WATERPROOF SILICON CARBIDE, CoMat 05-020 WATERPROOF SILICON CARBIDE, CoMat 05-021 WATERPROOF SILICON CARBIDE and/or fine file.
Surface finish of the repair must be the same as the adjacent area. Refer to SPM TASK 70-35-03-300-501.
Blend, make smooth and/or hand polish to remove the nicks and scratches using a blend ratio of 50:1
SUBTASK 72-32-42-350-053 Remove the Damage from the Strainer Housing
Visually examine the repaired area for nicks and scratches.
Refer to Inspection-003 TASK 72-32-42-200-403.
Visually examine the repaired area.
SUBTASK 72-32-42-220-065 Examine the Strainer Housing
No cracks are permitted.
Refer to SPM TASK 70-23-02-230-501.
Fluorescent penetrant examine the repaired area.
SUBTASK 72-32-42-230-058 Examine the Strainer Housing for Cracks
Refer to SPM TASK 70-38-02-300-503.
Apply chromate conversion coating with a brush to the repaired area.
SUBTASK 72-32-42-380-051 Apply Chromate Conversion Coating to the Strainer Housing

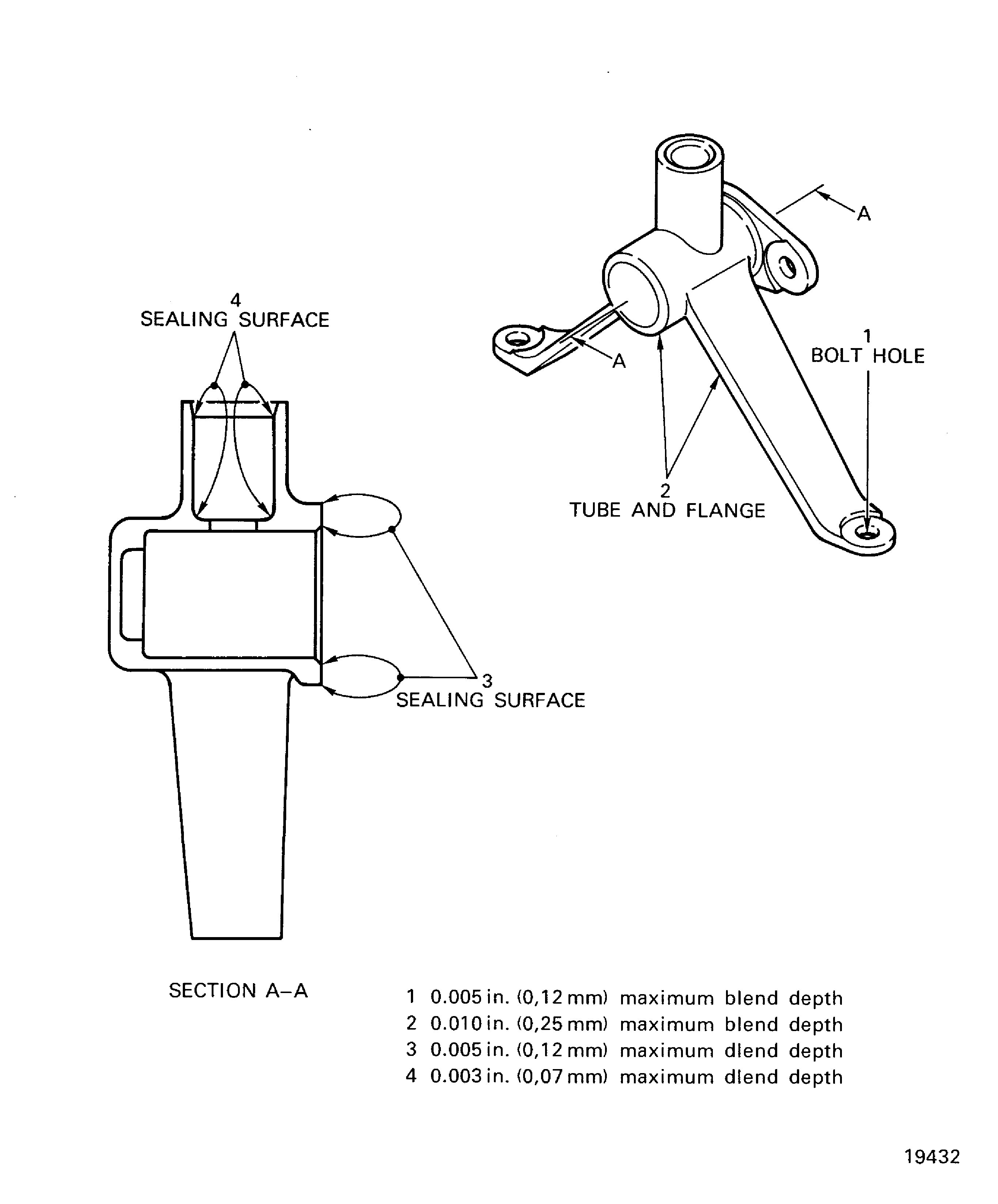

Figure: Strainer Housing - Repair Limits
Strainer Housing - Repair Limits
