TASK 72-32-51-300-007 LP Rotor Center Shaft - Replace The Jacking Pad Pins, Repair-007 (VRS1278)
General
This Repair TASK gives the procedure for replacing jacking pad pins.
Material of component
RR | ||
|---|---|---|
DESCRIPTION | SYMBOL | MATERIAL |
Shaft | Titanium alloy | |
Jacking pad pin | AMS5643 | Corrosion resistance steel |
Price and availability
Refer to IAE for any of the following:
Tools
Engine parts
Repair of spares
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
Special tools are identified in the procedure by the tool primary number.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Hand press | LOCAL | Hand press | ||
| IAE 3J13233 Installing fixture | 0AM53 | IAE 3J13233 | 1 | |
| IAE 3J13234 Removing fixture | 0AM53 | IAE 3J13234 | 1 |
Consumables, Materials and Expendables
NONESpares
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Jacking pad pin | 5R0375 |
Safety Requirements
NONEProcedure
Refer to Figure.
Use IAE 3J13234 Removing fixture 1 off and hand press.
Remove the pins.
SUBTASK 72-32-51-350-058 Remove the Damaged Jacking Pad Pins (01-120)
Refer to Figure.
Use IAE 3J13233 Installing fixture 1 off and hand press.
Install the new pins.
SUBTASK 72-32-51-350-059 Install the New Jacking Pad Pins (01-120)
Use 10X magnifying glass.
Refer to TASK 72-32-51-200-000 (INSPECTION-000).
Visually examine the repaired areas.
SUBTASK 72-32-51-220-067 Examine the Repaired Areas

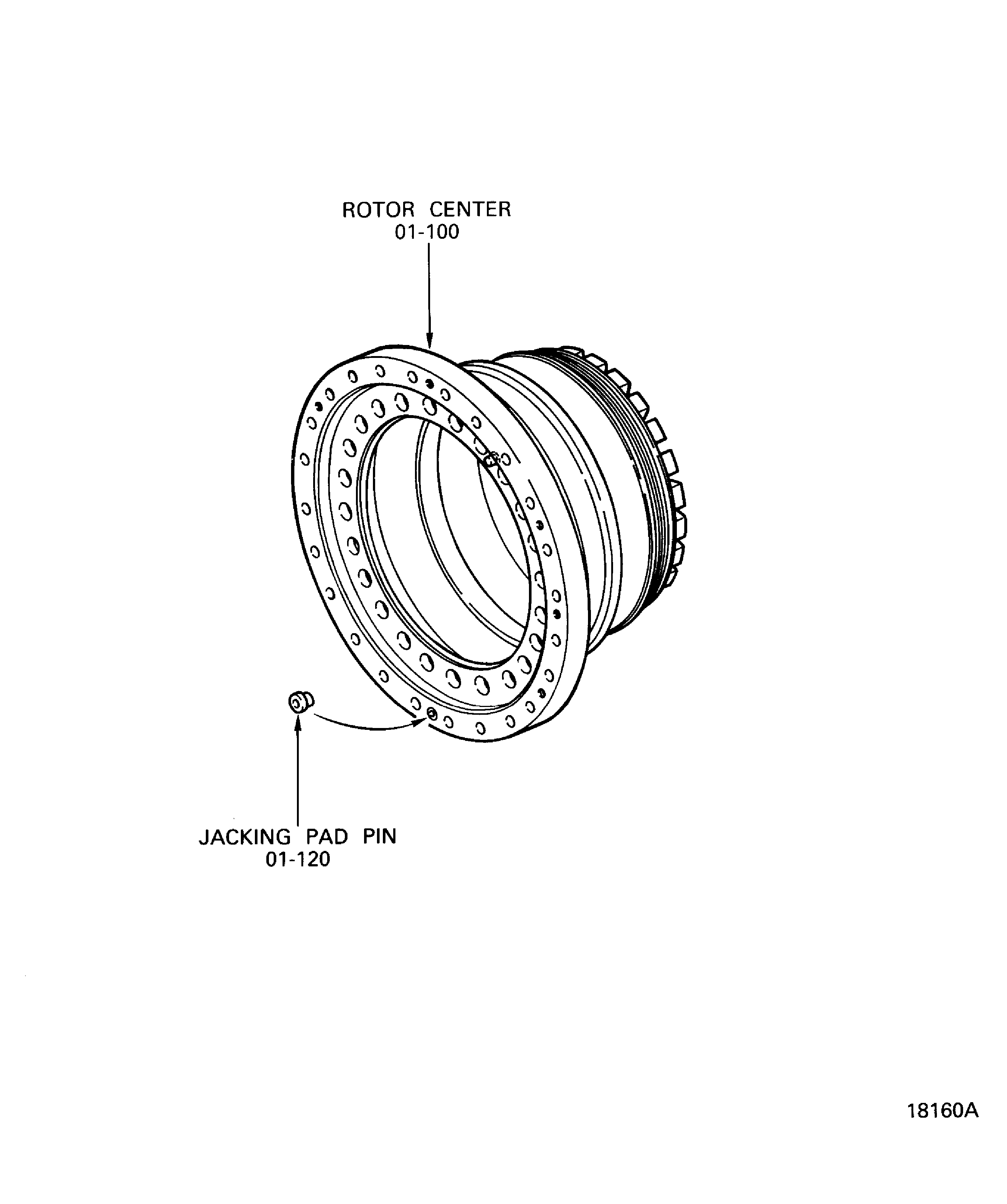

Figure: Jacking pad pin
Jacking pad pin
