TASK 72-32-51-300-022 Front Seal Runner Ring - Blend Repair, Repair-022 (VRS1284)

DMC:V2500-A0-72-32-5102-00A-649A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-51-300-022 Front Seal Runner Ring - Blend Repair, Repair-022 (VRS1284)

Effectivity

FIG/ITEM

PART NO.

01-200

5R0400

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Seal, A/O runner front

12Cr-2Ni-2Mo-0.3V steel

General

Price and availability

Refer to IAE for any of the followings:

Tools

Engine parts

Repair of spares

This Repair scheme gives the procedure for blending seals.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Portablegrinding equipmentLOCALPortable grinding equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-51-350-063 Dress to Remove Damage

      1. Dress to remove damage.

        1. Dress until all damage is removed.

      2. Blend dressed area, polish out scores.

        1. Refer to the SPM TASK 70-35-03-300-501.

        1. Maximum blend limit is 0.005 in. (0.12 mm) in depth.

    2. SUBTASK 72-32-51-220-094 Examine the Seals

      1. Do a visual inspection.

        1. Visually examine the repaired area for nicks, scratches and/or damage.

        1. Use 10X magnifying glass.

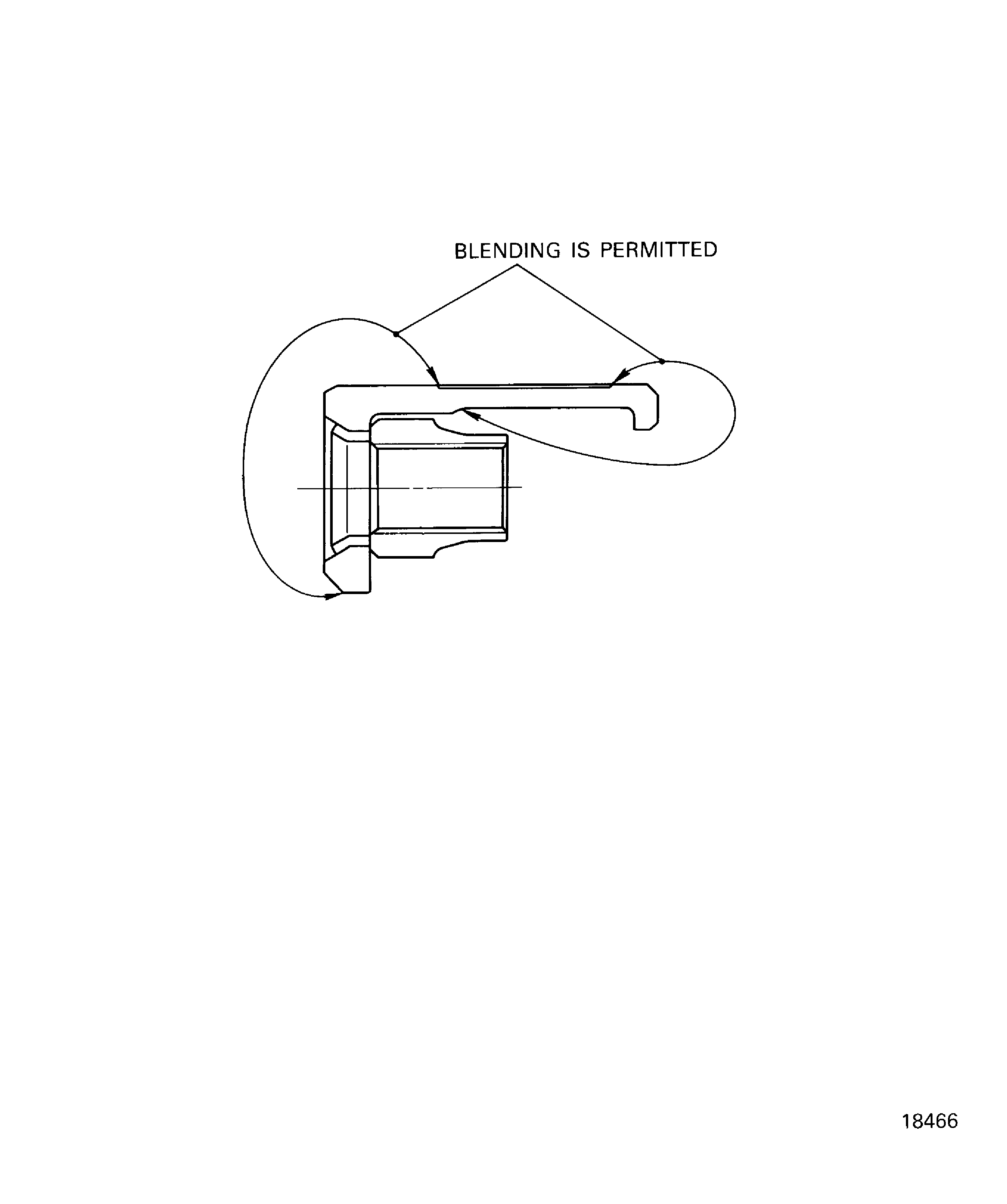

    3. Figure: Front runner seal

    Front runner seal

Requirements After Job Completion

Follow-On Conditions

NONE
