TASK 72-32-53-040-001 No. 1 Bearing Front Face Seal Assembly - Disassemble, Disassembly-001

DMC:V2500-A0-72-32-5300-00A-530A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-53-040-001 No. 1 Bearing Front Face Seal Assembly - Disassemble, Disassembly-001

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

Discard all rubber seal rings, cotter pins and seal washers removed in this procedure.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-53-040-051 Disassemble the No. 1 Bearing Seal Assembly

    1. Refer to Figure.

    2. Remove the No. 1 bearing seal assembly from the container.

    3. Put the seal with the flange of the seal ring holder assembly down, on the bench.

    4. Remove the cotter pins which hold the retaining collars to the pins.

    5. Remove the retaining collars from the pins.

    6. Remove the No. 1 bearing face seal from the seal ring holder assembly.

    7. Remove the seal ring from the seal ring holder assembly.

    8. Remove the springs from the seal ring holder assembly.

    9. Remove the two sleeve spacers from the pins in the seal ring holder assembly.

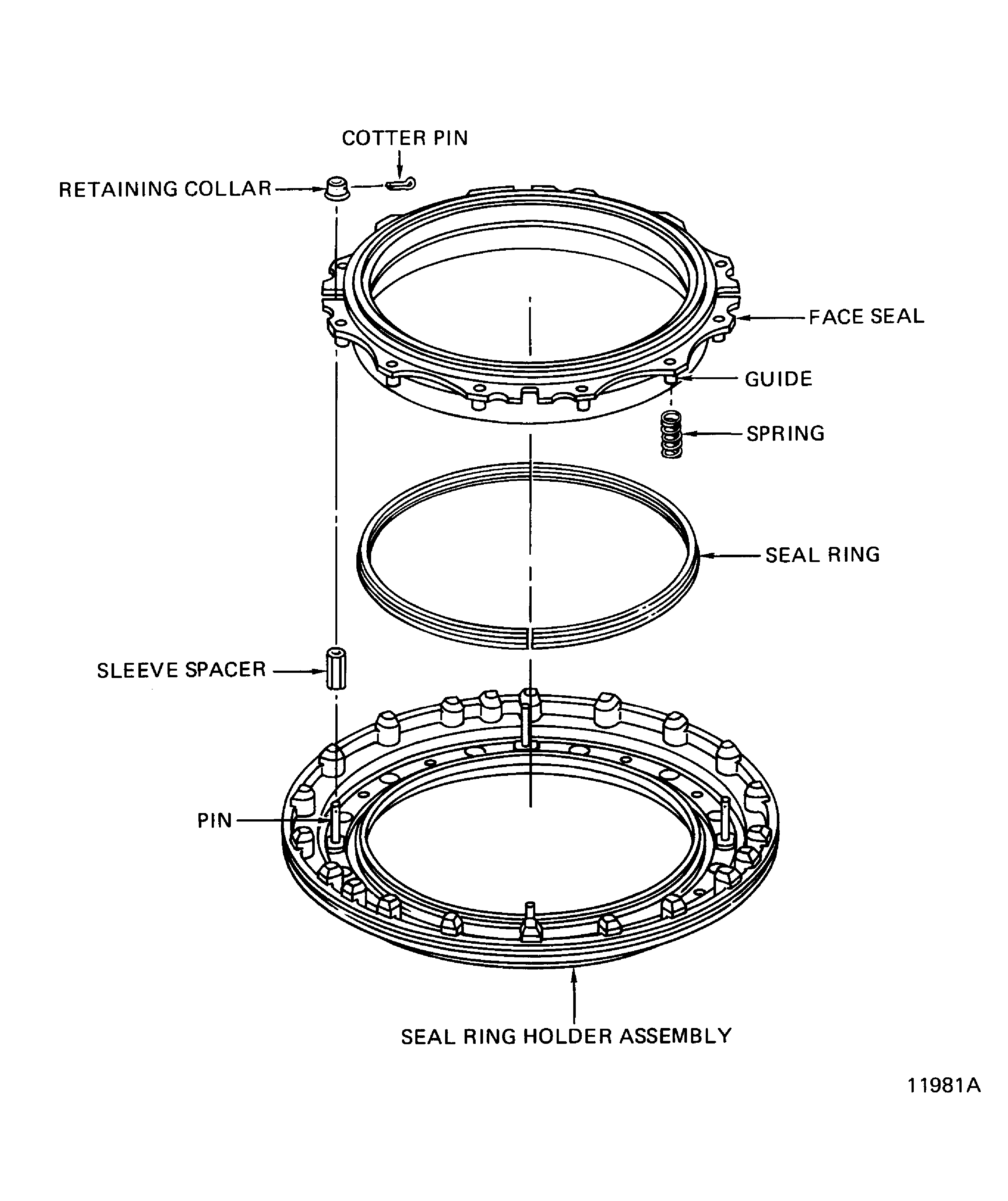

    2. Figure: Disassemble the No. 1 bearing front oil seal

    Disassemble the No. 1 bearing front oil seal

Requirements After Job Completion

Follow-On Conditions

NONE
