TASK 72-32-53-300-001 No. 1 Bearing Seal Ring Holder - Replace The Anti-Rotation Pin, Repair-001 (VRS3382)

DMC:V2500-A0-72-32-5301-00A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-53-300-001 No. 1 Bearing Seal Ring Holder - Replace The Anti-Rotation Pin, Repair-001 (VRS3382)

Effectivity

FIG/ITEM PART NO.

01-200

2A1779

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

No. 1 bearing seal ring holder

-

Housing aluminum alloy

pin

stainless steel

General

Price and availability - none

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
DrillLOCALDrill
PunchLOCALPunch
MalletLOCALMallet
IAE 3P16424 Drift0AM53IAE 3P16424
IAE 3P16425 Support base0AM53IAE 3P164251

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
No. 1 bearing seal ring pin2A17744

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-53-350-062 Remove Damaged or Loose Pins from the No. 1 Bearing Seal Ring Holder Assembly

    1. Refer to Figure.

    2. Remove damaged or loose pins with a drill and a punch, (up to four locations).

    2. SUBTASK 72-32-53-220-094 Visually Inspect Pin Holes for Damage on the No. 1 Bearing Seal Ring Holder Assembly

    1. Refer to Figure.

    2. Visually inspect pin holes for damage.

    3. SUBTASK 72-32-53-350-063 Install Replacement Pins to the No. 1 Bearing Seal Ring Holder Assembly

      1. Install the seal ring holder into the IAE 3P16425 Support base 1 off.

      1. Refer to Figure.

    2. Put the replacement pin into the IAE 3P16424 Drift 1 off and chill.

    3. Use mallet and the drift to install the chilled replacement pin into the seal ring holder.

    4. Invert the seal ring holder while on the support base.

      5. Use applicable tools to peen the end of the pin to make a head.

      1. Refer to Figure.

    4. SUBTASK 72-32-53-220-095 Examine the Repair No. 1 Bearing Seal Ring Holder Assembly

      1. Do an inspection of the repaired seal.

      1. Refer to Figure.

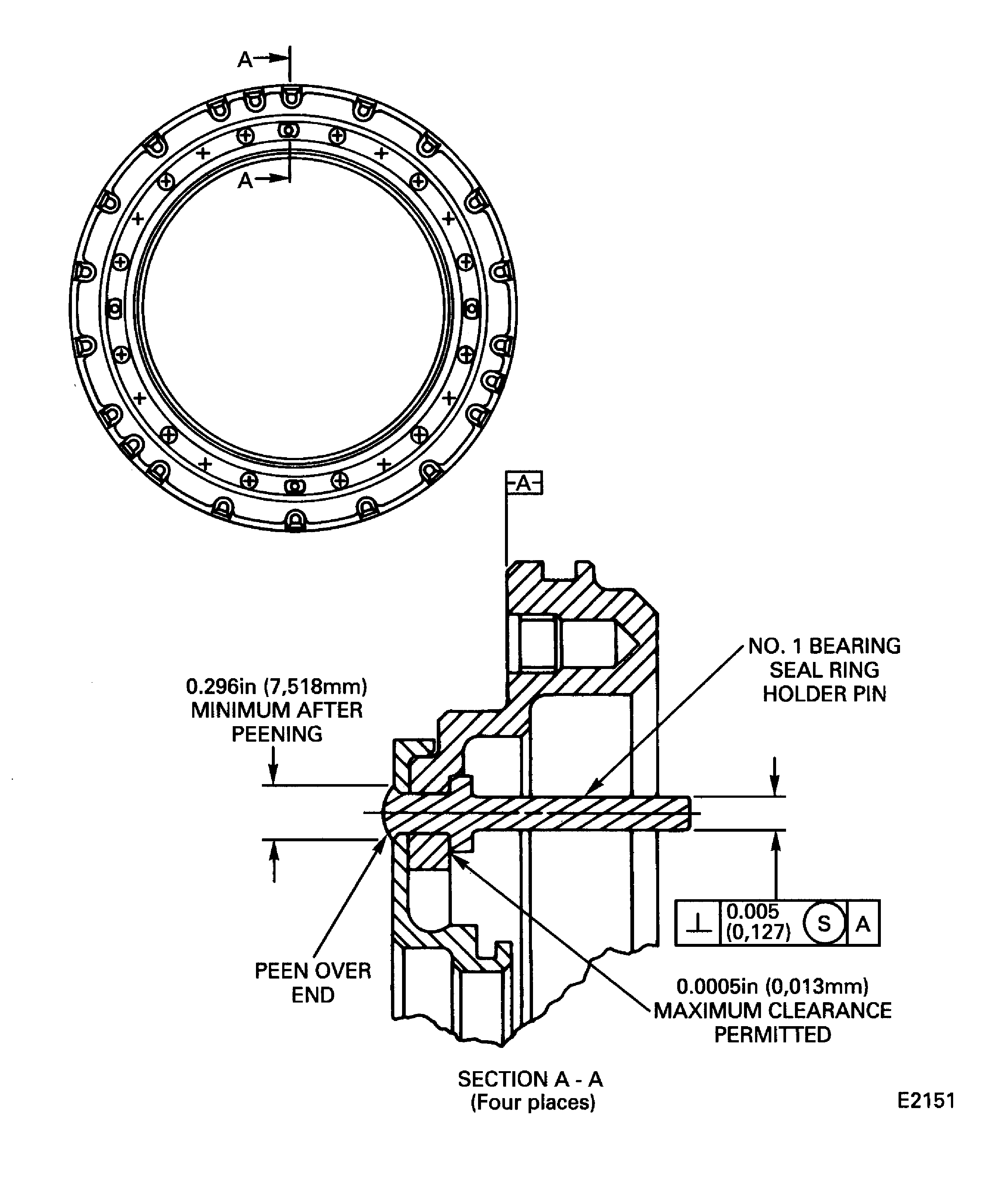

    5. Figure: No. 1 bearing seal ring holder assembly pin replacement

    No. 1 bearing seal ring holder assembly pin replacement

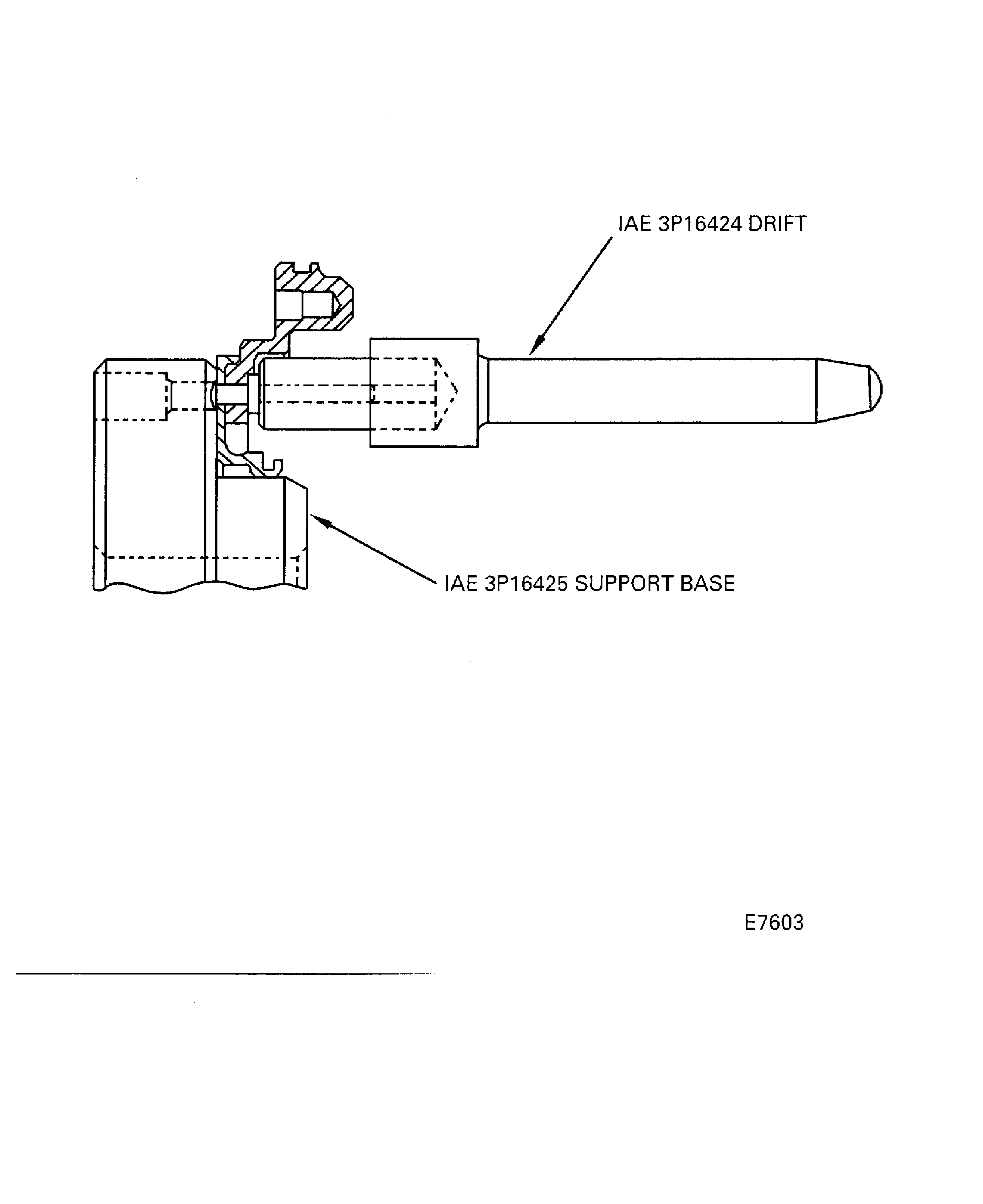

    Figure: No. 1 bearing seal ring holder assembly pin replacement

    No. 1 bearing seal ring holder assembly pin replacement

Requirements After Job Completion

Follow-On Conditions

NONE
