TASK 72-32-53-300-008 No. 1 Bearing Face Seal - Replace The Carbon Detail, Repair-008 (VRS3385)

DMC:V2500-A0-72-32-5302-00A-920A-C|Issue No:004.00|Issue Date:2017-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-53-300-008 No. 1 Bearing Face Seal - Replace The Carbon Detail, Repair-008 (VRS3385)

Effectivity

FIG/ITEM

PART NO.

01-150

2A2199

01-150

2A2915

01-150

2A1773

01-180

2A2924 (detail of 2A2915)

01-194

2A2916 (detail of 2A2915)

General

Refer to Figure for the area that is to be repaired.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. Repair Facilities

    1. The Proprietary nature of this repair requires that any facility not authorized to accomplish this repair either, utilize the Authorized Repair Vendors listed below or contact the IAE Repair Development Group to determine if a qualification program can be initiated at their facility.

      IAE International Aero Engines AG

      400 Main Street

      Mail Stop 121-10

      East Hartford CT 06118

      Attn: Manager, Tech Services

    2. Authorized repair vendors for VRS3385 are given below:

      EG and G Sealol Incorporated

      Engineering Products Division

      15 Pioneer Avenue

      Warwick, RI 02888

      Kaydon Ring and Seal Incorporated

      Bush and Hamburg Street

      P.O. Box 626

      Baltimore, MD 21203

      PRAXAIR SURFACE TECHNOLOGIES

      1234 Atlantic Street

      North Kansas City, MO 64116

      USA

      Singapore Part Repair Operations (SPRO)

      Pratt & Whitney Services Pte, Ltd

      18 Loyang Crescent - Mail Stop 107-11

      Singapore 508982

      Tel: 65-6549-5940

      Fax: 65-9543-1904

      PAS Technologies

      1234 Atlantic St

      North Kansas City, MO 64116

      USA

      PW Component Solutions Private Limited

      61 Seletar Aerospace View

      Singapore 797560

    3. When IAE approves a repair vendor, the repair vendor has shown the ability to do the repair given in this TASK. However, IAE makes no warranties or representations about the qualifications or the quality standards of the repair vendors to do the repair work. IAE accepts no responsibility for any work a repair vendor does, other than when IAE is the repair vendor. Approved repair vendors do not act as agents or representatives of IAE.

    2. SUBTASK 72-32-53-220-065 Examine the No. 1 Bearing Face Seal (01-150) After Repair

      1. Examine the face seal.

      1. Refer to TASK 72-32-53-200-000 (INSPECTION-000) and Figure.

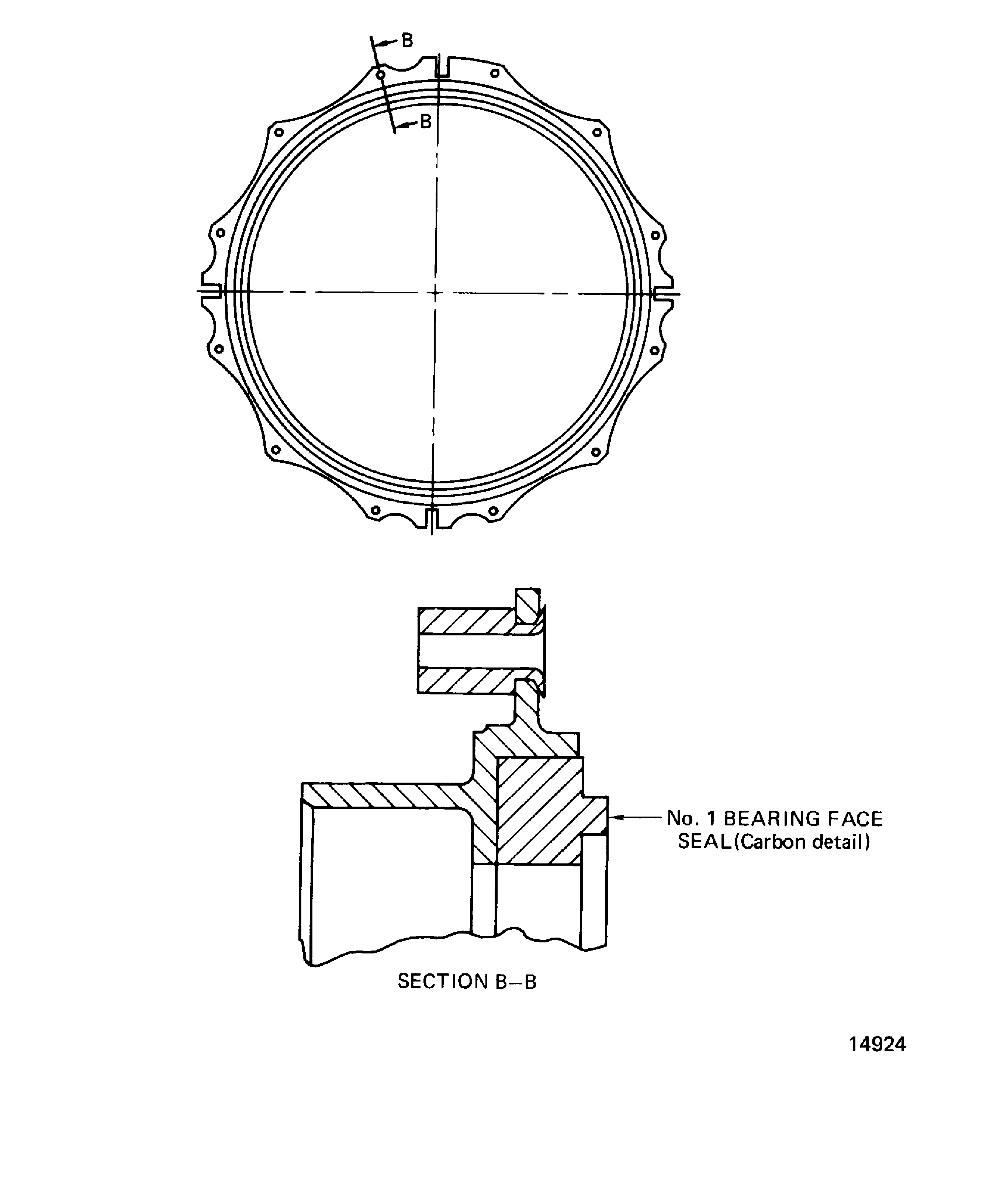

    3. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the repair facilities information. (17VC098)

Change Type:

Revised the repair facilities information. (17VC099)
