TASK 72-32-55-300-001 Front Bearing Compartment Seal Support - Blend Repair, Repair-001 (VRS1301)
Material of component
RR | ||
|---|---|---|
DESCRIPTION SYMBOL MATERIAL | ||
Seal support assembly | 11Cr-1Mo-0.85Mn-0.65Ni- | |
0.25V-0.15C steel | ||
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
For the method to clean the parts, refer to TASK 72-32-55-100-000 (CLEANING-000).
NOTE
Other consumable materials are given in the SPM.
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Refer to the SPM TASK 70-35-03-300-501.
Blend the damaged surface.
SUBTASK 72-32-55-350-051 Blend the Damaged Surface of the Seal Support Assembly (01-100)
Refer to TASK 72-32-55-200-000 (INSPECTION-000).
Examine the repaired seal support assembly.
SUBTASK 72-32-55-220-056 Examine the Seal Support Assembly (01-100)
Refer to VRS1303, TASK 72-32-55-300-003 (REPAIR-003).
Touch up the paint.
SUBTASK 72-32-55-380-051 Touch Up the Paint (01-100)

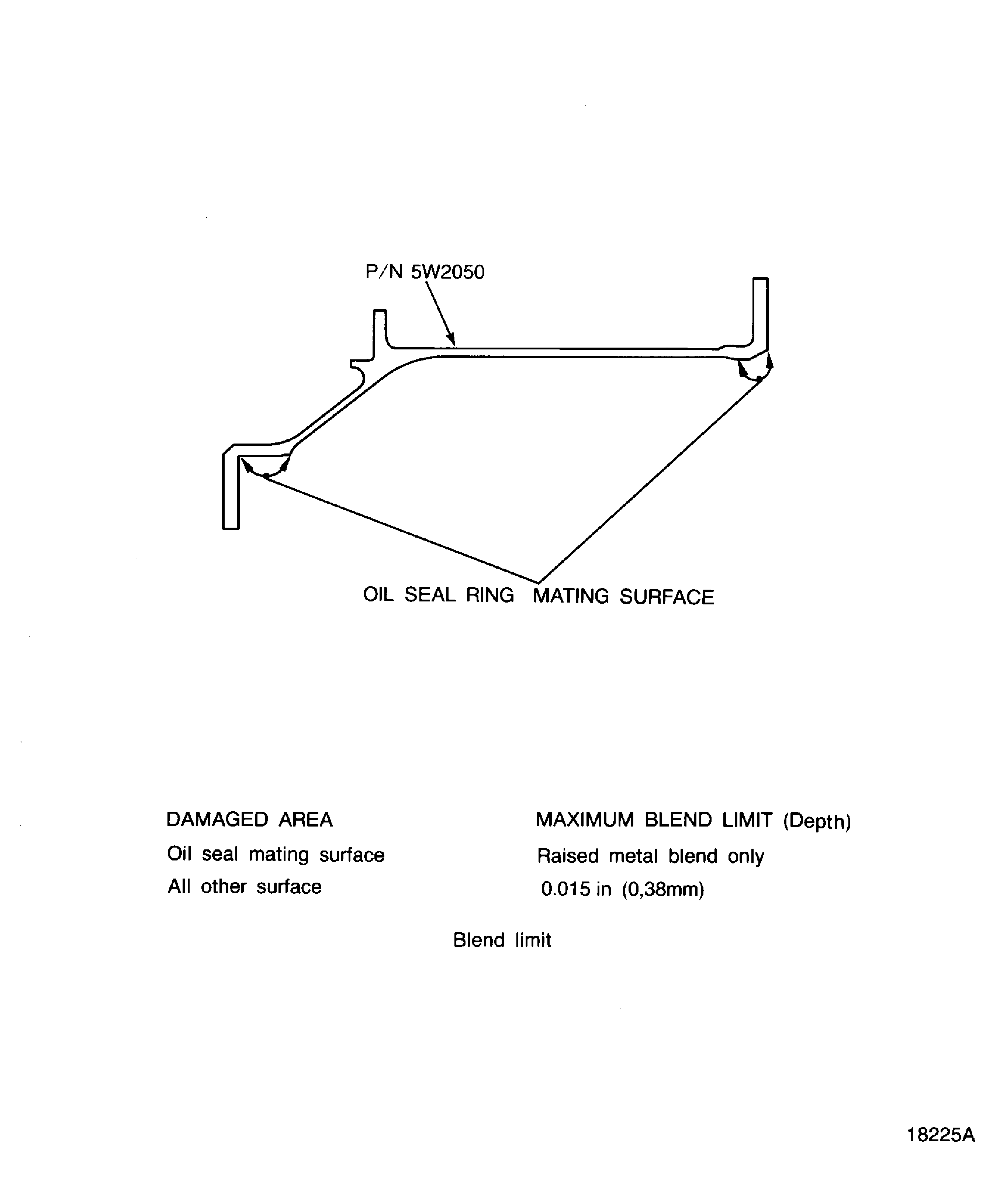

Figure: Location and blend limits of the No.1 bearing support assembly
Location and blend limits of the No.1 bearing support assembly
Figure: Location and blend limits of the No.1 bearing support assembly
Location and blend limits of the No.1 bearing support assembly
