TASK 72-32-71-300-002 LPC Bleed Valve Link Arms - Replace The Spherical Bearing, Repair-002 (VRS1319)

DMC:V2500-A0-72-32-7135-00A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-71-300-002 LPC Bleed Valve Link Arms - Replace The Spherical Bearing, Repair-002 (VRS1319)

Effectivity

FIG/ITEM

PART NO.

01-100

5A3688

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Link arm

Aluminum alloy

General

Price and availability - not applicable

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment
Arbor PressLOCALArbor press
IAE 3J12745 Swaging tool0AM53IAE 3J127451

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-275 CHROMATE CONVERSION COATING FOR ALUMINIUMLOCALCoMat 01-275
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Bearing, spherical5A36531
Bearing, spherical5A36531

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-71-350-059 Remove the Defective Spherical Bearing from the Link Arm Assembly

      1. Inspect and identify defective spherical bearing.

      1. Refer to Figure.

      2. Press out defective spherical bearing.

      2. Refer to Figure DETAIL E.

      3. Check damage in bore.

      1. Scratches are permitted but remove the burrs.

    2. SUBTASK 72-32-71-230-062 Examine the Link Arm Assembly for Cracks

      1. Fluorescent penetrant examine the spherical bearing hole.

      1. Make sure there is no cracks in the hole.

      2. Refer to the SPM TASK 70-23-05-230-501.

    3. SUBTASK 72-32-71-220-088 Inspect the Link Arm Assembly

      1. Dimensionally inspect the hole of the link arm.

      1. Ensure the correct diameter.

      2. Refer to Figure.

    4. SUBTASK 72-32-71-350-060 Install the New Spherical Bearing

      1. Clean the new spherical bearing and the hole of the link arm.

      1. Use clean dry air blast or CoMat 02-099 LINT-FREE CLOTH.

      2. Install the bearing.

        1. Position bearing race slightly below the surface of arm.

        2. Refer to Figure and Figure DETAIL E.

      3. Swage the arm to fix the bearing.

        1. Use an Arbor Press and IAE 3J12745 Swaging tool removal and install pusher 1 off.

        1. Apply swaging force to the 45 degrees circumferential position from the existing swage point up to the depth of the swage.

        2. Invert the arm and re-apply swaging force.

        3. Refer to Figure and Figure DETAIL F.

      4. Inspect the ball for free movement in the race.

      1. NOTE

        If the torque exceeds the limits as follows:
        Fig/Item 01-140, torque limit 2.6 lbfin (30 kgmm).
        Fig/Item 01-150, torque limit 2.6 lbfin (30 kgmm).
        Replace the bearing using lower staking load.

        If movement is not free, install screw, nut and washers and measure torque required to rotate the ball.

      2. Refer to Figure DETAIL G.

    5. SUBTASK 72-32-71-220-089 Examine the Spherical Bearing Seating

      1. Visually examine the spherical bearing seating.

        1. Race of bearing must be located just below the arm face.

        1. Refer to Figure.

    6. SUBTASK 72-32-71-380-055 Apply Surface Protection to the Link Arm Assembly

      1. Apply the chromate conversion coating to the swaged area.

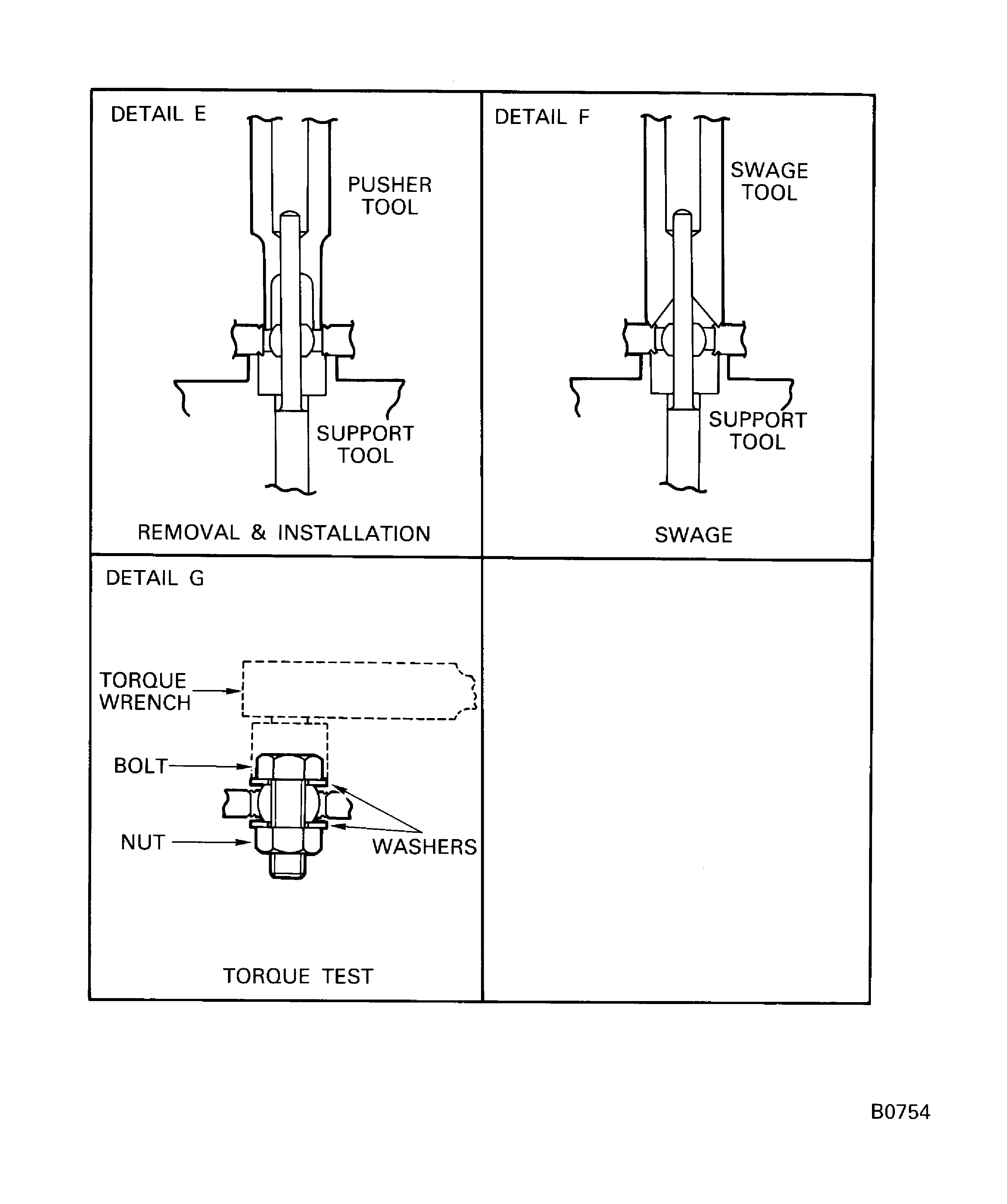

    7. Figure: Replacement of the spherical bearing

    Replacement of the spherical bearing

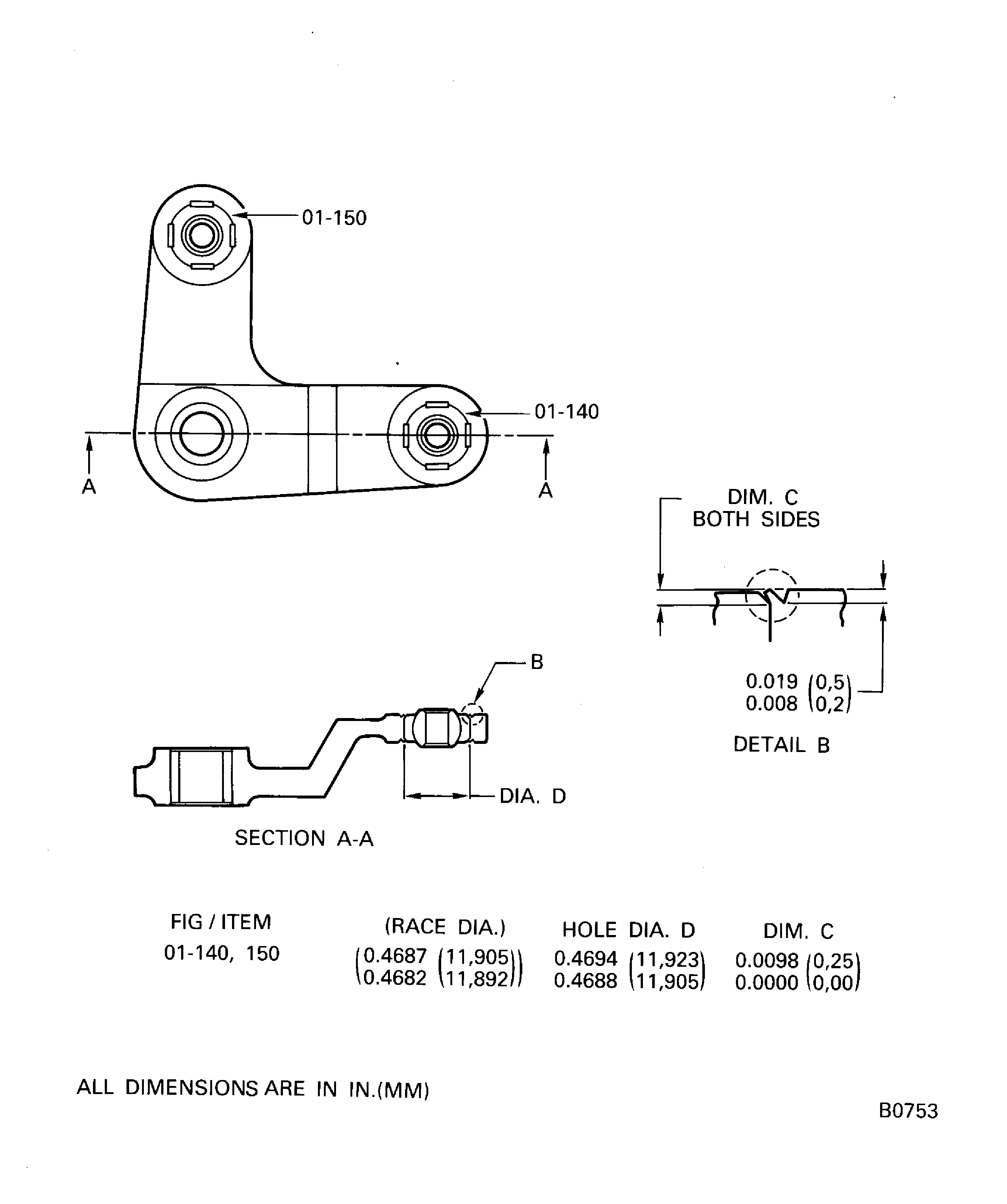

    Figure: Replacement of the spherical bearing

    Replacement of the spherical bearing

Requirements After Job Completion

Follow-On Conditions

NONE
