TASK 72-32-71-300-010 LPC Bleed Valve Power Arm - Repair Surface Damage By Blending, Repair-010 (VRS1327)
Material of component
RR | ||
|---|---|---|
DESCRIPTION | SYMBOL | MATERIAL |
Power arm | Cast corrosion and heat resistant | |
steel (17-4PH) |
General
Price and availability - not applicable
The practices and processes referred to in the procedure by the TASK number are in the SPM.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Fluorescent Penetrant Inspection Equipment | LOCAL | Fluorescent penetrant inspection equipment | ||
| Portablegrinding equipment | LOCAL | Portable grinding equipment |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-001 ADHESIVE TAPE (MASKING) | LOCAL | CoMat 02-001 | ||
| CoMat 05-019 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-019 | ||
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Use abrasive stone or CoMat 05-019 WATERPROOF SILICON CARBIDE, CoMat 05-020 WATERPROOF SILICON CARBIDE and CoMat 05-021 WATERPROOF SILICON CARBIDE, and/or fine file.
Surface finish of the repair must be the same as the adjacent area.
Refer to Figure.
Refer to the SPM TASK 70-35-03-300-501.
Use Portablegrinding equipment, abrasive stone or paper and/or fine file.
Scallop, make smooth and/or hand polish to remove the nicks and/or scratches.
SUBTASK 72-32-71-350-056 Remove the Damage of the Power Arm
Refer to TASK 72-32-71-200-001.
Visually examine the repaired area for nicks, galls, scores and/or pick-up using 10X magnifying glass.
Visually examine the repaired area.
SUBTASK 72-32-71-220-085 Examine the Power Arm
Refer to TASK 72-32-71-200-001.
Refer to the SPM TASK 70-23-05-230-501.
Make sure there are no cracks in the repaired area.
Fluorescent penetrant examine the repaired area.
SUBTASK 72-32-71-230-061 Examine the Power Arm

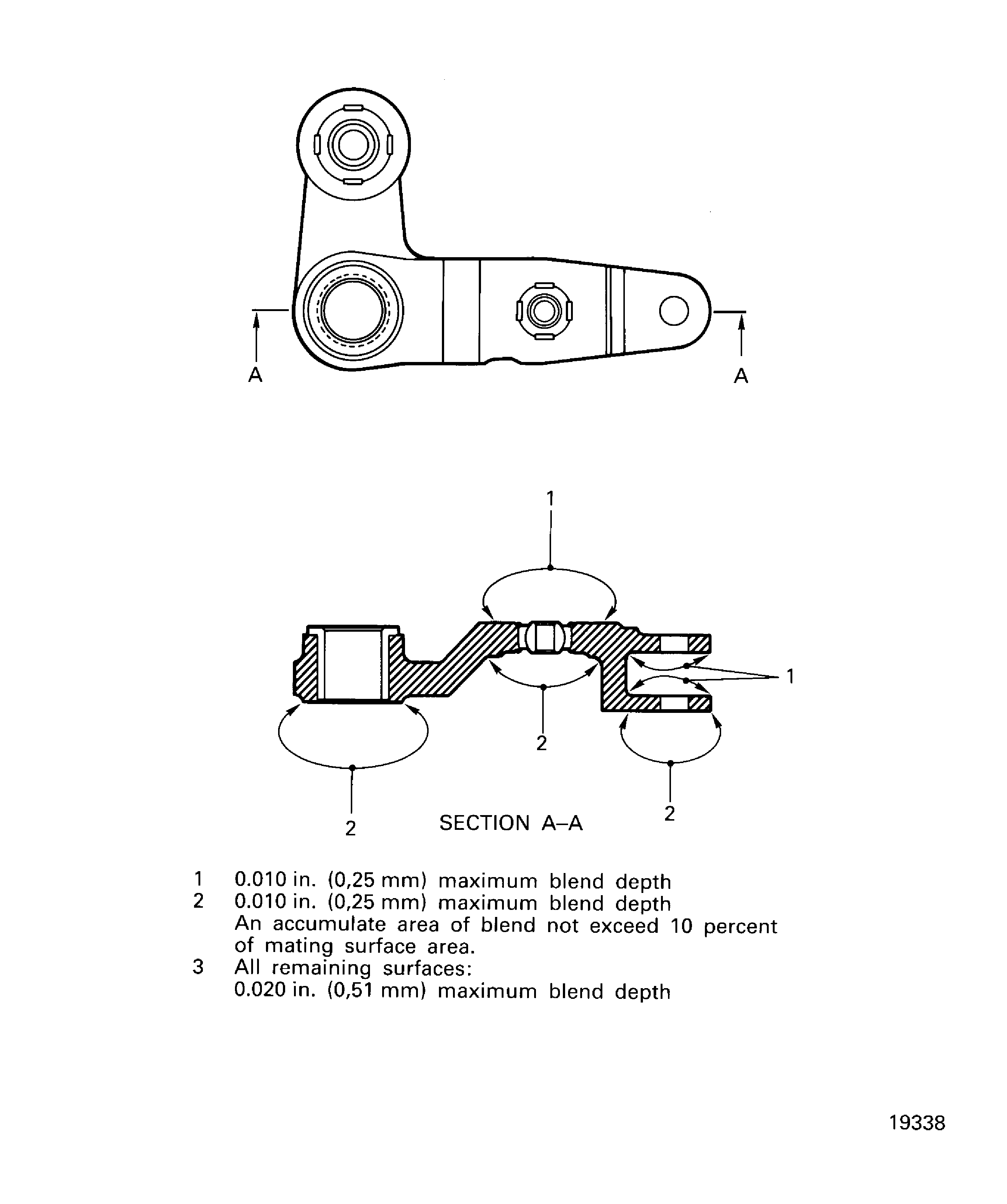

Figure: Power arm assembly - repair limit
Power arm assembly - repair limit
