TASK 72-32-72-300-003 LPC Bleed Valve Ring - Repair Surface Damage, Repair-003 (VRS1750)

DMC:V2500-A0-72-32-7200-01A-649A-C|Issue No:004.00|Issue Date:2020-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-72-300-003 LPC Bleed Valve Ring - Repair Surface Damage, Repair-003 (VRS1750)

Effectivity

FIG/ITEM

PART NO.

02-100

5A1450

02-100

5A1686

02-100

5A1872

02-100

5A2225

Material of component

PART IDENT

SYMBOL

MATERIAL

Valve Ring Assembly

Aluminum alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Magnifying Glass, 10xLOCALMagnifying Glass, 10x

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-275 CHROMATE CONVERSION COATING FOR ALUMINIUM00BB6CoMat 01-275
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 06-063 FLUORESCENT PENETRANT (POST-EMULSIFIED MEDIUM SENSITIVITY)X222XCoMat 06-063
CoMat 06-064 FLUORESCENT PENETRANT (WATER WASHABLE MEDIUM SENSITIVITY)X222XCoMat 06-064

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-72-350-053 Remove the Damage from the Valve Ring Assembly

    1. Refer to Figure and Figure.

      2. Make smooth and/or hand polish to remove nicks, scratches and dents except at Location 3.

        1. Surface finish of the repair must be the same as the adjacent area.

        1. Refer to the SPM TASK 70-35-03-300-501.

        3. Keep the material removal to the minimum necessary to remove damage.

      3. Hand polish to remove raised material only at Location 3.

        1. Surface finish of the repair must be the same as the adjacent area.

        1. Refer to the SPM TASK 70-35-03-300-501.

    2. SUBTASK 72-32-72-220-067 Examine the Valve Ring Assembly

      1. Visually examine the repaired area.

        1. Visually examine the repaired area for peeling, nicks and scratches using a 10X magnifying glass.

        1. Refer to TASK 72-32-72-200-000 (INSPECTION-000).

    3. SUBTASK 72-32-72-230-055 Examine the Valve Ring Assembly for Cracks

      1. Fluorescent penetrant examine the repaired area.

    4. SUBTASK 72-32-72-330-051 Apply Surface Protection to the Valve Ring Assembly

      1. Apply a chromate conversion coating to the repaired area.

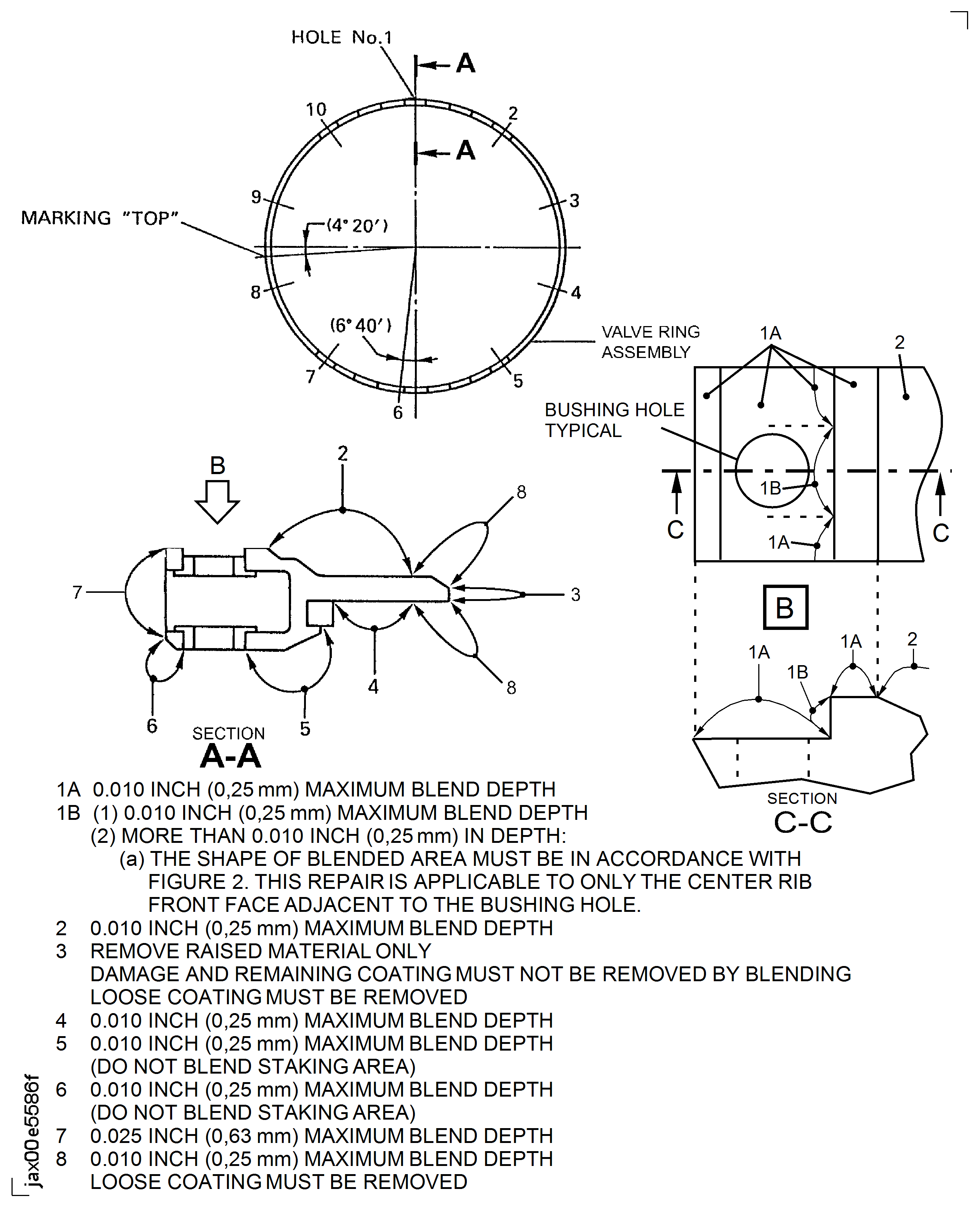

    5. Figure: Repair Details And Dimensions

    Repair Details And Dimensions

    Figure: Repair Details And Dimensions

    Repair Details And Dimensions
