TASK 72-32-75-300-004 LPC Bleed Valve Actuating Rods - Replace The Spherical Bearing, Repair-004 (VRS1341)

DMC:V2500-A0-72-32-7510-00A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-75-300-004 LPC Bleed Valve Actuating Rods - Replace The Spherical Bearing, Repair-004 (VRS1341)

Effectivity

FIG/ITEM

PART NO.

01-200

5A0790

01-200

5A1747

01-200

5A3721

01-500

5A0479

01-500

5A1746

01-500

5A3717

Material of component

PART IDENT

SYMBOL

MATERIAL

Rod

Corrosion and heat resistant steel

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment
Hydraulic pressLOCALHydraulic press
IAE 3J12749 remove and install pusher0AM53IAE 3J127491

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Bearing, sphericalMS14101-41
Bearing, sphericalMS14101-41

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-75-350-054 Remove the Defective Spherical Bearing from the Rod Assembly

    1. Refer to Figure, Figure and Figure.

    2. Examine and identify the defective spherical bearing.

      3. Push out the defective spherical bearing.

      4. Examine for damage in the bore.

        Scratches are permitted but remove the burrs.

      2. Refer to the SPM TASK 70-35-03-300-501.

    2. SUBTASK 72-32-75-230-055 Examine the Rod Assembly for Cracks

      1. Fluorescent penetrant examine the spherical bearing hole.

      1. Make sure that there are no cracks in the hole.

      2. Refer to the SPM TASK 70-23-05-230-501.

    3. SUBTASK 72-32-75-220-063 Examine the Rod Assembly

    1. Refer to Figure and Figure.

      2. Dimensionally examine the hole of the rod.

      1. Make sure of the correct diameter.

    4. SUBTASK 72-32-75-350-055 Install the New Spherical Bearing

    1. Refer to Figure, Figure and Figure.

      2. Clean the new spherical bearing and the hole of the rod.

      1. Use clean dry air blast or CoMat 02-099 LINT-FREE CLOTH.

      3. Install the bearing.

      2. Position the bearing race slightly below the surface of the rod.

      4. Swage the rod to fix the bearing.

      1. Use the hydraulic press and the IAE 3J12749 remove and install pusher 1 off.

      2. Apply a swaging force of 8000 lbf.

      3. Turn the rod and re-apply the swaging force.

      5. Do a proof-test.

      1. Use the hydraulic press and the IAE 3J12749 remove and install pusher 1 off.

      2. Apply an axial load of 300 lbf to the inner race.

      3. Turn the rod and re-apply the load.

        If it moves, re-swage or replace the bearing with a higher swaging load.

      6. Examine the ball for free movement in the race.

      1. NOTE

        If the torque is out of the limits that follows:
        Fig/Item 01-250 and 01-550, torque limit 5.1 lbfin (58 kgmm) Max.
        Replace the bearing with a lower swaging load.

        If the movement is not free, install a screw, nut and washers and measure the torque required to turn the ball.

    5. SUBTASK 72-32-75-220-064 Examine the Spherical Bearing Seating

    1. Refer to Figure and Figure.

      2. Visually examine the spherical bearing seating.

      1. The race of bearing is just below the rod face.

    6. Figure: Repair Details and Dimensions (5A3721 and 5A3717)

    Repair Details and Dimensions (5A3721 and 5A3717)

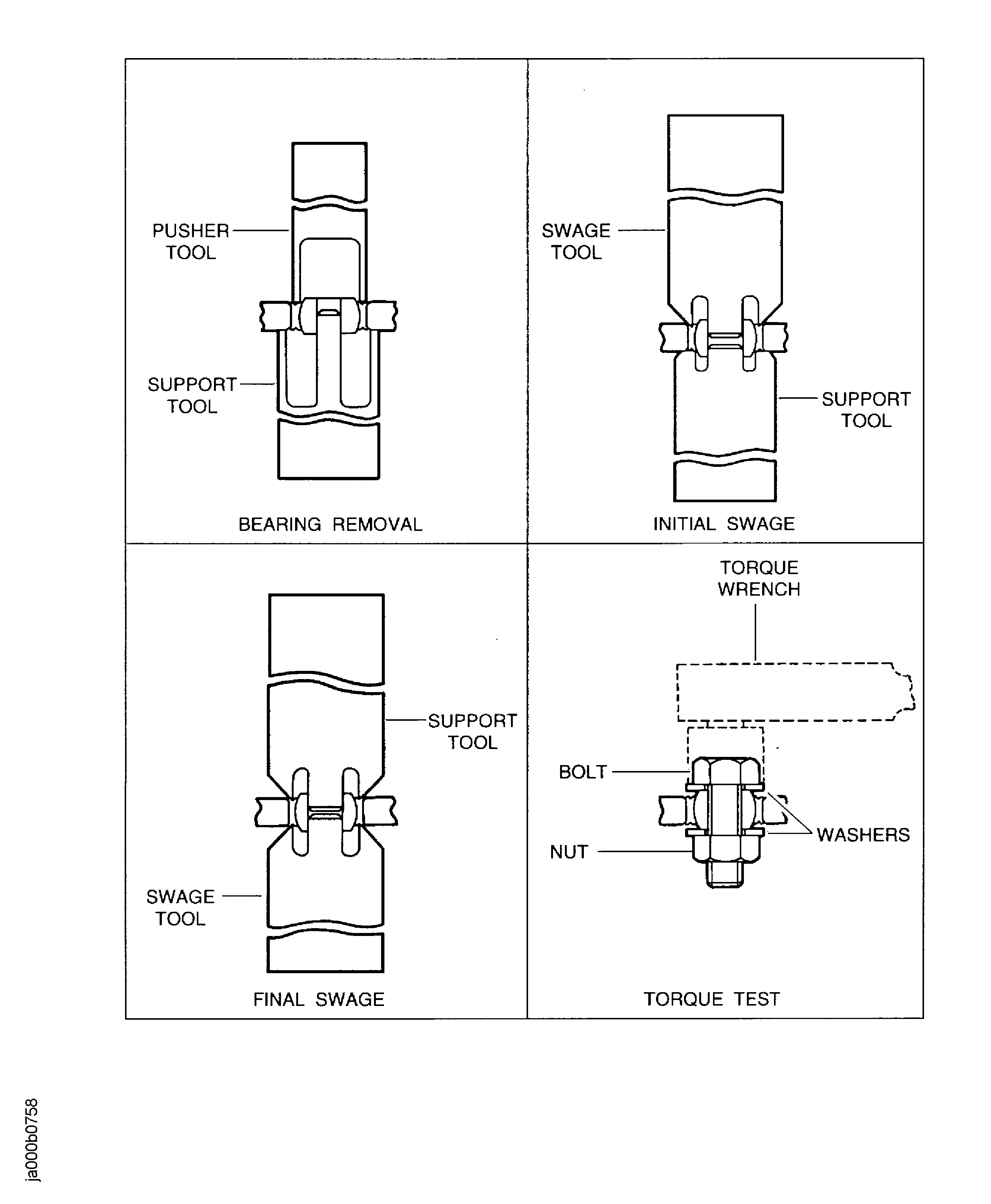

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

    Figure: Repair Details and Dimensions (5A0790, 5A0479, 5A1747 and 5A1746)

    Repair Details and Dimensions (5A0790, 5A0479, 5A1747 and 5A1746)

Requirements After Job Completion

Follow-On Conditions

NONE
