TASK 72-32-75-300-001 LPC Bleed Valve Actuating Rod Ends - Repair Surface Damage, Repair-001 (VRS1342)

DMC:V2500-A0-72-32-7520-00A-649A-C|Issue No:002.00|Issue Date:2016-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-75-300-001 LPC Bleed Valve Actuating Rod Ends - Repair Surface Damage, Repair-001 (VRS1342)

Effectivity

FIG/ITEM

PART NO.

01-120

5A0498

01-120

5A1715

01-120

5A3666

01-190

5A0498

01-420

5A1715

01-420

5A3666

01-420

5A0498

01-490

5A0498

Material of component

PART IDENT

SYMBOL

MATERIAL

Rod end adaptor

Corrosion and heat resistant steel

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Magnifying glass, 10xLOCALMagnifying glass, 10x
Fine fileLOCALFine file
Honing stoneLOCALHoning stone

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-75-350-051 Remove the Damage from the Rod End Adaptor

    1. Refer to Figure.

      2. Remove burrs and pick-up on the threads.

      1. Use a fine file or honing stone.

    3. Remove scratches from the rod end adaptor face.

    2. SUBTASK 72-32-75-220-055 Examine the Rod End Adaptor

      1. Visually examine the repaired area.

      1. Visually examine the repaired area for pick-up and/or burrs using a 10x magnifying glass.

      2. Refer to TASK 72-32-75-200-000 (INSPECTION-000).

    3. SUBTASK 72-32-75-230-051 Examine the Rod End Adaptor for Cracks

      1. Do a fluorescent penetrant examination of the repaired area.

      1. Make sure there are no cracks in the repaired area.

      2. Refer to the SPM TASK 70-23-05-230-501.

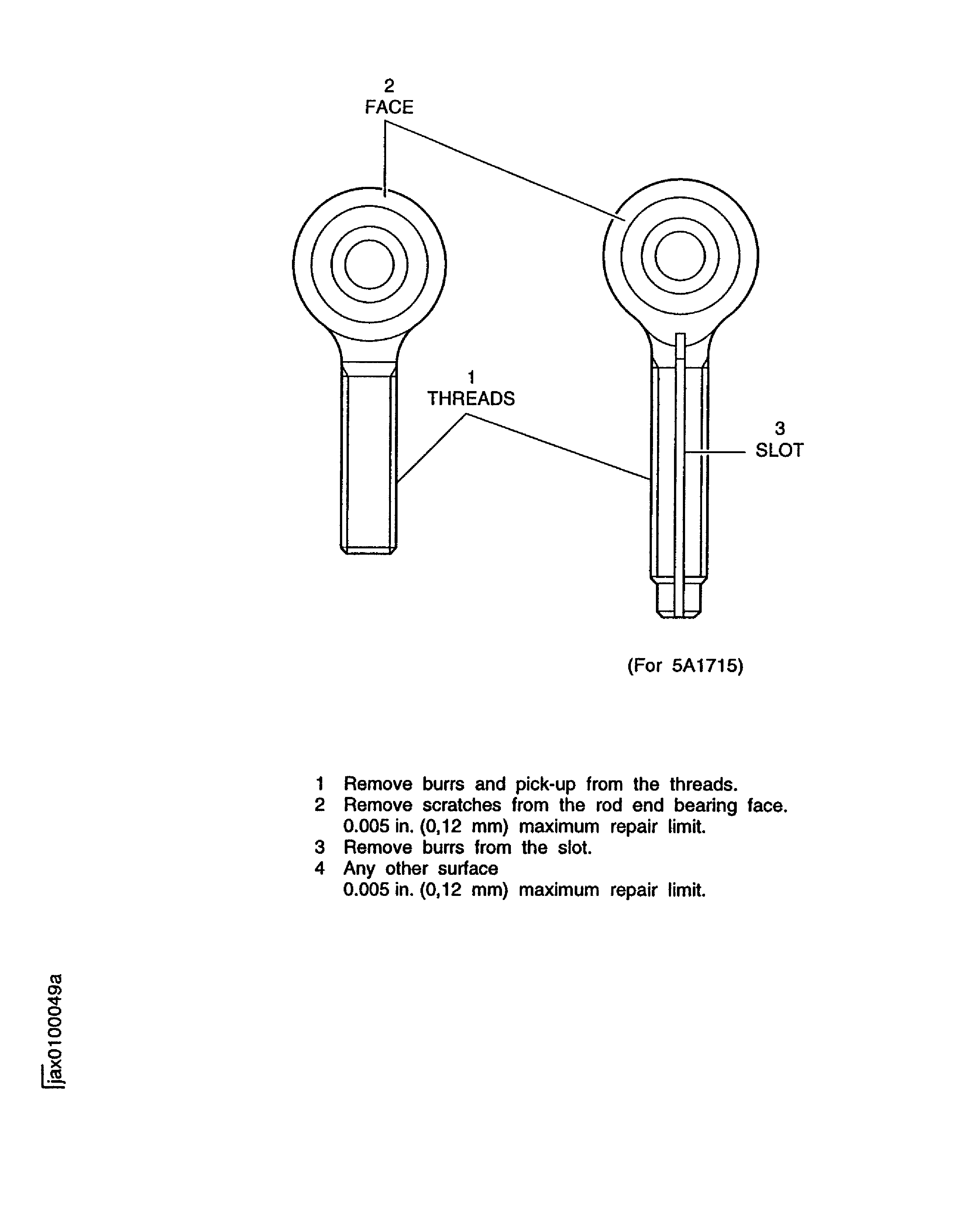

    4. Figure: Rod end adaptor - repair limits

    Rod end adaptor - repair limits

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Corrected the SPM Task number
