TASK 72-32-76-300-001 LPC Stage 2.5 Stator - Repair The Sleeve Of The Outer Shroud Ring, Repair-001 (VRS1352)
General
This repair TASK gives the procedure for replacing of the sleeve.
Price and availability
Refer to IAE for any of these items.
Tools
Repair parts
Repair of spares
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
Preliminary Requirements
Pre-Conditions
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 07-070 ZINC CHROMATE PRIMER | IAE59 | CoMat 07-070 |
Spares
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Sleeve | M81934-1- | 40 |
Safety Requirements
NONEProcedure
Refer to Figure.
Tap out the sleeve.
SUBTASK 72-32-76-350-051 Remove the Existing Sleeve
Apply CoMat 07-070 ZINC CHROMATE PRIMER on outer surface of the new sleeve.
Apply zinc chromate primer on the new sleeve.
Refer to Figure.
Install the sleeve in position of the outer shroud ring.
Refer to Figure.
New staking positions are adjacent to existing holes.
Do a staking.
SUBTASK 72-32-76-350-052 Install the New Sleeve
Refer to TASK 72-32-76-200-000.
Visually examine the repaired area.
SUBTASK 72-32-76-220-051 Examine the Repaired Area

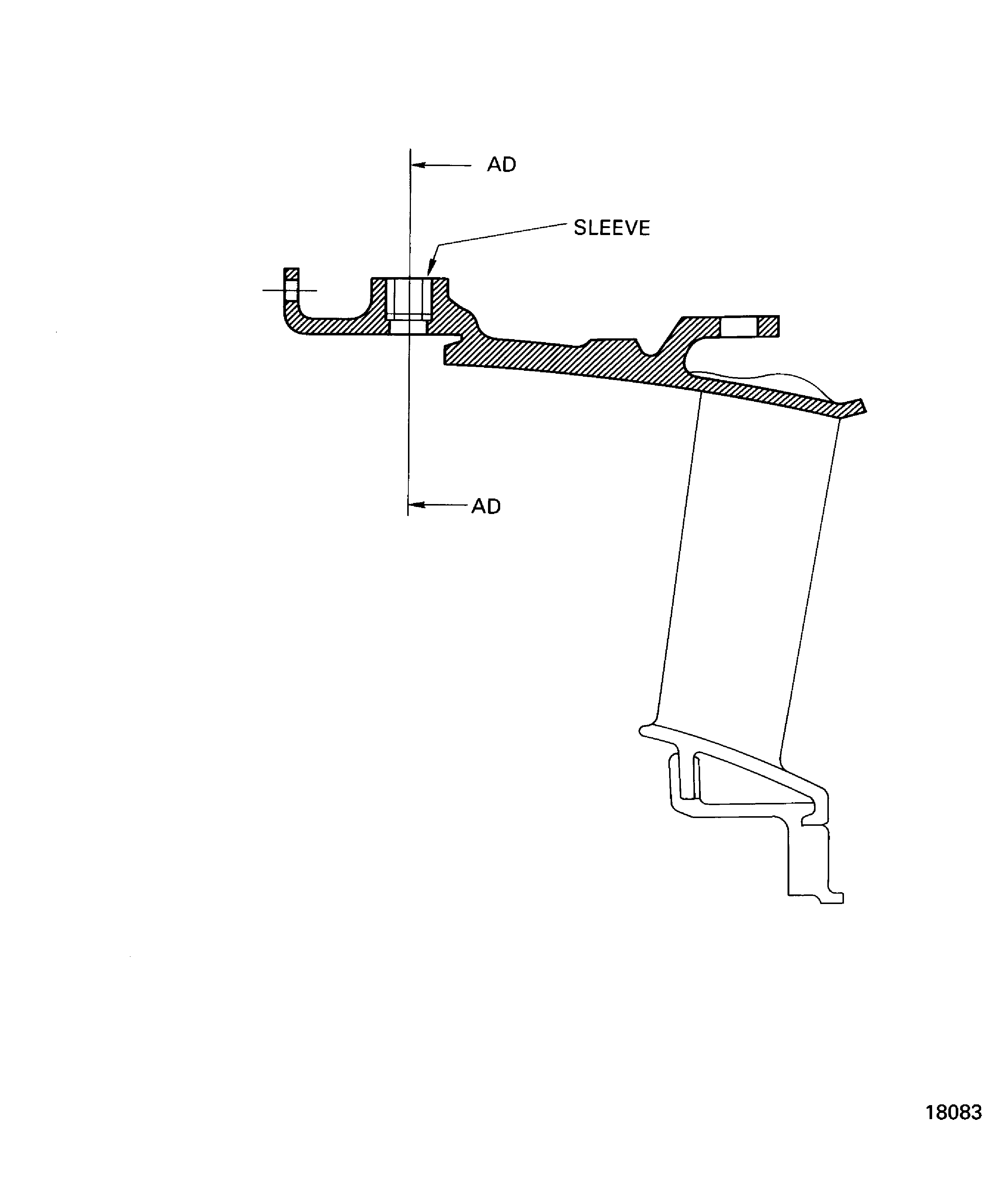

Figure: Sleeve position
Sleeve position

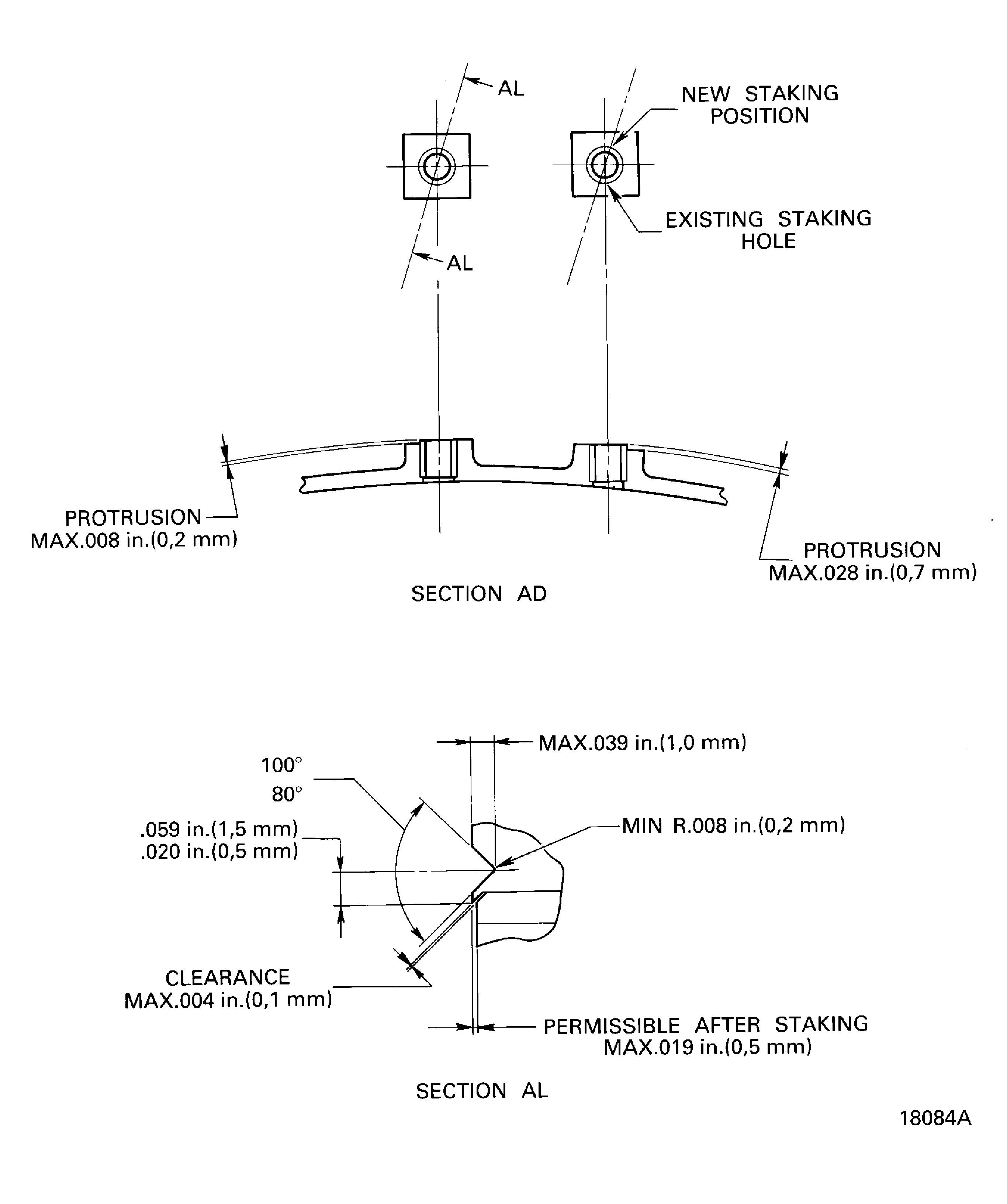

Figure: Staking position
Staking position
