TASK 72-32-76-300-009 LPC Stage 2.5 Stator - Replace The Inner Ring, Repair-009 (VRS1349)

DMC:V2500-A0-72-32-7600-06A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-76-300-009 LPC Stage 2.5 Stator - Replace The Inner Ring, Repair-009 (VRS1349)

Effectivity

FIG/ITEM

PART NO.

01-400

5R0029

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Ring, Inner

Aluminum alloy

General

Price and availability

Refer to IAE for any of the followings:

Tools

Engine parts

Repair of spares

This Repair scheme gives the procedure for replacing of the Inner Ring.

The practice and processes referred to in the procedure by the TASK number are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 3J13156 Locating holder0AM53IAE 3J131561

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 07-070 ZINC CHROMATE PRIMERIAE59CoMat 07-070
CoMat 10-039 ENGINE OILLOCALCoMat 10-039

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Ring, A/O Inner5R00311

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-76-040-051 Remove Damaged Inner Ring

    1. Remove bolts and washers.

    2. Remove the inner ring.

    2. SUBTASK 72-32-76-220-068 Examine the Captive Nuts

    1. Examine the captive nuts.

      2. Damaged or loosen.

      1. Repair, VRS1347 TASK 72-32-76-300-010.

    3. SUBTASK 72-32-76-440-051 Install the Inner Ring

    1. Refer to Figure, Figure and Figure.

      2. Install new inner ring.

      1. Use IAE 3J13156 Locating holder 1 off to obtain the correct vanes position.

      3. Install bolts and washers.

      1. Apply CoMat 07-070 ZINC CHROMATE PRIMER to the surface of washers where contact with the inner ring.

      2. Apply CoMat 10-039 ENGINE OIL to the bolts and torque the bolts to between 36 and 32 lbfin (4.07 and 3.61 Nm).

    4. SUBTASK 72-32-76-220-069 Examine the Replaced Inner Ring

      1. Do a visual inspection.

      1. Refer to TASK 72-32-76-200-002.

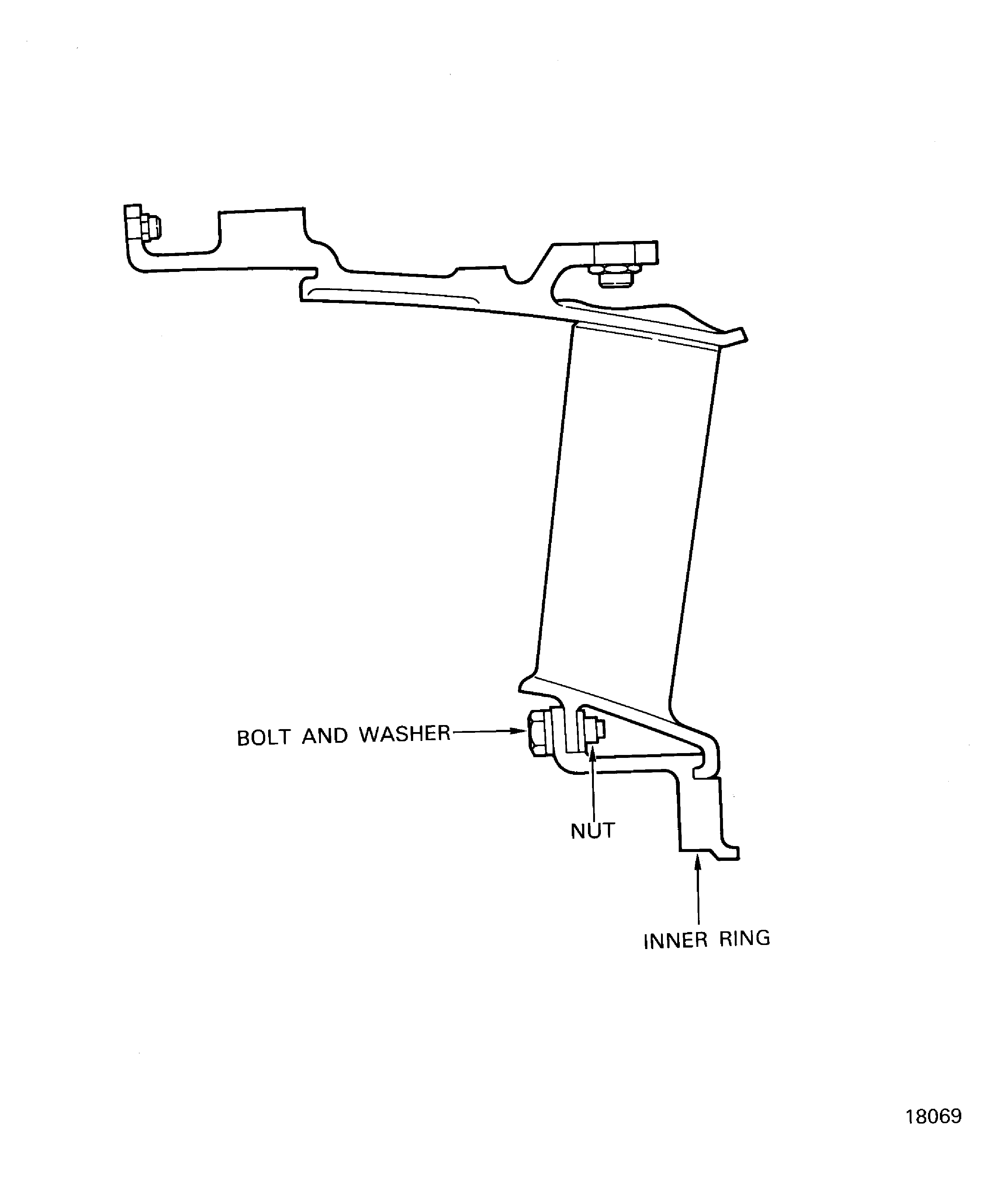

    5. Figure: LP Compressor STG 2.5 Stator Assembly

    LP Compressor STG 2.5 Stator Assembly

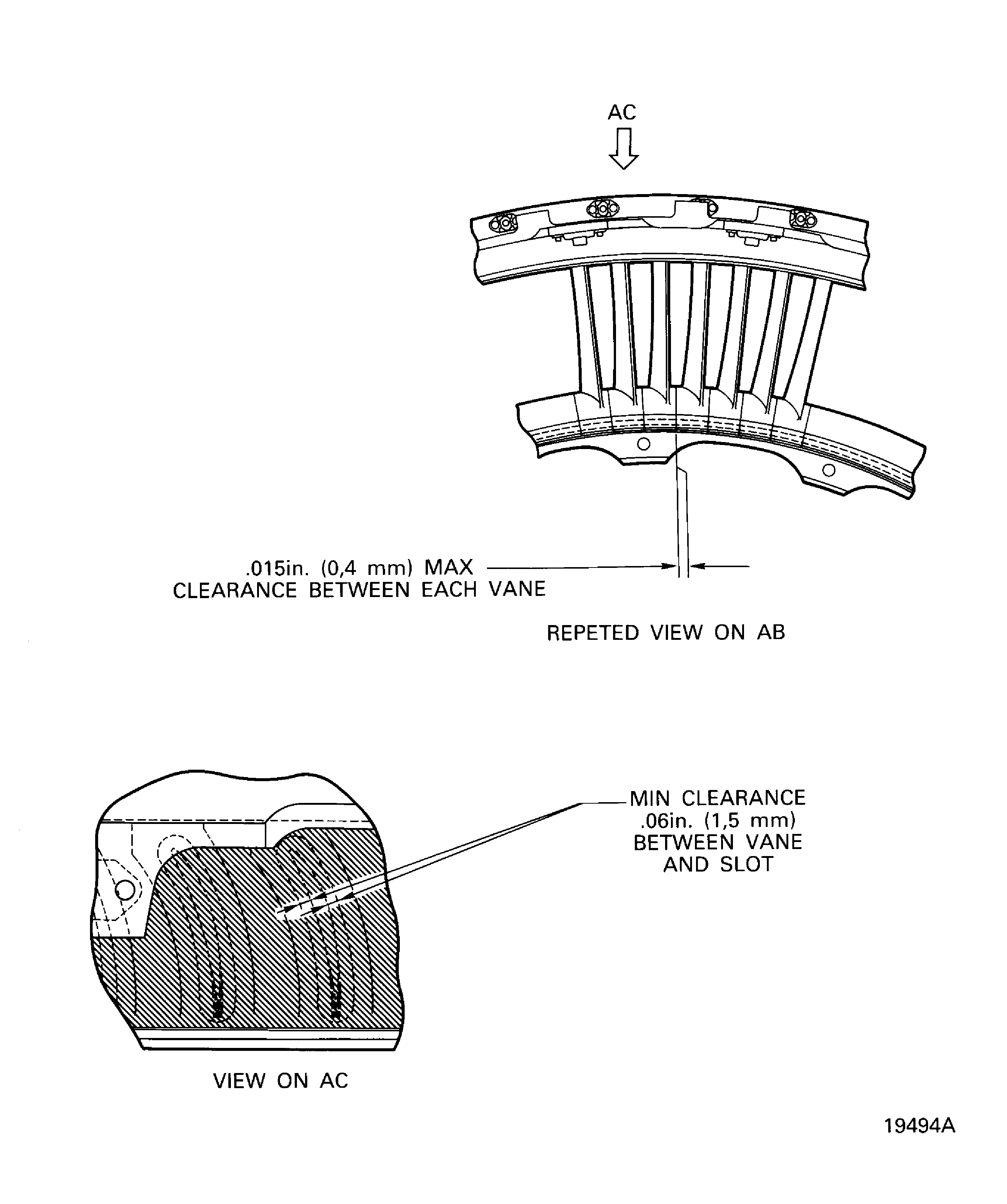

    Figure: LP Compressor STG 2.5 Stator Assembly

    LP Compressor STG 2.5 Stator Assembly

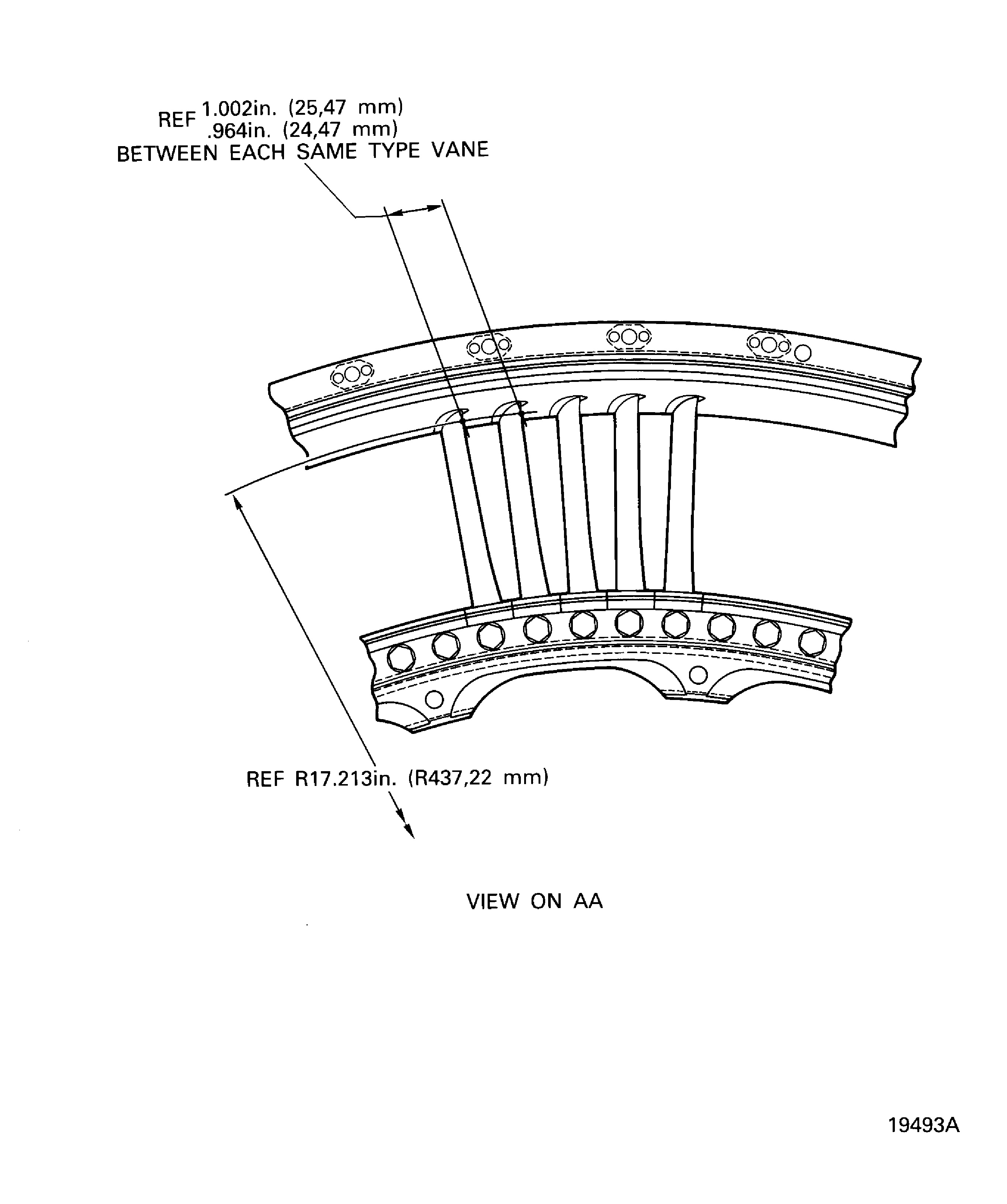

    Figure: LP Compressor STG 2.5 Stator Assembly

    LP Compressor STG 2.5 Stator Assembly

Requirements After Job Completion

Follow-On Conditions

NONE
