TASK 72-32-83-300-046 LPC Stage 1.5 Stator - Repair Surface Damage By Blending, Repair-046 (VRS1764)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Fluorescent Penetrant Inspection Equipment | LOCAL | Fluorescent penetrant inspection equipment |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
The surface finish of the repair area must be the same as the adjacent area.
Refer to the SPM TASK 70-35-03-300-501.
CAUTION
WHEELS, STONES AND ABRASIVE PAPERS USED TO DRESS, MAKE SMOOTH OR POLISH A TITANIUM COMPONENT MUST BE OF THE SILICON CARBIDE TYPE. ALUMINUM OXIDE TYPES MUST NOT BE USED.CAUTION
THE MATERIAL WILL OXIDIZE AND CRACK IF MECHANICAL CUTTERS ARE USED HEAVILY. THIS HAS OCCURRED IF THE COMPONENT SHOWS DARK STRAW TO BLUE DISCOLOURATION. IF AT ANY TIME THIS COLOURATION OCCURS, THE COMPONENT MUST BE REJECTED.Make smooth and/or hand polish to remove nicks, scores and/or galls.
SUBTASK 72-32-83-350-073 Remove the Damage from the LPC Stage 1.5 Stator Assembly
Refer to TASK 72-32-83-200-000 (INSPECTION-000).
Visually examine the repaired area.
SUBTASK 72-32-83-220-157 Visually Examine the LPC Stage 1.5 Stator Assembly
Refer to the SPM TASK 70-23-05-230-501 and TASK 72-32-85-200-000 (INSPECTION-000).
Use penetrant inspection equipment.
Do a penetrant crack test.
SUBTASK 72-32-83-230-071 Examine the LPC Stage 1.5 Stator Assembly for Cracks

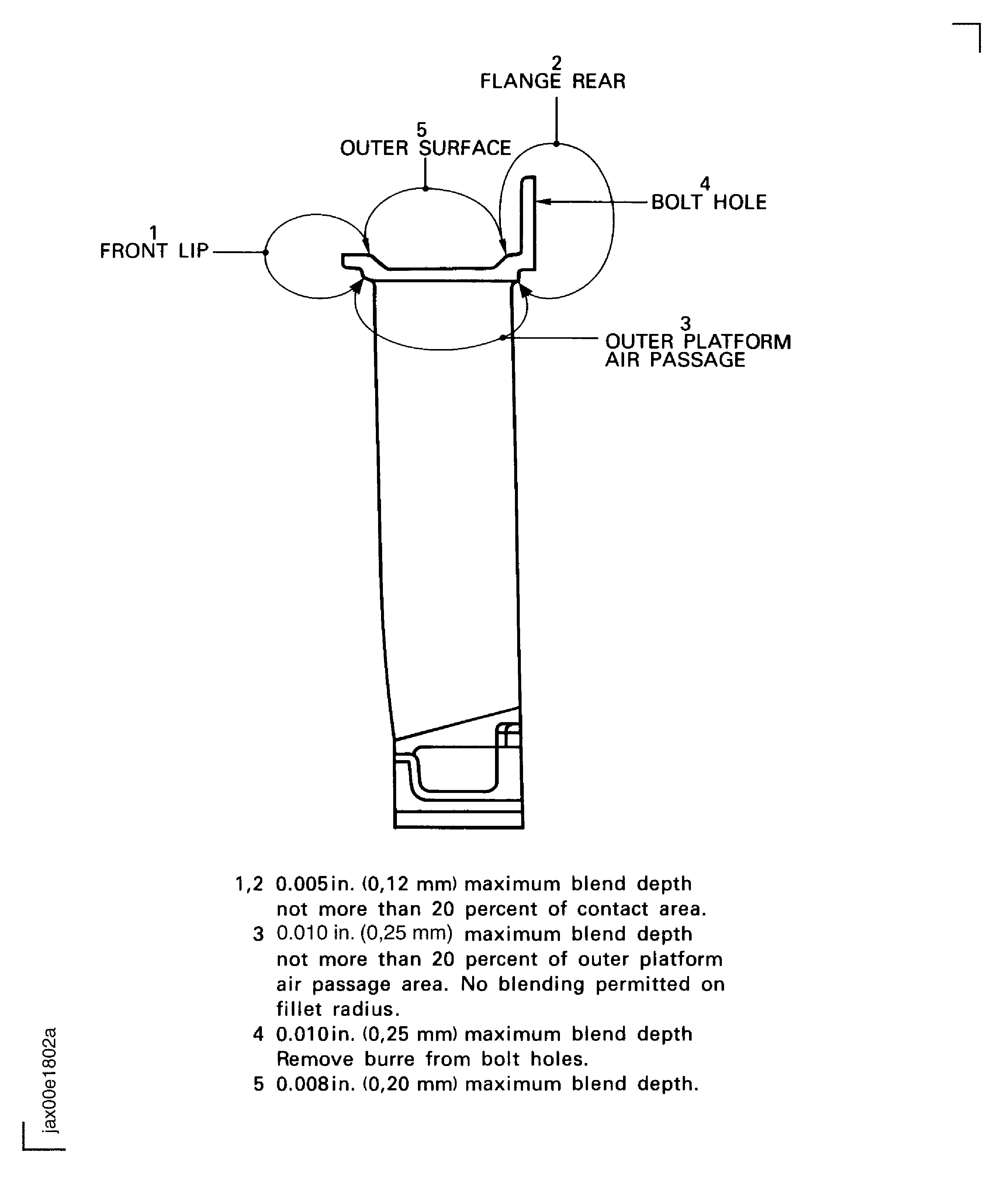

Figure: LPC stage 1.5 stator assembly - Blend limits on outer platform
LPC stage 1.5 stator assembly - Blend limits on outer platform
