TASK 72-32-83-300-042 LPC Stage 2.3 Stator - Repair The Outer Platform Damage By Blending, Repair-042 (VRS1755)
General
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
Price and availability - none
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Fluorescent Penetrant Inspection Equipment | LOCAL | Fluorescent penetrant inspection equipment |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
The surface finish of the repair must be the same as the adjacent area.
Refer to the SPM TASK 70-35-03-300-501.
CAUTION
WHEELS, STONES AND ABRASIVE PAPERS USED TO DRESS, MAKE SMOOTH OR POLISH A TITANIUM COMPONENT MUST BE OF THE SILICON CARBIDE TYPE. ALUMINUM OXIDE TYPES MUST NOT BE USED.CAUTION
THE MATERIAL WILL OXIDIZE AND CRACK IF MECHANICAL CUTTERS ARE USED HEAVILY. THIS HAS OCCURRED IF THE COMPONENT SHOWS DARK STRAW TO BLUE DISCOLOURATION. IF AT ANY TIME THIS DISCOLOURATION OCCURS, THE COMPONENT MUST BE REJECTED.Make smooth and/or hand polish to remove nicks, scores and galls.
SUBTASK 72-32-83-350-071 Remove the Damage
Refer to Figure.
Use a 10X magnifying glass.
Refer to TASK 72-32-83-200-000 (INSPECTION-000).
Do a visual inspection.
SUBTASK 72-32-83-220-159 Visually Examine the Repair
Refer to the SPM TASK 70-23-05-230-501 and TASK 72-32-83-200-000 (INSPECTION-000).
Do a fluorescent penetrant crack test.
SUBTASK 72-32-83-230-073 Do a Crack Test

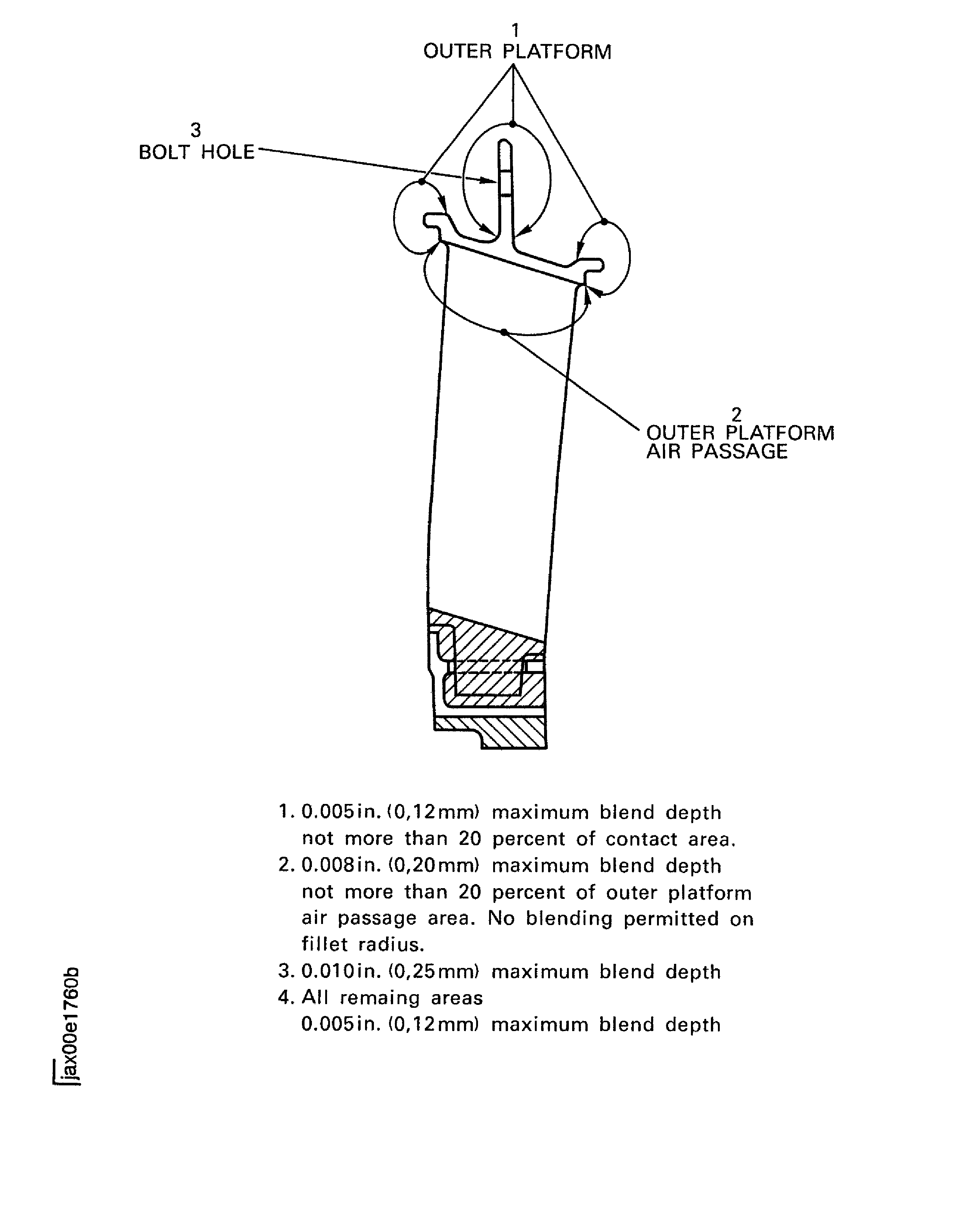

Figure: LPC stage 2.3 stator assembly - blend limits on outer platform
LPC stage 2.3 stator assembly - blend limits on outer platform
