TASK 72-32-83-300-060 LPC Front Case - Replace the Locating Pin Repair-060 (VRS1379)

DMC:V2500-A0-72-32-8330-04A-920A-C|Issue No:002.00|Issue Date:2015-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-83-300-060 LPC Front Case - Replace the Locating Pin Repair-060 (VRS1379)

Effectivity

FIG/ITEM

PART NO.

02-350

5A0458

02-350

5A1864

Material of component

PART IDENT

SYMBOL

MATERIAL

LPC Front Case

-

Aluminum alloy

General

This repair must only be done when the instruction to do so is given in TASK 72-32-83 inspection/check.

This TASK gives the procedure to replace the damaged locating pins of LPC front case assembly.

TASKs identified by SPM TASK are in the Standard Practices and Processes Manual (SPM).

Price and availability - refer to IAE

Related repairs - none

NOTE

Equipment and materials necessary to do this repair are in the SPM TASKs given below:
SPM TASK 70-23-05-230-501
SPM TASK 70-35-03-300-501
SPM TASK 70-38-02-300-503

NOTE

  1. It is possible that some materials in the Consumable Materials chart cannot be used for some or all of the necessary applications. Before you use the materials, make sure the types, quantities and applications of the materials necessary are legally permitted in your location. All persons must obey all applicable federal, state, local and provincial laws and regulations when it is necessary to work with these materials.

  2. To identify the consumable materials, refer to the overhaul process and Consumables Index (PCI).

  3. Other necessary consumable materials are referred to in the SPM TASKs.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-275 CHROMATE CONVERSION COATING FOR ALUMINIUMLOCALCoMat 01-275
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099
CoMat 03-026 LIQUID NITROGENLOCALCoMat 03-026
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 06-064 FLUORESCENT PENETRANT (WATER WASHABLE MEDIUM SENSITIVITY)LOCALCoMat 06-064

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Locating pin5A0894A/R

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-83-350-167 Remove the Locating Pin from the LPC Front Case Assembly (02-350)

    1. Refer to Figure.

    2. Examine and identify the locating pin.

      3. Push out the locating pin.

      1. Use hand tools.

      4. Examine for damage in the bore.

      5. Dimensionally examine the pin hole.

      1. Make sure the pin hole diameter for interference fit is correct.

    2. SUBTASK 72-32-83-230-109 Examine the Pin Hole of the Front Case Assembly (02-350) for Cracks

      1. Fluorescent penetrant examine the pin hole.

      1. Make sure there are no cracks in the pin hole. Refer to the SPM TASK 70-23-05-230-501.

        Use fluorescent penetrant inspection equipment.

    3. SUBTASK 72-32-83-380-077 Apply the Surface Protection to the LPC Case Assembly (02-350)

    1. Refer to Figure.

      2. Apply chromate conversion coating to the pin hole, if necessary.

    4. SUBTASK 72-32-83-350-168 Install the New Locating Pin (02-378)

    1. Refer to Figure.

      2. Clean the locating pin and the pin hole.

      1. Use clean dry air blast or CoMat 02-099 LINT-FREE CLOTH.

      3. Freeze the locating pin.

      1. Freeze the locating pin to help replacement into pin hole.

      4. Install and push the locating pin into the pin hole.

      1. Use hand tools.

    5. SUBTASK 72-32-83-220-254 Examine the Locating Pin (02-378) Seating

    1. Refer to Figure.

      2. Visually examine the locating pin seating.

      1. Pin head must be put against the flange face.

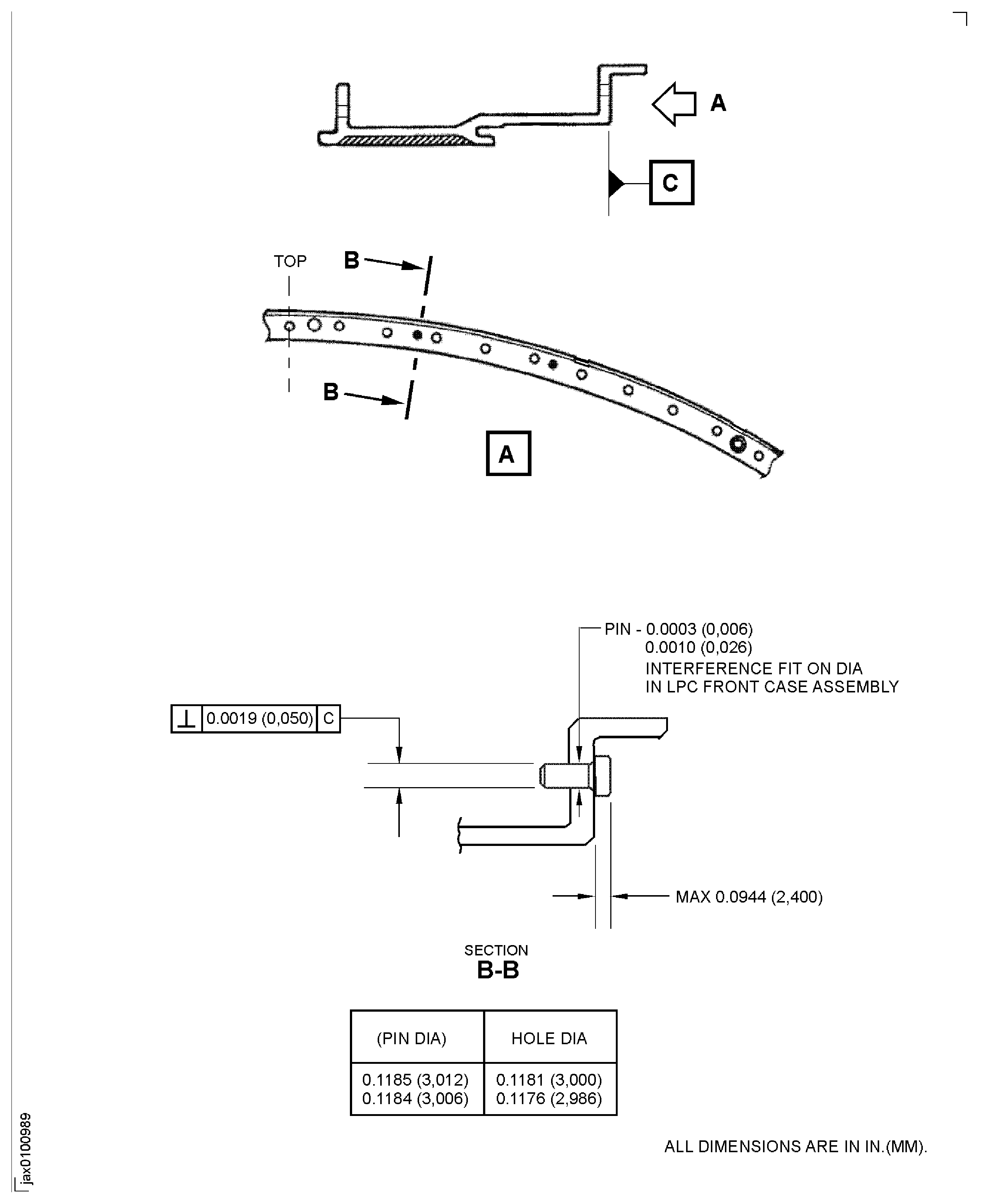

    6. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Reinstated repair details inadvertently omitted during conversion. (editorial change)
