TASK 72-32-85-300-012 Fan Case - Replace The Anchor Nut, Repair-012 (VRS1418)

DMC:V2500-A0-72-32-8501-03A-920A-C|Issue No:002.00|Issue Date:2018-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-85-300-012 Fan Case - Replace The Anchor Nut, Repair-012 (VRS1418)

Effectivity

FIG/ITEM

PART NO.

01-100

5W0069

01-100

5W0072

01-100

5W0081

01-100

5W0093

01-100

5W0094

01-100

5W0100

01-100

5W0124

01-100

5W0144

01-100

5W0149

01-100

5W0154

01-100

5W0168

01-100

5W0169

01-100

5W0171

01-100

5W0172

01-100

5W0184

01-100

5W0186

01-100

5W0187

01-100

5W0188

01-100

5W0189

01-100

5W0190

01-100

5W0191

01-100

5W0192

01-100

5W0193

01-100

5W0194

01-100

5W0195

01-100

5W0196

01-100

5W0197

01-100

5W0198

01-100

5W0199

01-100

5W0200

01-100

5W0201

01-100

5W0202

01-100

5W0203

01-100

5W0204

01-100

5W0205

01-100

5W0206

01-100

5W0207

01-100

5W0208

01-100

5W0209

01-100

5W0210

01-100

5W0211

01-100

5W0212

01-100

5W0213

01-100

5W0214

01-100

5W0215

01-100

5W0216

01-100

5W0217

01-100

5W0218

01-100

5W0219

01-100

5W0220

01-100

5W0221

01-100

5W0222

01-100

5W0223

01-100

5W0224

01-100

5W0225

01-100

5W0226

01-100

5W0306

01-100

5W0307

01-100

5W0313

Material of component

PART IDENT

SYMBOL

MATERIAL

Fan case

-

Titanium alloy

General

Price and availability - none

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Electric hand drillLOCALElectric hand drill
Power riveter (G784)LOCALPower riveter (G784)
AdapterLOCAL680B046
Pulling head (H681-3U)LOCALPulling head (H681-3U)
Pulling head (H9055-3)LOCALPulling head (H9055-3)

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Rivet, blindCR2663-3-3AR
Rivet, blindCR2663-3-03AR
Rivet, blindCR2663-3-3AR
Rivet, blindCR2673-3-03AR
Nut, anchorMS21060L4AR
Rivet, blindCR2663-3-3AR
Rivet, blindCR2663-3-3AR
Rivet, blindCR2673-3-03AR
Rivet, blindCR2663-3-03AR
Nut, anchorMS21060-4AR
Rivet, blindCR2663-3-3AR
Rivet, blindCR2663-3-3AR
Rivet, blindCR2673-3-03AR
Rivet, blindCR2663-3-03AR
Nut, anchorMS21062-4AR
Rivet, blindCR2663-3-4AR
Rivet, blindCR2673-3-04AR
Rivet, blindCR2663-3-04AR
Nut, anchorMS21060-4AR

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-85-350-078 Remove Anchor Nut

    2. Remove the anchor nut.

      3. Make a hole in the center of the rivet head.

      1. Use a center punch.

      4. Drill-off tapered portion of pin.

      1. Use electric hand drill and a drill of 0.070 in. (1.78 mm) diameter.

      5. Pry out remainder of locking collar.

      1. Use small hammer and punch.

      6. Drill almost through the rivet head.

      1. Use electric hand drill and a drill of 0.089 in. (2.26 mm) diameter.

    7. Pry off rivet head.

      8. Tap shank out with pin.

      1. Use small hammer and punch.

    10. Clean the hole with soft clean cloth and blast with air.

    2. SUBTASK 72-32-85-220-093 Examine the Rivet Hole on the Fan Case Assembly

      2. Visually examine the rivet hole.

      1. Cracks, nicks, scratches and burrs are not permitted.

    3. Dimensionally examine the rivet hole.

    3. SUBTASK 72-32-85-350-079 Fit New Anchor Nut to the Fan Case Assembly

      2. Install new anchor nut on the fan case.

      1. Put new anchor nut in position on the fan case, aligning rivet holes.

    3. Install rivet through the fan case and the anchor nut.

      4. Form the rivet.

      1. Use cherry riveter, adapter and pulling head.

    4. SUBTASK 72-32-85-220-094 Examine the Anchor Nut on the Fan Case Assembly

      2. Visually examine the formed rivet.

      1. The rivet must be tight.

      2. Both rivet heads must be correctly seated.

      3. The formed rivet head must have no cracks or signs of bursting at the periphery.

    5. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

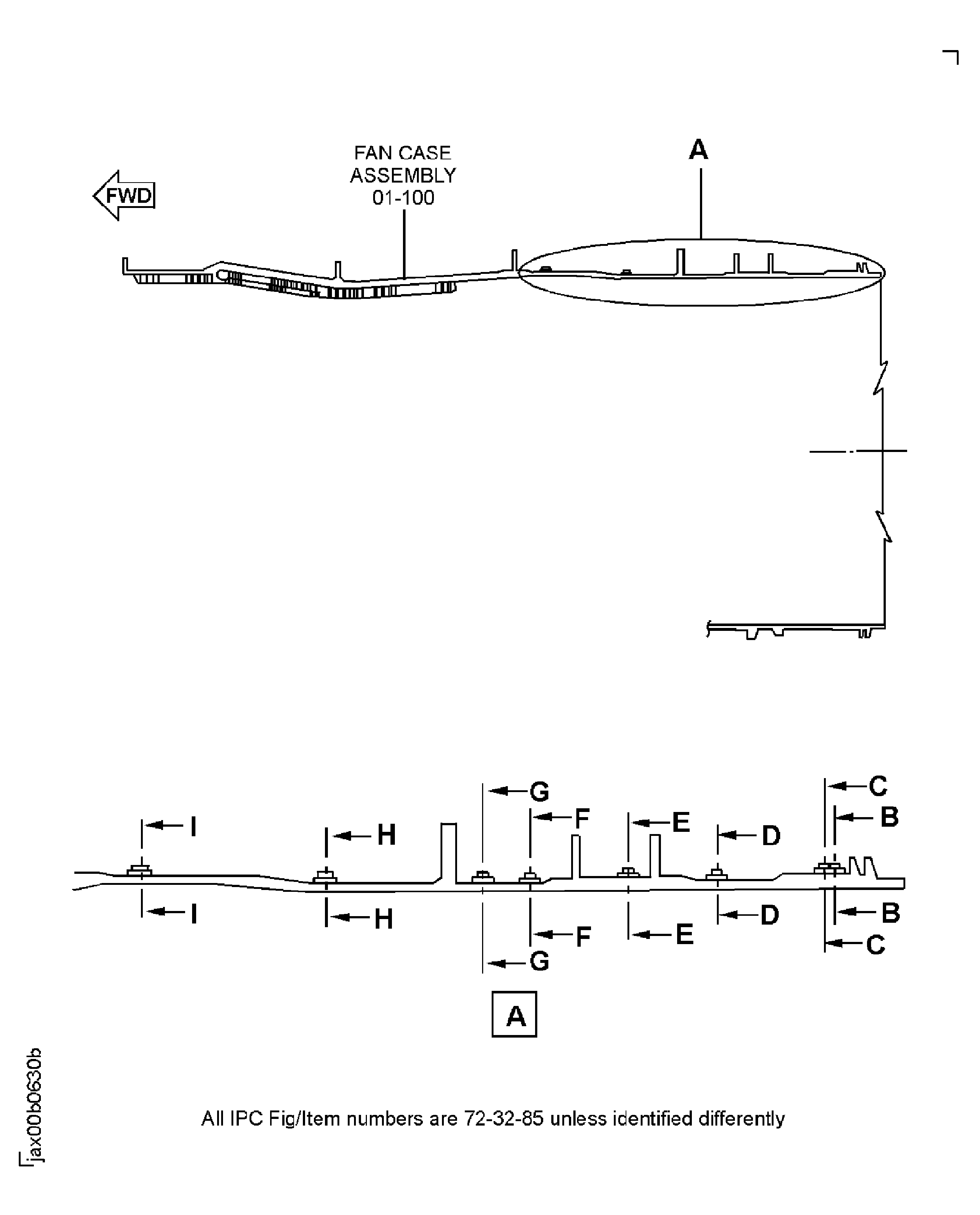

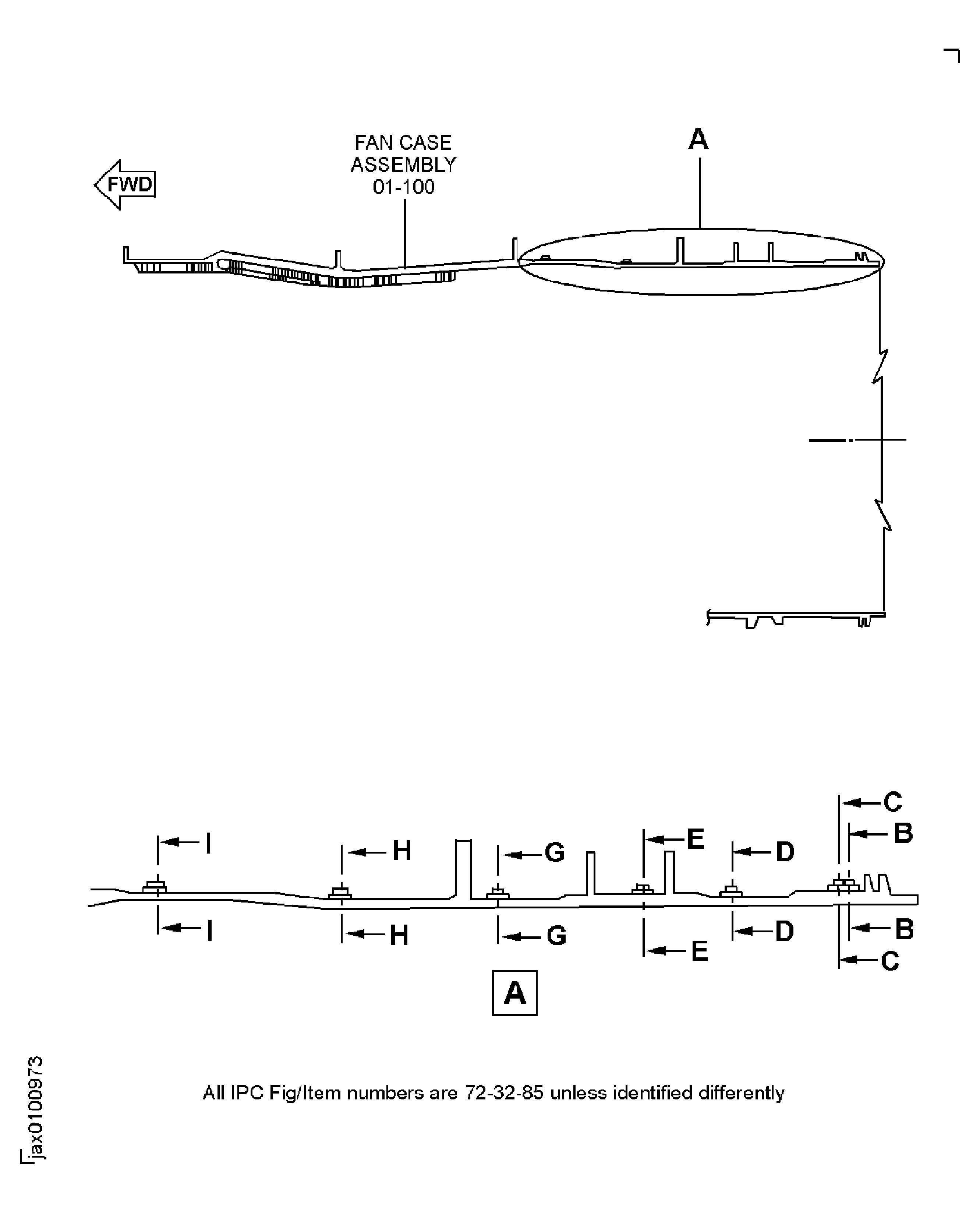

    Figure: A1 Pre SBE 72-0103: Repair Details and Dimensions

    Sheet 1

    Legend
    A1 Pre SBE 72-0103: Repair Details and Dimensions

    Sheet 1

    Close

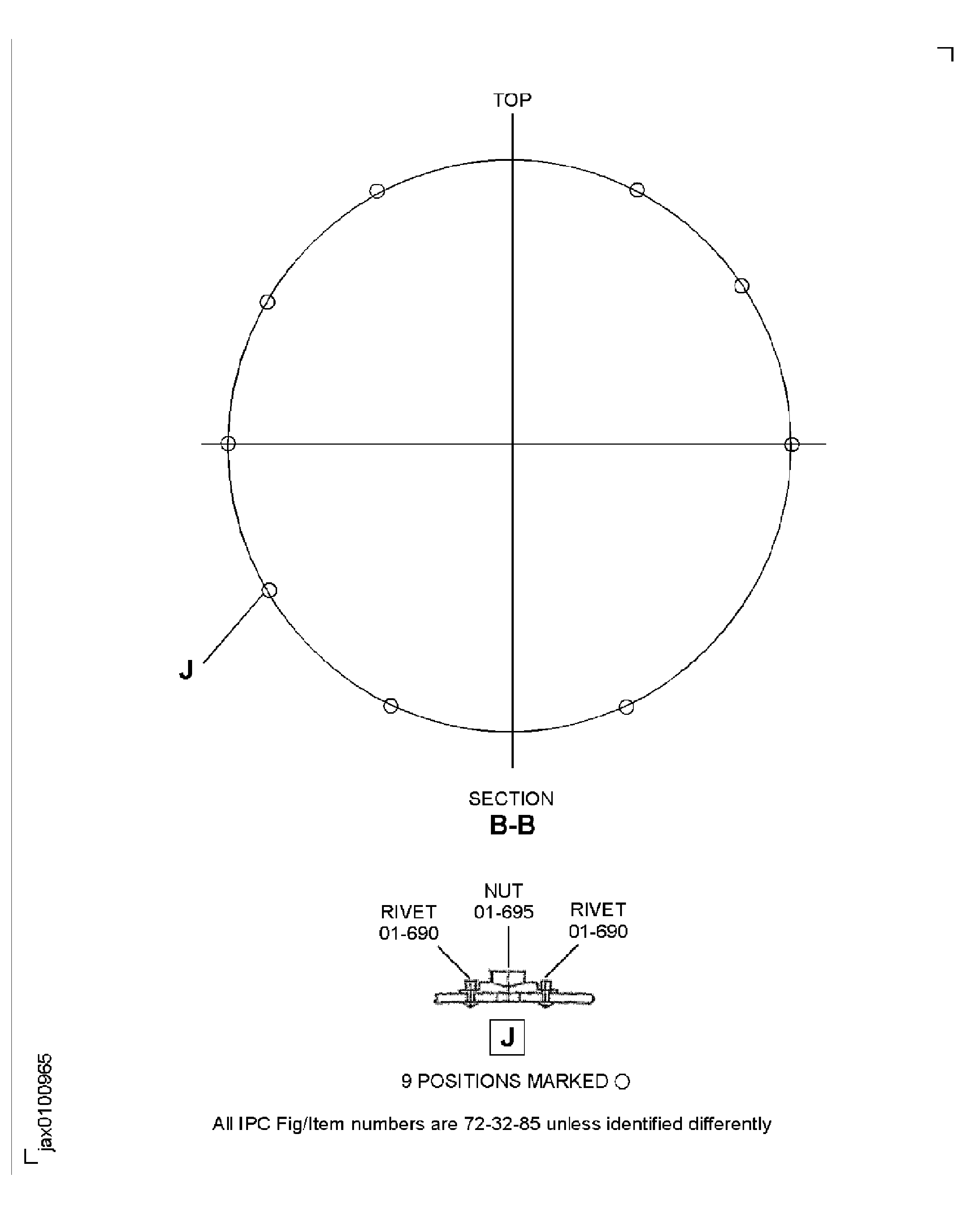

    Figure: A1 Pre SBE 72-0103: Repair Details and Dimensions

    Sheet 2

    Legend
    A1 Pre SBE 72-0103: Repair Details and Dimensions

    Sheet 2

    Close

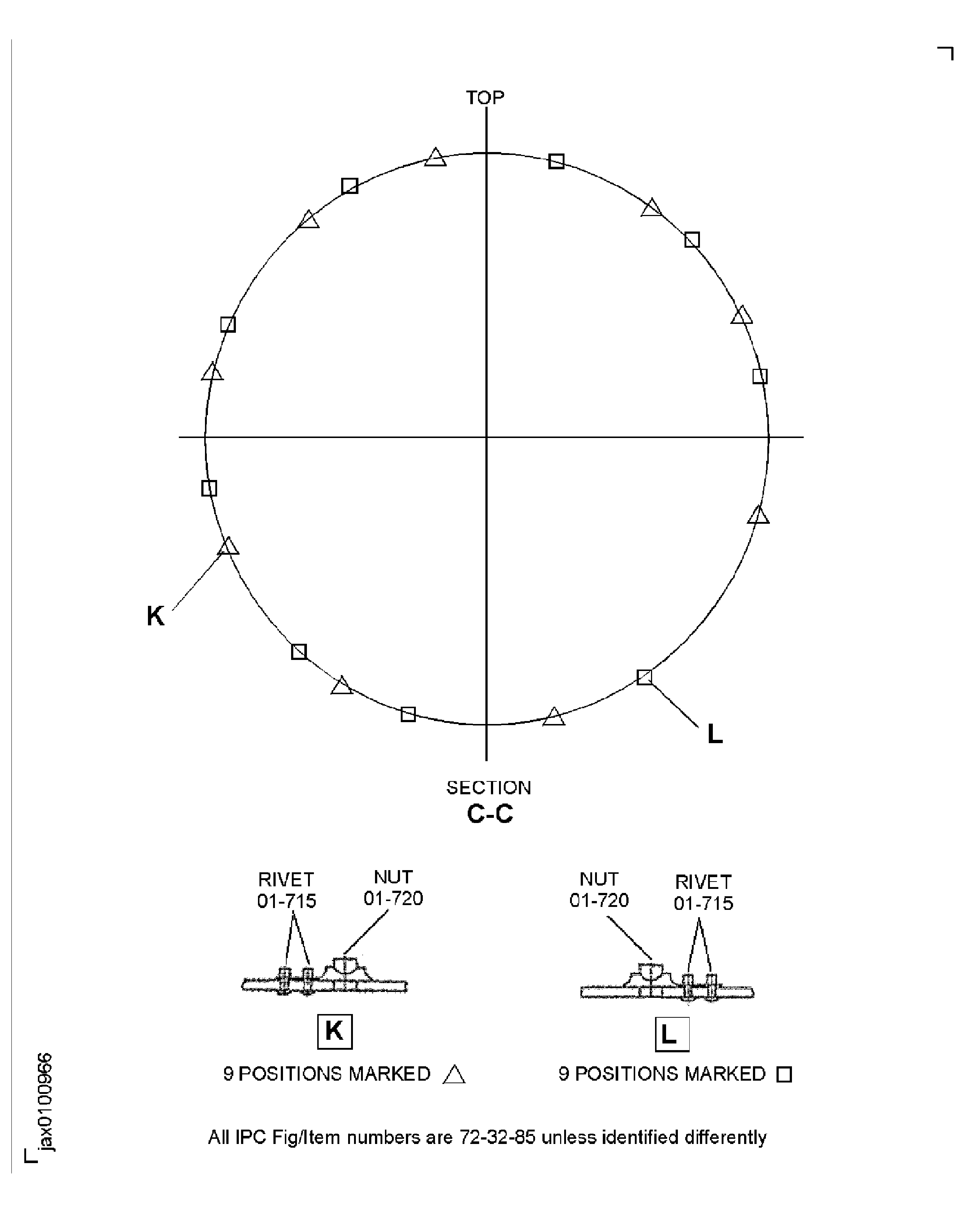

    Figure: A1 Pre SBE 72-0103: Repair Details and Dimensions

    Sheet 3

    Legend
    A1 Pre SBE 72-0103: Repair Details and Dimensions

    Sheet 3

    Close

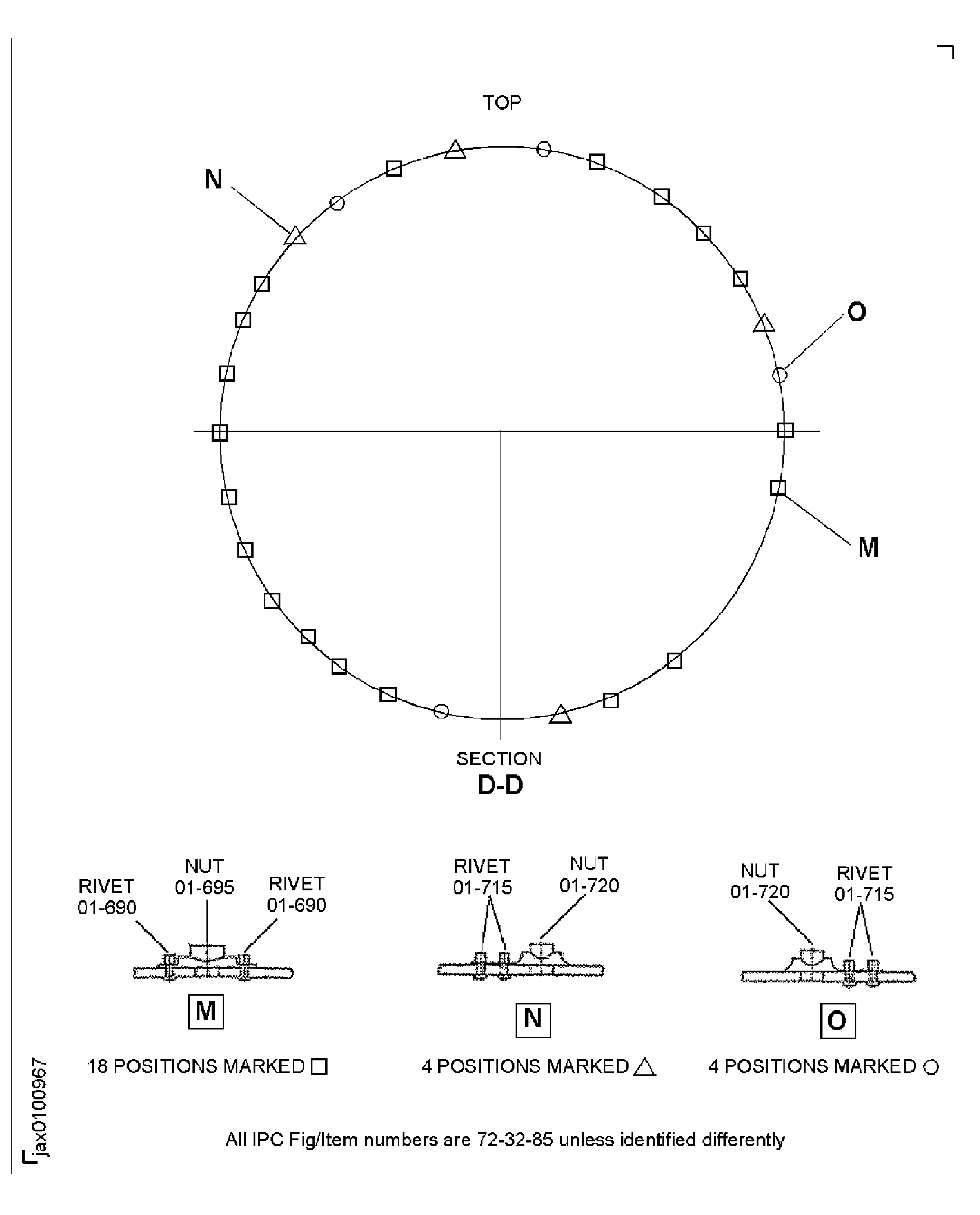

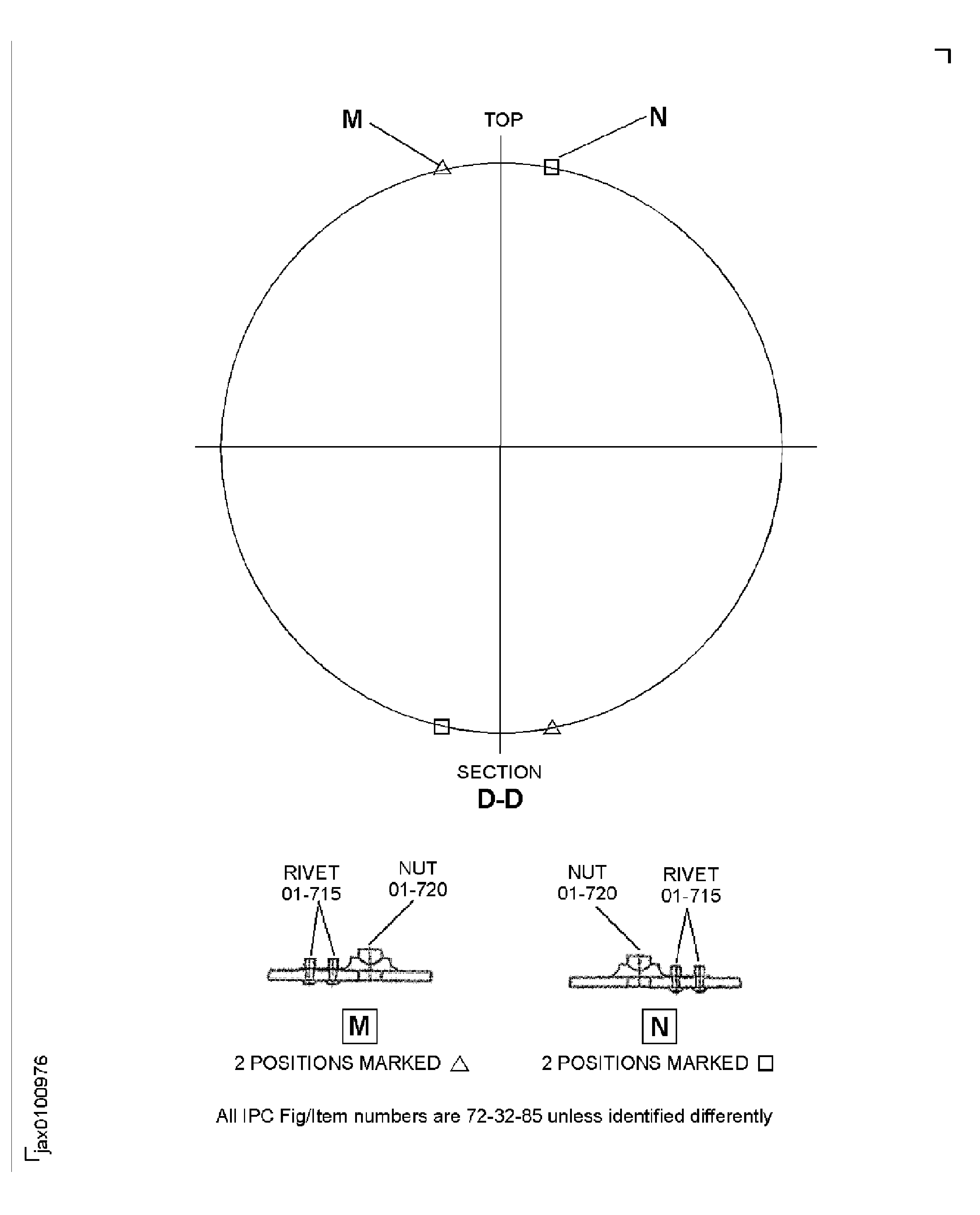

    Figure: A1 Pre SBE 72-0103: Repair Details and Dimensions

    Sheet 4

    Legend
    A1 Pre SBE 72-0103: Repair Details and Dimensions

    Sheet 4

    Close

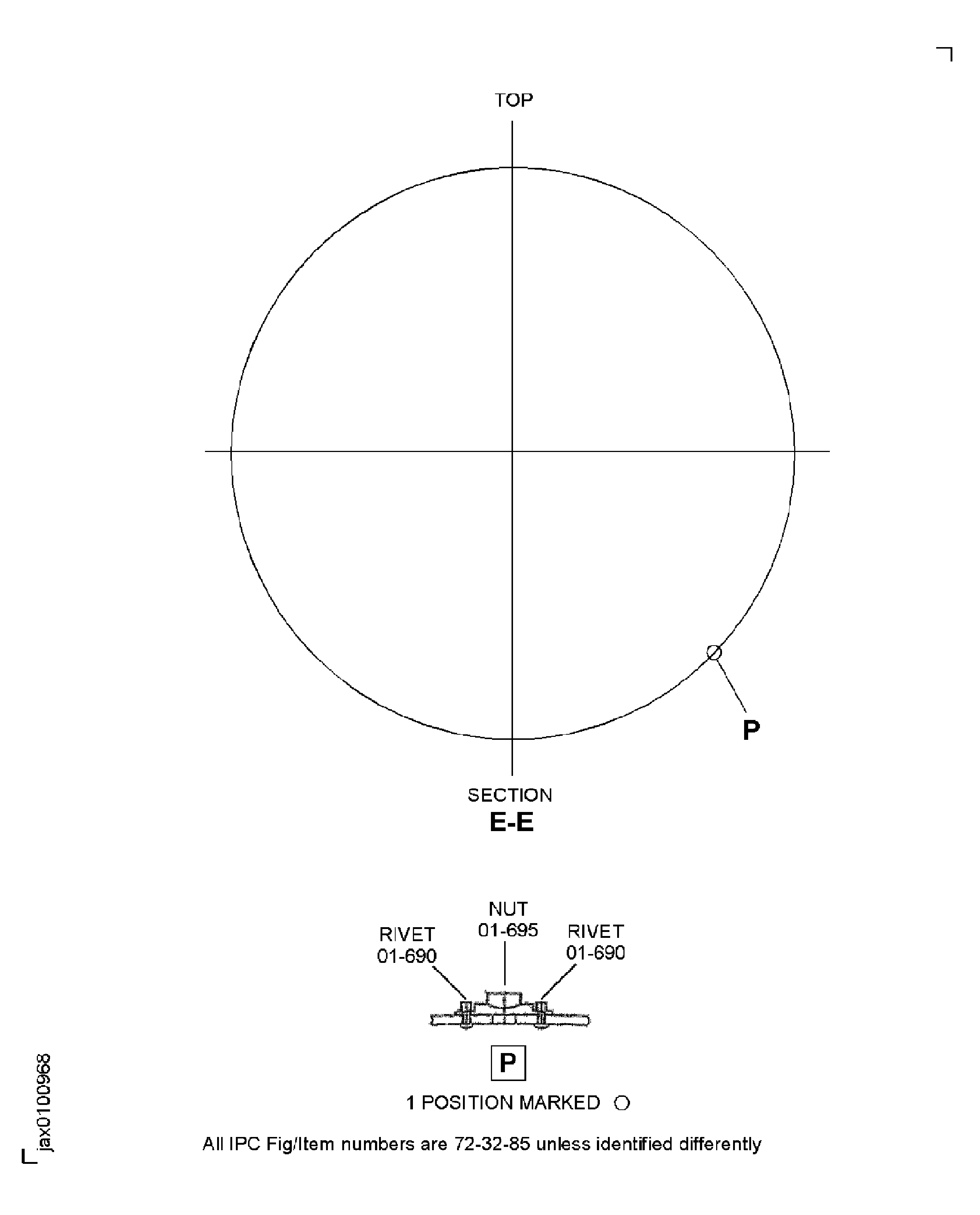

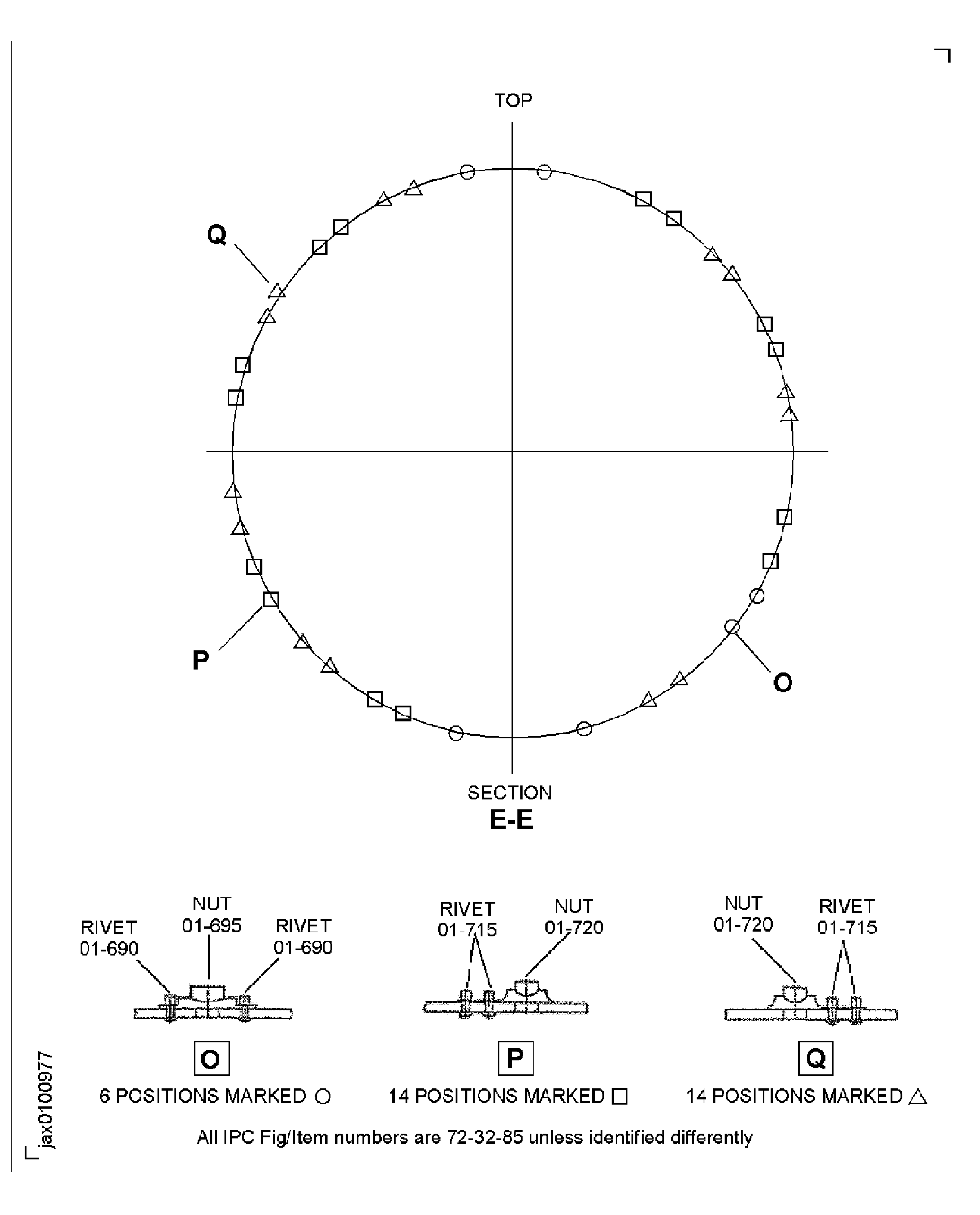

    Figure: A1 Pre SBE 72-0103: Repair Details and Dimensions

    Sheet 5

    Legend
    A1 Pre SBE 72-0103: Repair Details and Dimensions

    Sheet 5

    Close

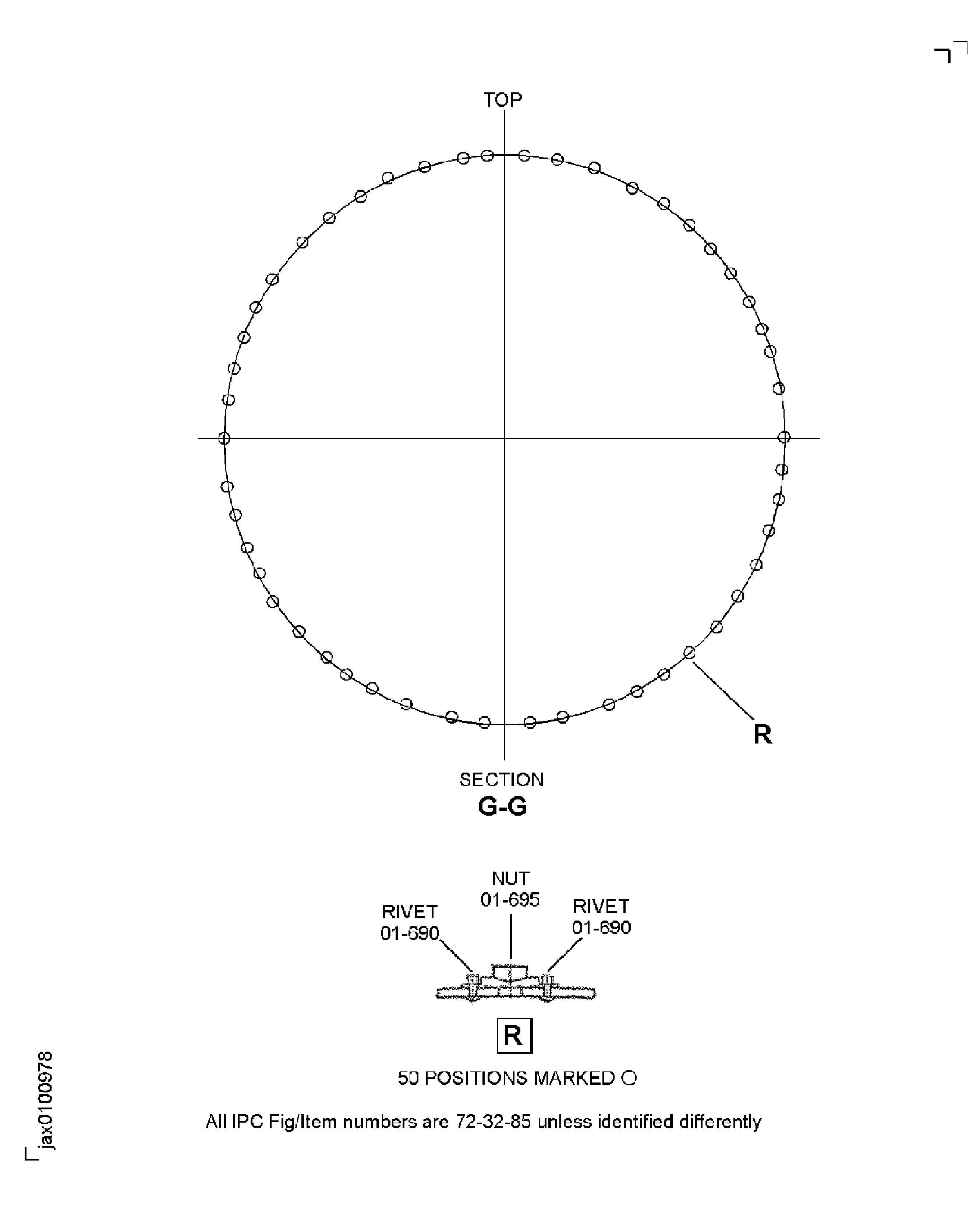

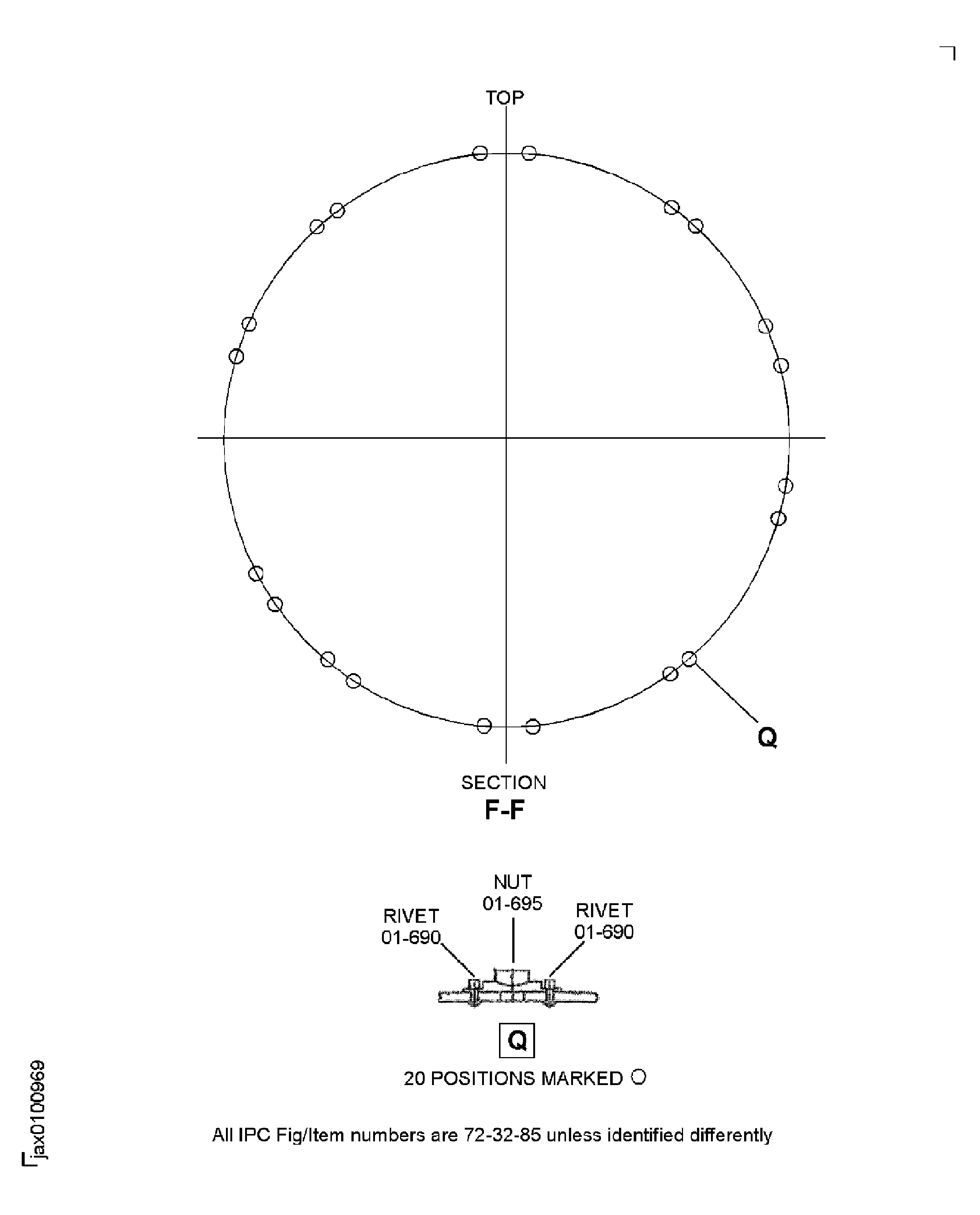

    Figure: A1 Pre SBE 72-0103: Repair Details and Dimensions

    Sheet 6

    Legend
    A1 Pre SBE 72-0103: Repair Details and Dimensions

    Sheet 6

    Close

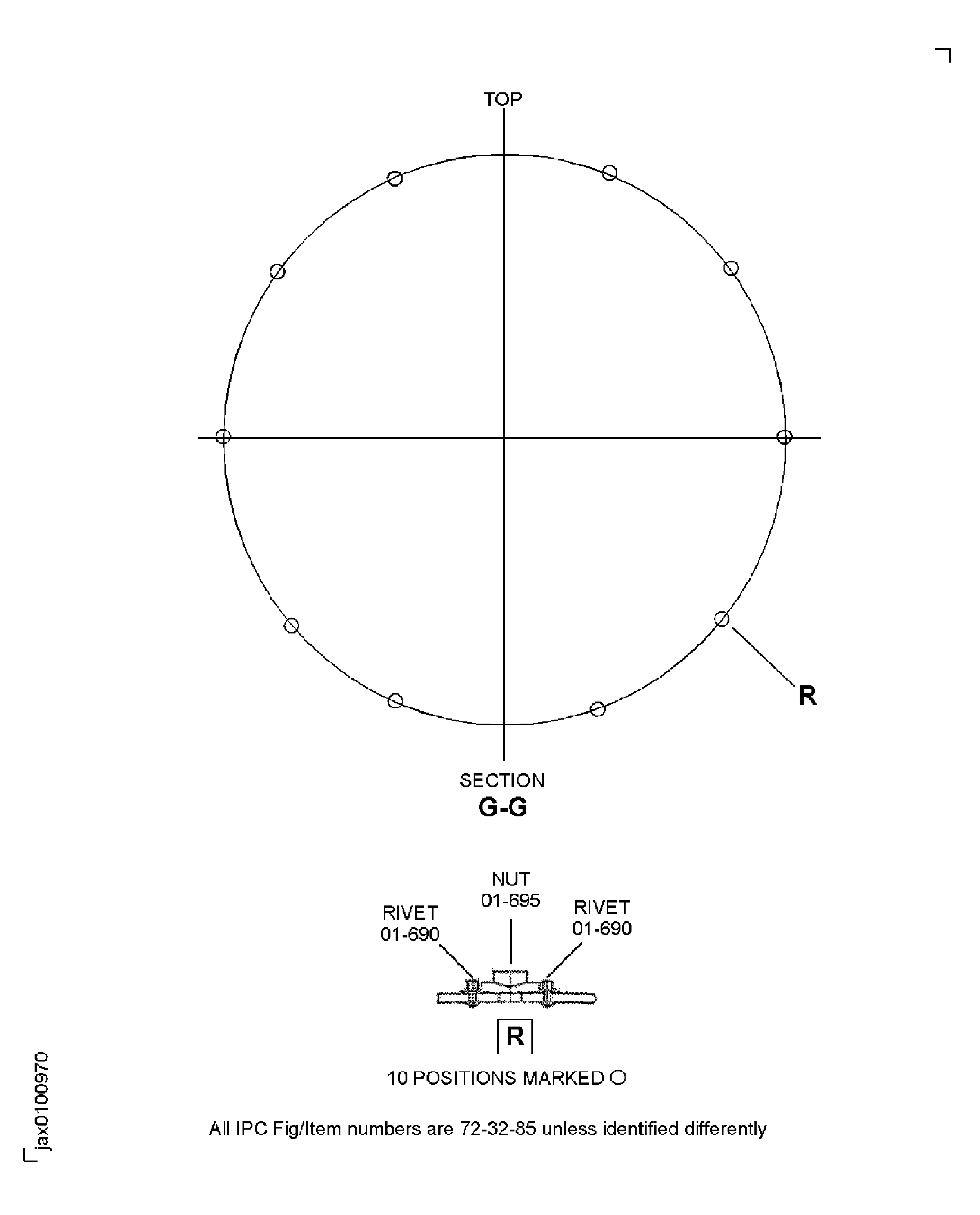

    Figure: A1 Pre SBE 72-0103: Repair Details and Dimensions

    Sheet 7

    Legend
    A1 Pre SBE 72-0103: Repair Details and Dimensions

    Sheet 7

    Close

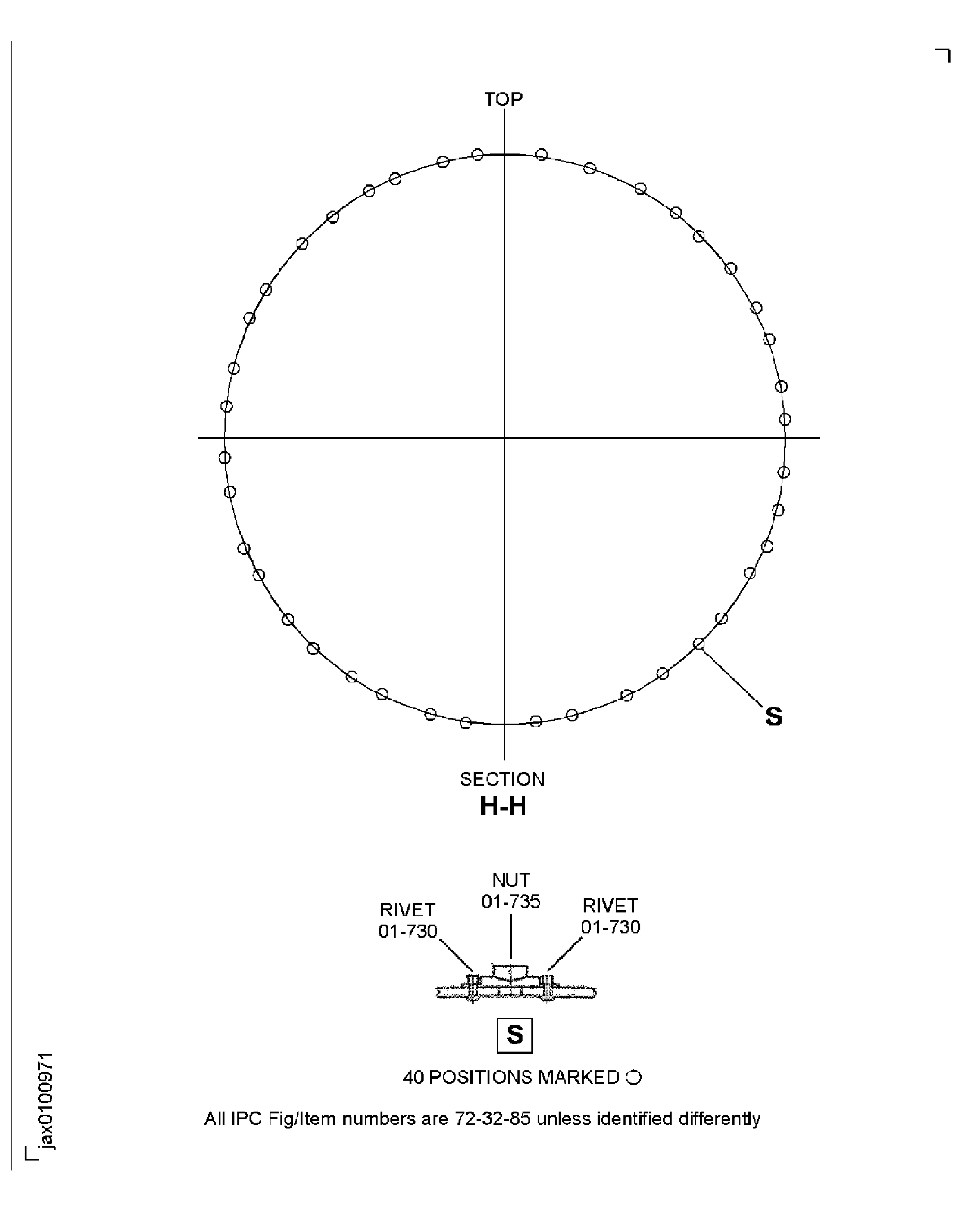

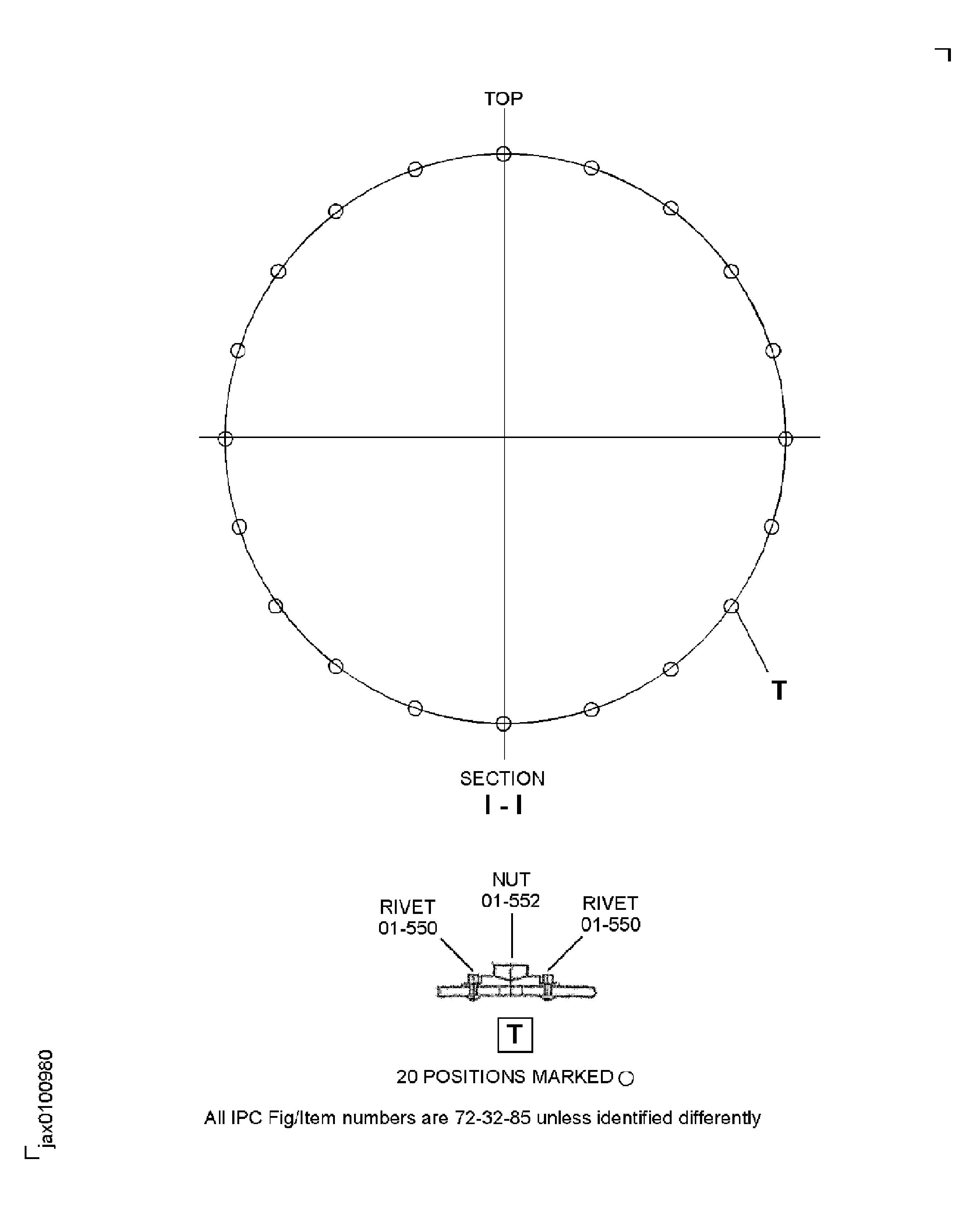

    Figure: A1 Pre SBE 72-0103: Repair Details and Dimensions

    Sheet 8

    Legend
    A1 Pre SBE 72-0103: Repair Details and Dimensions

    Sheet 8

    Close

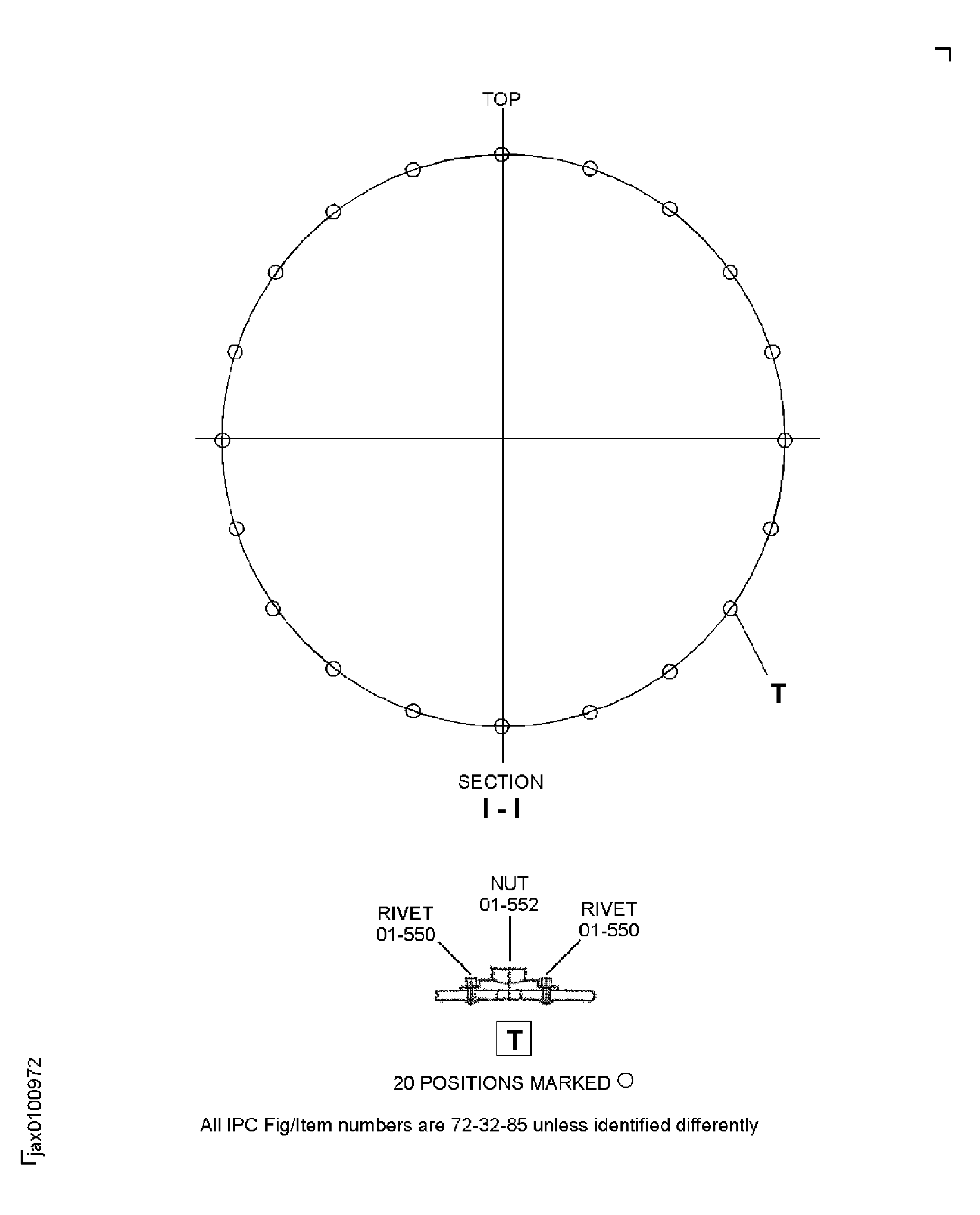

    Figure: A1 Pre SBE 72-0103: Repair Details and Dimensions

    Sheet 9

    Legend
    A1 Pre SBE 72-0103: Repair Details and Dimensions

    Sheet 9

    Close

    Figure: A1 SBE 72-0103 and A5: Repair Details and Dimensions

    Sheet 1

    Legend
    A1 SBE 72-0103 and A5: Repair Details and Dimensions

    Sheet 1

    Close

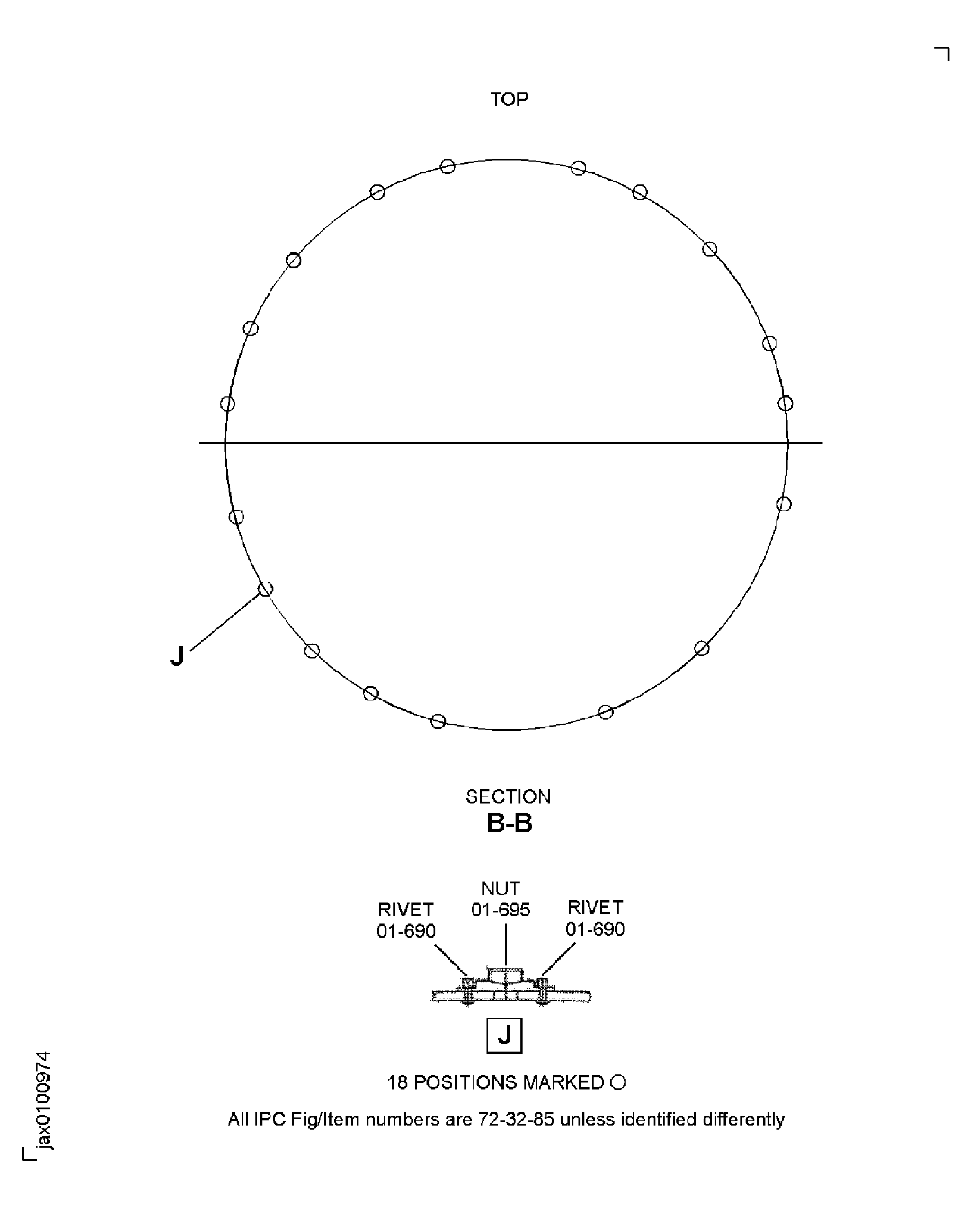

    Figure: A1 SBE 72-0103 and A5: Repair Details and Dimensions

    Sheet 2

    Legend
    A1 SBE 72-0103 and A5: Repair Details and Dimensions

    Sheet 2

    Close

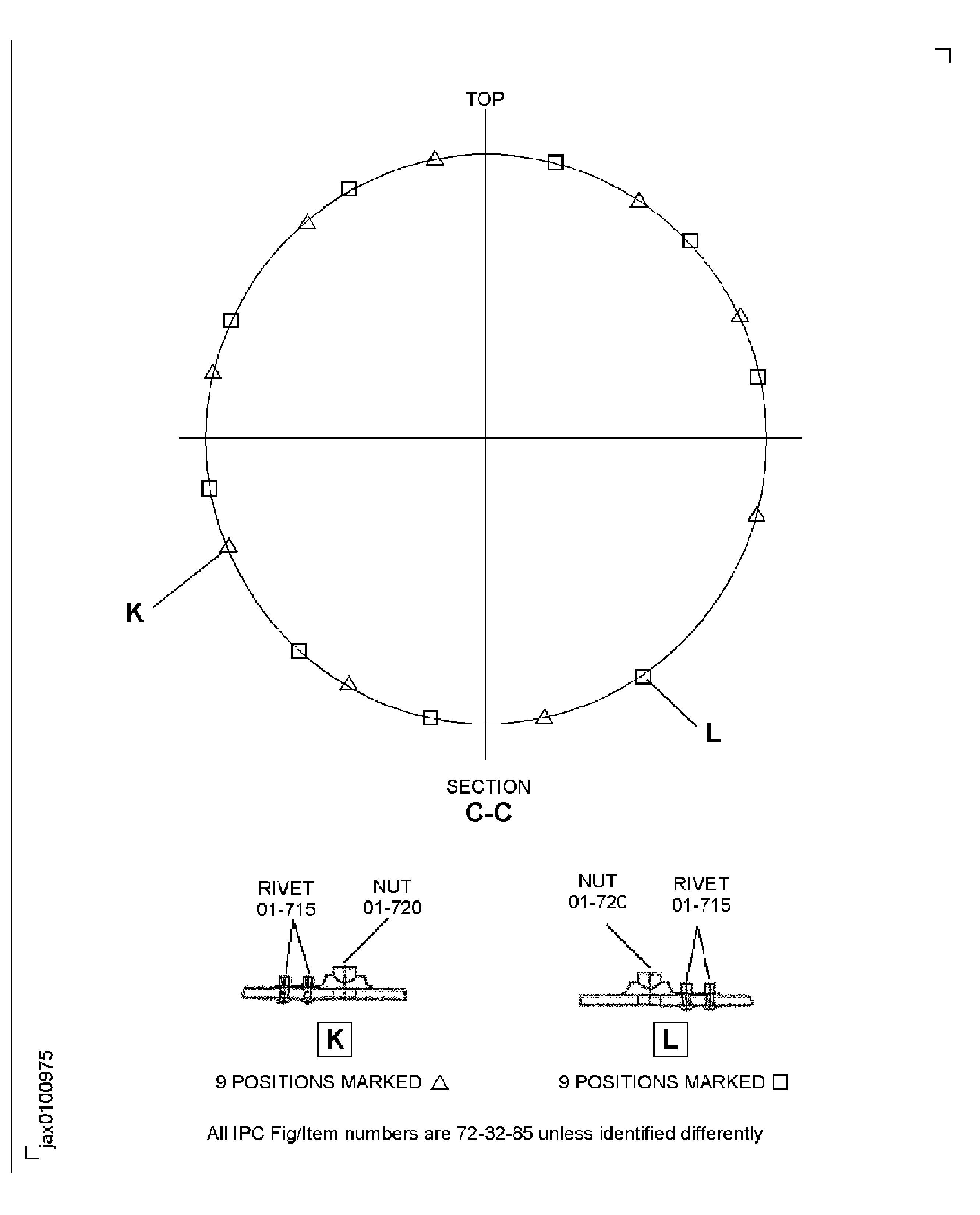

    Figure: A1 SBE 72-0103 and A5: Repair Details and Dimensions

    Sheet 3

    Legend
    A1 SBE 72-0103 and A5: Repair Details and Dimensions

    Sheet 3

    Close

    Figure: A1 SBE 72-0103 and A5: Repair Details and Dimensions

    Sheet 4

    Legend
    A1 SBE 72-0103 and A5: Repair Details and Dimensions

    Sheet 4

    Close

    Figure: A1 SBE 72-0103 and A5: Repair Details and Dimensions

    Sheet 5

    Legend
    A1 SBE 72-0103 and A5: Repair Details and Dimensions

    Sheet 5

    Close

    Figure: A1 SBE 72-0103 and A5: Repair Details and Dimensions

    Sheet 6

    Legend
    A1 SBE 72-0103 and A5: Repair Details and Dimensions

    Sheet 6

    Close

    Figure: A1 SBE 72-0103 and A5: Repair Details and Dimensions

    Sheet 7

    Legend
    A1 SBE 72-0103 and A5: Repair Details and Dimensions

    Sheet 7

    Close

    Figure: A1 SBE 72-0103 and A5: Repair Details and Dimensions

    Sheet 8

    Legend
    A1 SBE 72-0103 and A5: Repair Details and Dimensions

    Sheet 8

    Close

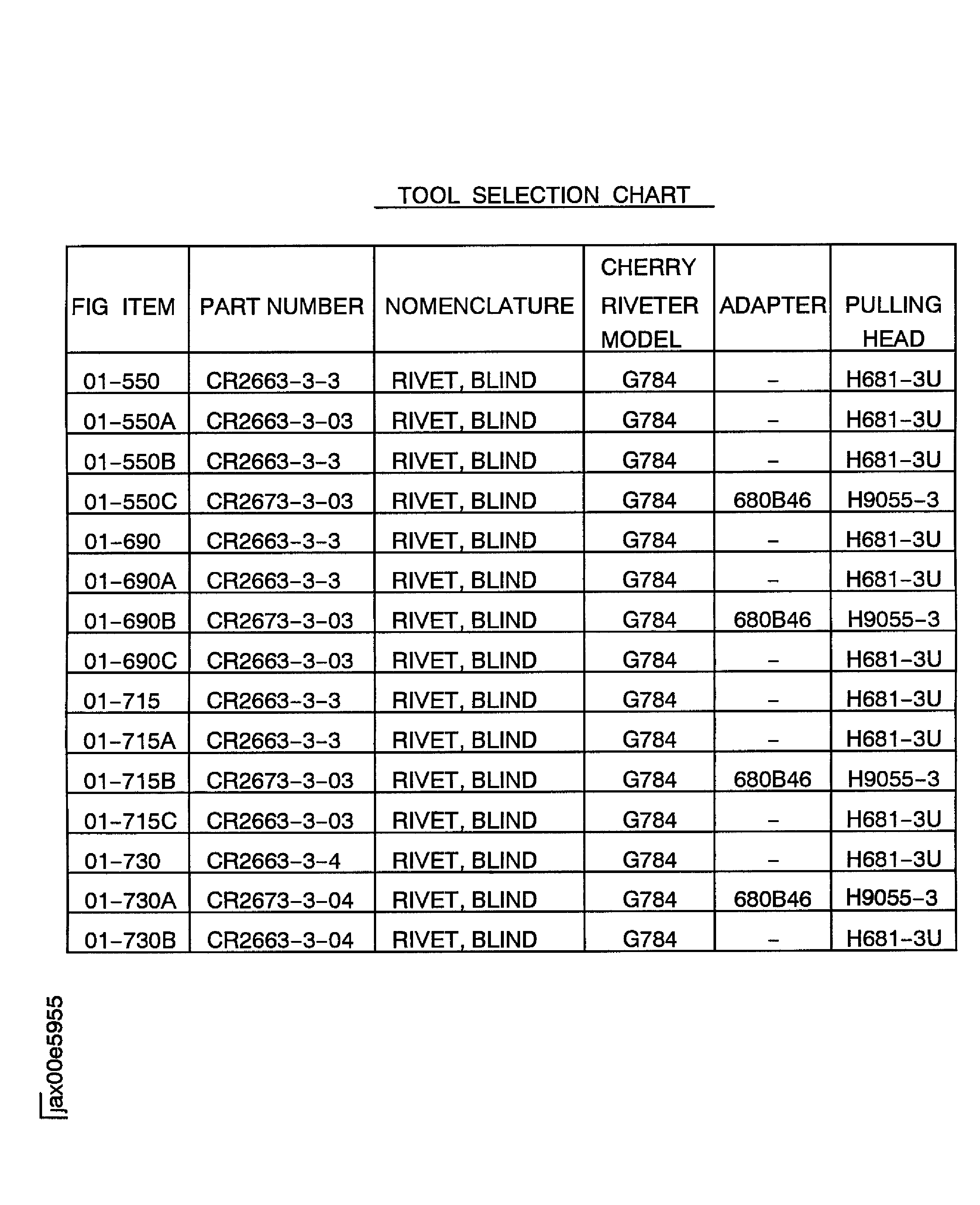

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
