TASK 72-32-85-300-053 Fan Case Name Plate Bracket - Repair Surface Damage By Blending, Repair-053 (VRS1380)

DMC:V2500-A0-72-32-8504-00A-649A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-85-300-053 Fan Case Name Plate Bracket - Repair Surface Damage By Blending, Repair-053 (VRS1380)

Effectivity

FIG/ITEM

PART NO.

03-150

5A1856

Assembly A

03-150

5A2129

Assembly B

Material of component

PART IDENT

SYMBOL

MATERIAL

Name plate bracket

(Assembly A)

Corrosion and heat resistance steel

Name plate bracket

(Assembly B)

Titanium alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment
Hand held pneumatic grinderLOCALHand held pneumatic grinder

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 06-063 FLUORESCENT PENETRANT (POST-EMULSIFIED MEDIUM SENSITIVITY)LOCALCoMat 06-063
CoMat 06-064 FLUORESCENT PENETRANT (WATER WASHABLE MEDIUM SENSITIVITY)LOCALCoMat 06-064

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-85-350-136 Remove the Damage of the Name Plate Bracket, Assembly A

    1. Refer to Figure.

      2. Scallop, make smooth and/or hand polish to remove scratches and/or scores.

      1. Use hand held pneumatic grinder and abrasive wheel.

      3. Surface finish of the repair must be the same as the adjacent area.

      4. Refer to the SPM TASK 70-35-03-300-501.

    2. SUBTASK 72-32-85-350-137 Remove the Damage of the Name Plate Bracket, Assembly B

    1. Refer to Figure.

      2. CAUTION

        TITANIUM COMPONENTS: SILICON CARBIDE TYPE WHEELS, STONES AND ABRASIVE PAPERS ARE TO BE USED FOR THIS REPAIR.

        CAUTION

        ALUMINUM OXIDE MUST NOT BE USED.

        CAUTION

        THE MATERIAL WILL OXIDIZE AND CRACK IF MECHANICAL CUTTERS ARE USED HEAVILY. THIS HAS OCCURRED IF THE COMPONENT SHOWS DARK STRAW TO BLUE DISCOLORATION.

        Scallop, make smooth and/or hand polish to remove scratches and/or scores.

      1. Use light pressure to prevent risk of over heating material.

      2. Use hand held pneumatic grinder and abrasive wheel.

      3. Use CoMat 05-019 WATERPROOF SILICON CARBIDE, CoMat 05-020 WATERPROOF SILICON CARBIDE and CoMat 05-021 WATERPROOF SILICON CARBIDE. Surface finish of the repair must be the same as the adjacent area.

      4. Refer to the SPM TASK 70-35-03-300-501.

    3. SUBTASK 72-32-85-220-176 Examine the Name Plate Bracket

    1. Refer to Figure and Figure.

      2. Visually examine the repaired area.

      1. Visually examine the repaired area for scratches and scores, using 10 x magnifying glass.

      2. Refer to TASK 72-32-85-200-000 (INSPECTION-000).

    4. SUBTASK 72-32-85-230-062 Examine the Name Plate Bracket for Cracks

      1. Fluorescent penetrant examine the repaired area.

      1. Make sure there are no cracks in the repaired area.

      2. Refer to the SPM TASK 70-23-05-230-501.

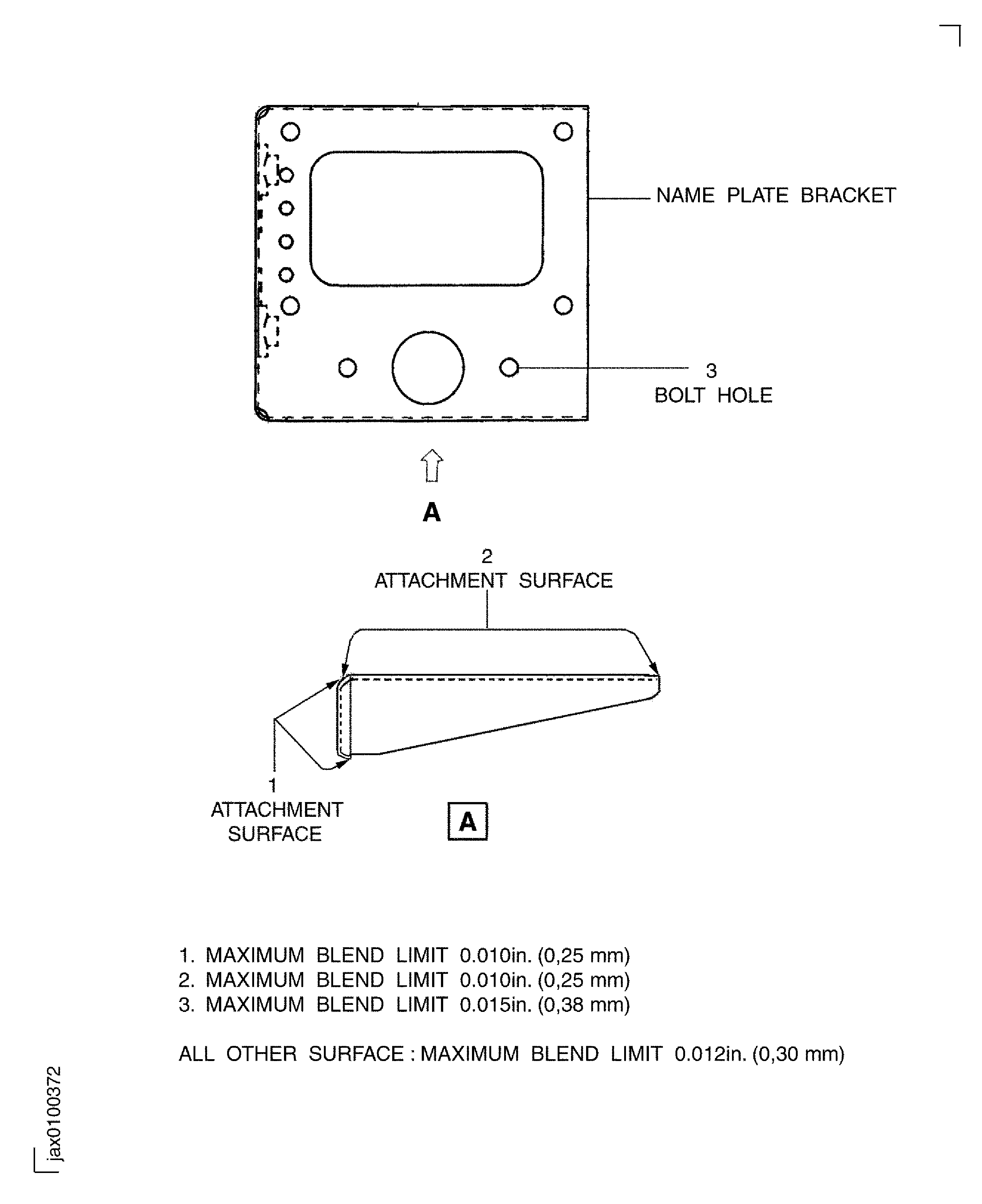

    5. Figure: Name plate bracket - repair limits - Assembly A

    Name plate bracket - repair limits - Assembly A

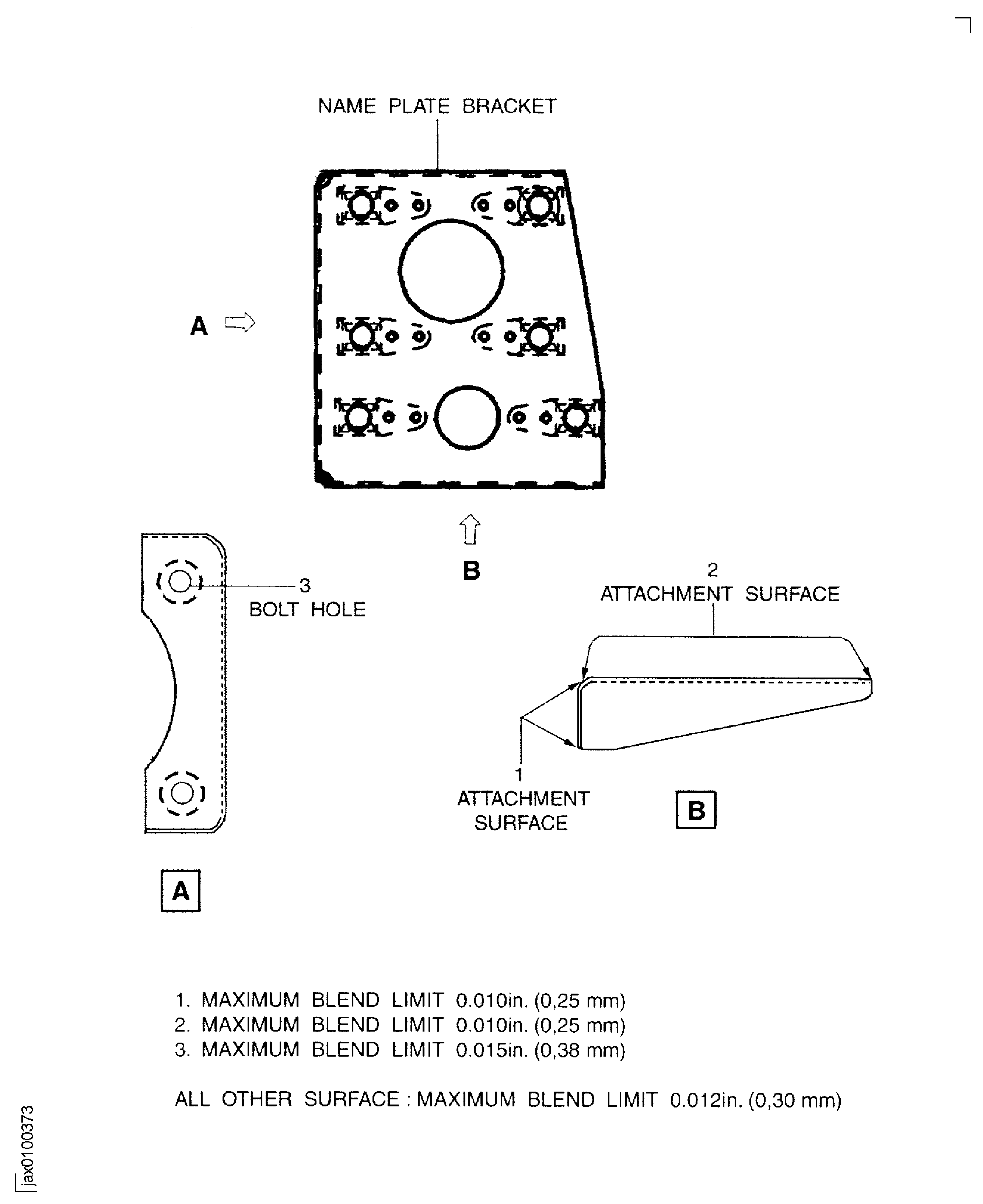

    Figure: Name plate bracket - repair limits - Assembly B

    Name plate bracket - repair limits - Assembly B

Requirements After Job Completion

Follow-On Conditions

NONE
Manufacturer Code:44197
Enterprise Name:SAINT-GOBAIN INDUSTRIAL CERAMICS INC.
BU Name:SAINT-GOBAIN ABRASIVES, INC
Street:ONE NEW BOND STREET
P.O. Box:PO BOX 15008
City:WORCESTER
State:MA
Zip Code:01615-0008
Country:USA
Phone Number:1-508-795-5000
Fax Number:1-508-795-2828
Internet:www.saint-gobain-northamerica.com
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:1E1X8
Supply Number:CoMat 05-019
Type:sp01
Supply Short Name:CoMat 05-019 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-019 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/31 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 400 (ANSI B74.18)
JCR-184 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
LOCAL
K6835
Manufacturer Code:1E1X8
Supply Number:CoMat 05-020
Type:sp01
Supply Short Name:CoMat 05-020 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-020 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/33 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 320 (ANSI B74.18)
JCR-027 (JAEC REF)
JCR-186 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
LOCAL
K6835
Manufacturer Code:1E1X8
Supply Number:CoMat 05-021
Type:sp01
Supply Short Name:CoMat 05-021 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-021 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/35 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 240 (ANSI B74.18 )
JCR-188 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
K6835
LOCAL
Manufacturer Code:X222X
Supply Number:CoMat 06-063
Type:sp01
Supply Short Name:CoMat 06-063 FLUORESCENT PENETRANT (POST-EMULSIFIED MEDIUM SENSITIVITY)
Supply Name:CoMat 06-063 FLUORESCENT PENETRANT (POST-EMULSIFIED MEDIUM SENSITIVITY)
Specification Groups:
Doc NumberType
It is not permitted to mix the selected CoMat 06‐063 letter suffix material with other CoMat 06‐063 letter suffix materials. Where CoMat 06‐063 is specified with no suffix, use one of the CoMat 06‐063 letter suffix materials.
Suppliers:
ManufacturerRemarks
X222X
Manufacturer Code:X222X
Supply Number:CoMat 06-064
Type:sp01
Supply Short Name:CoMat 06-064FLUORESCENT PENETRANT (WATER WASHABLE MEDIUM SENSITIVITY)
Supply Name:CoMat 06-064 FLUORESCENT PENETRANT (WATER WASHABLE MEDIUM SENSITIVITY)
Specification Groups:
Doc NumberType
It is not permitted to mix the selected CoMat 06‐064 letter suffix material with other CoMat 06‐064 letter suffix materials.Where CoMat 06‐064 is specified with no suffix, use one of the CoMat 06‐064 letter suffix materials.
Suppliers:
ManufacturerRemarks
X222X
Manufacturer Code:LOCAL
Tool Number:Fluorescent penetrant inspection equipment
Tool Name:Fluorescent Penetrant Inspection Equipment
Manufacturer Code:LOCAL
Tool Number:Hand held pneumatic grinder
Tool Name:Hand held pneumatic grinder
