TASK 72-32-85-300-054 Fan Case Name Plate Bracket - Replace The Self Locking Plate Nut, Repair-054 (VRS1381)

DMC:V2500-A0-72-32-8504-00A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-85-300-054 Fan Case Name Plate Bracket - Replace The Self Locking Plate Nut, Repair-054 (VRS1381)

Effectivity

FIG/ITEM

PART NO.

03-150

5A1856

Assembly A

03-150

5A2129

Assembly B

Material of component

PART IDENT

SYMBOL

MATERIAL

Name plate bracket

(Assembly A)

Corrosion and heat resistance steel

Name plate bracket

(Assembly B)

Titanium alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Hand held pneumatic grinderLOCALHand held pneumatic grinder
RiveterLOCALRiveter

Pneumatic

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
RivetAS16647A/R

(Assembly B)

Nut, plateMS21062L3A/R

(Assembly B)

rivetAS16647A/R

(Assembly B)

Nut, plateMS21062L3A/R

(Assembly B)

RivetAS16647A/R

(Assembly A)

Nut, plateMS21062L4A/R

(Assembly A)

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-85-350-138 Remove the Damaged Self Locking Plate Nuts of the Name Plate Bracket

    1. Refer to Figure and Figure.

      2. Grind off upset side of rivets.

      1. Use hand held pneumatic grinder and abrasive wheel.

      2. Care must be taken to prevent damage to the name plate bracket.

      3. Drive out rivet bodies and remove self locking plate nut.

      1. Use a small hammer and punch.

      4. Remove sharp edge around the rivet holes.

    5. Clean the hole with a soft clean cloth and blast with air.

    2. SUBTASK 72-32-85-220-177 Examine the Rivet Hole of the Name Plate Bracket

    1. Refer to Figure and Figure.

      2. Visually examine the rivet holes.

      1. No cracks and burrs are permitted.

    3. SUBTASK 72-32-85-380-001 Install New Self Locking Plate Nut to the Name Plate Bracket

    1. Refer to Figure and Figure.

    2. Install new self locking plate nut in position on the name plate bracket, aligning rivet holes.

    3. Install the rivet through the name plate bracket and self locking plate nut.

      4. Form rivets, using continuous squeezing action.

      1. Use pneumatic riveter.

    4. SUBTASK 72-32-85-220-178 Examine the Self Locking Plate Nut of the Name Plate Bracket

    1. Refer to Figure and Figure.

      2. Visually examine the formed rivet head.

      1. The rivet must be tight. Both the rivet heads should be correctly seated.

      2. The formed rivet head has no cracks and no signs of bursting at the perphery.

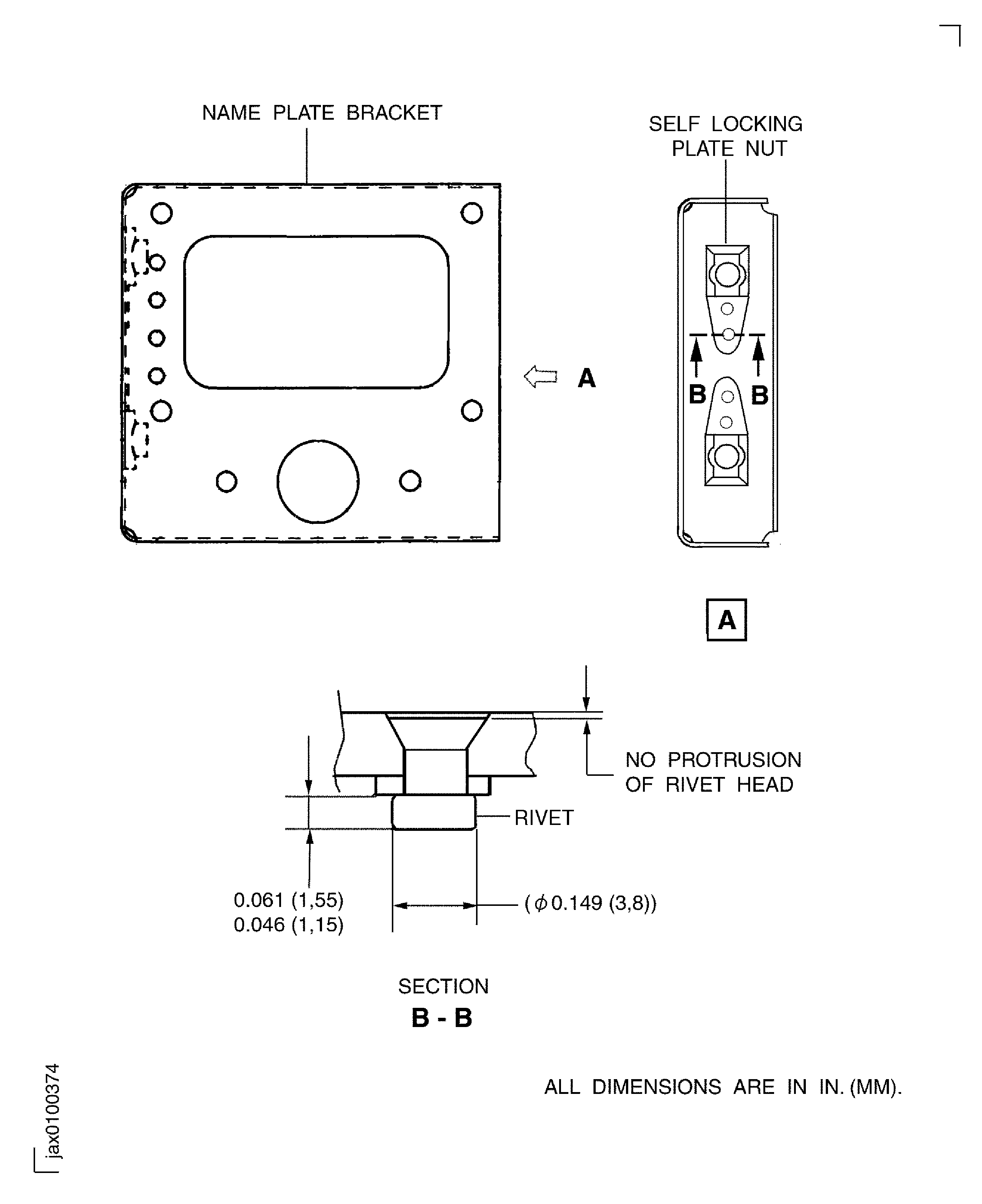

    5. Figure: Repair details and dimensions - Assembly A

    Repair details and dimensions - Assembly A

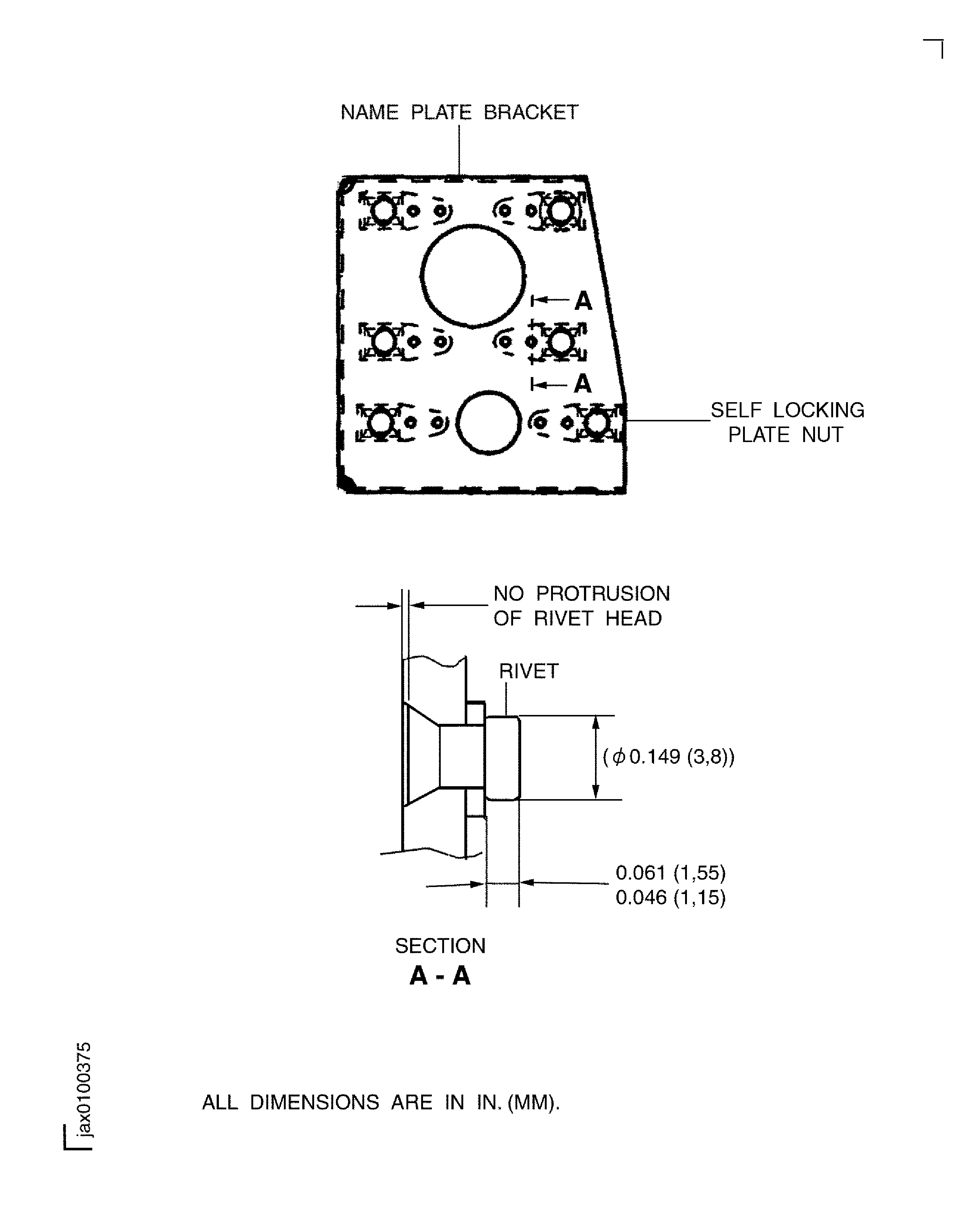

    Figure: Repair details and dimensions - Assembly B

    Repair details and dimensions - Assembly B

Requirements After Job Completion

Follow-On Conditions

NONE
