TASK 72-32-89-300-002 Fan Case Outer Acoustic Transition Liner Panel - Blend Repair, Repair-002 (VRS1426)

DMC:V2500-A0-72-32-8900-00A-649A-C|Issue No:002.00|Issue Date:2016-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-89-300-002 Fan Case Outer Acoustic Transition Liner Panel - Blend Repair, Repair-002 (VRS1426)

Effectivity

FIG/ITEM

PART NO.

01-100

5R0012

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Doubler

Aluminum alloy

Plate

Aluminum alloy

Honeycomb

Aluminum alloy

General

Price and availability

Refer to IAE for any of the following:

Tools

Engine parts

Repair of spares

This Repair scheme gives the procedure for blending the linings.

The practices and processes referred to in the procedure by the TASK number are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Portablegrinding equipmentLOCALPortable grinding equipment

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-89-350-054 Dress to Remove Damage

      1. Dress to remove damage in area A.

        1. Use portable grinding equipment.

        1. Maximum blend limit is 0.005 in. (0.12 mm) in depth.

        2. Refer to the SPM TASK 70-35-03-300-501.

    2. SUBTASK 72-32-89-220-060 Do a Visually Inspection

      1. Examine repaired area.

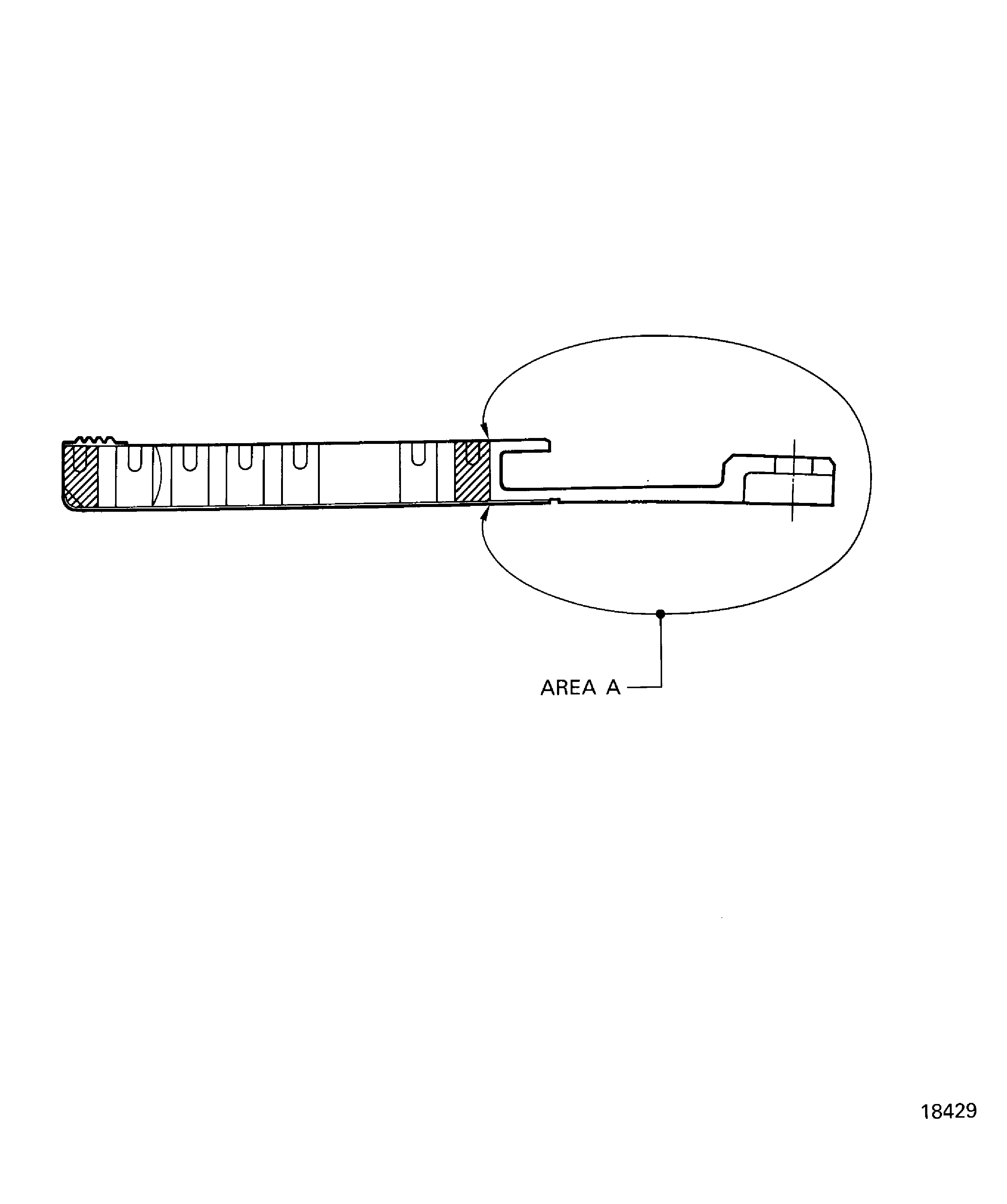

    3. Figure: Acoustic lining

    Acoustic lining

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Corrected the SPM Task number

Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:LOCAL
Tool Number:Portable grinding equipment
Tool Name:Portablegrinding equipment
