TASK 72-32-91-300-003 LPC Splitter Fairing - Replace The Heat Resisting E.S. Coating, Repair-003 (VRS1441)
General
The practices and processes referred to in the procedure by the TASK number are in the SPM.
Price and availability - not applicable
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-019 TAPE, ADHESIVE PAPER HEAT RESISTING MASKING | 94960 | CoMat 02-019 | ||
| CoMat 07-063 HEAT RESISTING EROSION RESISTANT COATING, EPOXY SILICONE | 65313 | CoMat 07-063 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Refer to TASK 72-32-91-100-000.
Remove the heat resisting coating where applicable.
Refer to the SPM TASK 70-38-20-380-501.
Spray two coats of CoMat 07-063 HEAT RESISTING EROSION RESISTANT COATING, EPOXY SILICONE to obtain a coating film thickness of 0.001 to 0.002 in. (0.025 to 0.050 mm).
Apply the heat resisting E.S. coating.
SUBTASK 72-32-91-350-054 Replace the Heat Resisting E.S. Coating of the Splitter Fairing Assembly

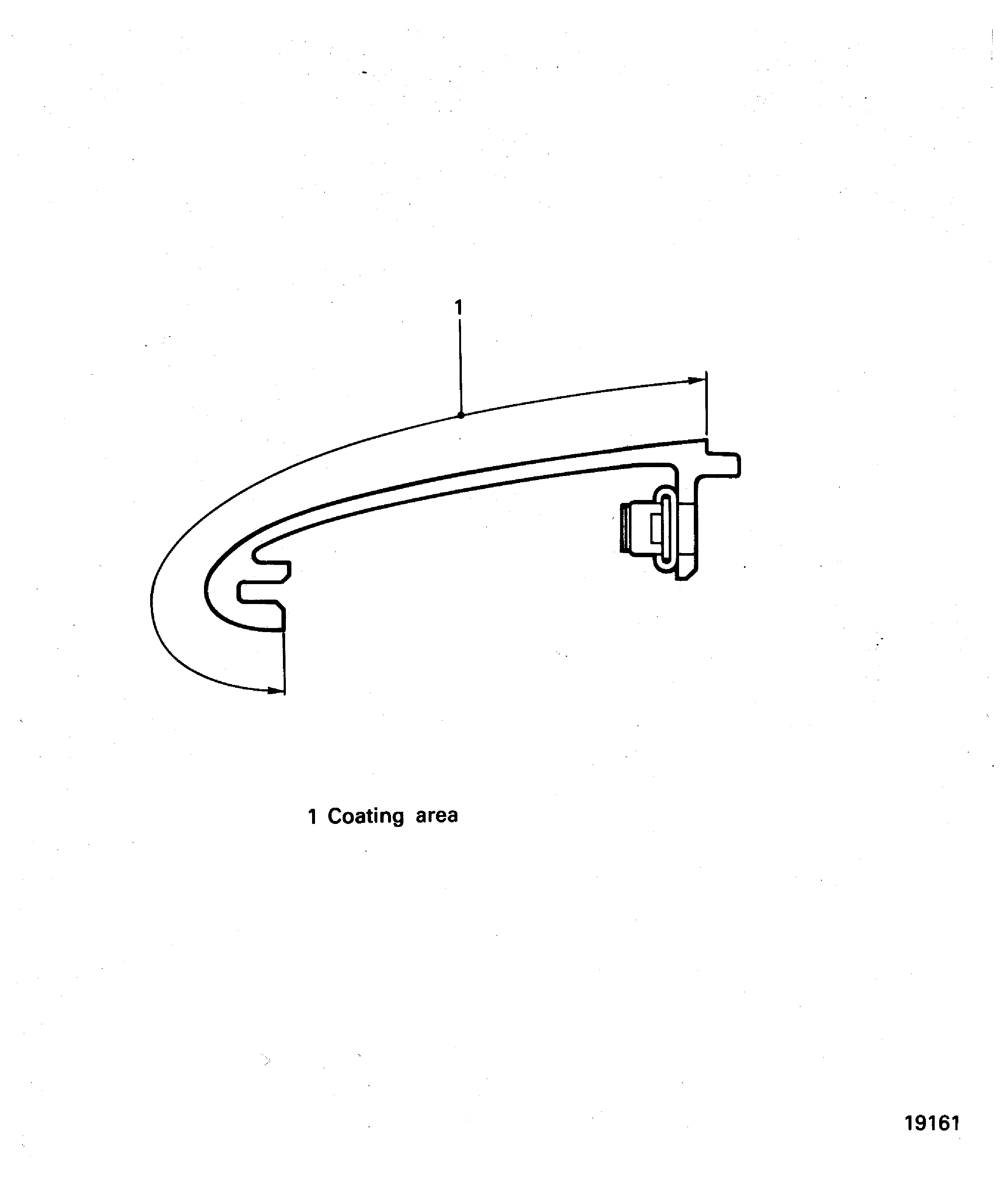

Figure: Splitter fairing assembly - coating area
Splitter fairing assembly - coating area
