TASK 72-32-91-300-001 LPC Inlet Guide Vane (Stator) - Repair Surface Damage, Repair-001 (VRS1435)

DMC:V2500-A0-72-32-9102-00A-649A-C|Issue No:002.00|Issue Date:2016-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-91-300-001 LPC Inlet Guide Vane (Stator) - Repair Surface Damage, Repair-001 (VRS1435)

Effectivity

FIG/ITEM

PART NO.

01-400

5A0060

01-400

5A0179

01-400

5A1494

01-400

5A7381

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

LPC inlet guide vane assembly

Titanium alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment
Magnifying glass, 10xLOCALMagnifying glass, 10x

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-91-350-051 Remove the Damage from the Inlet Guide Vane Assembly

    1. Refer to Figure and Figure.

      2. CAUTION

        TITANIUM COMPONENT. SILICON CARBON TYPE WHEELS, STONES AND ABRASIVE PAPERS ARE TO BE USED FOR THIS REPAIR.

        CAUTION

        TITANIUM COMPONENT. ALUMINUM OXIDE MUST NOT BE USED.

        CAUTION

        TITANIUM COMPONENT. THE MATERIAL WILL OXIDIZE AND CRACK IF MECHANICAL CUTTERS ARE USED HEAVILY. THIS WILL HAVE OCCURRED IF THE COMPONENT SHOWS A DARK STRAW TO BLUE DISCOLORATION.

        Scallop, make smooth and/or hand polish to remove nicks and scratches.

        1. Use abrasive stones or papers and/or a fine file.

        1. Use light pressure to prevent the risk of overheating the material.

        2. Polish marks must be made in a radial direction from the vane ID to OD.

        3. The surface finish of the repair area must be the same as the adjacent area.

      3. Hand polish the vane leading and/or trailing edge radius and the vane profile to make a smooth shape.

        1. Remove the minimum amount of material necessary to make the correct radius.

        2. Refer to the SPM TASK 70-35-03-300-501.

    2. SUBTASK 72-32-91-220-051 Examine the LPC Inlet Guide Vane Assembly

    1. Refer to Figure and Figure.

      2. Do a visual and dimensional examination of the vane.

        1. Visually examine the repaired area for nicks and scratches.

        2. Refer to TASK 72-32-91-200-000 (INSPECTION-000).

    3. SUBTASK 72-32-91-230-051 Examine the LPC Inlet Guide Vane Assembly for Cracks

      1. Do a fluorescent penetrant examination of the repaired area.

        1. Refer to the SPM TASK 70-23-05-230-501.

        1. Make sure there are no cracks in the repaired area.

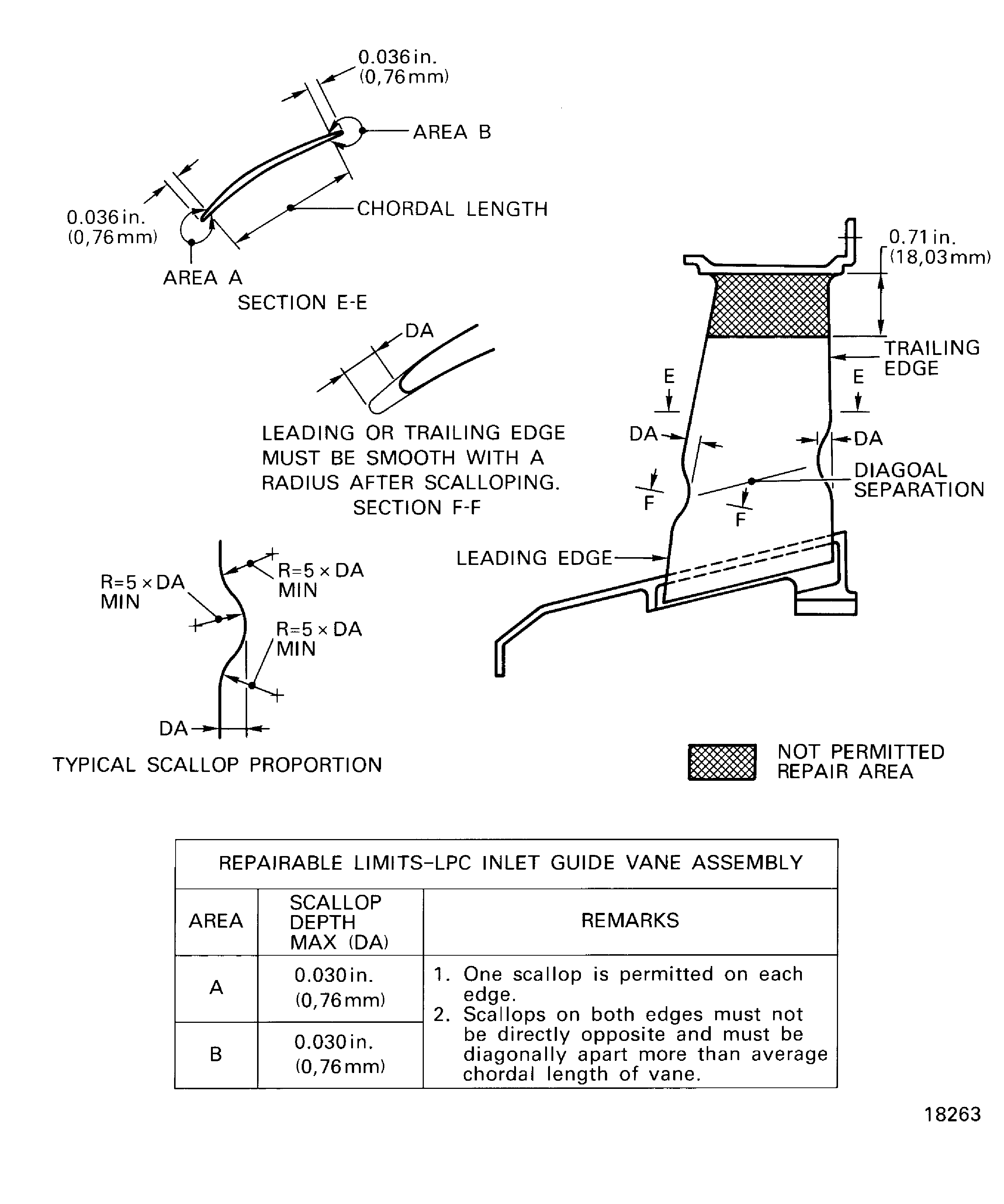

    4. Figure: Inlet guide vane assembly

    Inlet guide vane assembly

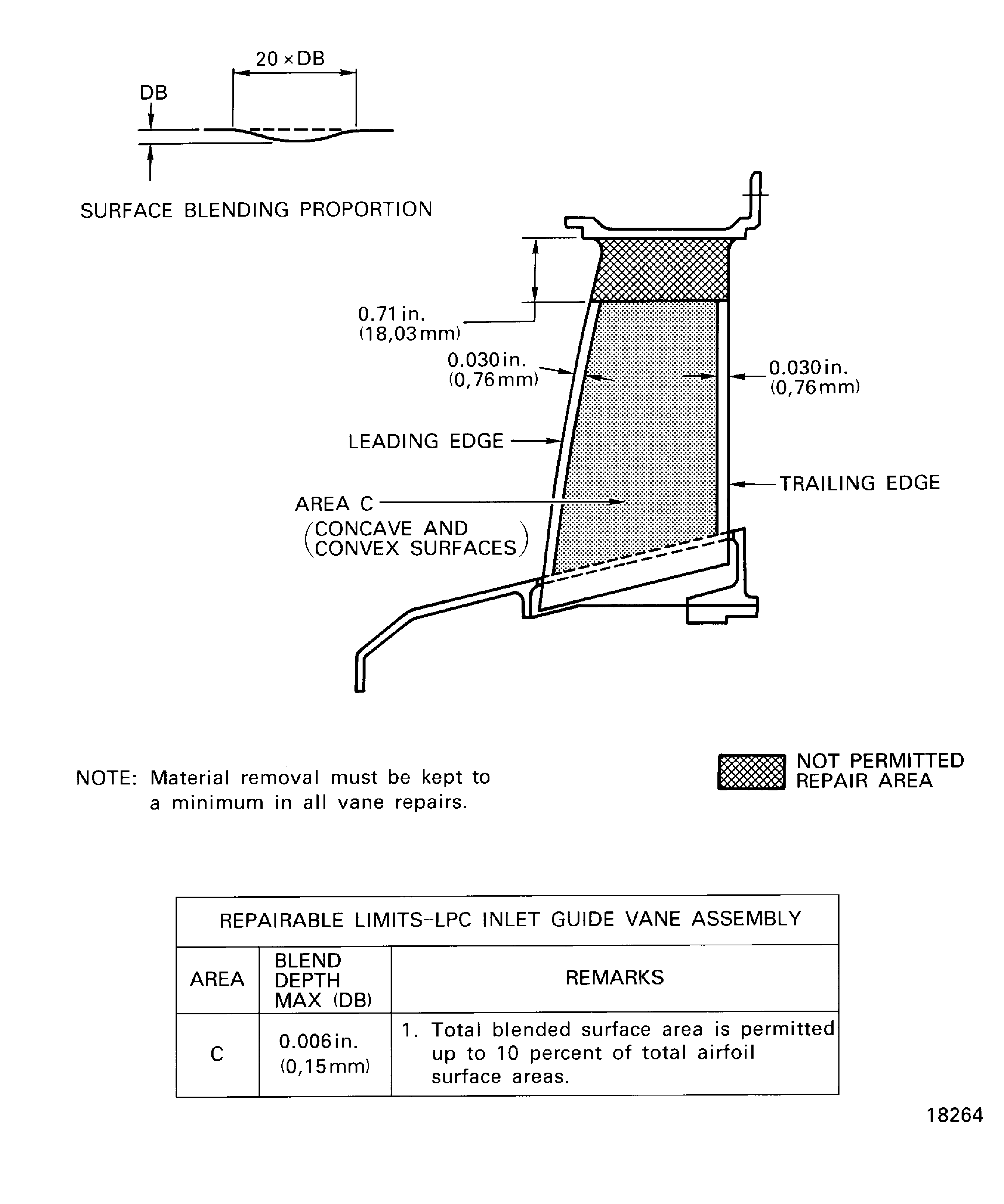

    Figure: Inlet guide vane assembly

    Inlet guide vane assembly

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Corrected the SPM Task number

Manufacturer Code:44197
Enterprise Name:SAINT-GOBAIN INDUSTRIAL CERAMICS INC.
BU Name:SAINT-GOBAIN ABRASIVES, INC
Street:ONE NEW BOND STREET
P.O. Box:PO BOX 15008
City:WORCESTER
State:MA
Zip Code:01615-0008
Country:USA
Phone Number:1-508-795-5000
Fax Number:1-508-795-2828
Internet:www.saint-gobain-northamerica.com
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:1E1X8
Supply Number:CoMat 05-019
Type:sp01
Supply Short Name:CoMat 05-019 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-019 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/31 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 400 (ANSI B74.18)
JCR-184 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
LOCAL
K6835
Manufacturer Code:1E1X8
Supply Number:CoMat 05-020
Type:sp01
Supply Short Name:CoMat 05-020 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-020 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/33 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 320 (ANSI B74.18)
JCR-027 (JAEC REF)
JCR-186 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
LOCAL
K6835
Manufacturer Code:1E1X8
Supply Number:CoMat 05-021
Type:sp01
Supply Short Name:CoMat 05-021 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-021 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/35 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 240 (ANSI B74.18 )
JCR-188 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
K6835
LOCAL
Manufacturer Code:LOCAL
Tool Number:Fluorescent penetrant inspection equipment
Tool Name:Fluorescent Penetrant Inspection Equipment
