TASK 72-32-91-300-007 LPC Inlet Guide Vane (Stator) - Repair The Surface Damage Of The Inner Shroud Ring, Repair-007 (VRS1434)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Fluorescent Penetrant Inspection Equipment | LOCAL | Fluorescent penetrant inspection equipment | ||
| Portablegrinding equipment | LOCAL | Portable grinding equipment |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 01-275 CHROMATE CONVERSION COATING FOR ALUMINIUM | LOCAL | CoMat 01-275 | ||
| CoMat 05-019 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-019 | ||
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
The surface finish of the repaired area must be the same as the adjacent surface.
Refer to the SPM TASK 70-35-03-300-501.
Use portable grinding equipment or, CoMat 05-019 WATERPROOF SILICON CARBIDE, CoMat 05-020 WATERPROOF SILICON CARBIDE, CoMat 05-021 WATERPROOF SILICON CARBIDE and/or a fine file.
Scallop, make smooth and/or hand polish to remove the rubs, corrosion pits, scratches, dents and/or nicks.
SUBTASK 72-32-91-350-055 Remove the Damage of the Inner Shroud Ring
Refer to: Figure
Refer to TASK 72-32-91-200-000 (INSPECTION-000).
Visually examine the repaired area for burrs.
Do a visual examination of the repaired area.
SUBTASK 72-32-91-220-067 Examine the Inner Shroud Ring
Refer to TASK 72-32-91-200-000 (INSPECTION-000).
Refer to the SPM TASK 70-23-05-230-501.
Make sure there are no cracks in the repaired area.
Do a fluorescent penetrant examination of the repaired area.
SUBTASK 72-32-91-230-056 Examine the Inner Shroud Ring for Cracks

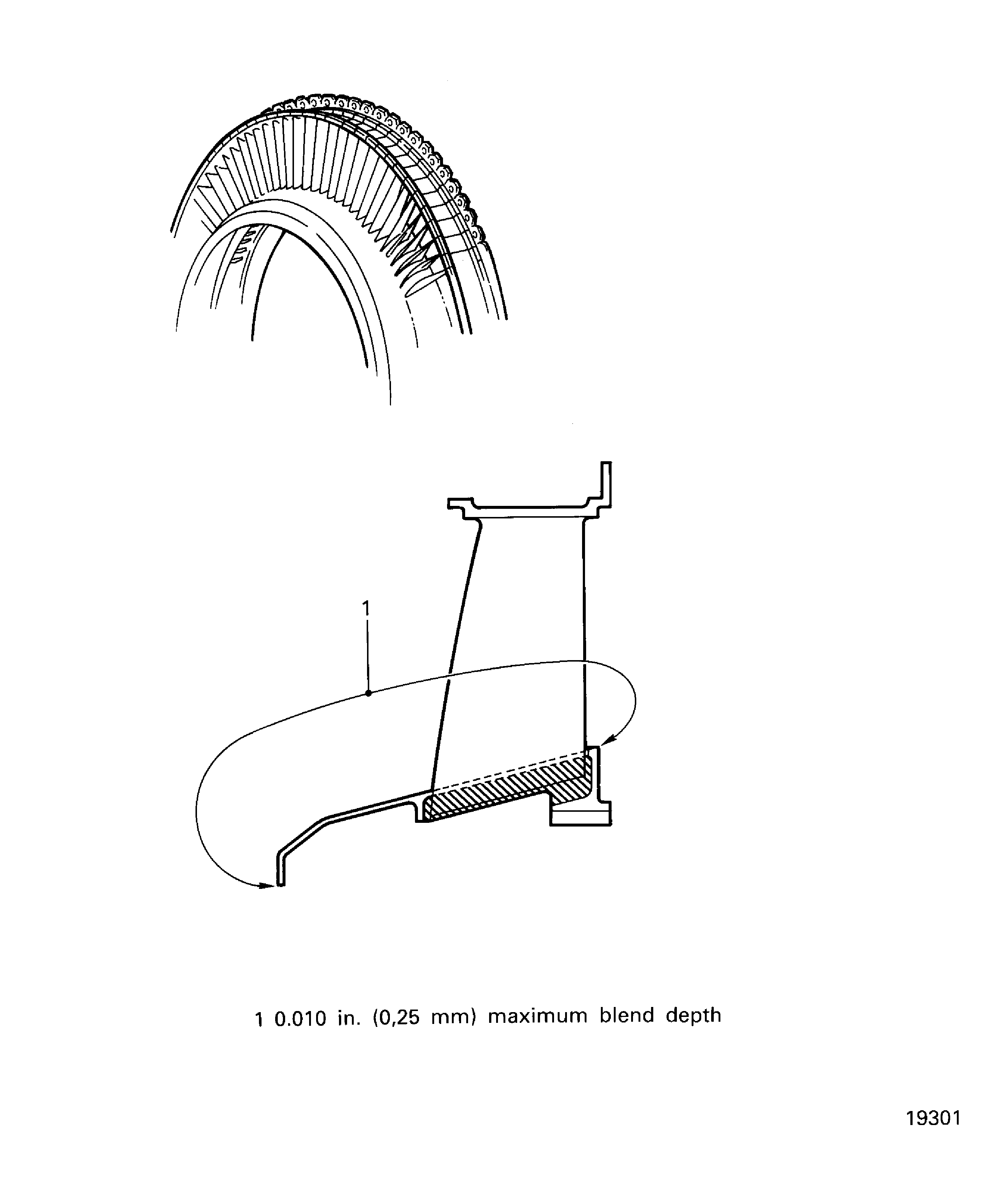

Figure: Inner shroud ring - repair limit
Inner shroud ring - repair limit
