TASK 72-32-91-300-009 LPC Inlet Guide Vane (Stator) - Repair The Surface Damage, Repair-009 (VRS1773)

DMC:V2500-A0-72-32-9102-03A-649A-C|Issue No:002.00|Issue Date:2016-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-91-300-009 LPC Inlet Guide Vane (Stator) - Repair The Surface Damage, Repair-009 (VRS1773)

Effectivity

FIG/ITEM

PART NO.

01-400

5A1385

01-400

5A1662

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

LPC inlet guide vane assembly

Titanium alloy

General

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Price and availability - none

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment
Magnifying glass, 10xLOCALMagnifying glass, 10x

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-91-350-058 Remove the Damage from the LPC Inlet Guide Vane Assembly

    1. Refer to Figure, Figure and Figure.

      2. CAUTION

        TITANIUM COMPONENT - YOU MUST USE SILICON CARBIDE TYPE ABRASIVE WHEELS, STONES AND PAPERS TO DRESS, BLEND AND POLISH THIS COMPONENT. ALUMINUM OXIDE TYPE MUST NOT BE USED. IF MECHANICAL CUTTERS ARE USED, ONLY LIGHT CUTS MUST BE MADE TO AVOID OVERHEATING THE MATERIAL.

        CAUTION

        TITANIUM COMPONENT - AVOID BUILD UP OF HEAT BY APPLYING ONLY GENTLE PRESSURE AND KEEPING THE TOOL SPEED AS LOW AS POSSIBLE. USE TECHNIQUES WHICH ALLOW FOR PROGRESSIVE WEAR OF THE DRESSING MEDIA TO PRESENT A CONTINUALLY FRESH CUTTING SURFACE TO THE WORK PIECE.

        CAUTION

        DO NOT DWELL ON ONE AREA OF THE COMPONENT.

        CAUTION

        DRESS, WHERE POSSIBLE, IN A CIRCULAR MOTION; TAKING LIGHT CUTS TO AVOID OVERHEATING.

        CAUTION

        TITANIUM COMPONENT - YOU MUST MAKE SURE THAT WHEN YOU REMOVE MATERIAL, BLEND AND POLISH, TO MAKE SMOOTH, THAT NO SPARKS ARE PRODUCED AND THE ADJACENT AREA IS MASKED OFF.

        CAUTION

        TITANIUM COMPONENT - IF THE MATERIAL SHOWS A CHANGE IN COLOR DURING DRESSING, TO DARKER THAN A LIGHT STRAW COLOR, THE COMPONENT IS TO BE REJECTED.

        Scallop, make smooth and/or hand polish to remove nicks, dents, scores and/or galls.

        1. Use abrasive stones or abrasive papers and/or a fine file.

        2. Use light pressure to prevent the risk of over-heating the material.

        3. All polish marks must be made in a radial direction from the vane ID to OD.

        4. The surface finish of the repair area must be the same as the adjacent area.

        5. Refer to the SPM TASK 70-35-03-300-501.

      3. Hand polish the vane leading and/or trailing edge radius and the vane profile to make a smooth shape.

        1. Remove the minimum quantity of material necessary to make the correct radius.

        2. Refer to the SPM TASK 70-35-03-300-501.

    2. SUBTASK 72-32-91-220-079 Examine the LPC Inlet Guide Vane Assembly

    1. Refer to Figure, Figure and Figure.

      2. Visually and dimensionally examine the repaired area.

        1. Nicks, dents, scores, galls and a change in color to a darker than light straw color are not permitted.

        2. Refer to TASK 72-32-91-200-000 (INSPECTION-000).

    3. SUBTASK 72-32-91-110-061 Do A Swab Etch

      1. Chemically clean.

        1. Refer to the SPM TASK 70-11-08-300-503, SUBTASK 70-11-08-300-001.

        1. Use Chemical cleaning equipment.

      2. Swab etch the repaired area.

        1. Refer to the SPM TASK 70-11-08-300-503, SUBTASK 70-11-08-300-002.

        1. Use Chemical cleaning equipment.

    4. SUBTASK 72-32-91-230-058 Examine the LPC Inlet Guide Vane Assembly for Cracks

      1. Do a fluorescent penetrant examination of the repaired area.

        1. Refer to the SPM TASK 70-23-05-230-501.

        1. Make sure that there are no cracks in the repaired area.

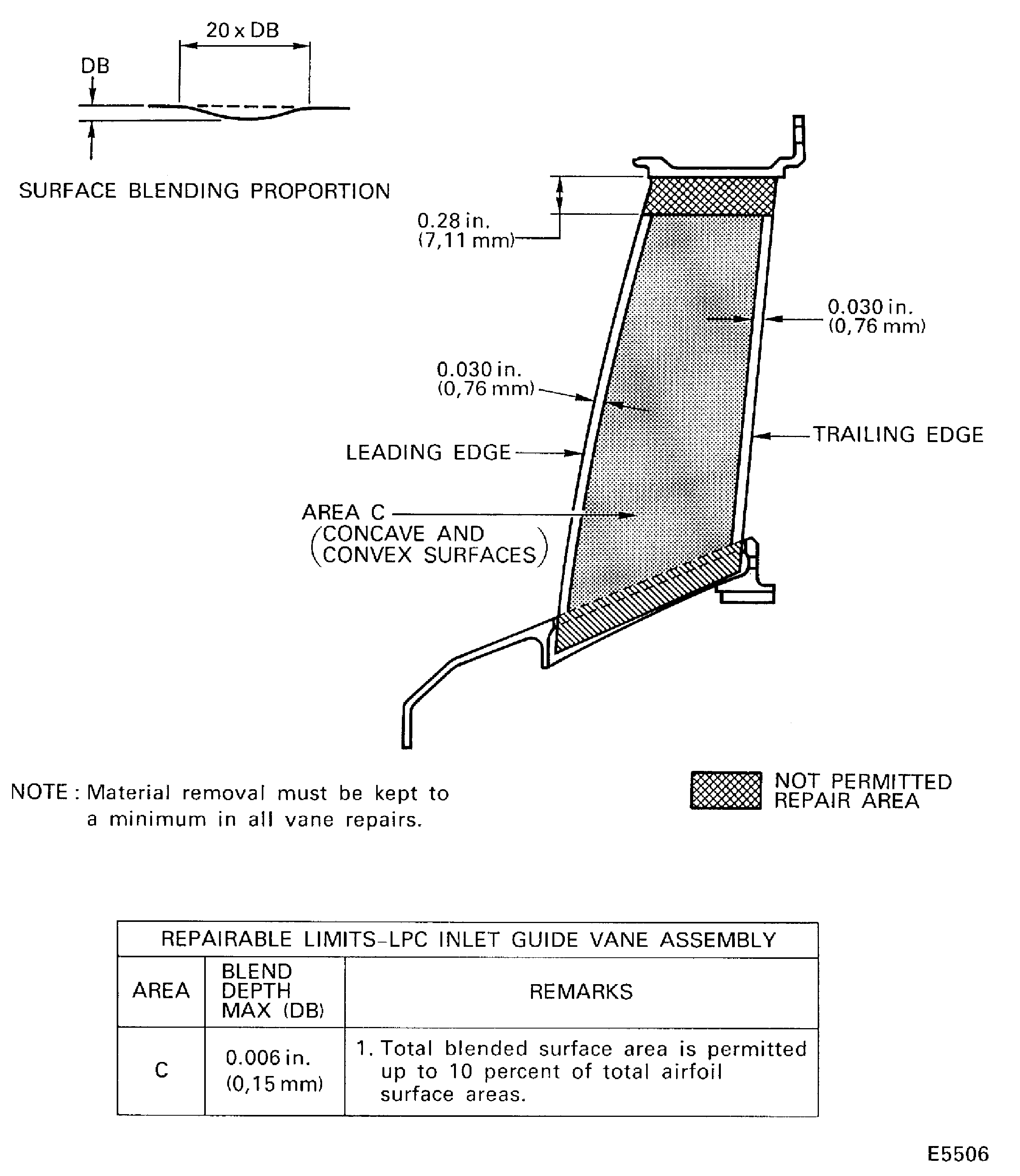

    5. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

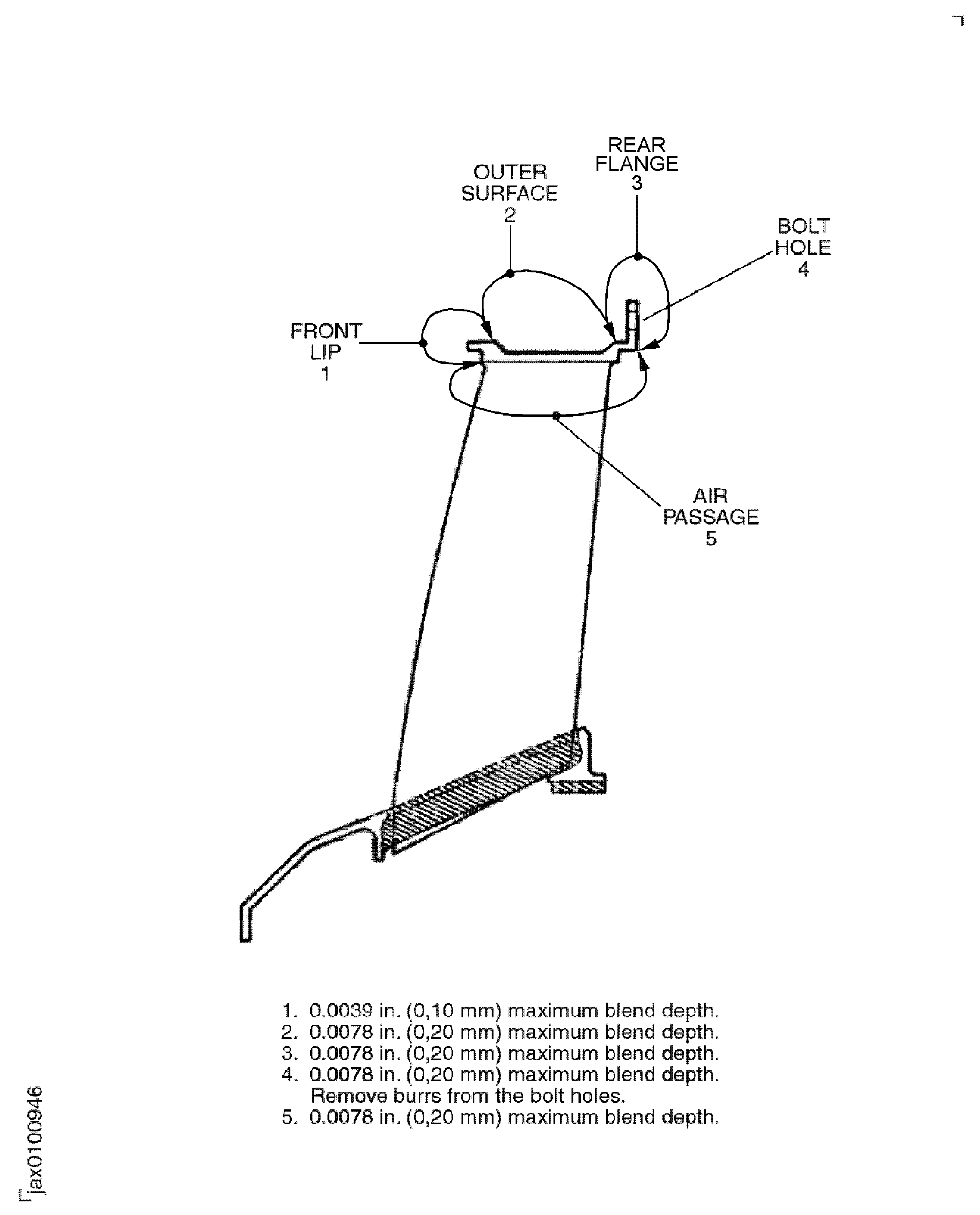

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Corrected the SPM Task number

Manufacturer Code:44197
Enterprise Name:SAINT-GOBAIN INDUSTRIAL CERAMICS INC.
BU Name:SAINT-GOBAIN ABRASIVES, INC
Street:ONE NEW BOND STREET
P.O. Box:PO BOX 15008
City:WORCESTER
State:MA
Zip Code:01615-0008
Country:USA
Phone Number:1-508-795-5000
Fax Number:1-508-795-2828
Internet:www.saint-gobain-northamerica.com
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:1E1X8
Supply Number:CoMat 05-019
Type:sp01
Supply Short Name:CoMat 05-019 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-019 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/31 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 400 (ANSI B74.18)
JCR-184 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
LOCAL
K6835
Manufacturer Code:1E1X8
Supply Number:CoMat 05-020
Type:sp01
Supply Short Name:CoMat 05-020 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-020 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/33 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 320 (ANSI B74.18)
JCR-027 (JAEC REF)
JCR-186 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
LOCAL
K6835
Manufacturer Code:1E1X8
Supply Number:CoMat 05-021
Type:sp01
Supply Short Name:CoMat 05-021 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-021 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/35 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 240 (ANSI B74.18 )
JCR-188 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
K6835
LOCAL
Manufacturer Code:LOCAL
Tool Number:Fluorescent penetrant inspection equipment
Tool Name:Fluorescent Penetrant Inspection Equipment
