TASK 72-32-93-300-005 Intermediate Structure Front Splitter - Replace The Heat Resisting E.S. Coating, Repair-005 (VRS1778)
General
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
Price and availability - none
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-019 TAPE, ADHESIVE PAPER HEAT RESISTING MASKING | 94960 | CoMat 02-019 | ||
| CoMat 07-063 HEAT RESISTING EROSION RESISTANT COATING, EPOXY SILICONE | 65313 | CoMat 07-063 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Refer to TASK 72-32-93-100-000 (CLEANING-000).
Remove the heat resisting coating where applicable.
Refer to the SPM TASK 70-38-20-380-501.
Prepare the aluminum alloy parts.
Refer to the SPM TASK 70-38-20-380-501.
Spray three coats of CoMat 07-063 HEAT RESISTING EROSION RESISTANT COATING, EPOXY SILICONE to get a coating film thickness of between 0.002 and 0.0029 in. (0.05 and 0.075 mm).
Apply the heat resisting E.S. coating.
SUBTASK 72-32-93-350-054 Replace the Heat Resisting E.S. Coating of the Splitter Fairing Assembly
Refer to the SPM TASK 70-38-20-380-501.
The coating must be uniform, free from runs, flaking or blisters and be of the correct thickness.
Visually inspect the coating of the splitter fairing assembly.
SUBTASK 72-32-93-220-063 Examine the Splitter Fairing Assembly

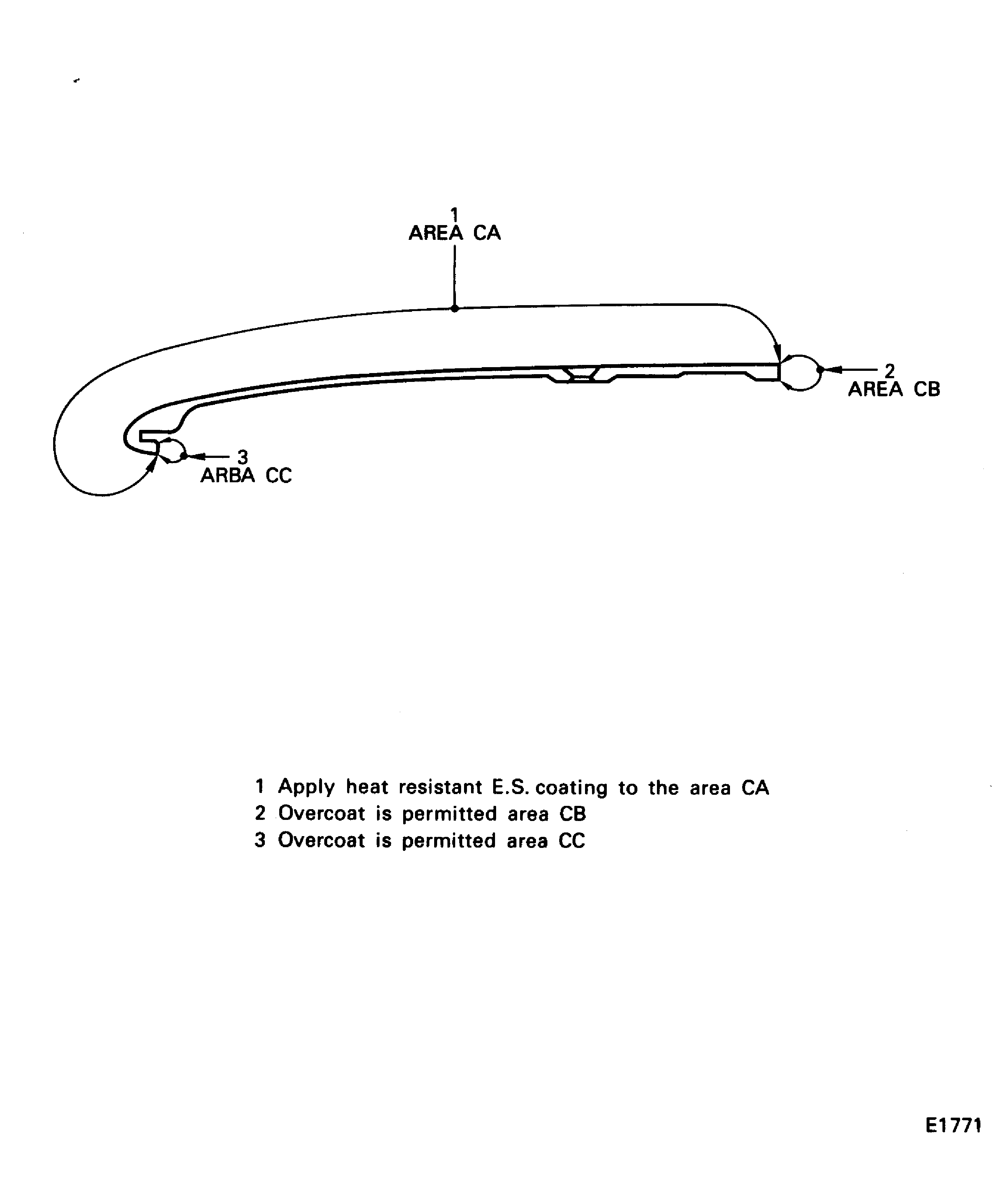

Figure: Splitter fairing assembly - coating area
Splitter fairing assembly - coating area
