TASK 72-32-94-300-001 PTO Shaft Oil Seal Tube - Repair The Surface Damage, Repair-001 (VRS1450)
General
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
Price and availability - not applicable
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Use abrasive stone or CoMat 05-020 WATERPROOF SILICON CARBIDE and CoMat 05-021 WATERPROOF SILICON CARBIDE, and/or fine file.
Surface finish of the repair must be the same as the adjacent area.
Refer to the SPM TASK 70-35-03-300-501.
CAUTION
TITANIUM COMPONENT - YOU MUST USE SILICON CARBIDE TYPE ABRASIVE WHEELS, STONES AND PAPERS TO DRESS, BLEND AND POLISH THIS COMPONENT.TITANIUM COMPONENT - DO NOT USE FORCE WITH MECHANICAL CUTTERS OR THE MATERIAL WILL BECOME TOO HOT.TITANIUM COMPONENT - IF THE MATERIAL SHOWS A CHANGE IN COLOR, TO DARKER THAN A LIGHT STRAW COLOR, THE COMPONENT IS TO BE REJECTED.Make smooth and/or hand polish to remove the nicks, galls and/or scores.
SUBTASK 72-32-94-350-051 Remove the Nicks, Galls, Scores and/or Pick-up from the Tube Surface and Tube End Fittings
Refer to TASK 72-32-94-200-000 for the applicable Inspection/Check TASK.
Visually examine the repaired area.
SUBTASK 72-32-94-220-057 Examine the Oil Seal Tube Assembly
Refer to the SPM TASK 70-23-05-230-501.
Fluorescent penetrant examine the repaired area.
SUBTASK 72-32-94-230-052 Examine the Oil Seal Tube Assembly for Cracks

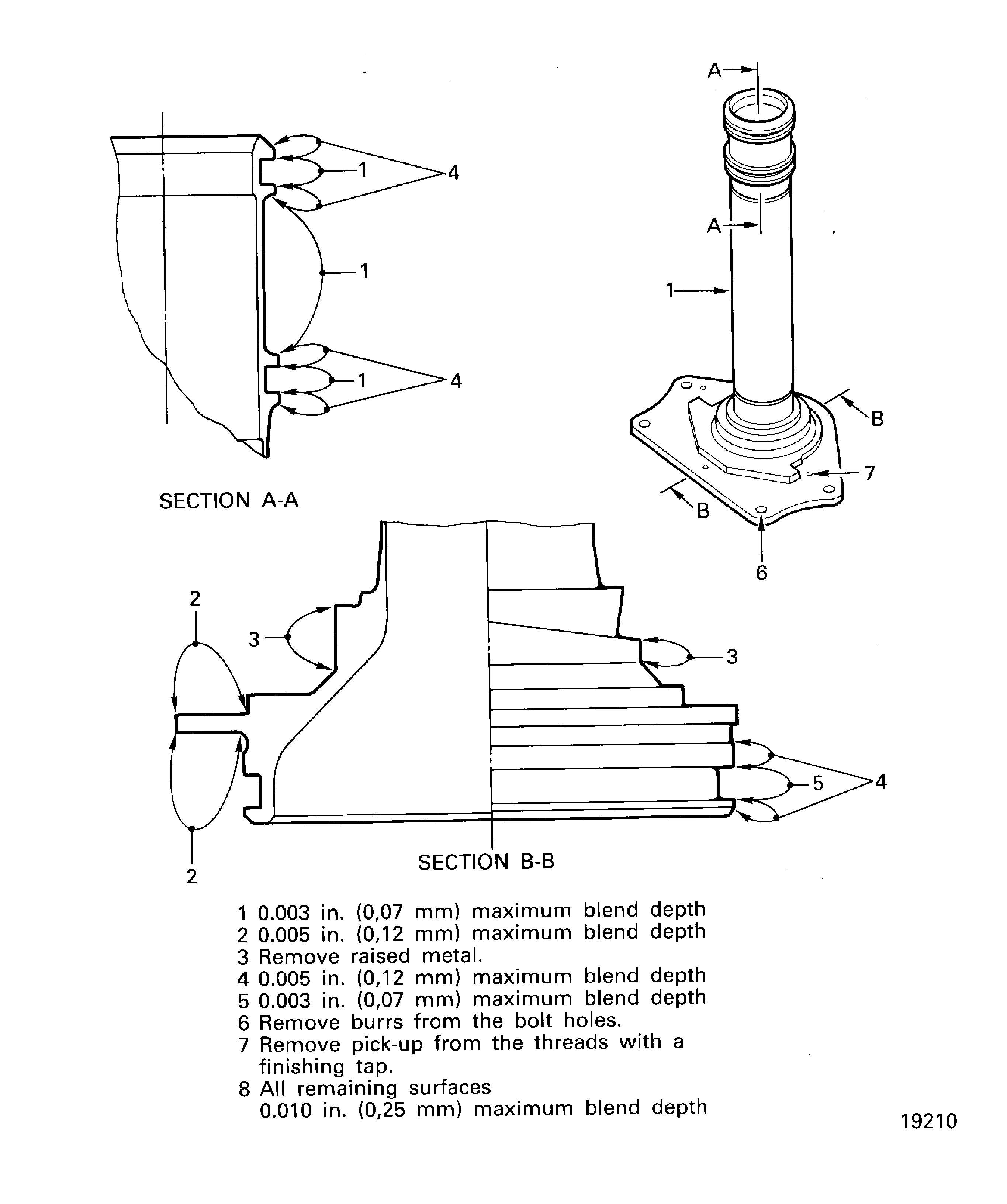

Figure: Oil seal tube assembly - repair limits
Oil seal tube assembly - repair limits
