TASK 72-38-11-300-006 Inlet Cone Fairing - Repair The Surface Damage, Repair-006 (VRS1460)

DMC:V2500-A0-72-38-1102-00A-920A-C|Issue No:002.00|Issue Date:2016-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-38-11-300-006 Inlet Cone Fairing - Repair The Surface Damage, Repair-006 (VRS1460)

Effectivity

FIG/ITEM

PART NO.

01-100

5A0017

01-100

5A1833

01-100

5A1834

Material of component

PART IDENT

SYMBOL

MATERIAL

Inlet cone fairing

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Portablegrinding equipmentLOCALPortable grinding equipment
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 06-064 FLUORESCENT PENETRANT (WATER WASHABLE MEDIUM SENSITIVITY)LOCALCoMat 06-064

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-38-11-350-051 Remove the Damage from the Inlet Cone Fairing

    1. Refer to Figure.

      2. CAUTION

        WHEELS, STONES AND ABRASIVE PAPERS USED TO DRESS, MAKE SMOOTH, OR POLISH A TITANIUM COMPONENT MUST BE OF THE SILICON CARBIDE TYPE. ALUMINUM OXIDE TYPES MUST NOT BE USED.

        CAUTION

        IF MECHANICAL CUTTERS ARE USED, ONLY SMALL CUTS MUST BE MADE TO PREVENT TOO MUCH HEAT.

        Dress/make smooth and/or hand polish to remove burrs, nicks, dents and/or scratches.

        1. Use portable grinding equipment, abrasive stones or paper and/or fine file.

        1. Surface finish of the repair must be the same as the adjacent area.

        2. Refer to Figure.

        3. Refer to the SPM TASK 70-35-03-300-501.

    2. SUBTASK 72-38-11-220-073 Examine the Inlet Cone Fairing

      1. Visually examine the repaired area.

      1. Visually examine the repaired area for burrs, nicks, dents and/or scratches using 10X magnifying glass.

      2. Refer to TASK 72-38-11-200-000 (INSPECTION-000).

    3. SUBTASK 72-38-11-230-053 Examine the Inlet Cone Fairing for Cracks

      1. Fluorescent penetrant examine the repaired area.

      1. Refer to the SPM TASK 70-23-05-230-501.

      3. Make sure there is no crack in the repaired area.

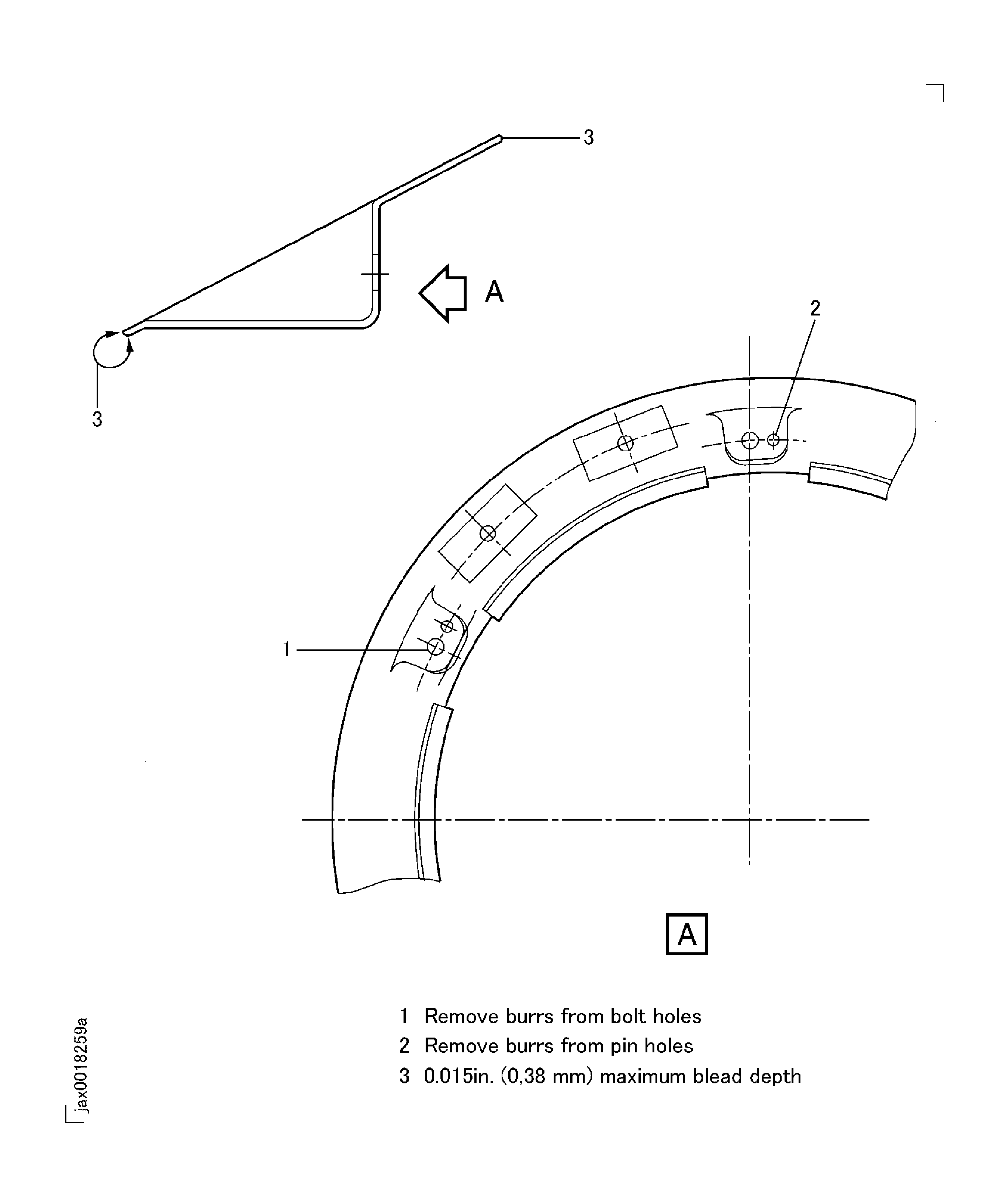

    4. Figure: Inlet cone fairing - Repair limits

    Inlet cone fairing - Repair limits

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Corrected the SPM Task number

Manufacturer Code:44197
Enterprise Name:SAINT-GOBAIN INDUSTRIAL CERAMICS INC.
BU Name:SAINT-GOBAIN ABRASIVES, INC
Street:ONE NEW BOND STREET
P.O. Box:PO BOX 15008
City:WORCESTER
State:MA
Zip Code:01615-0008
Country:USA
Phone Number:1-508-795-5000
Fax Number:1-508-795-2828
Internet:www.saint-gobain-northamerica.com
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:1E1X8
Supply Number:CoMat 05-020
Type:sp01
Supply Short Name:CoMat 05-020 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-020 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/33 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 320 (ANSI B74.18)
JCR-027 (JAEC REF)
JCR-186 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
LOCAL
K6835
Manufacturer Code:1E1X8
Supply Number:CoMat 05-021
Type:sp01
Supply Short Name:CoMat 05-021 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-021 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/35 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 240 (ANSI B74.18 )
JCR-188 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
K6835
LOCAL
Manufacturer Code:X222X
Supply Number:CoMat 06-064
Type:sp01
Supply Short Name:CoMat 06-064FLUORESCENT PENETRANT (WATER WASHABLE MEDIUM SENSITIVITY)
Supply Name:CoMat 06-064 FLUORESCENT PENETRANT (WATER WASHABLE MEDIUM SENSITIVITY)
Specification Groups:
Doc NumberType
It is not permitted to mix the selected CoMat 06‐064 letter suffix material with other CoMat 06‐064 letter suffix materials.Where CoMat 06‐064 is specified with no suffix, use one of the CoMat 06‐064 letter suffix materials.
Suppliers:
ManufacturerRemarks
X222X
Manufacturer Code:LOCAL
Tool Number:Fluorescent penetrant inspection equipment
Tool Name:Fluorescent Penetrant Inspection Equipment
Manufacturer Code:LOCAL
Tool Number:Portable grinding equipment
Tool Name:Portablegrinding equipment
