TASK 72-40-00-030-003 HP System Module - Remove The Outer Combustion Chamber Assembly, Disassembly-003

DMC:V2500-A0-72-40-0000-05A-530A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-40-00-030-003 HP System Module - Remove The Outer Combustion Chamber Assembly, Disassembly-003

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

Remove the outer combustion chamber with the HP system module installed in the workshop stand. The procedure for the installation of the HP system module in to the workshop stand is given in TASK 72-00-40-580-003.

Remove and discard the lockwire before parts are disconnected or removed.

Discard all rubber seal rings, cotter pins and seal washers removed in this procedure.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1P16102 Lift sling0AM53IAE 1P161021

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-40-00-030-051 Remove the Stage 1 Turbine Nozzle Assembly

    1. Remove the stage 1 turbine nozzle assembly. Refer to TASK 72-40-00-030-002.

    2. SUBTASK 72-40-00-030-052 Attach the Lift Sling

    1. Refer to Figure.

      2. Install the IAE 1P16102 Lift sling 1 off to the outer combustion chamber.

      1. Attach the three cables (equally spaced) to the holes nearest the rear end of the combustion chamber. Attach the sling to a hoist.

    3. Lift the hoist until tension is felt on the lift sling cables.

    3. SUBTASK 72-40-00-030-087 Remove the Igniter Plugs

      1. CAUTION

        DO NOT BEND THE ELECTRICAL CABLE CONDUIT TOO MUCH WHEN YOU DISCONNECT THE ELECTRICAL CONNECTOR. THE CONDUIT CAN BE DAMAGED AND CAN CAUSE ELECTRICAL CIRCUIT DEFECTS.

        Disconnect the high tension leads.

      1. Loosen the clamps and move them away from the cooling jackets.

      2. Remove the cooling jackets.

      3. Disconnect the high tension leads.

    2. NOTE

      Hold the threaded insert with a wrench so it will not turn when the igniter plug is removed.

      Remove the igniter plugs.

    4. SUBTASK 72-40-00-030-053 Remove the Outer Combustion Chamber

    1. Refer to Figure.

    2. Release the lockwire from the five doweled end bolts on the diffuser case. Release and remove the five doweled end bolts.

    3. Remove the outer combustion chamber from the engine and place on a pallet or workbench. Remove the hoist and the lift sling from the combustion chamber.

    5. Figure: Attach the lift sling

    Attach the lift sling

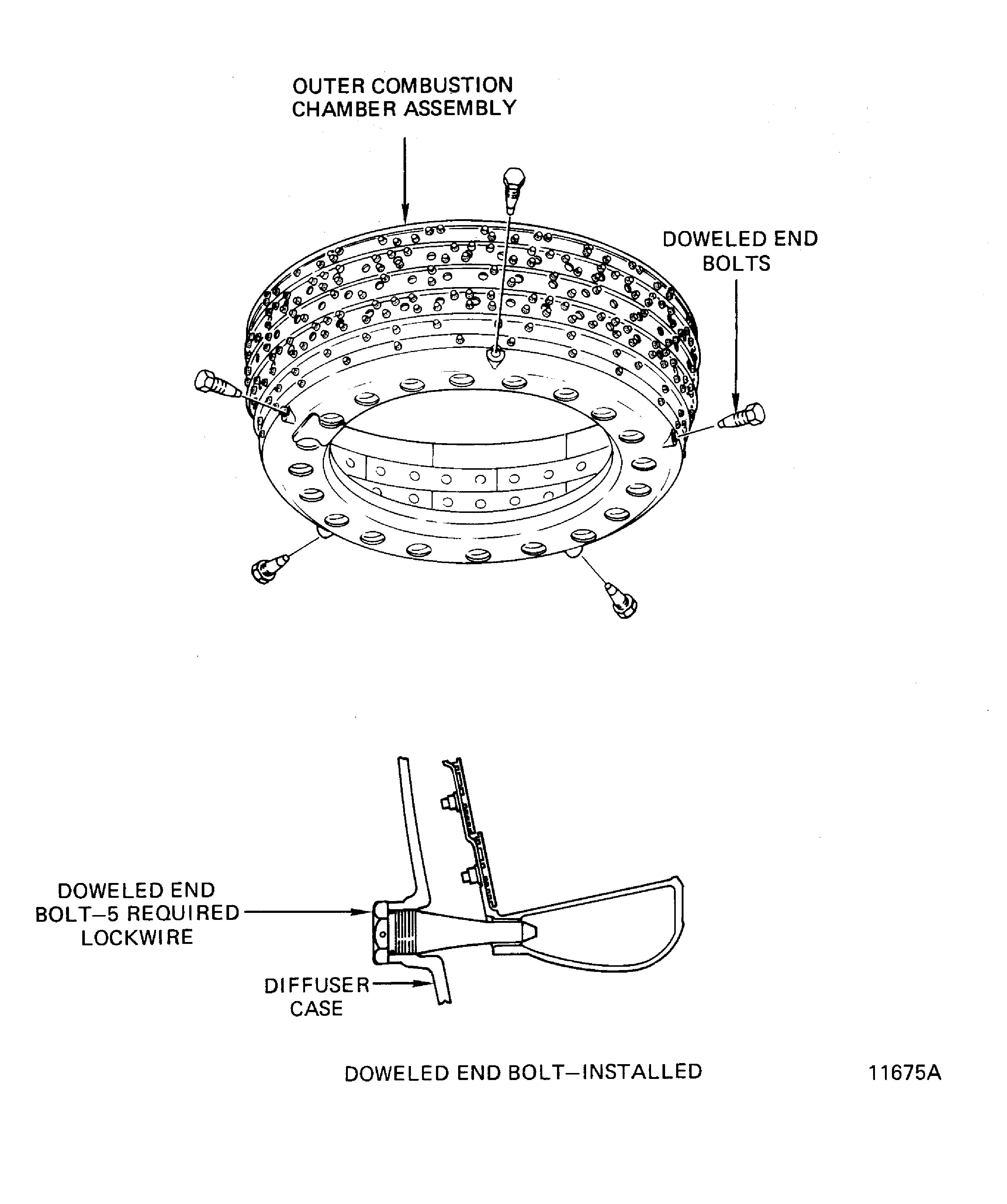

    Figure: Remove the outer combustion chamber

    Remove the outer combustion chamber

Requirements After Job Completion

Follow-On Conditions

NONE
