DMC:V2500-A0-72-40-0034-00A-649A-CIssue No:001.00Issue Date:2013-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
Common Information
TASK 72-40-00-300-001 Manifold Brackets - Blend Repair, Repair-001 (VRS1468)
Material of component
PART IDENT | SYMBOL | MATERIAL |
|---|---|---|
Manifold bracket | 15Cr-25.5Ni-1.2Mo-2.1Ti-0.3V-0.006B steel |
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK number are in the SPM.
For the method to clean the parts, refer to TASK 72-40-00-100-000 (CLEANING-000).
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Refer to TASK 70-35-03-300-501.
Blend dressed area.
SUBTASK 72-40-00-350-055 Blend the Damaged Surface of the Manifold Bracket (05-520)
Refer to Figure.
If the blended area exceeds the blend limit given in Figure reject the manifold bracket.
Examine the repaired area of manifold bracket.
Refer to TASK 72-40-00-200-000 (INSPECTION-000).
Use 8X magnifying glass.
Visually examine the manifold bracket.
SUBTASK 72-40-00-220-112 Examine the Manifold Bracket (05-520)

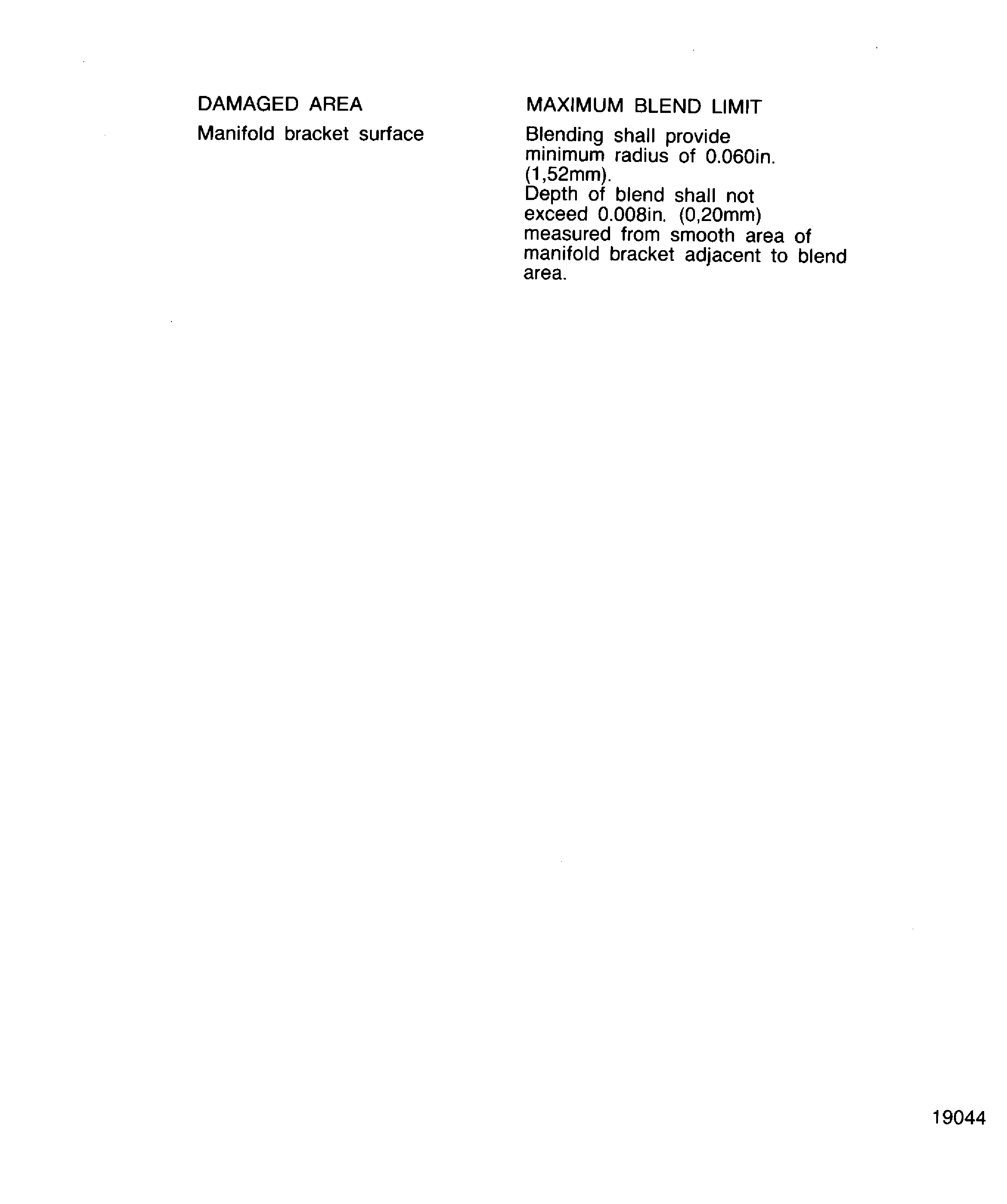

Figure: Blend limit of the manifold bracket
Blend limit of the manifold bracket
