TASK 72-40-00-300-003 Brackets - Blend Repair On The Brackets, Rod Bracket, And ACC Valve Bracket, Repair-003 (VRS1469)

DMC:V2500-A0-72-40-0035-00A-649A-C|Issue No:002.00|Issue Date:2016-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-40-00-300-003 Brackets - Blend Repair On The Brackets, Rod Bracket, And ACC Valve Bracket, Repair-003 (VRS1469)

Effectivity

FIG/ITEM

PART NO.

01-075

6A3992

01-075

6A5911

01-075

6A7458

01-075

6A7459

01-182

5W8386

01-300

5W8363

01-300

6A7457

01-790

5W2141

01-790

6A4355

01-790

5W2242

01-860

6A5663

01-880

6A5884

01-880

6A5899

05-140

2A1485

05-160

5W8262

05-160

5W0101

05-180

5W8262

05-180

5W0101

05-250

2A0803

05-270

5W8262

05-270

5W0101

05-360

5W8346

05-380

2A0805

05-400

5W8262

05-400

5W8397

05-420

2A1474

05-440

5W8262

05-440

5W8397

05-460

5W8262

05-460

5W8397

05-500

5W1699

05-500

5W2099

05-500

6A6487

05-500

6A6591

05-570

6A6489

05-570

6A6593

05-570

5W2237

Material of component

PART IDENT

SYMBOL

MATERIAL

Bracket (Part No. 5W8386)

-

18Cr-10.5Ni-0.4Ti Steel

Brackets

-

62Ni-21.5Cr-9.0Mo-3.7 (Cb+Ta)

(Part No. 2A1485, 2A0803,

2A0805 and 2A1474)

-

Rod bracket

(Part No. 5W2141)

62Ni-21.5Cr-9.0Mo-3.7 (Cb+Ta)

Brackets

-

18Cr-8.5Ni-1.2MnNb

(Part No. 5W8262, 5W0101,

and 5W8397)

ACC valve bracket

(Part 5W1699 and 5W2099)

-

15Cr-26Ni-1.3Mo-2.1Ti-

0.006B-0.30V Steel

ACC valve bracket

-

(Part No. 6A6487)

25Ni-14.7Cr-2.1Ti-1.2Mo

ACC valve bracket

-

(Part No. 6A6591)

18Cr-8.5Ni-1.2MnNb

ACC valve bracket

-

(Part No. 6A6489)

25Ni-14.7Cr-2.1Ti-1.2Mo

ACC valve bracket

-

(Part No. 6A6593)

18Cr-8.5Ni-1.2MnNb

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

For the method to clean the parts, refer to TASK 72-40-00-100-000.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Hand held pneumatic grinderLOCALHand held pneumatic grinder
Hand polish and blend equipmentLOCALHand polish and blend equipment

(Refer to SPM TASK 70-35-03-300-501)

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-40-00-350-054 Blend the Damaged Surface of the Brackets (01-182, 05-140, 05-160, 05-180, 05-250, 05-270, 05-380, 05-400, 05-420, 05-440 and 05-460), Rod Bracket (01-790) and ACC Valve Bracket (05-500) and (05-570)

    1. Refer to Figure.

      2. Dress to remove damage.

      1. Use portable grinding equipment.

      2. Dress until all damage is removed.

    2. SUBTASK 72-40-00-220-111 Examine the Brackets (01-182, 05-140, 05-160, 05-180, 05-250, 05-270, 05-380, 05-400, 05-420, 05-440 and 05-460), Rod Bracket (01-790) and ACC Valve Bracket (05-500) and (05-570), Rod Bracket (01-790) and ACC Valve Bracket (05-500) and (05-570)

    1. Refer to Figure.

      2. Examine the repaired area of brackets, rod bracket and ACC valve bracket.

      1. If the blended area exceeds the blend limit given in Figure, reject the brackets, rod bracket and ACC valve bracket.

      3. Visually examine the brackets, rod bracket and ACC valve bracket.

      2. Use 8X magnifying glass.

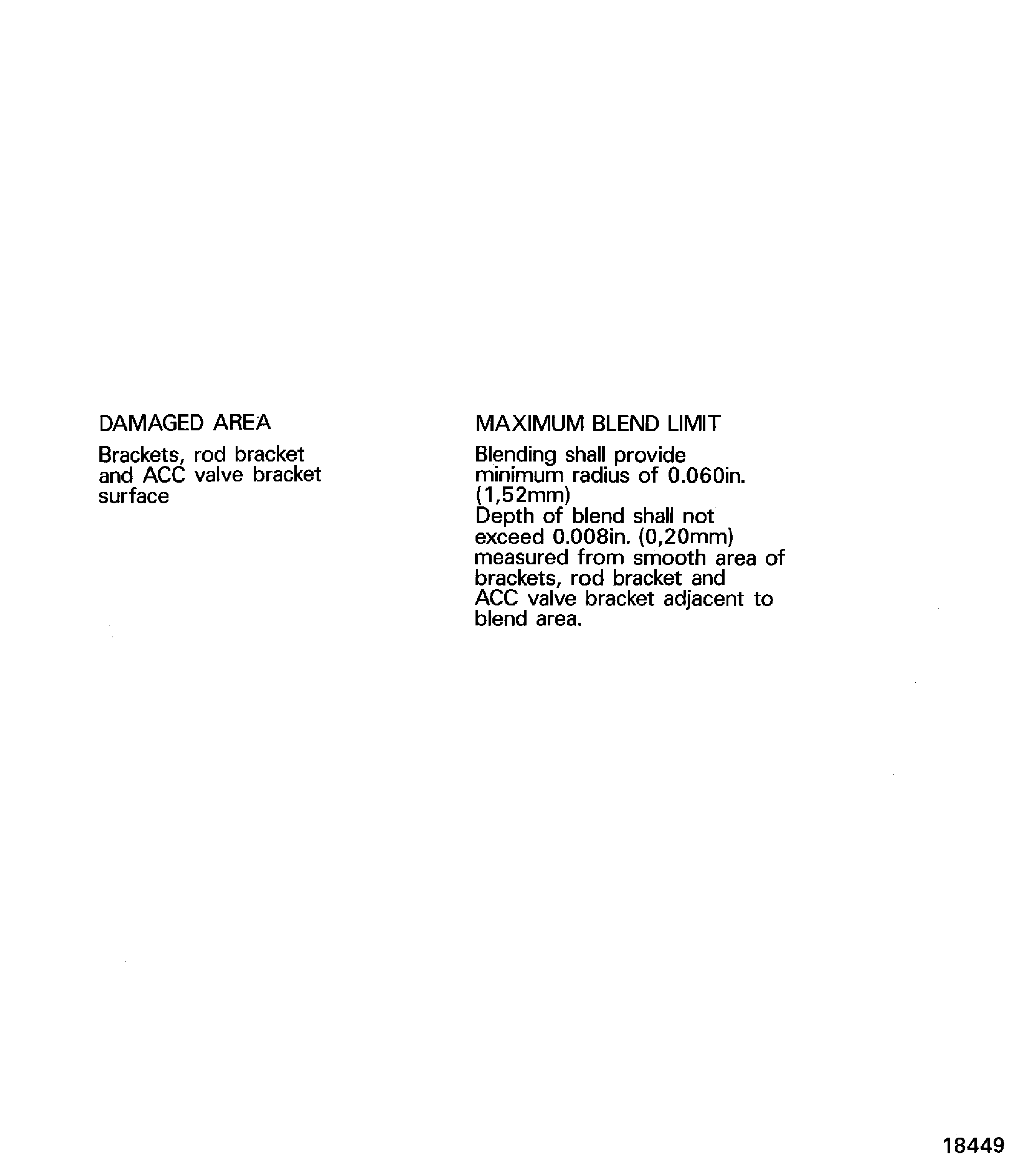

    3. Figure: Blend limit of the bracket, rod bracket and ACC valve bracket

    Blend limit of the bracket, rod bracket and ACC valve bracket

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Corrected the SPM Task number

Manufacturer Code:44197
Enterprise Name:SAINT-GOBAIN INDUSTRIAL CERAMICS INC.
BU Name:SAINT-GOBAIN ABRASIVES, INC
Street:ONE NEW BOND STREET
P.O. Box:PO BOX 15008
City:WORCESTER
State:MA
Zip Code:01615-0008
Country:USA
Phone Number:1-508-795-5000
Fax Number:1-508-795-2828
Internet:www.saint-gobain-northamerica.com
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:1E1X8
Supply Number:CoMat 05-020
Type:sp01
Supply Short Name:CoMat 05-020 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-020 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/33 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 320 (ANSI B74.18)
JCR-027 (JAEC REF)
JCR-186 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
LOCAL
K6835
Manufacturer Code:1E1X8
Supply Number:CoMat 05-021
Type:sp01
Supply Short Name:CoMat 05-021 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-021 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/35 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 240 (ANSI B74.18 )
JCR-188 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
K6835
LOCAL
Manufacturer Code:LOCAL
Tool Number:Hand held pneumatic grinder
Tool Name:Hand held pneumatic grinder
Manufacturer Code:LOCAL
Tool Number:Hand polish and blend equipment
Tool Name:Hand polish and blend equipment
