TASK 72-40-00-300-002 Tube Bracket - Replace The Plate Nut, Repair-002 (VRS1470)

DMC:V2500-A0-72-40-0039-00A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-40-00-300-002 Tube Bracket - Replace The Plate Nut, Repair-002 (VRS1470)

Effectivity

FIG/ITEM

PART NO.

05-520

2A0290

05-542

2A3650

Material of component

PART IDENT

SYMBOL

MATERIAL

TCC tube bracket

15Cr-25.5Ni-1.2Mo-0.006B-

0.3V steel

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

For the method to clean the parts, refer to TASK 72-40-00-100-000 (CLEANING-000).

NOTE

Other consumable materials are given in the SPM.
To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Rivet squeezerLOCALRivet squeezer
Sheet fastenerLOCALSheet fastener

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Plate nutMS21048-31
RivetMS20427M3-42
RivetMS20427M3-42
Plate nutMS21048-31

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-40-00-350-051 Remove the Damaged Plate Nut

    1. Refer to Figure.

      2. Drill and remove the manufactured head of the rivet.

      1. Use a punch and 0.125 in. (3.18 mm) diameter drill.

      3. Remove the rivets.

      1. Use a punch and a mallet.

    4. Remove the plate nut.

      5. Clean the rivet holes of the bracket.

      1. Use a soft clean cloth and air blast.

      6. Visually examine the rivet holes.

      1. Refer to the SPM TASK 70-21-01-220-501.

    2. SUBTASK 72-40-00-350-052 Install the New Plate Nut

    1. Refer to Figure.

      2. NOTE

        Make sure that the plate nut is retained correctly.

        Fit and retain the new plate nut to the bracket.

      1. Use sheet fastener.

      3. Install and upset one rivet.

      1. Use rivet squeezer.

        Driven head must be 0.1260 to 0.1417 in. (3.20 to 3.60 mm) in diameter and 0.0473 to 0.0629 in. (1.2 to 1.6 mm) in height.

    4. Remove the sheet fastener.

      5. Install and upset the rivet to the remaining rivet hole.

      1. NOTE

        Make sure that the plate nut is installed satisfactorily.

        Use the rivet squeezer.

        Driven head must be 0.1260 to 0.1417 in. (3.20 to 3.60 mm) in diameter and 0.0473 to 0.0629 in. (1.2 to 1.6 mm) in height.

      6. Visually examine the rivets of the plate nut for cracks and other damage.

      1. Refer to the SPM TASK 70-21-01-220-501.

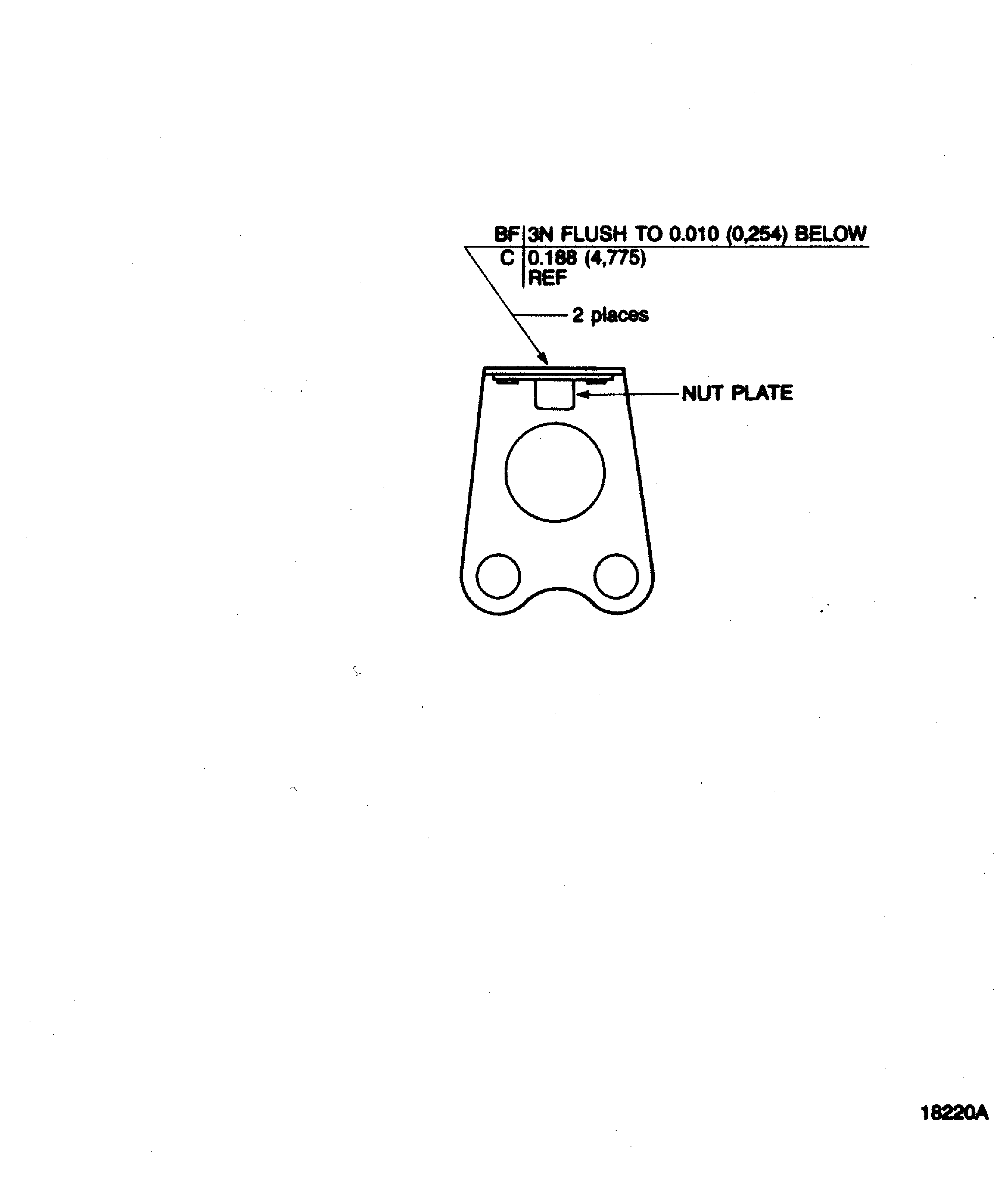

    3. Figure: Replacement of the plate nut

    Replacement of the plate nut

Requirements After Job Completion

Follow-On Conditions

NONE
