TASK 72-41-12-300-023 HPC Stage 9 - 12 Drum Disk - Repair The Stages 8, 9, 10 And 11 Stator Vane Rub Strip Coating, Repair-023 (VRS3051)

DMC:V2500-A0-72-41-1201-02A-609A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-12-300-023 HPC Stage 9 - 12 Drum Disk - Repair The Stages 8, 9, 10 And 11 Stator Vane Rub Strip Coating, Repair-023 (VRS3051)

Effectivity

FIG/ITEM

PART NO.

01-600

2A2100-01

01-600

2A2200-01

01-600

2A3300-01

01-600

2A3400-01

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Stage 9 -12 HP compressor disk

-

Nickel alloy

General

Repair Facilities

The Source Demonstration requirements of this repair means that any facility not authorized to accomplish this Repair either utilize the Authorized Repair Vendors listed below or contact the IAE Repair Development Group to determine if a qualification program can be initiated at their facility.

IAE - INTERNATIONAL AERO ENGINES AG
400 Main Street
East Hartford CT 06108
U.S.A.
ATTN:  Manager Repair Development

Authorized repair vendors for Repair VRS3051 are listed below:

GENERAL PLASMA ASSOCIATES
12 Thompson Road
East Windsor, CT 06088 USA

The designation by IAE of an authorized repair vendor indicates that the repair vendor has demonstrated the necessary capability to enable it to carry out the listed repair work. However, IAE makes no warranties or representations concerning the qualifications or quality standards of the repair vendors to carry out the repair work, and accepts no responsibility whatsoever for any work that may be carried out by a repair vendor, other than when IAE is listed as the repair vendor. Authorized repair vendors do not act as agents or representatives of IAE.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-12-220-096 Post Repair Inspection

    1. Refer to Figure.

      2. Visually inspect the repair.

      1. Refer to TASK 72-41-12-200-000, (INSPECTION-000).

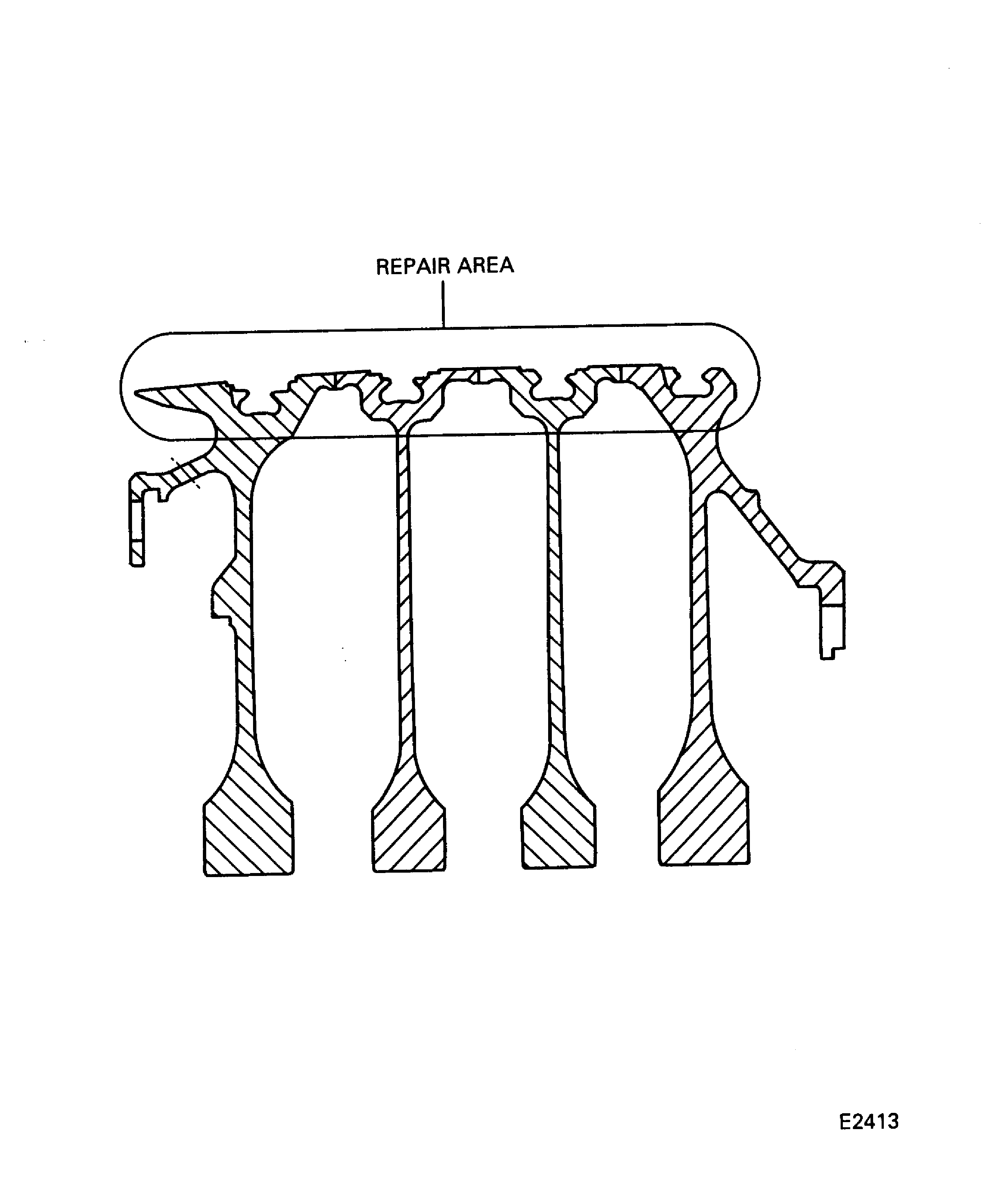

    2. Figure: Stages 8, 9, 10 and 11 stator vane rub strip coating repair area

    Stages 8, 9, 10 and 11 stator vane rub strip coating repair area

Requirements After Job Completion

Follow-On Conditions

NONE
