TASK 72-41-13-300-030 HPC Rear Shaft - Repair The No. 4 Bearing Seal Seat By Nickel Plate, Repair-030 (VRS3636)
General
Price and availability - refer to IAE
The practices and processes referred to in this procedure by TASK numbers are in the SPM.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Machining equipment | LOCAL | Machining equipment | ||
| Plating equipment | LOCAL | Plating equipment | ||
| Workshop inspection equipment | LOCAL | Workshop inspection equipment |
Consumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to the SPM TASK 70-33-06-300-503 or
Remove the nickel plate.
Keep the machining to the maximum dimension. Refer to Figure.
If a grind operation is used to get the before plating dimension, do the fluorescent penetrant inspection.
Machine or grind the HPC rear hub No. 4 bearing seal seat shoulder.
SUBTASK 72-41-13-320-064 Remove the Damage and all of the Nickel Plate from the HPC Rear Hub No. 4 Bearing Seal Seat Shoulder
Do the penetrant procedure given in the SPM TASK 70-23-04-230-501. No cracks permitted. Do this procedure before you plate the part.
Examine the machined No. 4 Bearing front seal mating diameter for cracks.
SUBTASK 72-41-13-230-103 Examine the Machined No. 4 Bearing Seal Seat Shoulder for Cracks
Do the procedure given in the SPM TASK 70-33-06-300-503. Plate to a minimum plate dimension. Refer to Figure.
NOTE
Nickel plate must not overlap chromium plated area.Nickel plate the machined shoulder area.
SUBTASK 72-41-13-380-062 Nickel Plate the Machined Shoulder Area
Machine to the finished dimensions in the figure. Refer to Figure.
Machine plated shoulder area.
SUBTASK 72-41-13-320-065 Machine Plated Shoulder Area

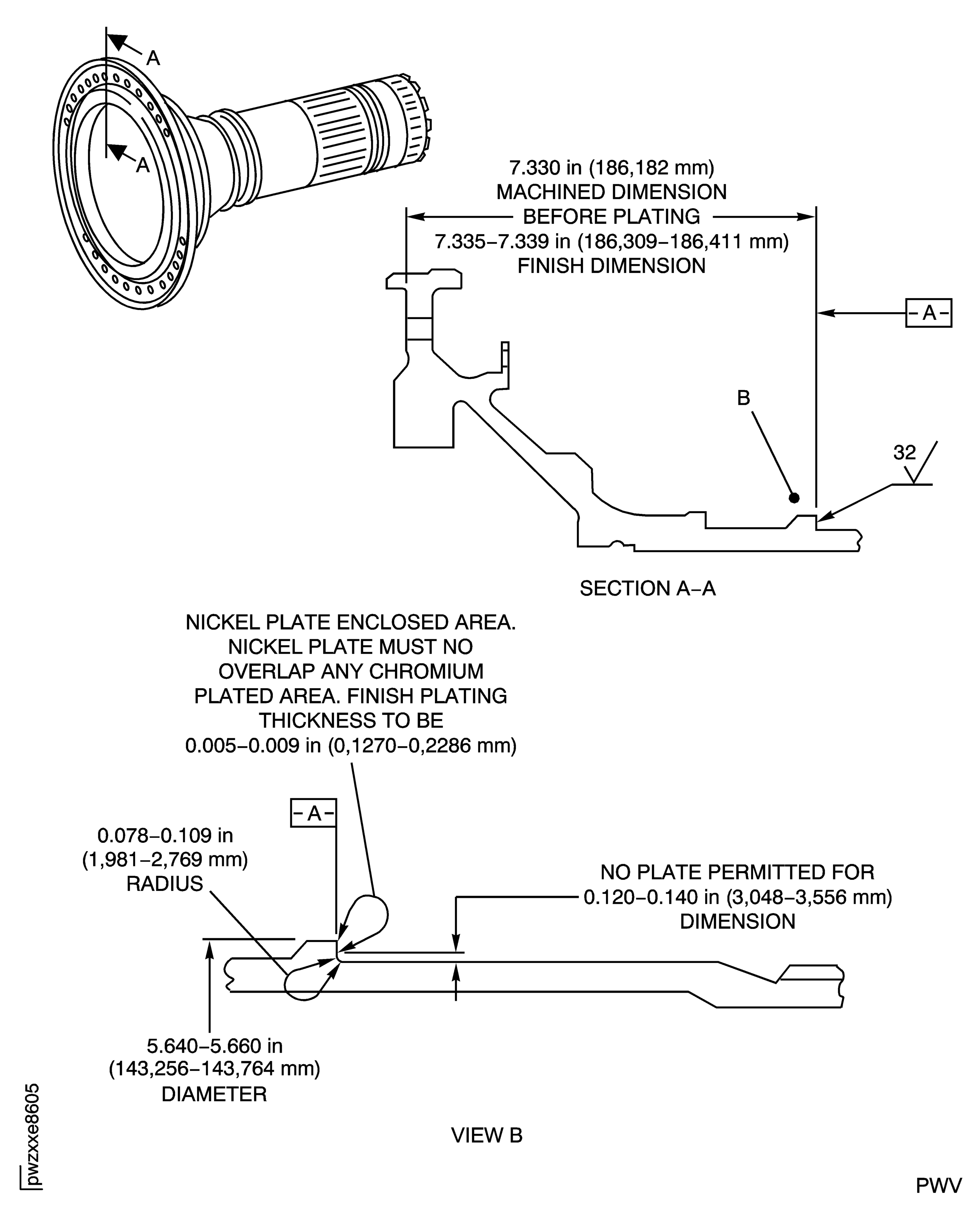

Figure: No. 4 Bearing Seal Seat HPC Rear Drive Shaft - Nickel Plate Repair
No. 4 Bearing Seal Seat HPC Rear Drive Shaft - Nickel Plate Repair
