TASK 72-41-13-300-028 HPC Rear Shaft - Plasma Spray Repair, Repair-028 (VRS3555)

DMC:V2500-A0-72-41-1301-05A-609A-C|Issue No:002.00|Issue Date:2019-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-41-13-300-028 HPC Rear Shaft - Plasma Spray Repair, Repair-028 (VRS3555)

Effectivity

FIG/ITEM

PART NO.

01-900

2A1386

Material of component

PART IDENT

SYMBOL

MATERIAL

HP compressor shaft

Nickel alloy

General

Refer to Figure for the area that is to be repaired.

Repair Facilities

The Source Demonstration requirements of this repair mean that any facility not authorized to accomplish this repair either utilize the Authorized Repair Vendors listed below or contact the IAE Manager Maintenance Operations to determine if a qualification program can be initiated at their facility.

IAE - INTERNATIONAL AERO ENGINES AG
400 Main St. M/S 121-10
East Hartford, CT 06108 USA
ATTN: Manager Maintenance Operations
Authorized repair vendors for Repair VRS3555 are listed below:
General Plasma Associates
12 Thompson Road
East Windsor, CT 06088 USA
MTU - Maintenance Gmbh
Airport Hannover
Munchner Strasse 31
30855 Langenhagen, Germany
ATTN: Program Manager, V2500
Rolls-Royce Aero Engine Services Limited
East Kilbride
Glasgow G74 4PY Scotland
IHI
Aero and Space Operations
Mizuho Aero Engine Works
229, Tonogaya
Mizuho, Machi
Nishitama - Gun
Tokyo 190-12 Japan
The designation by IAE of an authorized repair vendor indicates that the repair vendor has demonstrated the necessary capability to enable it to carry out the listed repair work. However, IAE makes no warranties or representations concerning the qualifications or quality standards of the repair vendors to carry out the repair work and accepts no responsibility whatsoever for any work that may be carried out by a repair vendor, other than when IAE is listed as the repair vendor. Authorized repair vendors do not act as agents or representatives of IAE.
Preliminary Requirements
Pre-Conditions
NONE
Support Equipment
NONE
Consumables, Materials and Expendables
NONE
Spares
NONE
Safety Requirements
NONE
Procedure
    1. SUBTASK 72-41-13-220-161 Examine the Repair
      1. Examine the shaft after repair.
      1. Refer to TASK 72-41-13-200-000 (INSPECTION-000).

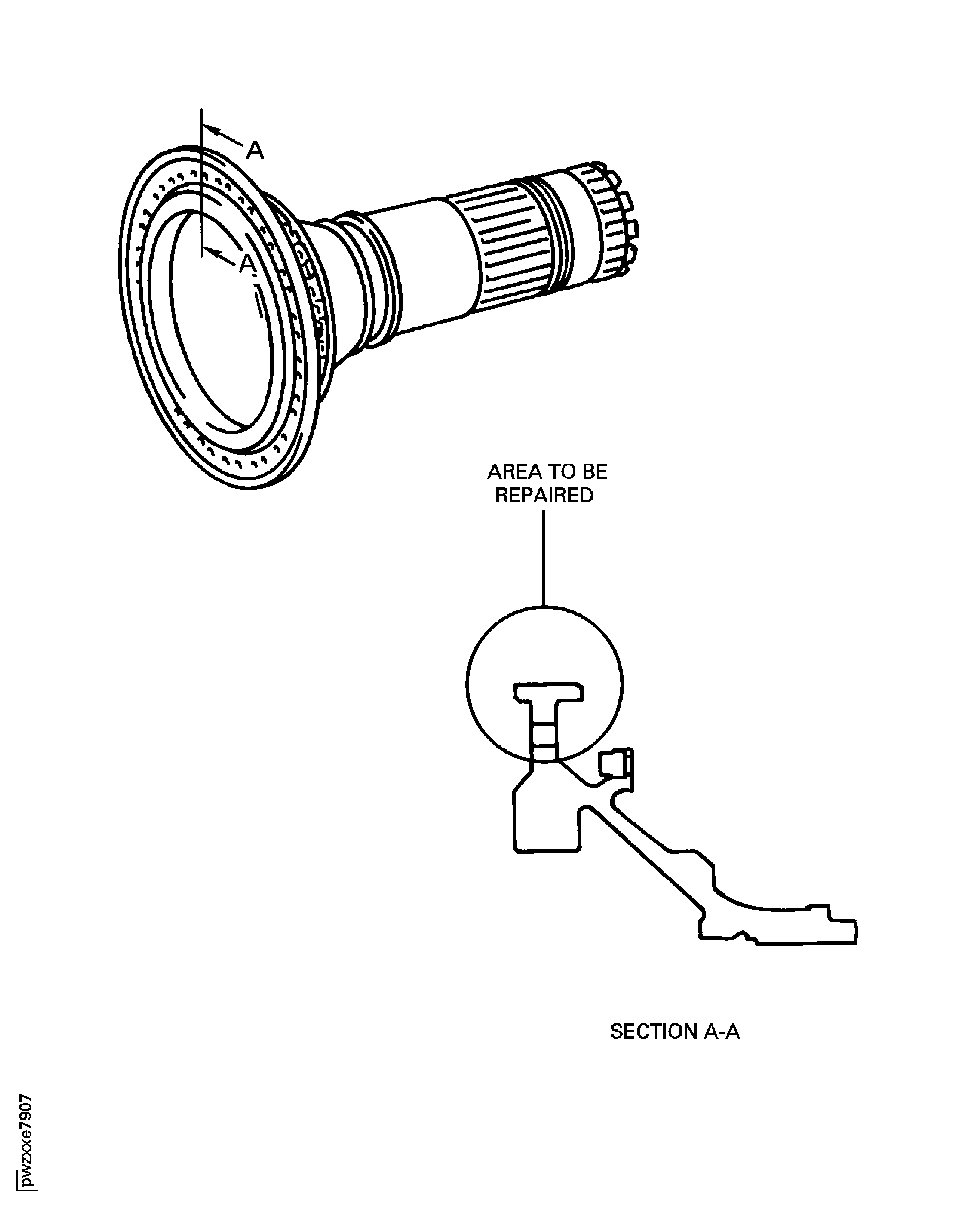

    2. Figure: HP compressor shaft repair area
    HP compressor shaft repair area
Requirements After Job Completion
Follow-On Conditions
NONE
Change Type:


Fix typo in PN and applic to A1
