TASK 72-41-34-040-001-A00 HPC Variable Stator Vane Actuation System - Disassemble The Front Bearing Housing Assembly From The Crankshaft, Disassembly-001

DMC:V2500-A0-72-41-3410-00A-530A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-34-040-001-A00 HPC Variable Stator Vane Actuation System - Disassemble The Front Bearing Housing Assembly From The Crankshaft, Disassembly-001

General

This TASK gives the procedure to remove the front bearing housing assembly from the Pre SBE 72-0366 VSV crankshaft assembly.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

Apply the approved CoMat 10-058 PENETRATING OIL before the removal of threaded parts and parts with an interference fit. Let the parts soak before removal.

Refer to Figure for a sectional view of the front bearing housing assembly.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1R18686 Vane actuating adapter0AM53IAE 1R186861
IAE 1R18687 Vane actuating adapter0AM53IAE 1R186871
IAE 1R18752 Extractor0AM53IAE 1R187521
IAE 1F10026 Hydraulic hand pump0AM53IAE 1F100261
Hydraulic jack0AM53ENERPAC 102

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 10-058 PENETRATING OIL0AM53CoMat 10-058

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-34-040-051 Remove the Front Bearing Housing Assembly from the VSV Crankshaft

    1. Refer to Figure.

    2. Remove the retaining ring that secures the front bearing housing assembly to the VSV crankshaft.

      NOTE

      Keep the VSV crankshaft and front bearing housing assembly together as a set.

      3. Remove the front bearing housing assembly from the VSV crankshaft.

      1. Install and locate the VSV crankshaft and front bearing housing assembly in the IAE 1R18752 Extractor 1 off.

      2. Install the ENERPAC 102 hydraulic jack 1 off and the IAE 1F10026 Hydraulic hand pump 1 off to the extractor.

        1. Attach the vane actuating adapter to the VSV crankshaft and the Hydraulic jack.

        2. Insert the stud, part of the vane actuating adapter, through the holes in the VSV crankshaft and locate on the vane actuating adapter.

        3. Install the washers and nuts, part of the vane actuating adapter, then tighten the nuts.

      4. Operate the hydraulic pump and slowly remove the front bearing housing assembly from the VSV crankshaft.

      5. Remove the VSV crankshaft from the removal extractor.

      6. Remove the nuts, washers, stud and the vane actuating adapter from the VSV crankshaft.

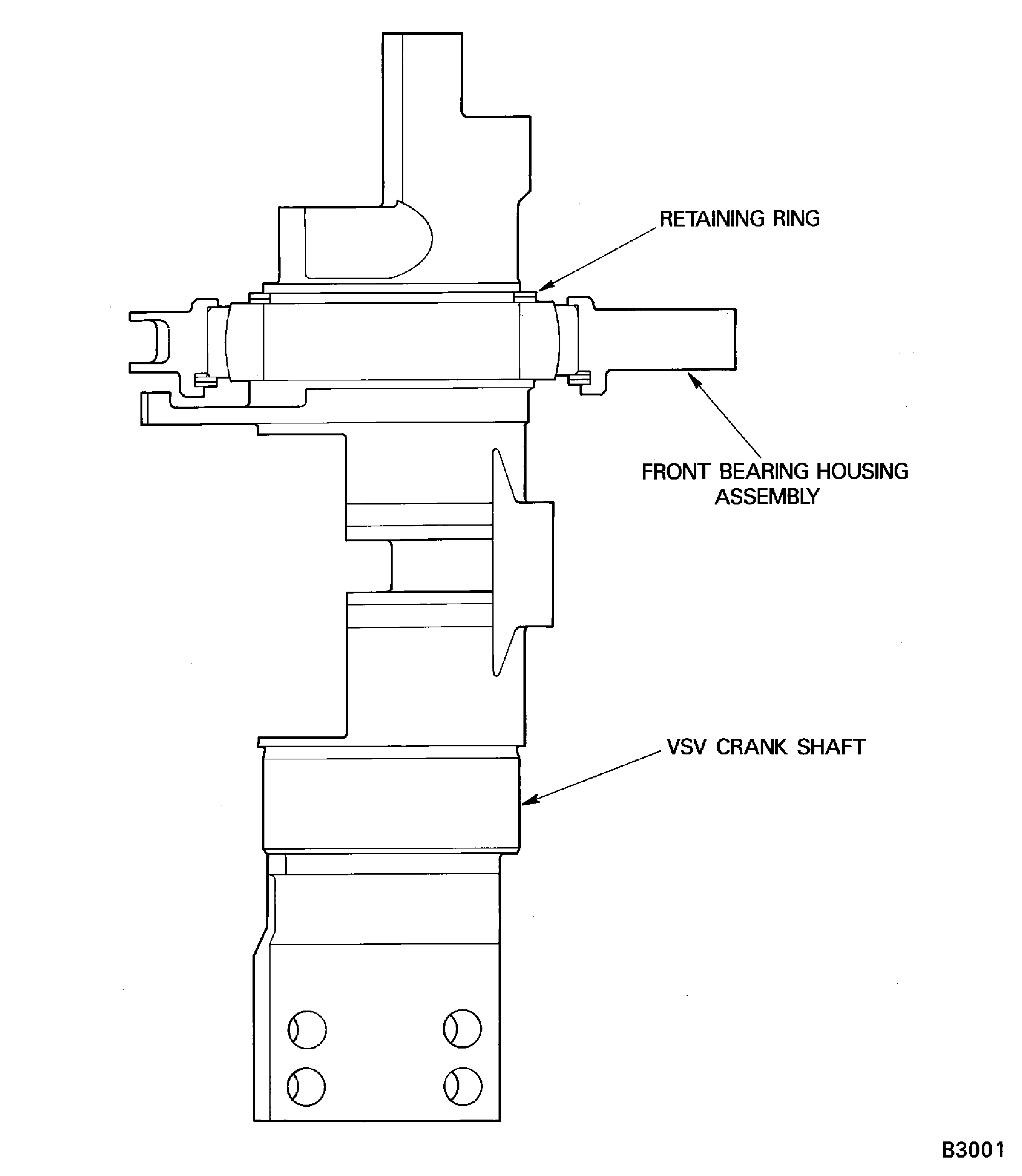

    2. Figure: Sectional view showing the front bearing housing assembly

    Sectional view showing the front bearing housing assembly

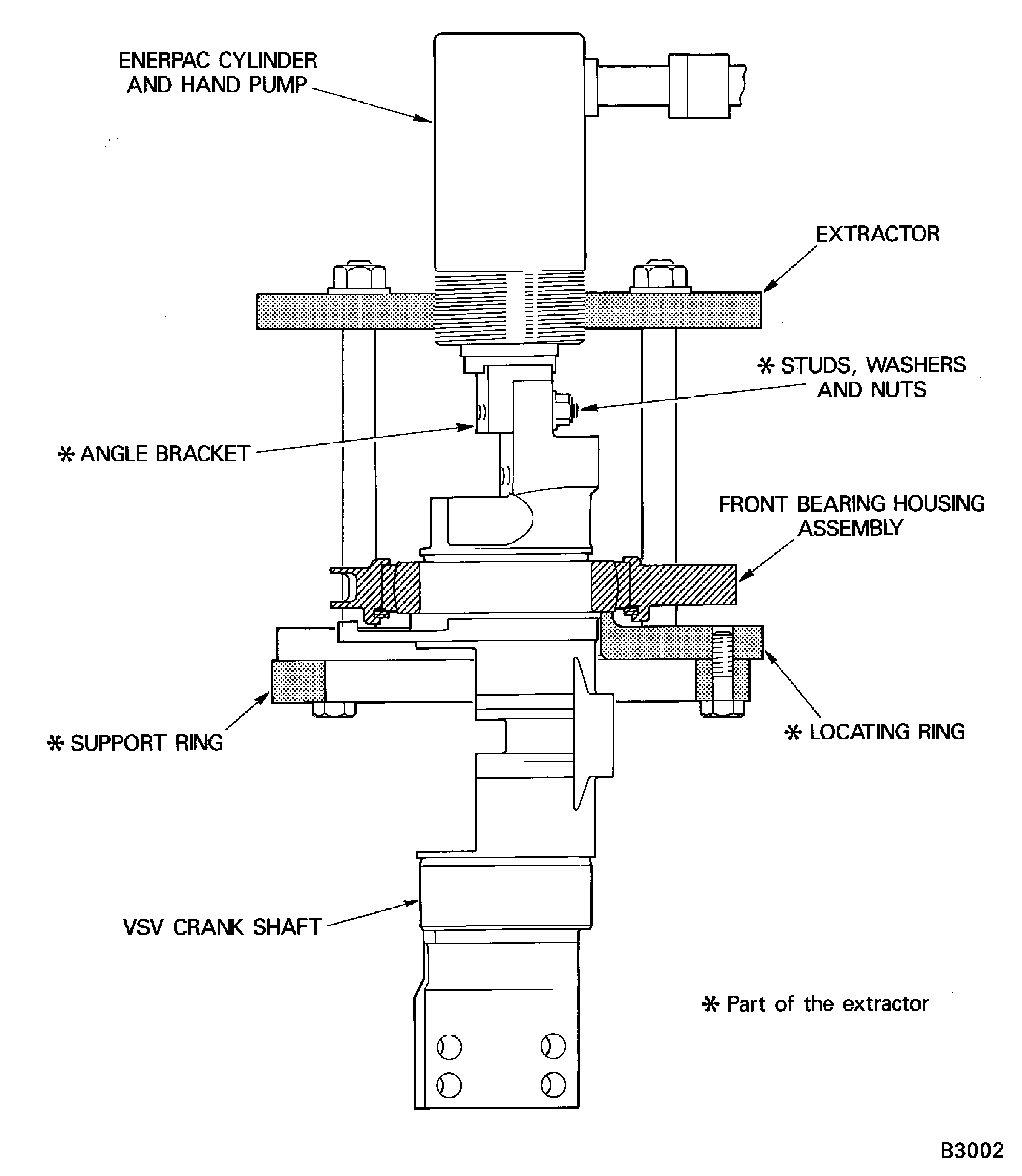

    Figure: Remove the front bearing housing assembly

    Remove the front bearing housing assembly
