TASK 72-41-34-300-028 HPC Stage 6 Unison Ring Connector Bridges - Replace The Bushes, Repair-028 (VRS6207)

DMC:V2500-A0-72-41-3436-00A-920A-C|Issue No:002.00|Issue Date:2021-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-41-34-300-028 HPC Stage 6 Unison Ring Connector Bridges - Replace The Bushes, Repair-028 (VRS6207)

Effectivity

FIG/ITEM PART NO.

06-200

6A2703

Material of component

RR

DESCRIPTION SYMBOL MATERIAL

Bridge piece

EAK

Jethete

Bush

VEB

Graphite filled polymide

resin

General

This Repair must only be done when the instruction to do so is given in 72-41-34 Inspection/Check.

This Repair has been issued for the replacement of damaged or worn bushes in the HP compressor stage 6 actuating ring connector assembly.

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

Equivalent materials or equipment can be used.

NOTE

More equipment and materials necessary to do this Repair are given in the SPM TASKS given below.
SPM TASK 70-23-01-230-501
SPM TASK 70-23-03-230-501
SPM TASK 70-38-21-380-501

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Standard workshop toolsLOCALStandard workshop tools
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 07-038 AIR DRYING ENAMELK3504CoMat 07-038

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Bush6A2543A/R

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-34-350-066 Remove the Worn Bushes

    1. Refer to: Figure

      2. Push the bushes from the hole.

      1. Use a round bar.

      3. Clean the bush location hole in the connector.

      1. Use a soft clean cloth and air blast.

        Remove the sharp edges around the hole.

    4. Visually inspect the bush location holes.

      NOTE

      Pushing the bushing from the hole using a round bar, and on its own is sufficient to remove the bushings when needed.

    2. SUBTASK 72-41-34-230-086-001 Do a Crack Test

      1. Do a penetrant crack test.

      1. Cracks are not permitted.

    3. SUBTASK 72-41-34-230-086-002 Do a Crack Test

      1. Do a penetrant crack test.

      1. Cracks are not permitted.

    4. SUBTASK 72-41-34-350-067 Install the Bushes

    1. Refer to: Figure

      2. Install the new bushes into the holes.

      1. Push the bush in to the hole until the retaining feature is engaged.

        Ensure the bush is installed from the correct direction.

    3. Visually inspect the bushes.

    5. SUBTASK 72-41-34-380-052 Touch-up Damaged Surface Protection

    1. Refer to: Figure

      2. Touch-up damaged surface protection.

      1. SPM TASK 70-38-21-380-501 SUBTASK 70-38-21-380-010. Use CoMat 07-038 AIR DRYING ENAMEL.

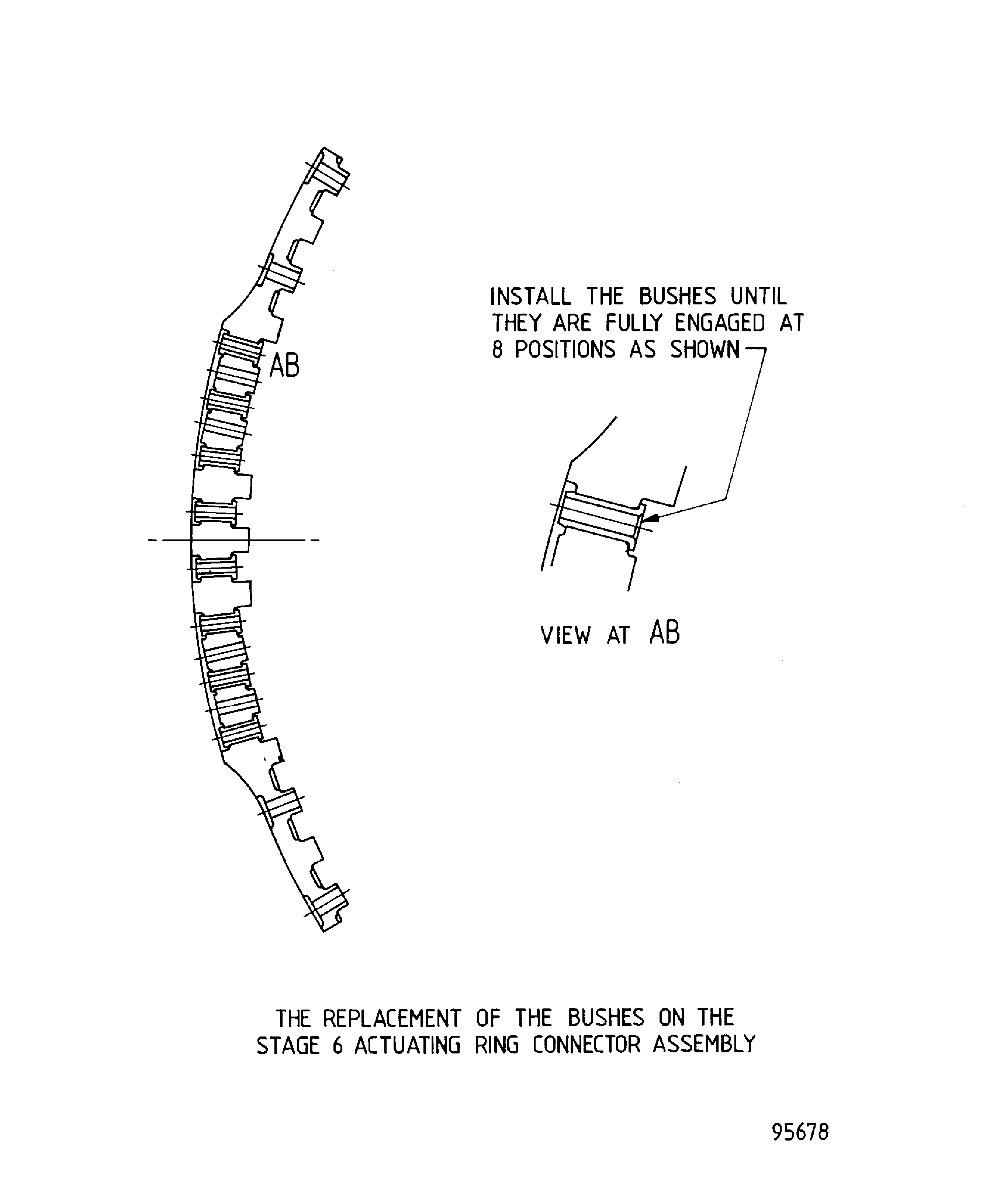

    6. Figure: Remove/Install the bushes

    Remove/Install the bushes

    Figure: The stage 6 actuating ring connector assembly

    The stage 6 actuating ring connector assembly

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised DM applicability and added note. (20VG108)

Link not Found
Manufacturer Code:K3504
