TASK 72-42-10-300-001 Diffuser Case Machine Threaded Plug - Replace The Silver Plate, Repair-001 (VRS3287)

DMC:V2500-A0-72-42-1003-00A-647A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-42-10-300-001 Diffuser Case Machine Threaded Plug - Replace The Silver Plate, Repair-001 (VRS3287)

Effectivity

FIG/ITEM PART NO.

01-020

584971

Material of component

RR

DESCRIPTION SYMBOL MATERIAL

Diffuser Case Assembly Plug

-

-

General

Price and availability - refer to IAE

The practices and processes referred to in the procedure by the TASK number are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-42-10-330-051 Remove the Silver Plate from the Threads of the Diffuser Case Assembly Plug

    1. Refer to: Figure

      2. Remove the silver plate from the plug threads.

      1. Refer to the SPM TASK 70-33-26-330-501.

    2. SUBTASK 72-42-10-330-052 Apply Silver Plate to the Threads of the Diffuser Case Assembly Plug

    1. Refer to: Figure

      2. Apply silver plate to the threads of the plug.

      1. Refer to the SPM TASK 70-33-26-330-501.

        Apply the silver plate 0.0003 to 0.0006 in. (0.0077 to 0.0152 mm) thick.

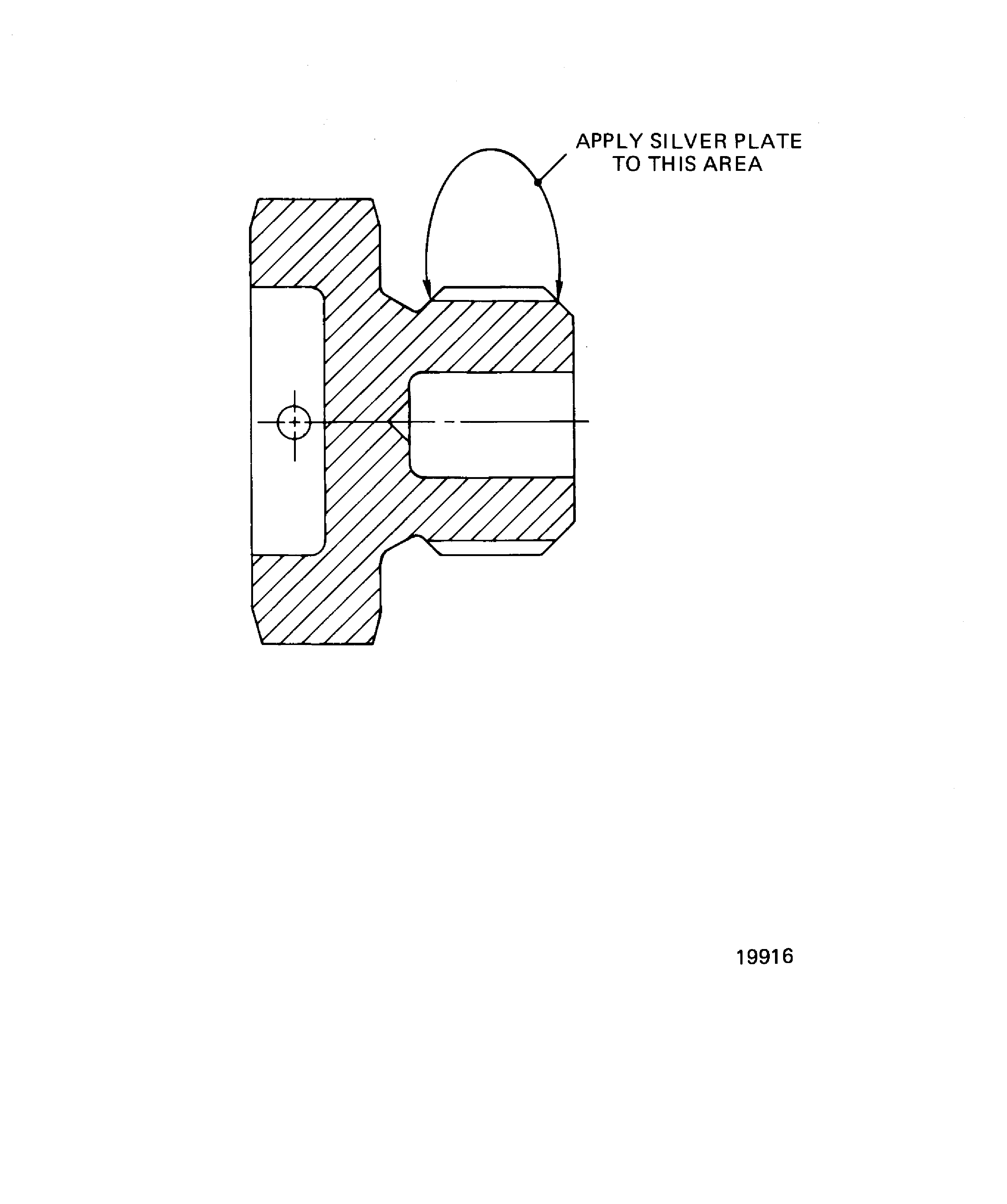

    3. Figure: Replace the silver plate on the diffuser case assembly plug

    Replace the silver plate on the diffuser case assembly plug

Requirements After Job Completion

Follow-On Conditions

NONE
