DMC:V2500-A0-72-42-1100-00A-649A-B|Issue No:002|Issue Date:2014-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-42-11-300-024 Diffuser Case - Blend Repair, Repair-024 (VRS3061)

Effectivity

FIG/ITEM PART NO.
01-010	2A0051
01-010	2A2081-01
01-010	2A2581-01
01-010	2A2883-01
01-010	2A2889-01
01-010	2A2896-01
01-010	2A2885-01
01-010	2A2891-01
01-010	2A2897-01
01-010	2A3132

Material of component

PART IDENT	SYMBOL	MATERIAL
Diffuser Case Assembly		Nickel alloy

General

Price and availability - refer to IAE

The practices and processes referred to in the procedure by the TASK number are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

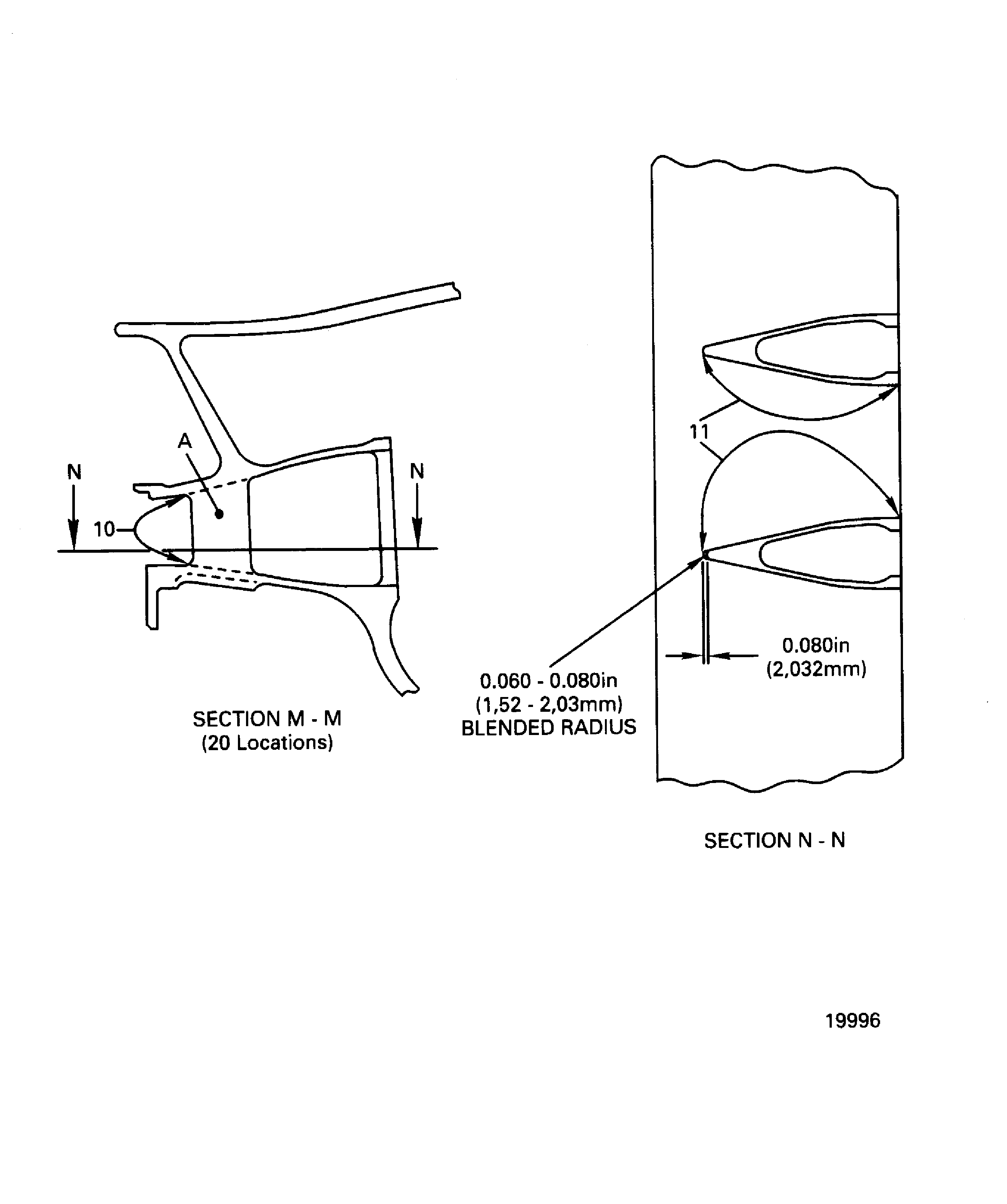

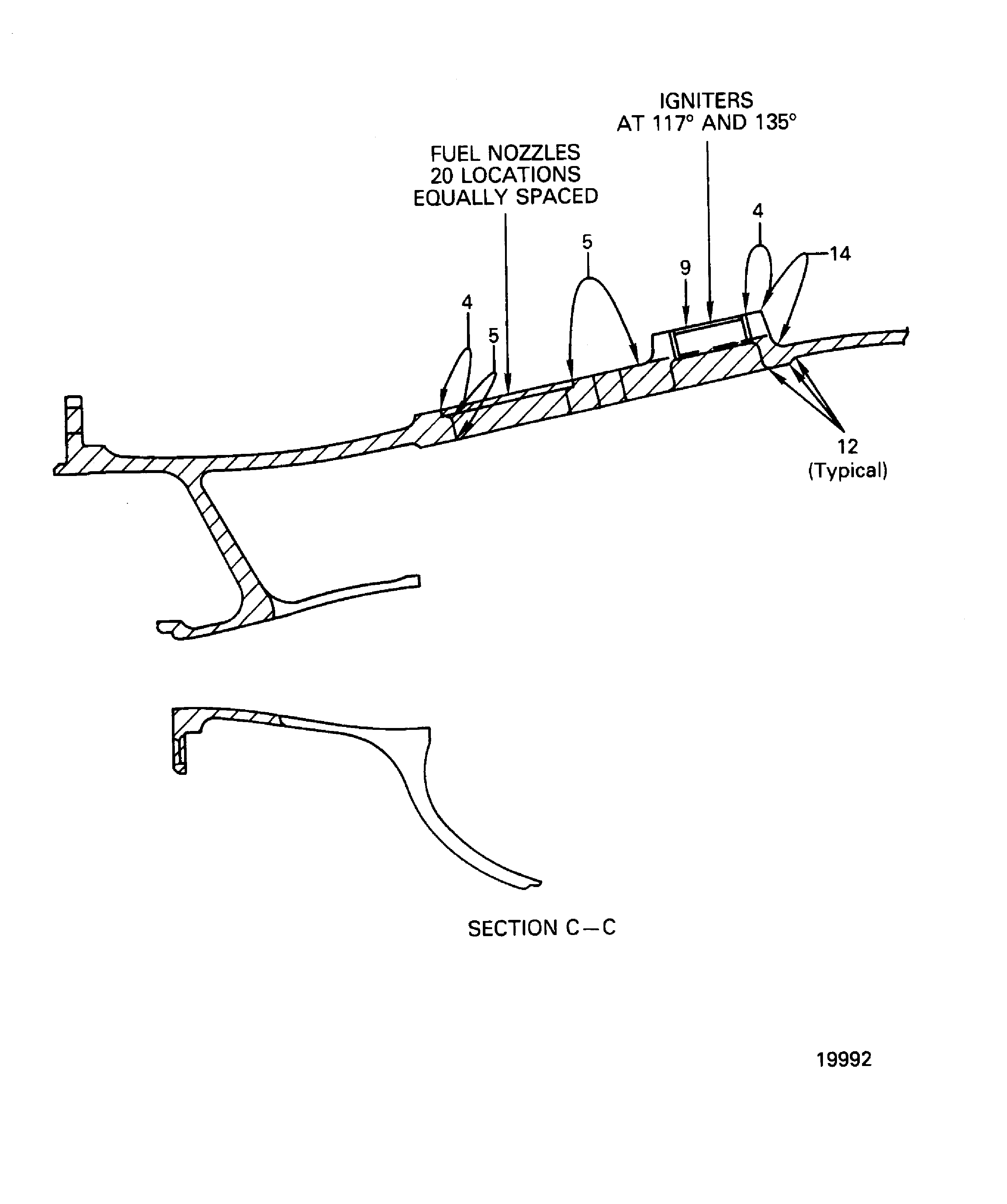

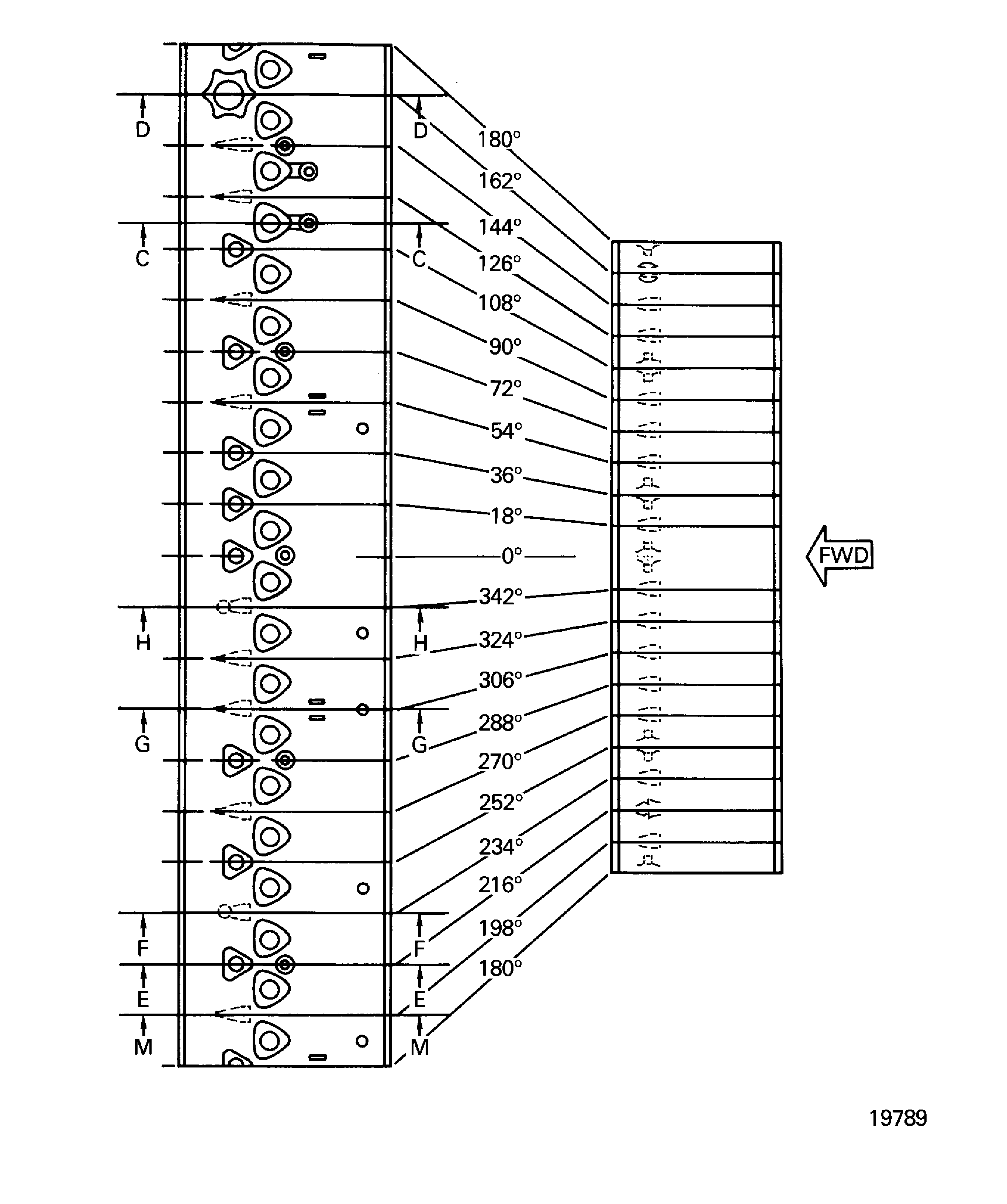

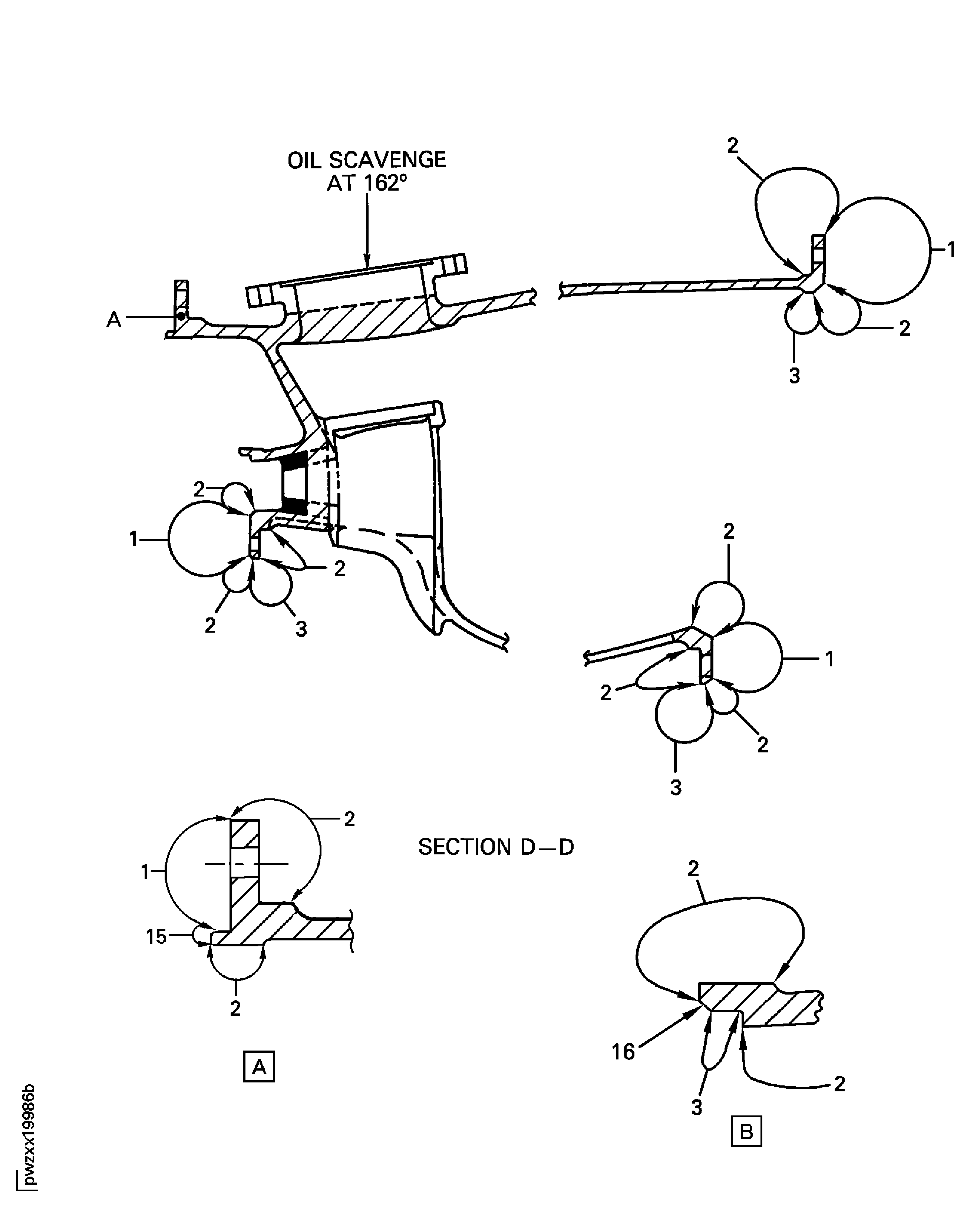

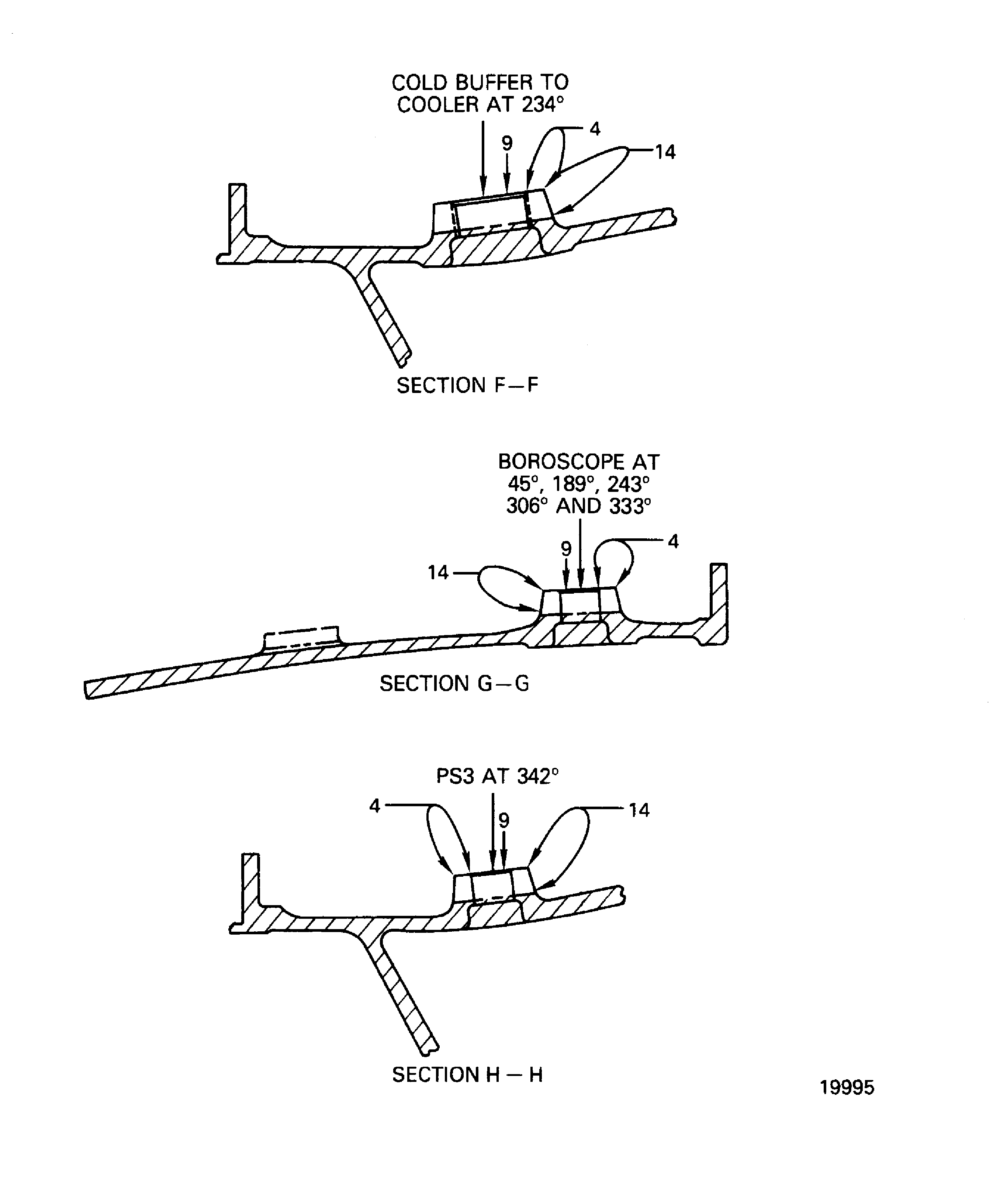

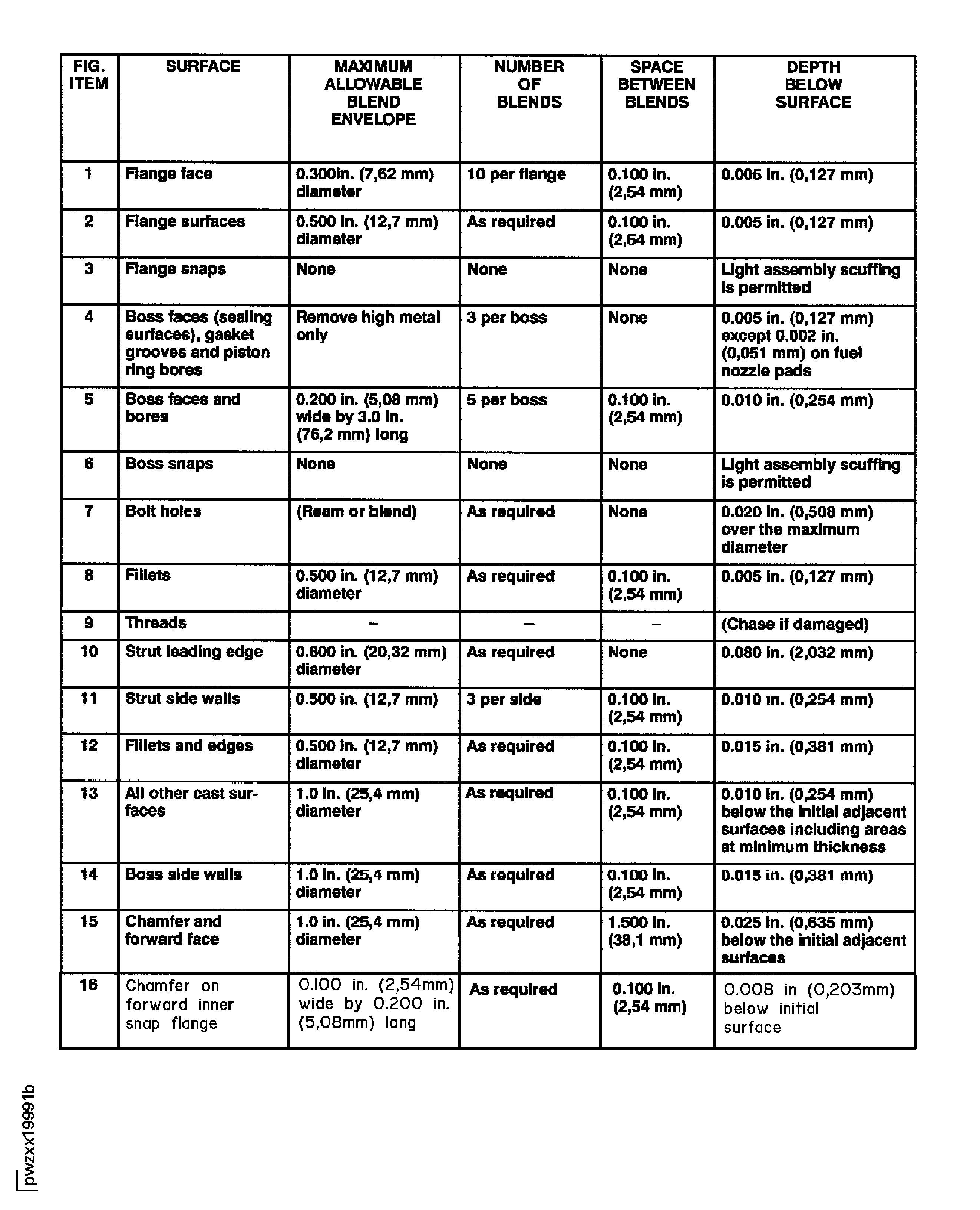

1. Refer to: Figure and Figure

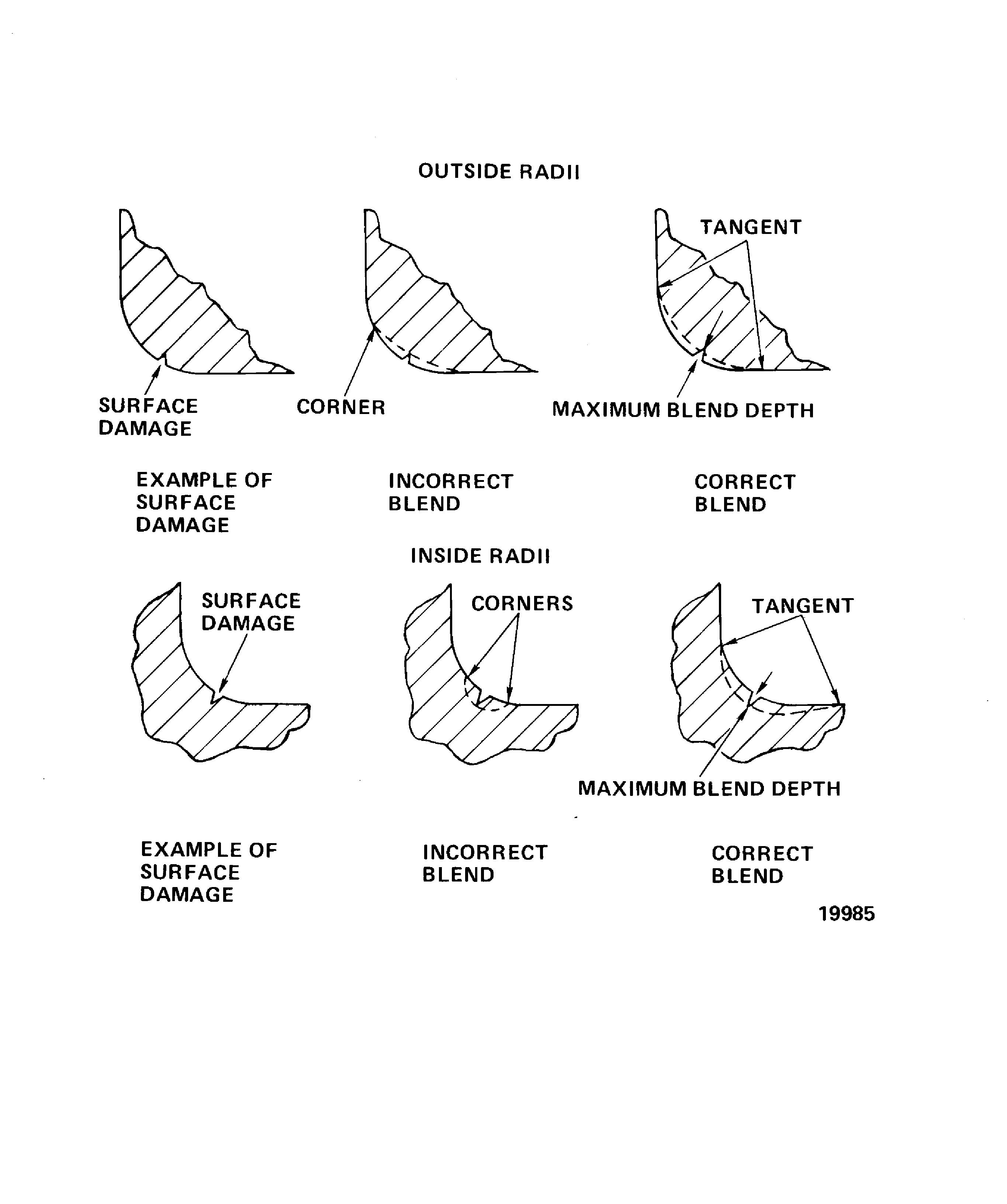

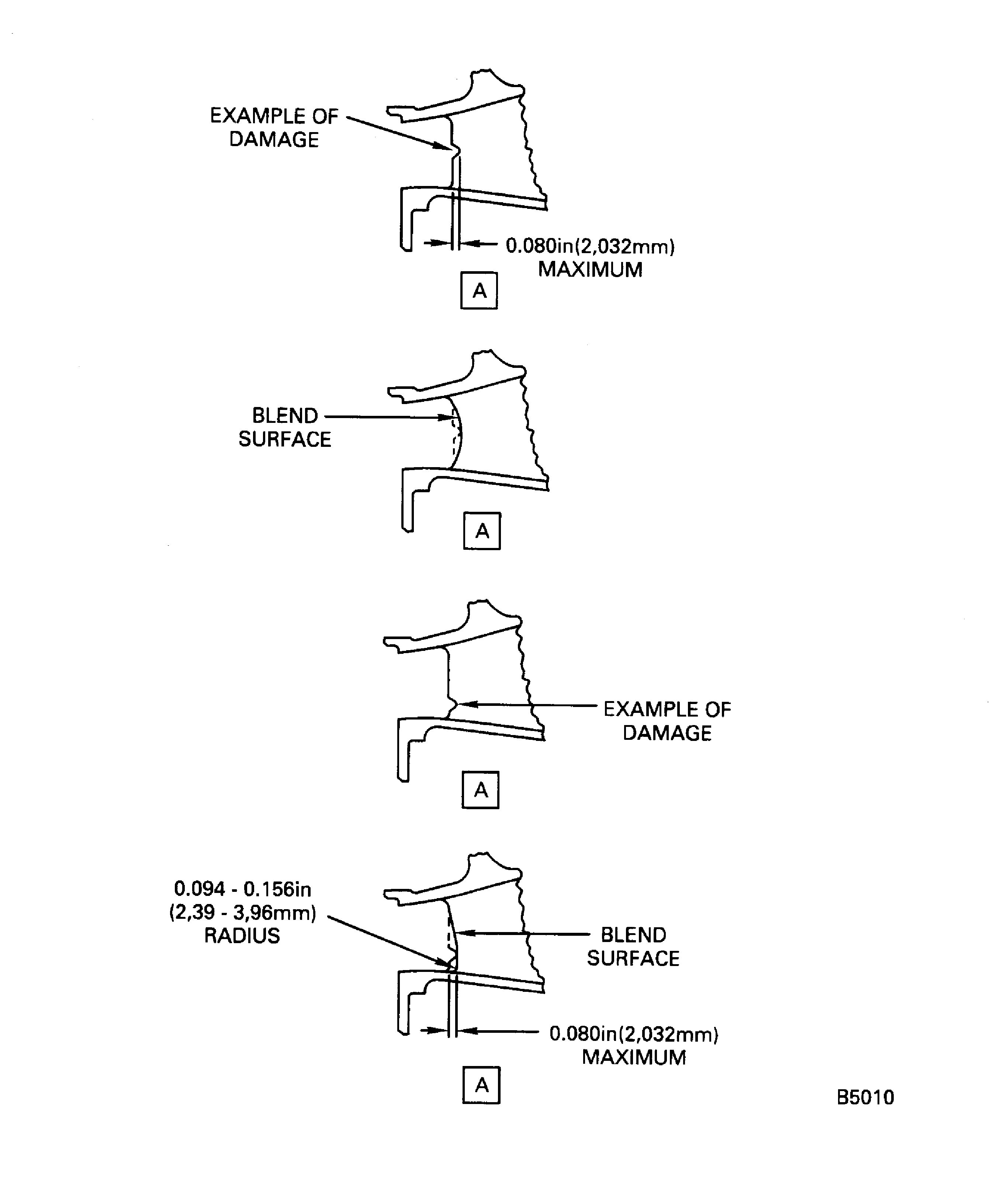

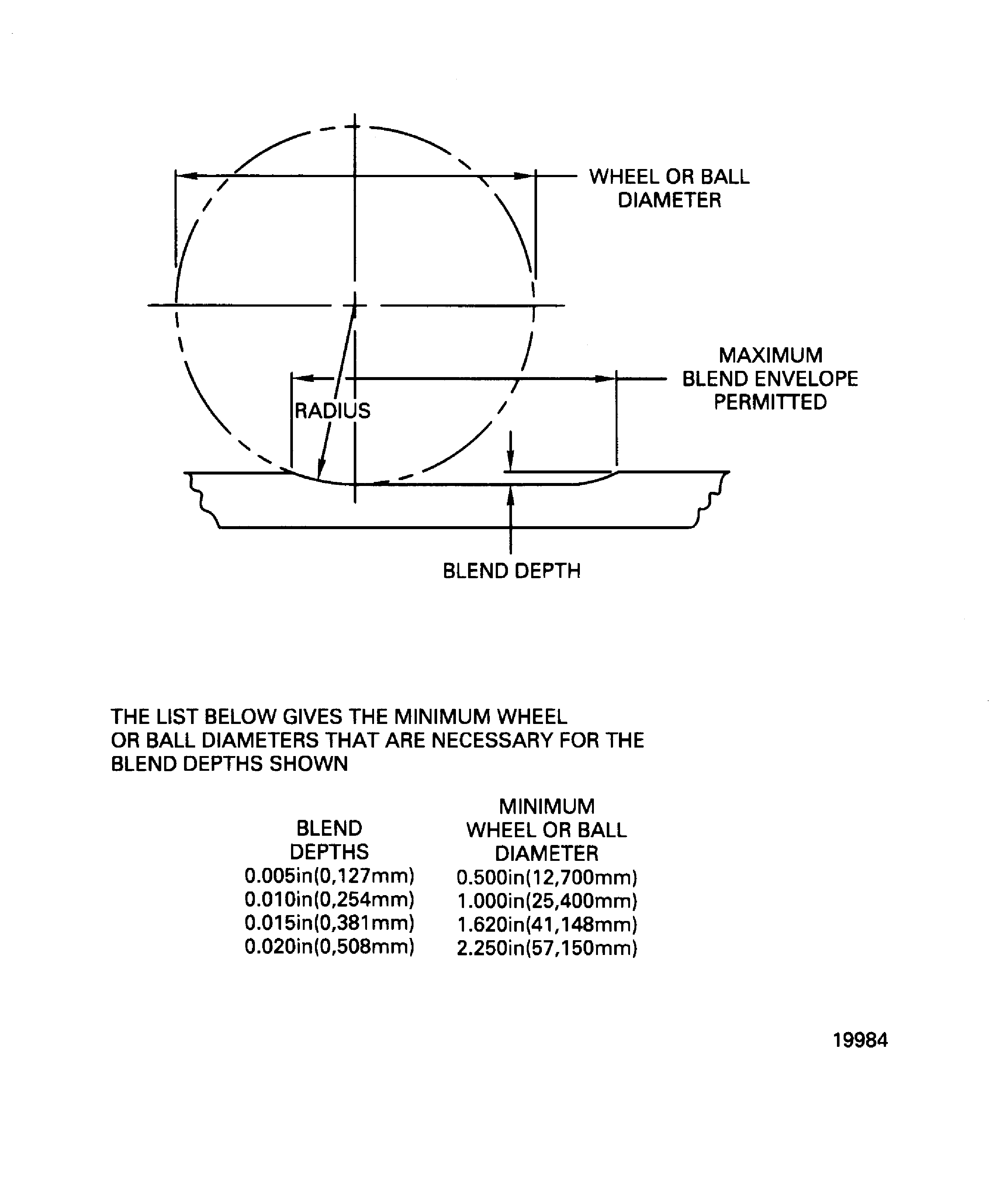

2. 1. Refer to Figure for the correct ball or wheel size. Refer to Figure for example of surface damage and correct blends.

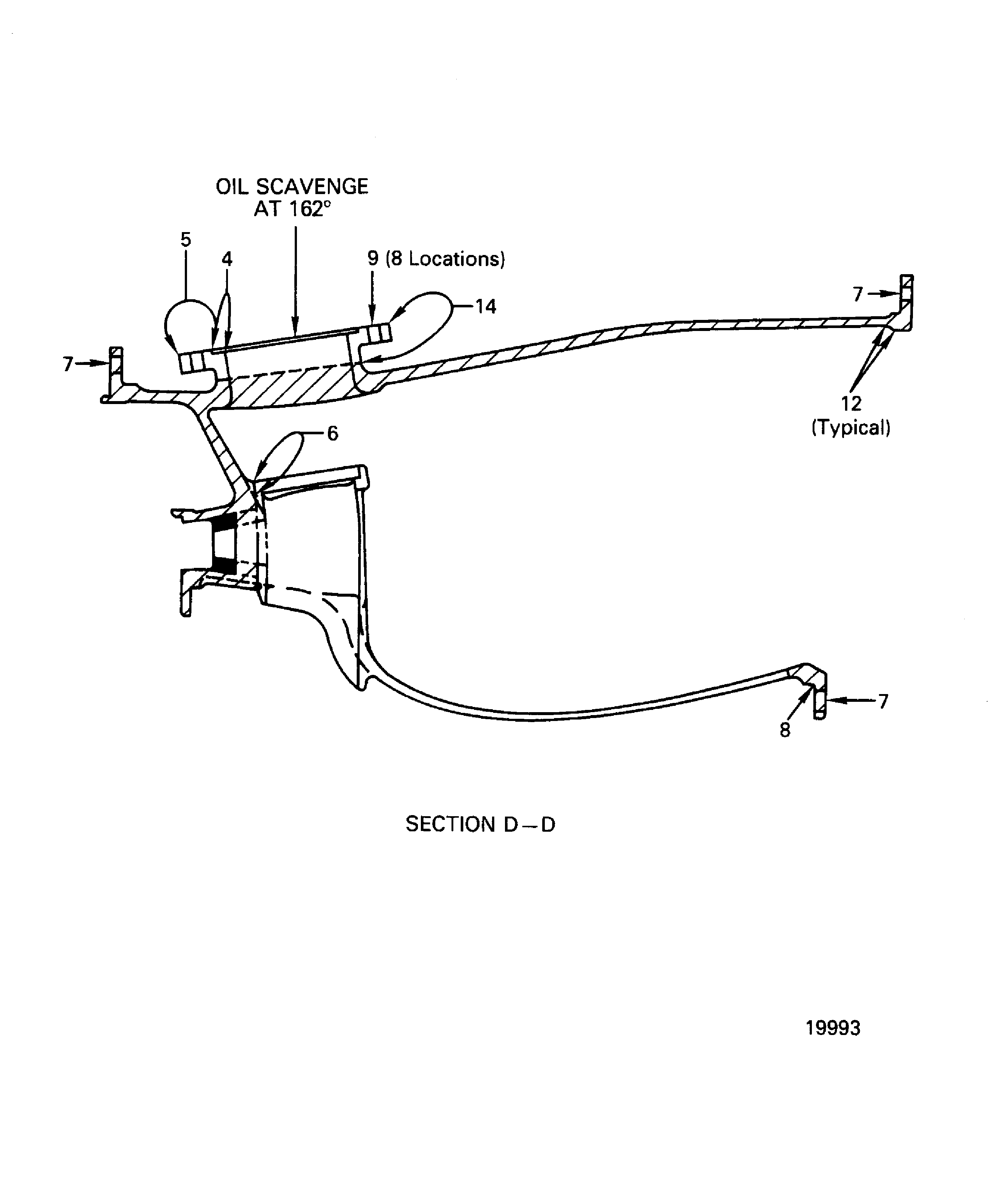

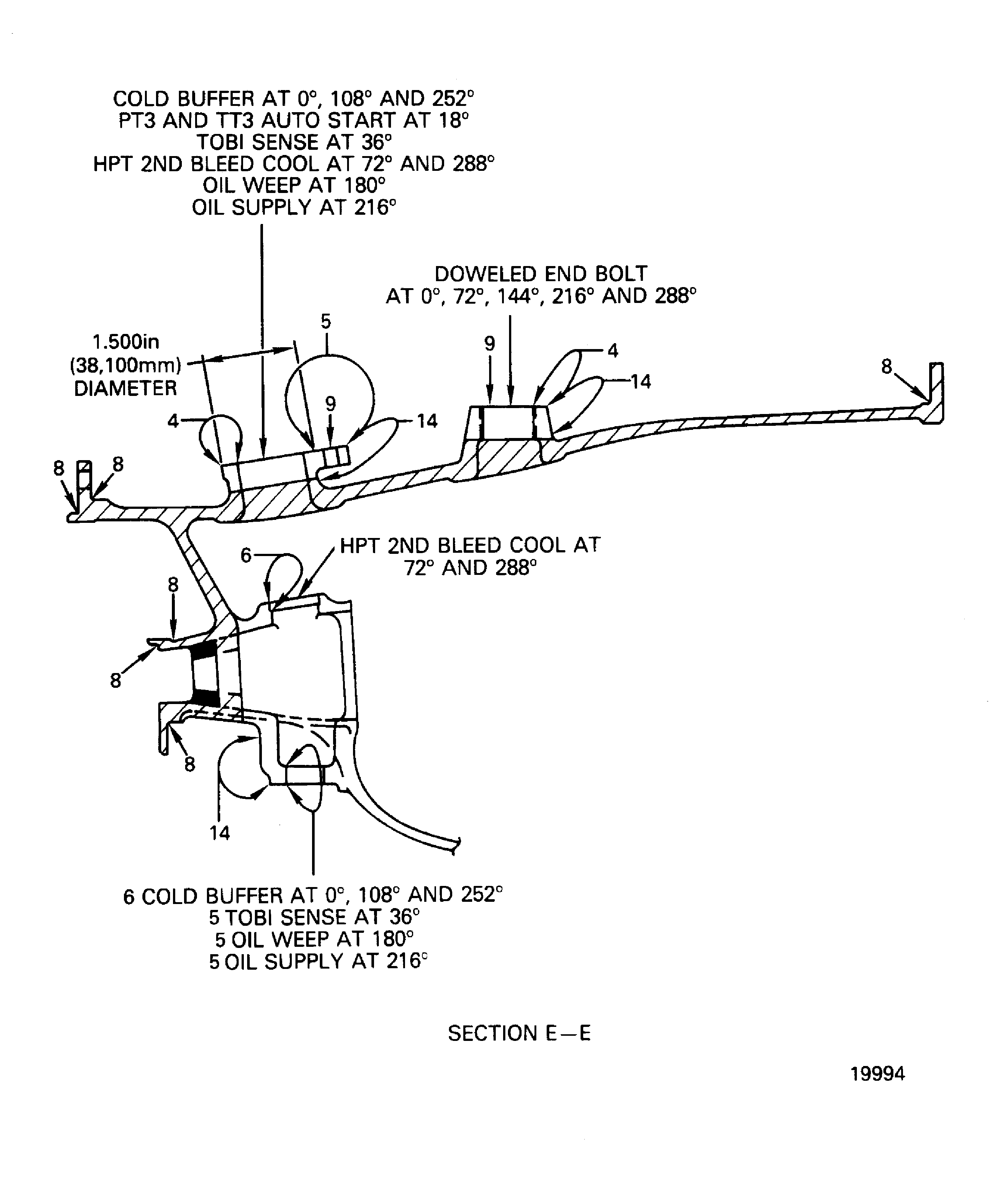

3. 1. Refer to Figure , Figure and the SPM TASK 70-35-21-350-501.

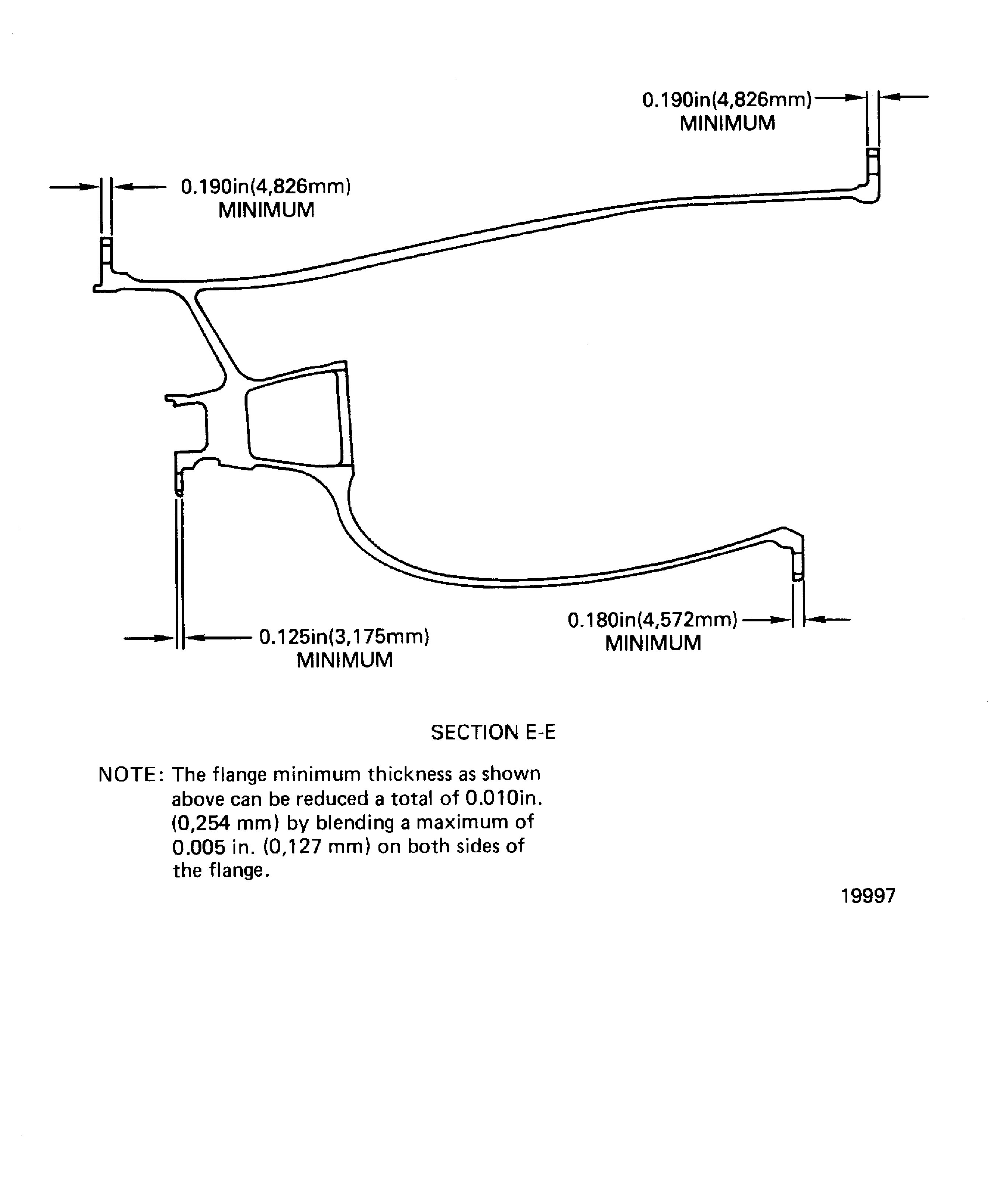

1. Refer to: Figure
2. 1. Refer to Figure.
