TASK 72-42-11-300-035 Diffiuser Case - Blend Repair The Inner Cavities Of The Strut, Repair-035 (VRS3777)

DMC:V2500-A0-72-42-1100-01A-649A-C|Issue No:003.00|Issue Date:2015-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-42-11-300-035 Diffiuser Case - Blend Repair The Inner Cavities Of The Strut, Repair-035 (VRS3777)

Effectivity

FIG/ITEM PART NO.

01-010

2A0051

01-010

2A2081-01

01-010

2A2581-01

01-010

2A2883-01

01-010

2A2885-01

01-010

2A2889-01

01-010

2A2891-01

01-010

2A2896-01

01-010

2A2897-01

01-010

2A3132

Material of component

PART IDENT

SYMBOL

MATERIAL

Diffuser case assembly

-

Nickel alloy

General

Price and availability - refer to IAE.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-42-11-320-087 Blend Repair the Damaged Area

    1. Refer to Figure, Figure and Figure.

      2. Do a blend repair on the damaged area.

      1. Refer to the SPM TASK 70-35-21-350-501.

        Maximum blend depth limit is 0.010 in. (0.25 mm) below wall minimum. Refer to Figure and Figure.

        Only one blend is permitted for each side.

        Where possible, make sure there is a 10:1 width-to-depth ratio.

        NOTE

        Keep the material removal to the minimum necessary to remove the damage.

    2. SUBTASK 72-42-11-220-110 Post Repair Inspection of the Internal Cavities of the Strut

      1. Do a visual inspection of the blend repaired areas.

      1. Refer to the SPM TASK 70-21-01-220-501.

        After the blend repair, the surface must be as smooth as the initial surface. Edges and corners are not permitted.

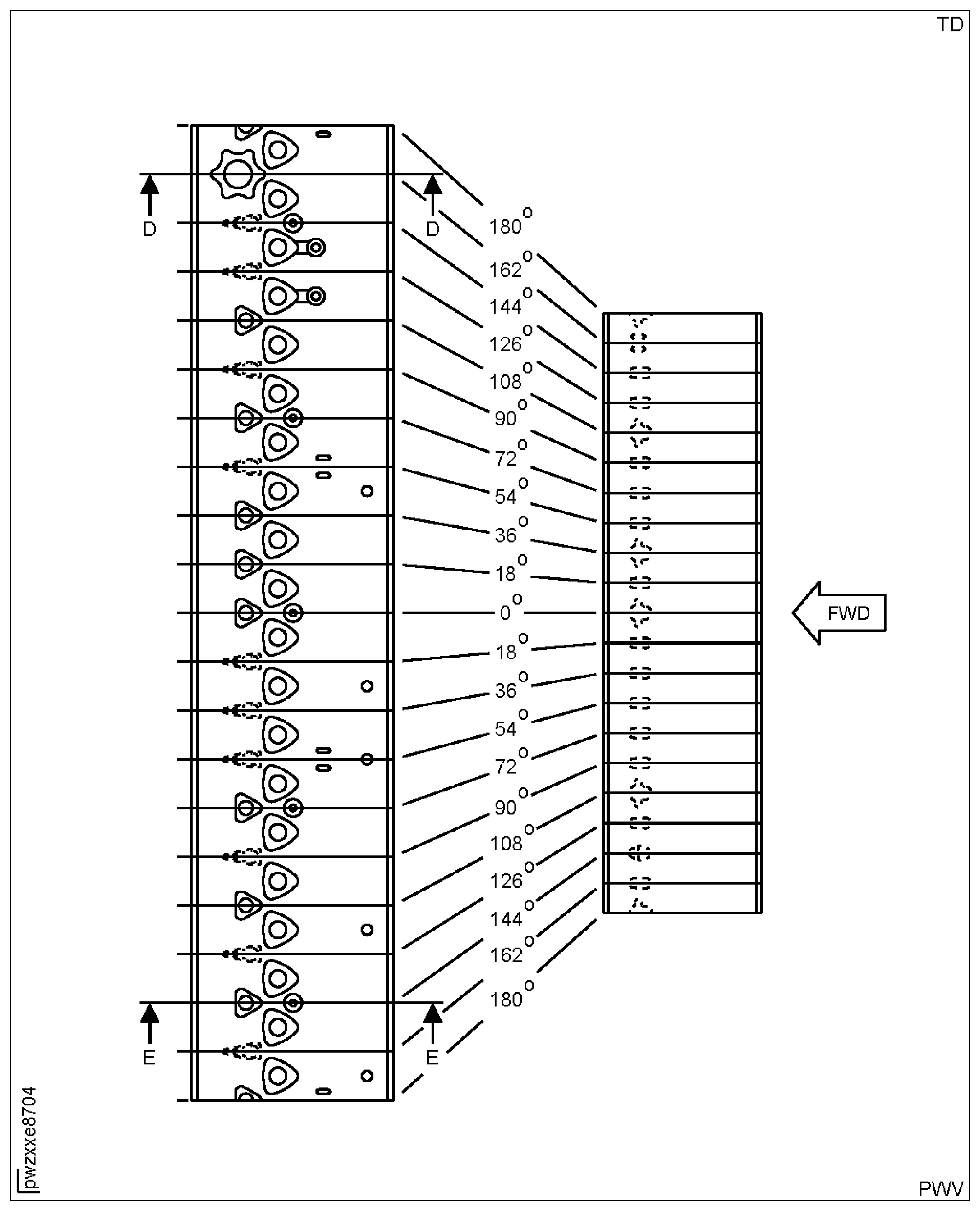

    3. Figure: Repair Details and Dimensions

    Sheet 1

    Legend
    Repair Details and Dimensions

    Sheet 1

    Close

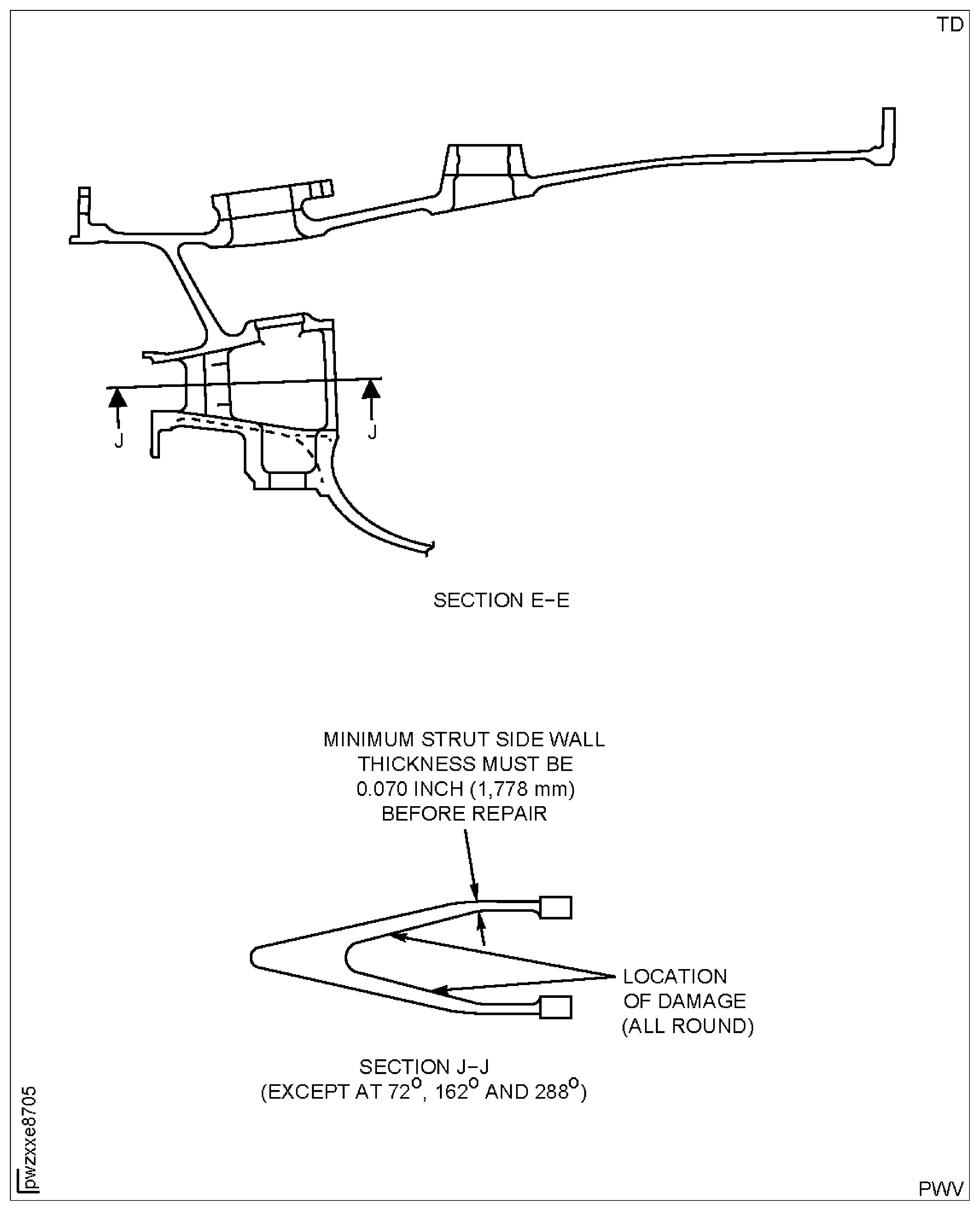

    Figure: Repair Details and Dimensions

    Sheet 2

    Legend
    Repair Details and Dimensions

    Sheet 2

    Close

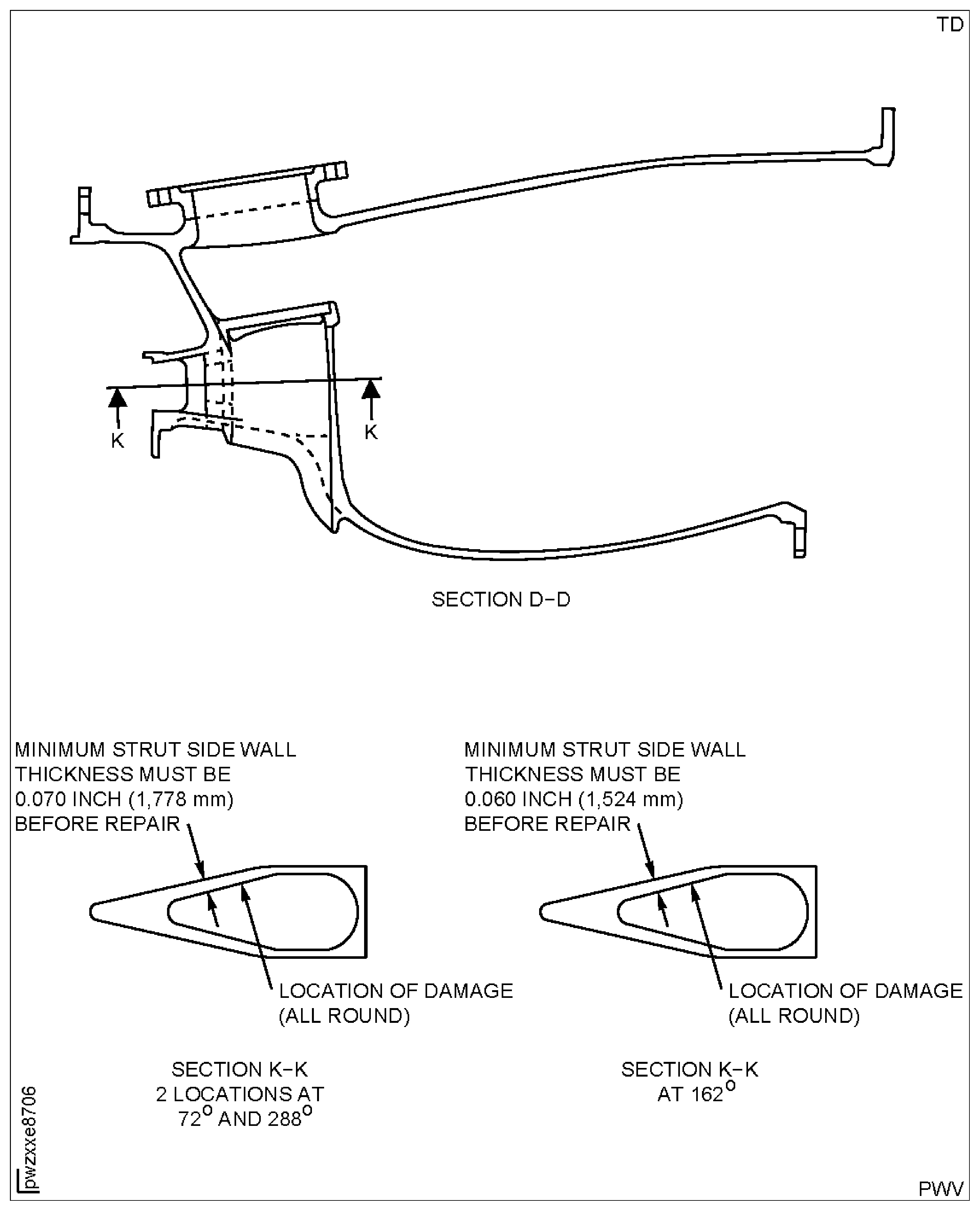

    Figure: Repair Details and Dimensions

    Sheet 3

    Legend
    Repair Details and Dimensions

    Sheet 3

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised format. (editorial change)
