TASK 72-42-11-300-022 Diffuser Case - Replace The Fuel Nozzle Boss Insert Or The ACAC Bracket Mount Boss Insert, Repair-022 (VRS3059)

DMC:V2500-A0-72-42-1100-05A-920A-C|Issue No:002.00|Issue Date:2018-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-42-11-300-022 Diffuser Case - Replace The Fuel Nozzle Boss Insert Or The ACAC Bracket Mount Boss Insert, Repair-022 (VRS3059)

Effectivity

FIG/ITEM

PART NO.

01-010

2A0051

01-010

2A2081-01

01-010

2A2581-01

01-010

2A2883-01

01-010

2A2889-01

01-010

2A2896-01

01-010

2A2885-01

01-010

2A2891-01

01-010

2A2897-01

Material of component

DESCRIPTION

RR

SYMBOL

MATERIAL

Diffuser case assembly

-

Nickel Alloy

General

Price and availability - refer to IAE.

The practices and processes referred to in this procedure by TASK numbers are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Standard inspection equipmentLOCALStandard inspection equipment

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Threaded insert2A0308CL164
Threaded insert2A0308CL264
Threaded insert2A0308CL364
Threaded insert2A0308CL764
Threaded insert2A0308CL864
Threaded insert2A0308CL964
WashersNEW7745024

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-42-11-350-073 Remove the Damaged Insert from the Fuel Nozzle Boss or the ACAC Bracket Mount Boss

    1. Refer to Figure and Figure.

      2. Remove the damaged insert from the diffuser case.

      1. Be careful not to damage the diffuser case.

      2. For ACAC Bracket Mount Boss, remove the washer with the insert.

    2. SUBTASK 72-42-11-220-075 Examine the Diameter of the Insert and the Diameter of the Hole in the Boss

    1. Refer to Figure, Figure and Figure.

      2. Examine the insert for the class number.

      1. Refer to Figure and Figure.

      2. Make a record of the class number.

      3. Measure the hole diameter in the boss.

      1. Remove all high material before you examine the hole diameter.

      2. Make a record of the hole diameter.

      4. Get the correct class number for the new insert from the figure.

      1. Refer to Figure.

      2. Compare the hole diameter to the dimensions given in the figure and find the correct fit and class number for the repair insert.

    3. SUBTASK 72-42-11-350-074 Install the Insert in the Fuel Nozzle Boss

    1. Refer to Figure.

      2. Install the new insert in the fuel nozzle boss.

      1. Make sure you have the correct fit and class number for the location you install the insert.

    3. Make a record of the fuel nozzle boss location, hole location and the class number you install at that location.

    4. SUBTASK 72-42-11-350-089 Install the Insert in the ACAC Bracket Mount Boss

    1. Refer to Figure.

      2. Install the washer and new insert in the ACAC bracket mount boss.

      1. Make sure you have the correct fit and class number for the location you install the insert.

    3. Make a record of the ACAC bracket mount boss location, hole location and the class number you install at that location.

    5. SUBTASK 72-42-11-220-076 Examine the Insert

    1. Refer to Figure and Figure.

      2. Examine the new insert in the fuel nozzle boss or the ACAC bracket mount boss.

      1. A gap is permitted between the fuel nozzle boss and the front face of the insert, except contact is required at one or more locations in the 360 degrees of the insert.

      2. A gap is permitted between the ACAC bracket mount boss and the washer, except contact is required at one or more locations in the 360 degrees of the insert.

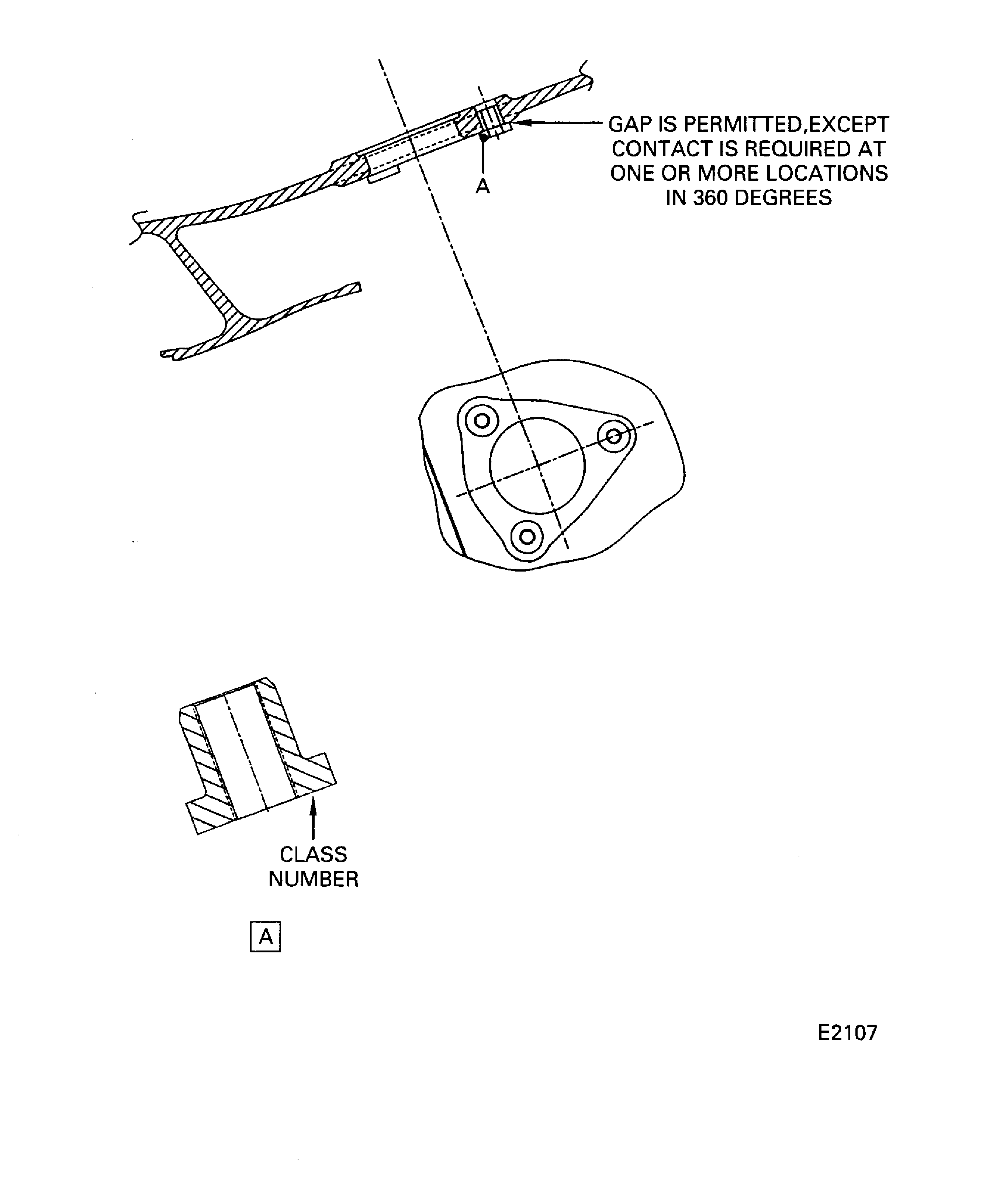

    6. Figure: Diffuser Case Fuel Nozzle Boss Insert Repair Areas

    Diffuser Case Fuel Nozzle Boss Insert Repair Areas

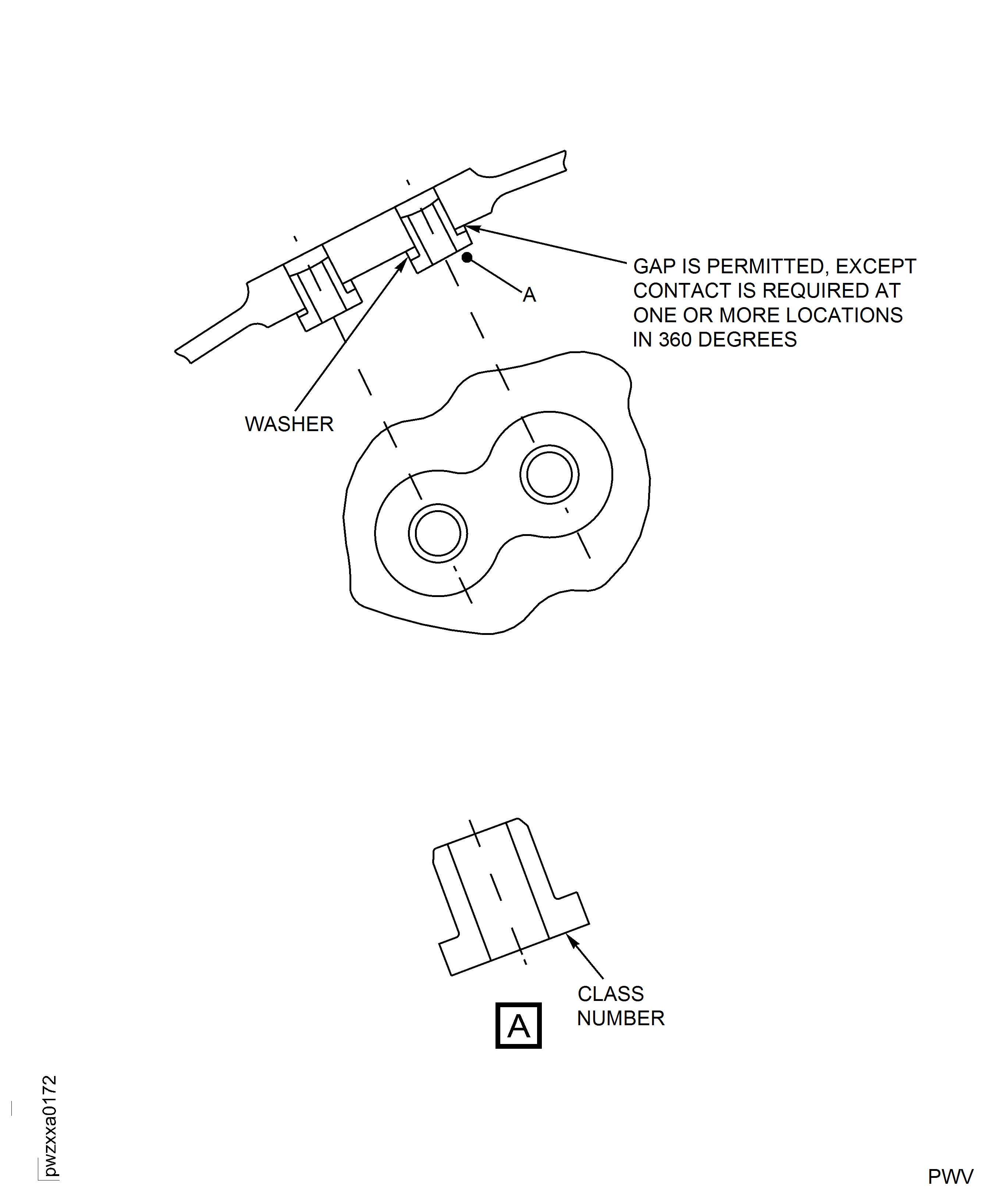

    Figure: Diffuser Case ACAC Bracket Mount Boss Insert Repair Areas

    Diffuser Case ACAC Bracket Mount Boss Insert Repair Areas

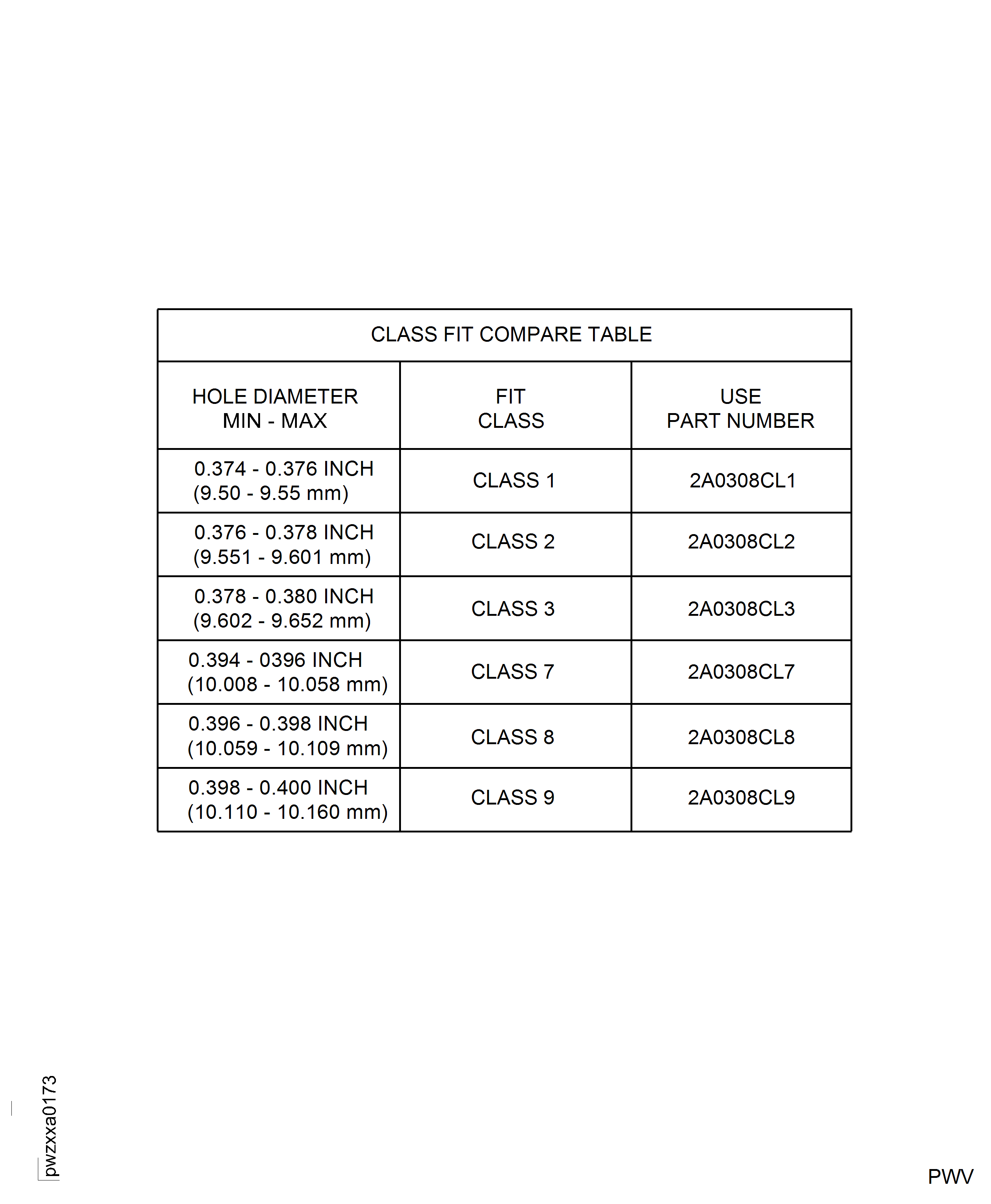

    Figure: Diffuser Case Fuel Nozzle Boss and ACAC Bracket Mount Boss Insert Table

    Diffuser Case Fuel Nozzle Boss and ACAC Bracket Mount Boss Insert Table

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised in its entirety to add the replacement of ACAC bracket mount boss insert. (17VC359)
