TASK 72-42-11-300-034 Diffuser Case - Replace The Rear Flange Jack Screw Helical Coil Inserts, Repair-034 (VRS3749)

DMC:V2500-A0-72-42-1100-10A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-42-11-300-034 Diffuser Case - Replace The Rear Flange Jack Screw Helical Coil Inserts, Repair-034 (VRS3749)

Effectivity

FIG/ITEM PART NO.

01-010

2A0051

01-010

2A2081-01

01-010

2A2581-01

01-010

2A2883-01

01-010

2A2885-01

01-010

2A2889-01

01-010

2A2891-01

01-010

2A2896-01

01-010

2A2897-01

01-010

2A3132

Material of component

PART IDENT

SYMBOL

MATERIAL

Diffuser case assembly

-

Nickel alloy

General

Price and availability - refer to IAE

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

The tools for the removal and the installation of the inserts can be purchased from Emhart Teknologies, Industrial Div., 50 Shelton Technology Center, Shelton, CT 06484 USA, ph: (203) 924-9341 (source code 01556).

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Removal toolLOCAL1227-6

(Emhart Teknologies)

Thread plug gageLOCAL3694-4

(Emhart Teknologies)

Tang removal toolLOCAL3695-4

(Emhart Teknologies)

Plug tapLOCAL4FPB

(Emhart Teknologies)

Installation toolLOCAL7552-4

(Emhart Teknologies)

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
InsertLOCAL1191-9TN375

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-42-11-350-115 Remove the Inserts from the Diffuser Case

    1. Refer to Figure.

      2. If applicable, remove loose or damaged inserts from the diffuser case.

      1. Use PN 1227-6 removal tool.

    2. SUBTASK 72-42-11-320-085 Machine the Damaged Threads

    1. Refer to Figure.

    2. Machine the damaged threads to a minor diameter of 0.2577 to 0.2646 in. (6.545 to 6.721 mm).

      NOTE

      The hole must be in 0.040 in. (1.02 mm) diameter of true position in relation to the flange face and the initial location of the damaged thread minor diameter.

    3. Machine the lead-in chamfer of 120+/-5 degrees included to a diameter of 0.290 to 0.320 in. (7.37 to 8.13 mm).

      4. Tap the hole and remove the chips.

      1. Use PN 4FPB plug tap.

    3. SUBTASK 72-42-11-220-104 Examine the Threads

      1. Examine the threads after you tap them.

      1. Use PN 3694-4 thread plug gage.

    4. SUBTASK 72-42-11-350-116 Install the New Helical Coil Inserts

    1. Refer to Figure.

    2. Put the PN 1191-4TN250 insert onto the tip of the PN 7552-4 insertion tool.

    3. Put the insert into the threaded hole.

    4. Turn the handle clockwise so the top of the insert is three quarters to one and a half pitch below the face of the flange.

      NOTE

      You can make the insert shorter so that the top thread is below the top surface and the bottom thread does not extend through the hole.

      5. Break the tang of the insert at the notch.

      1. Use PN 3695-4 tang removal tool.

    5. SUBTASK 72-42-11-220-105 Remove the Inserts from the Diffuser Case

      1. Examine the new inserts.

      1. Refer to TASK 72-42-11-200-000 (INSPECTION-000).

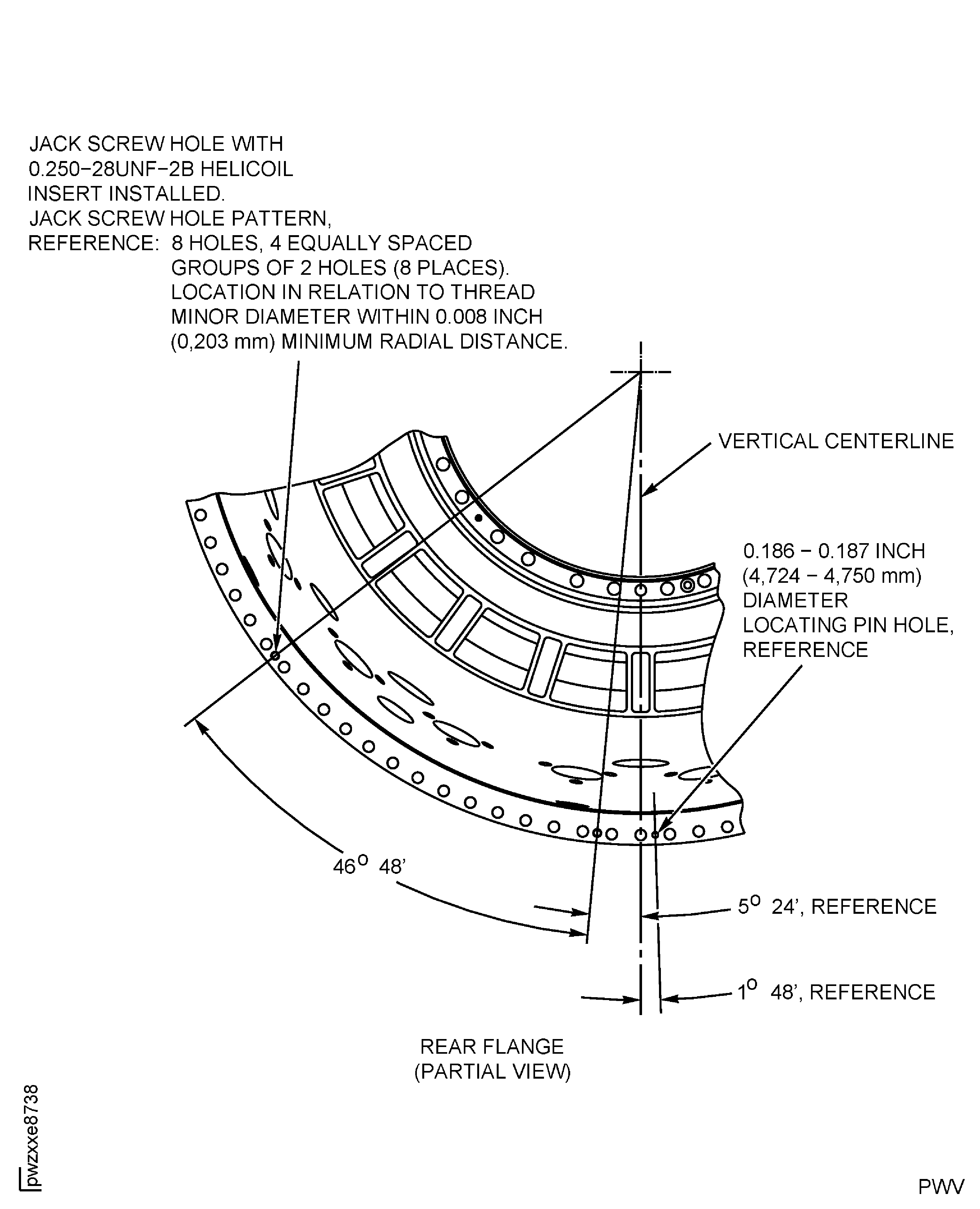

    6. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
