TASK 72-42-20-300-005 No. 4 Bearing Compartment Cooling Air Tube - Blend Repair Surface Damage, Repair-005 (VRS3291)

DMC:V2500-A0-72-42-2051-01A-649A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-42-20-300-005 No. 4 Bearing Compartment Cooling Air Tube - Blend Repair Surface Damage, Repair-005 (VRS3291)

Effectivity

FIG/ITEM

PART NO.

05-200

2A1044

Material of components

DESCRIPTION

RR SYMBOL

MATERIAL

No.4 bearing cooling tube

AMS 5362 stainless steel

General

Price and availability - refer to IAE.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
File (fine)LOCALFile (fine)
Workshop Inspection EquipmentLOCALWorkshop Inspection Equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-106 ABRASIVE STONEK6835CoMat 05-106
CoMat 05-110 EMERY POLISHING PAPER0AM53CoMat 05-110
CoMat 05-120 POLISHING CLOTH06565CoMat 05-120

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-42-20-350-062 Blend the No.4 Bearing Cooling Tube

    1. Refer to Figure.

      2. Blend to remove high metal. Blend smoothly to remove nicks, chafing, scratches, pitting and dents up to a maximum of 0.035 in. (0.889 mm) in depth.

      1. Blends must not change the initial position of Faces A and B.

    2. SUBTASK 72-42-20-220-118 Examine the Repair

      1. Examine the repaired area of the tube.

      1. Refer to Inspection-000 TASK 72-42-20-200-100.

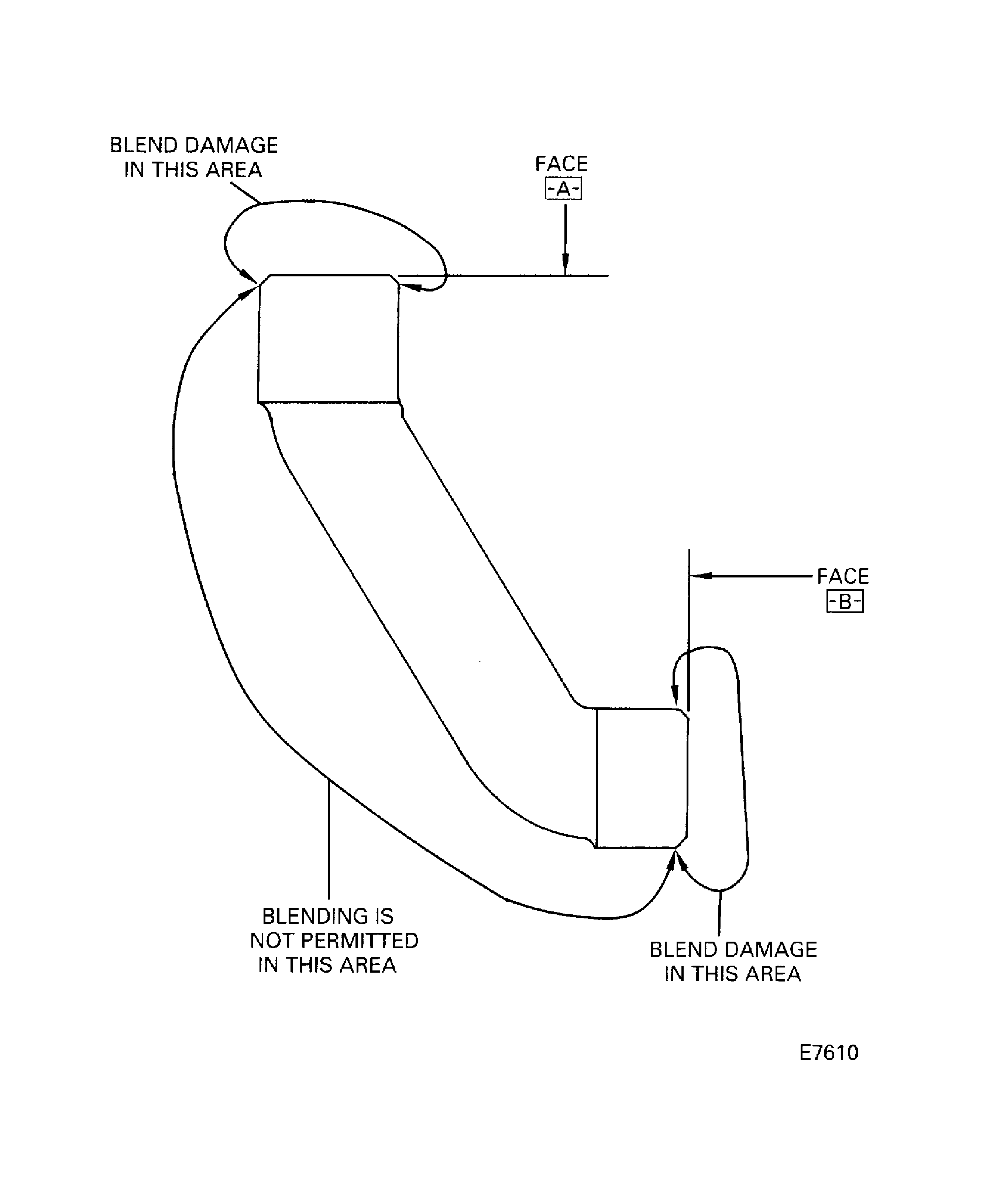

    3. Figure: No.4 Bearing Cooling Tube Blend Repair

    No.4 Bearing Cooling Tube Blend Repair

Requirements After Job Completion

Follow-On Conditions

NONE
